Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 3 illustrations

Illustrations

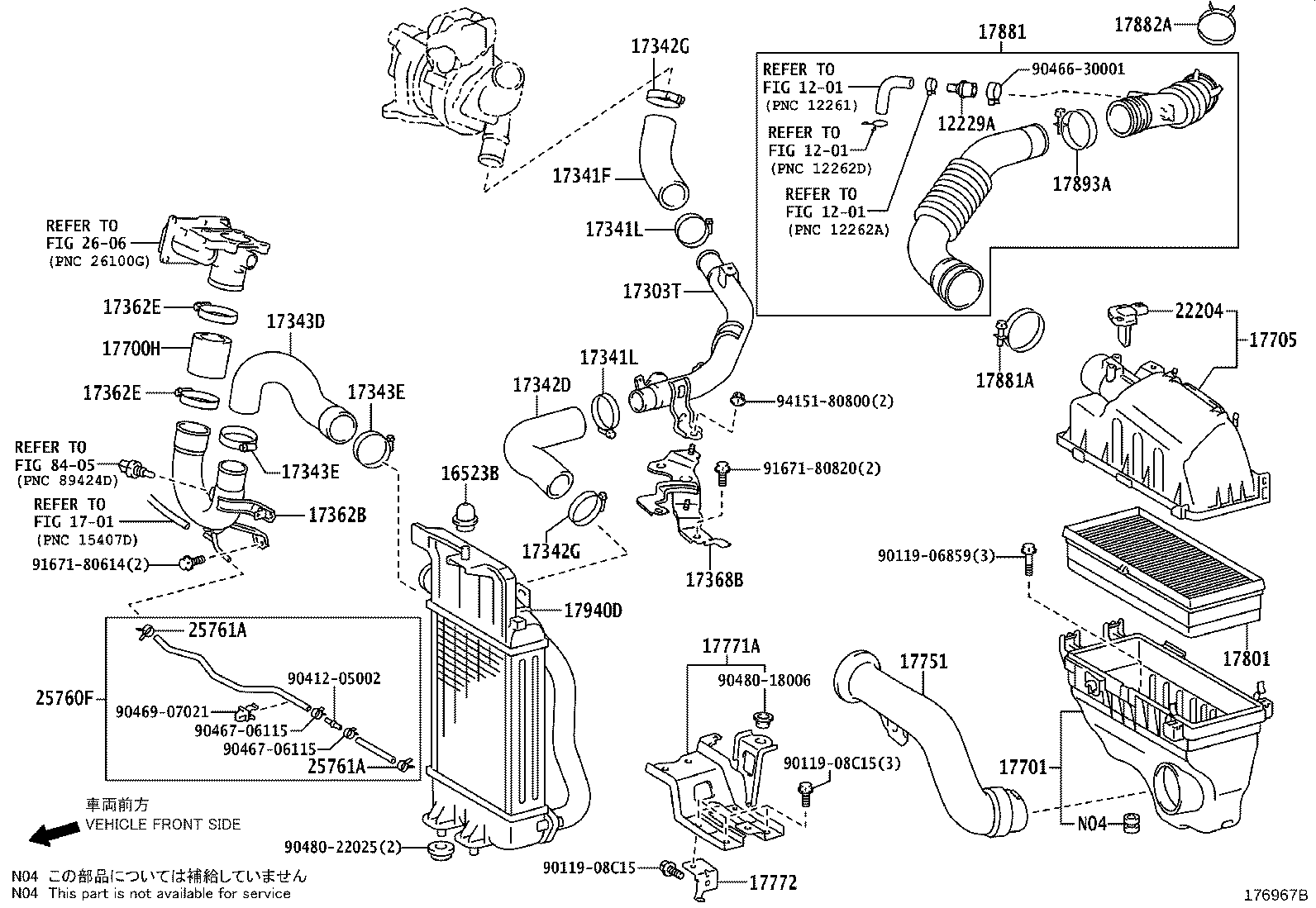

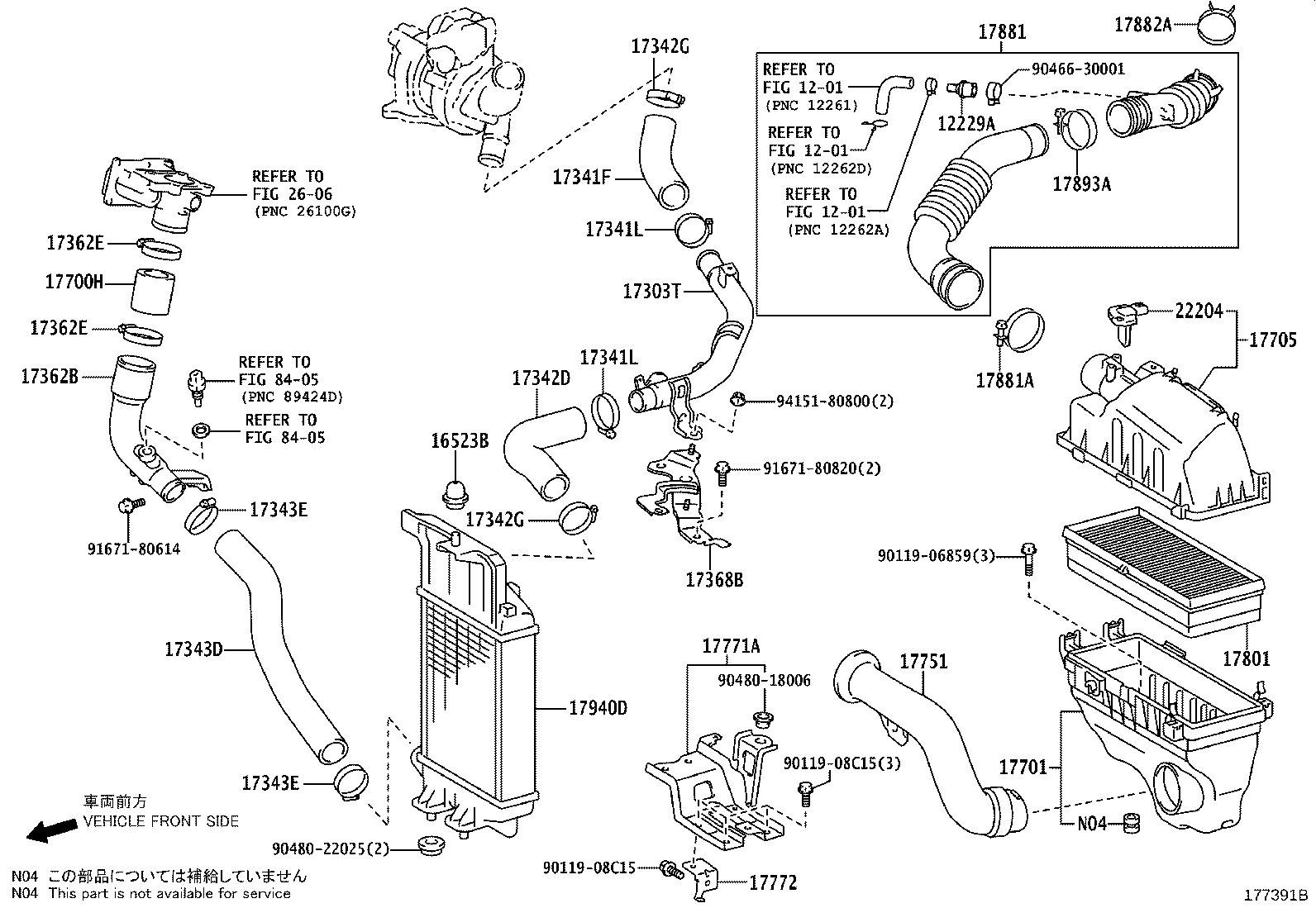

Figure 176965C 176965C 2010-11 → — Figure 176967B 176967B 2010-11 → 2011-11 Figure 177391B 177391B 2011-11 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
16523B Cushion, Radiator Support
17303T Pipe Sub-assy, Air
17341F Hose, Air, NO.1
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17368B Support, Air Tube
17700 Cleaner Assy, Air
17700H Hose, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17772 Bracket, Intake Air Connector, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893A Clamp, Hose
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
25760F Hose Assy, Vacuum Transmitting
25761A Clip(VACCUM TRANSMITTING HOSE NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
