Toyota Verso-s
2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe
Supported model
Data version 2014-05

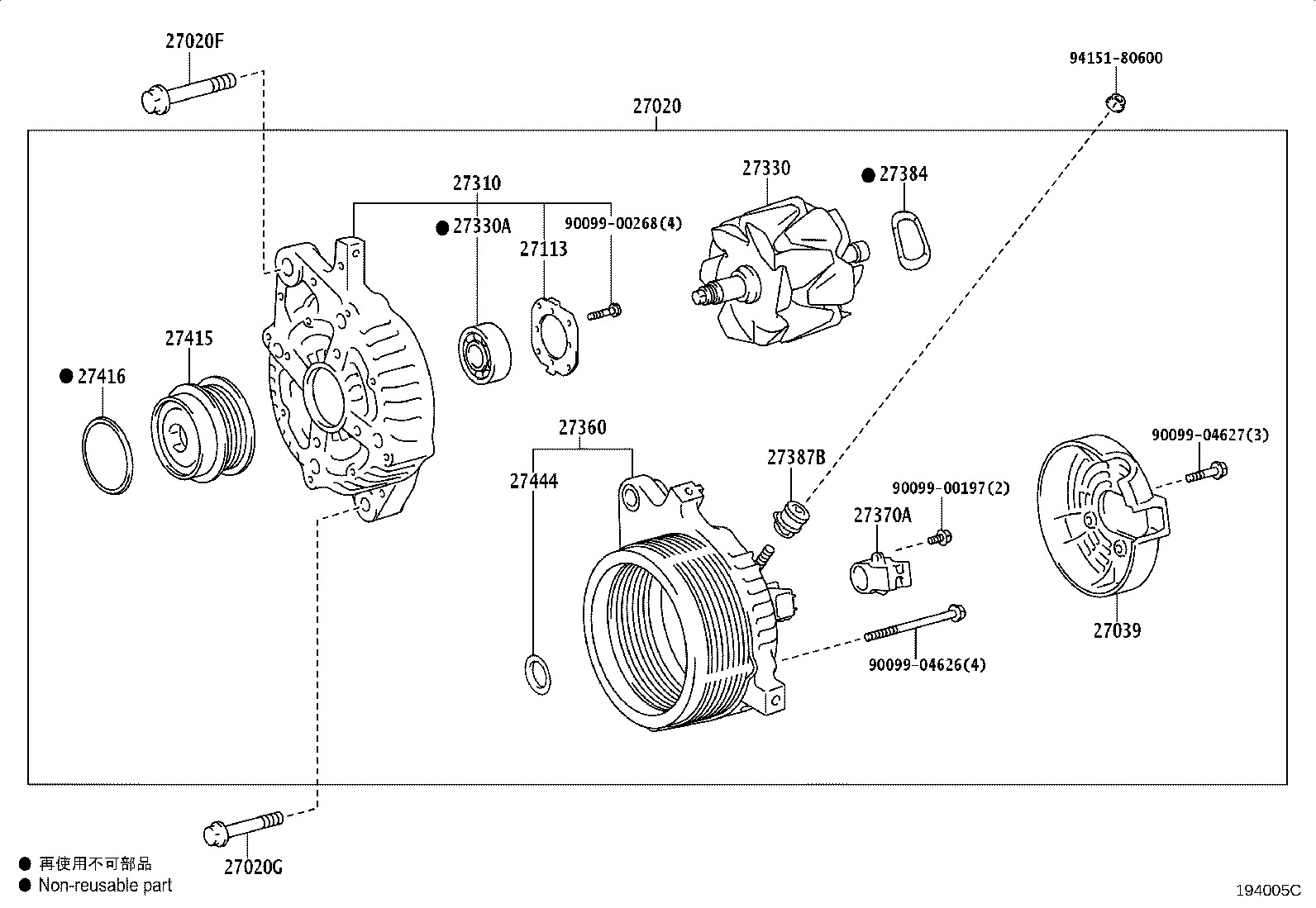

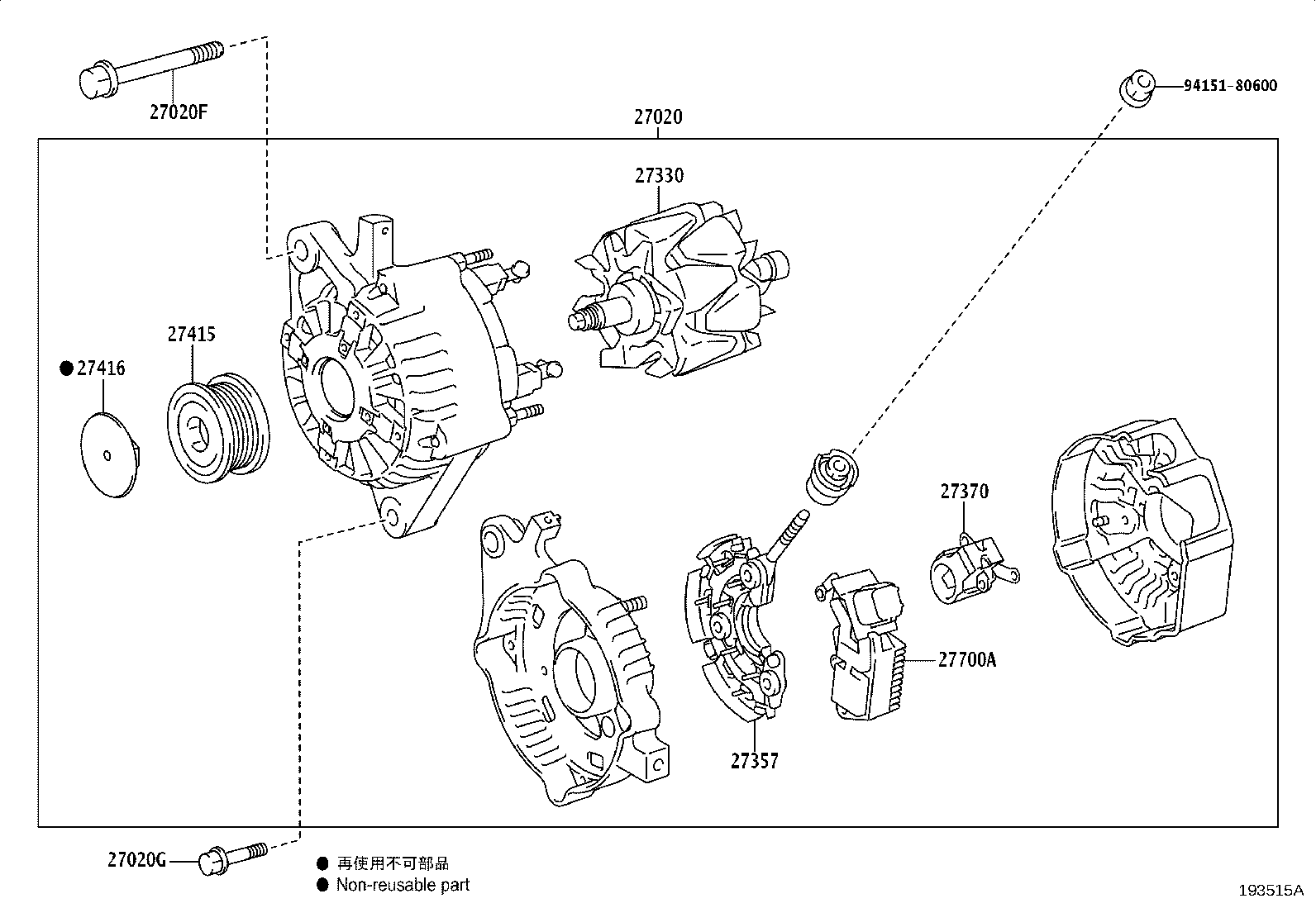

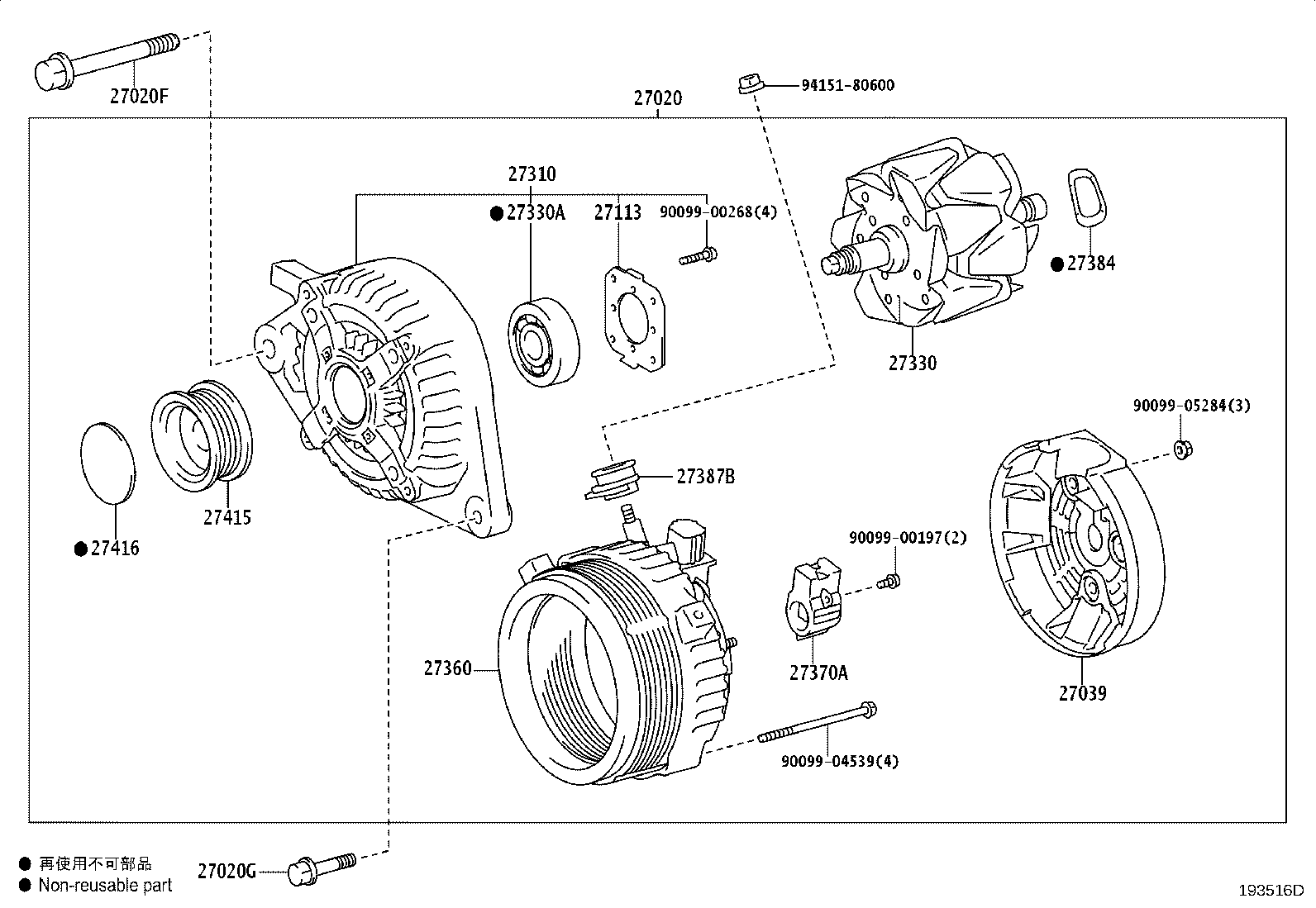

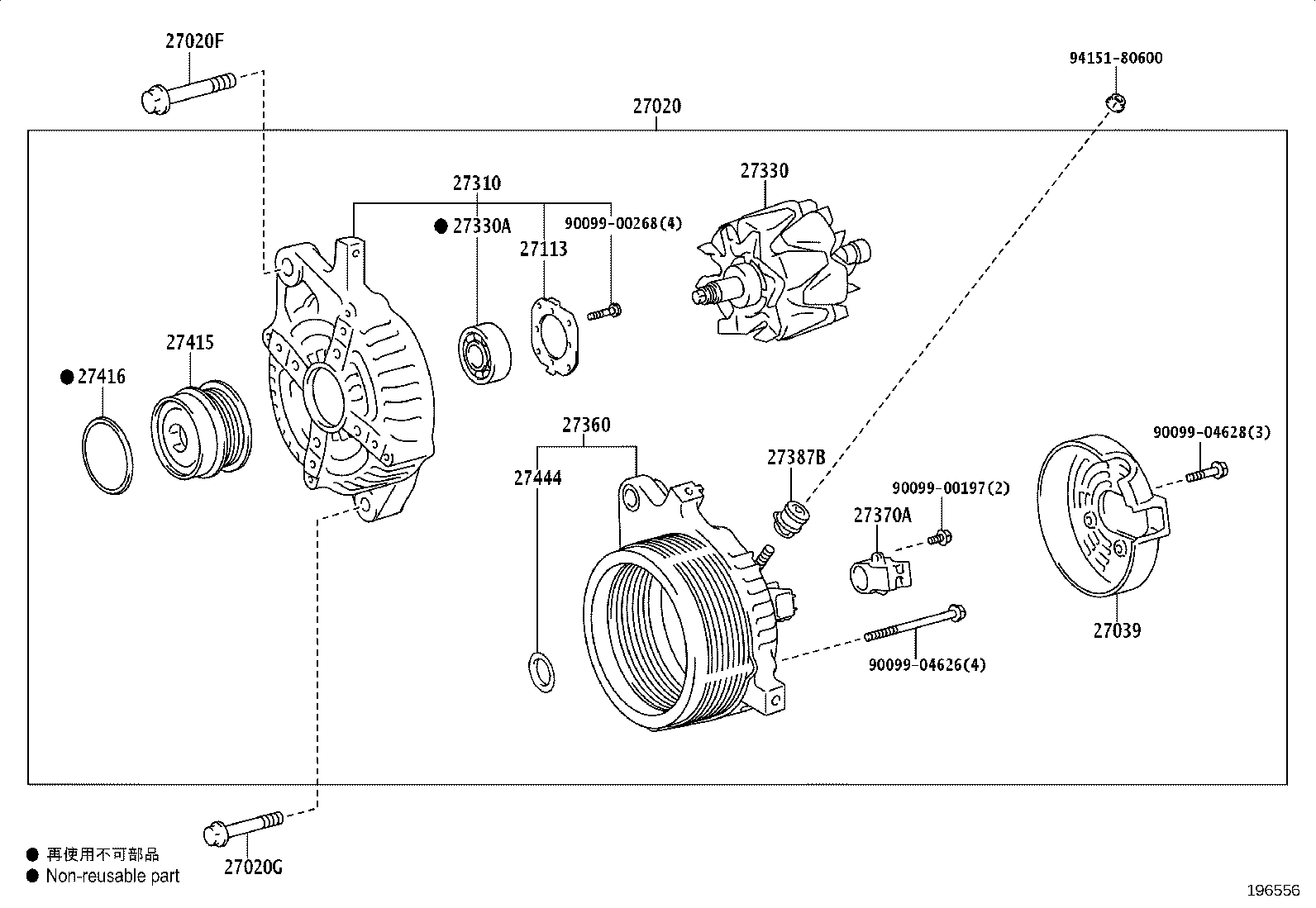

Alternator
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020F | Bolt, NO.1(FOR ALTERNATOR) |
| 27020G | Bolt, NO.2(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27113 | Plate, Bearing Retainer, Alternator |
| 27310 | Frame Assy, Drive End, Alternator |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27357 | Holder, Alternator, W/Rectifier |
| 27360 | Coil Assy, Alternator |
| 27370 | Holder Assy, Alternator Brush |
| 27370A | Holder Assy, Alternator Brush |
| 27384 | Washer |
| 27387B | Insulator, Alternator Terminal |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27444 | Packing, Alternator Bearing Cover |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
