Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

20 part groups · 3 illustrations

Illustrations

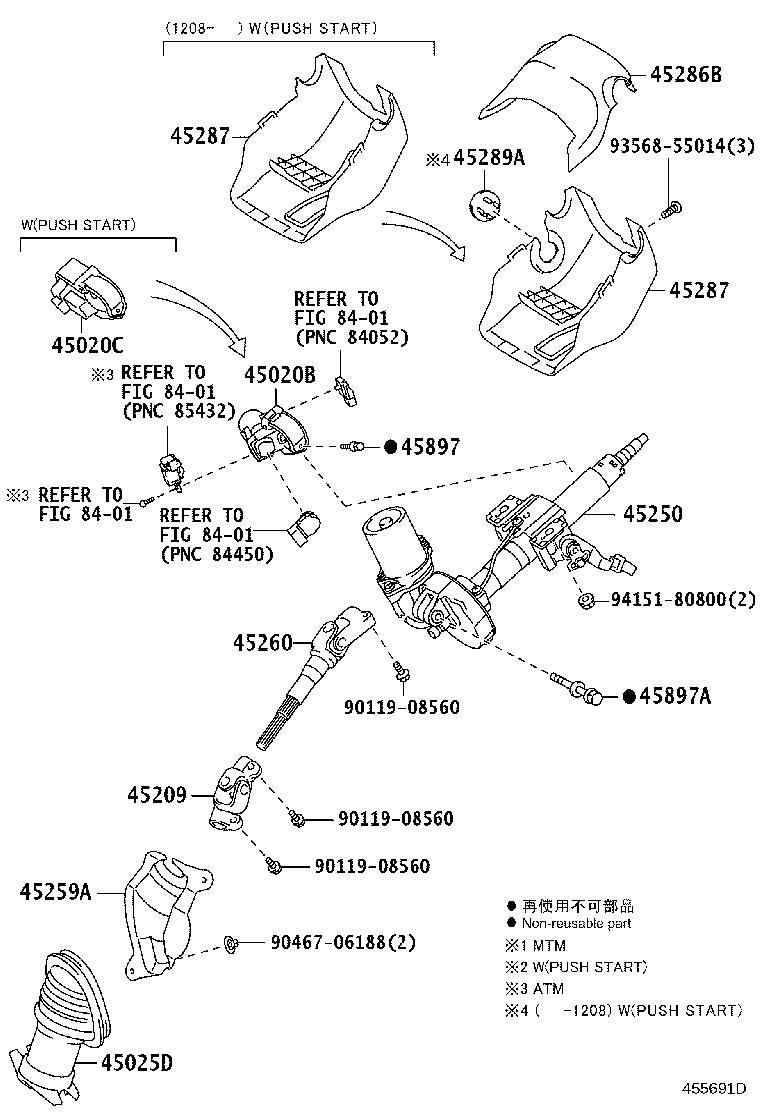

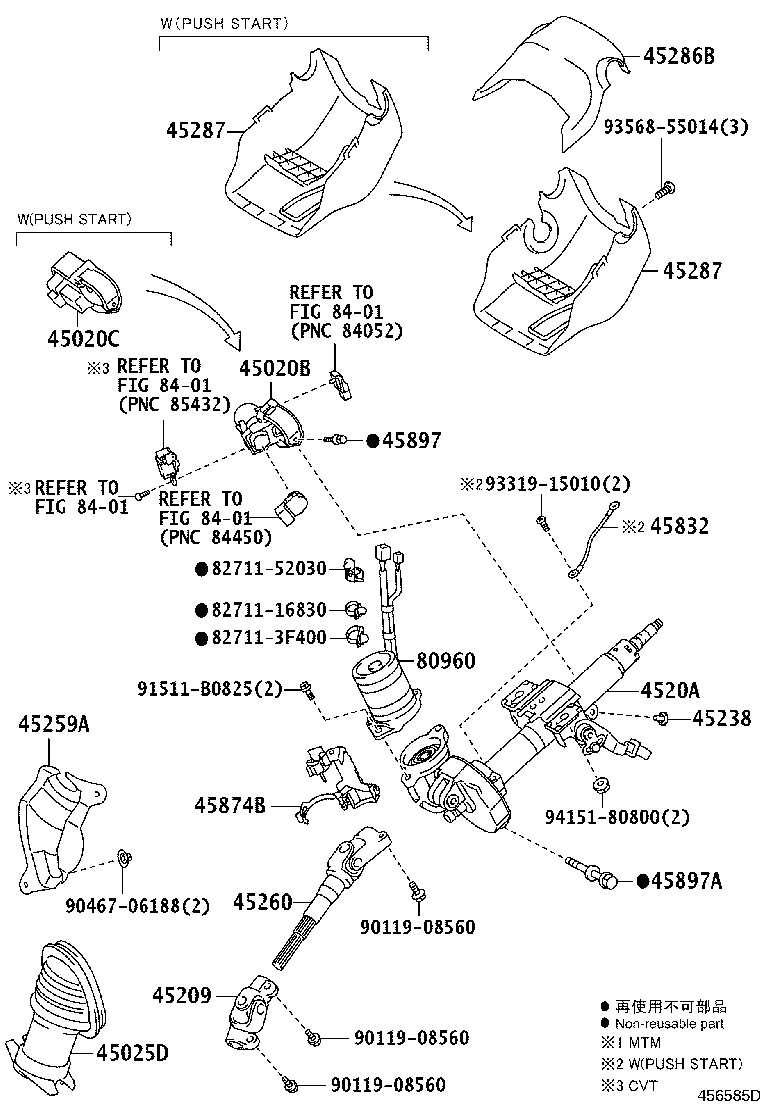

Figure 456513D 456513D 2010-11 → — Figure 455691D 455691D 2010-11 → 2014-05 Figure 456585D 456585D 2014-05 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45209 Yoke Sub-assy, Steering Sliding
4520A Column Sub-assy, Electric Power Steering
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45255 Plate, Steering Column Hole Cover
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45289A Support, Steering Column Cover
45832 Cable, Tilt Steering Support Bond
45874B Protector, Steering Column, NO.1
45874C Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
