Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

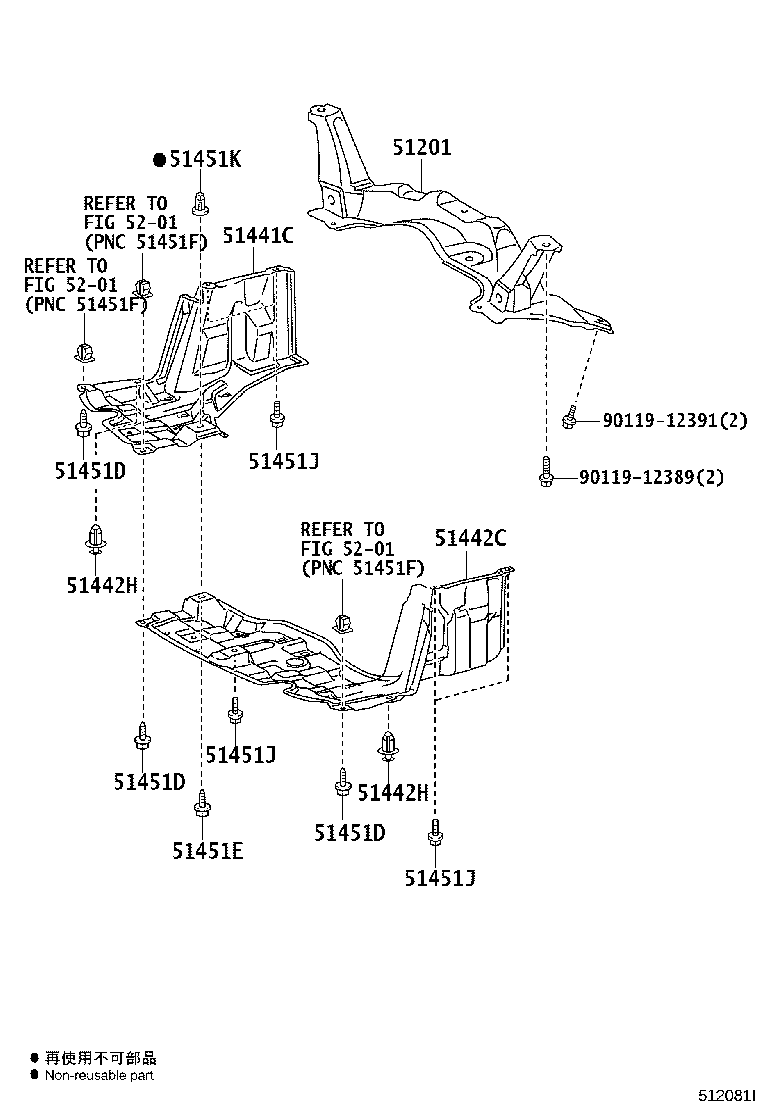

Figure 512078F 512078F 2010-11 → — Figure 512081I 512081I 2010-11 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51227 Weight, Front Suspension Member Damper
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451E Screw, NO.2
51451J Bolt, NO.1
51451K Grommet, Screw, NO.1
51475 Silencer, Engine Under Cover, NO.5
51476 Silencer, Transmission Cover, Center
51477A Silencer, Engine Under Cover, RH
51478A Silencer, Engine Under Cover, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
