Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 2 illustrations

Illustrations

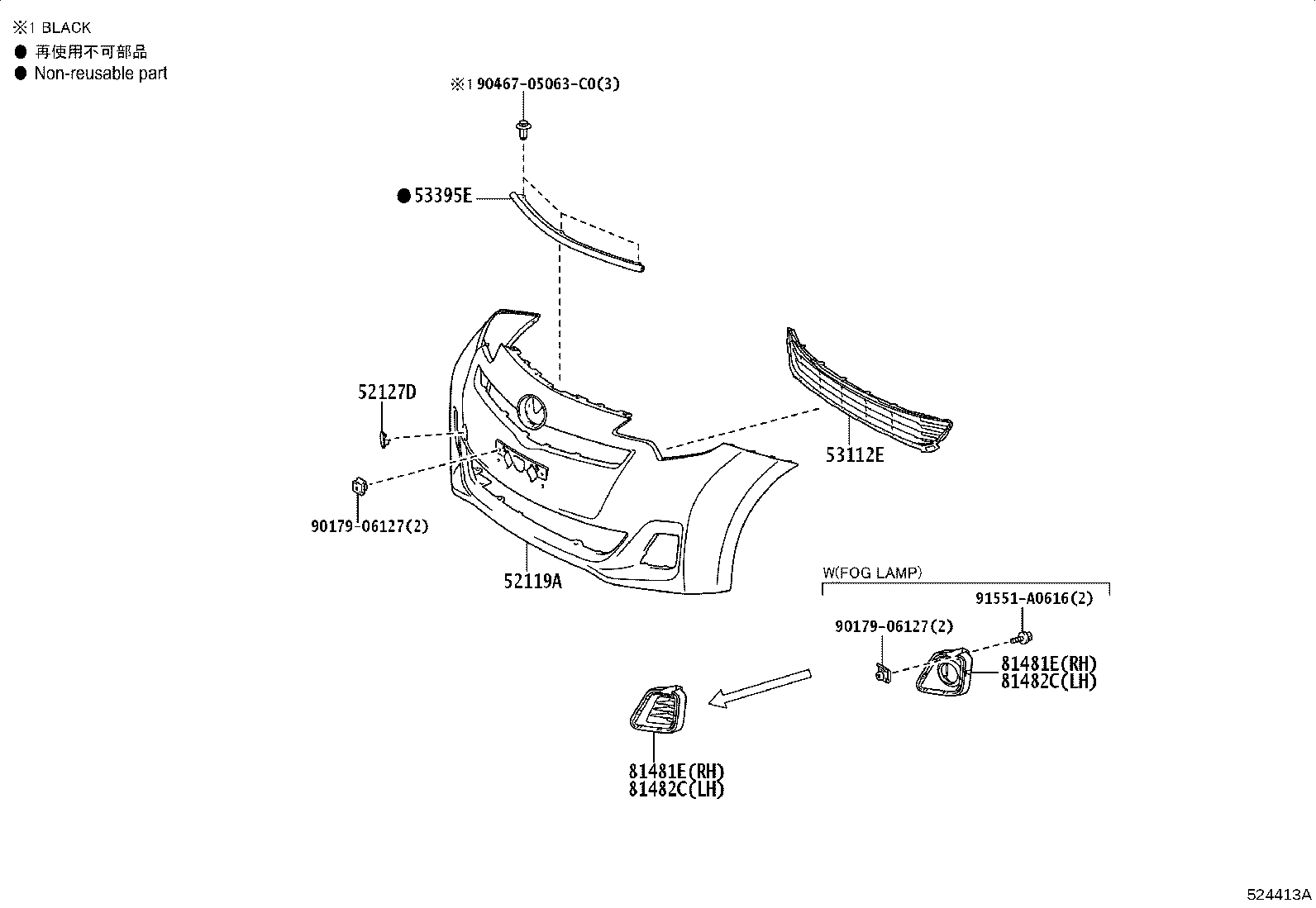

Figure 522333K 522333K 2010-11 → — Figure 524413A 524413A 2010-11 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451L Bolt, NO.1
51451S Bolt, NO.2
52119A Cover, Front Bumper
52119D Screw, NO.1
52119G Clip, NO.1
52119H Clip, NO.2
52127D Cover, Front Bumper Hole, RH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
