Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

21 part groups · 2 illustrations

Illustrations

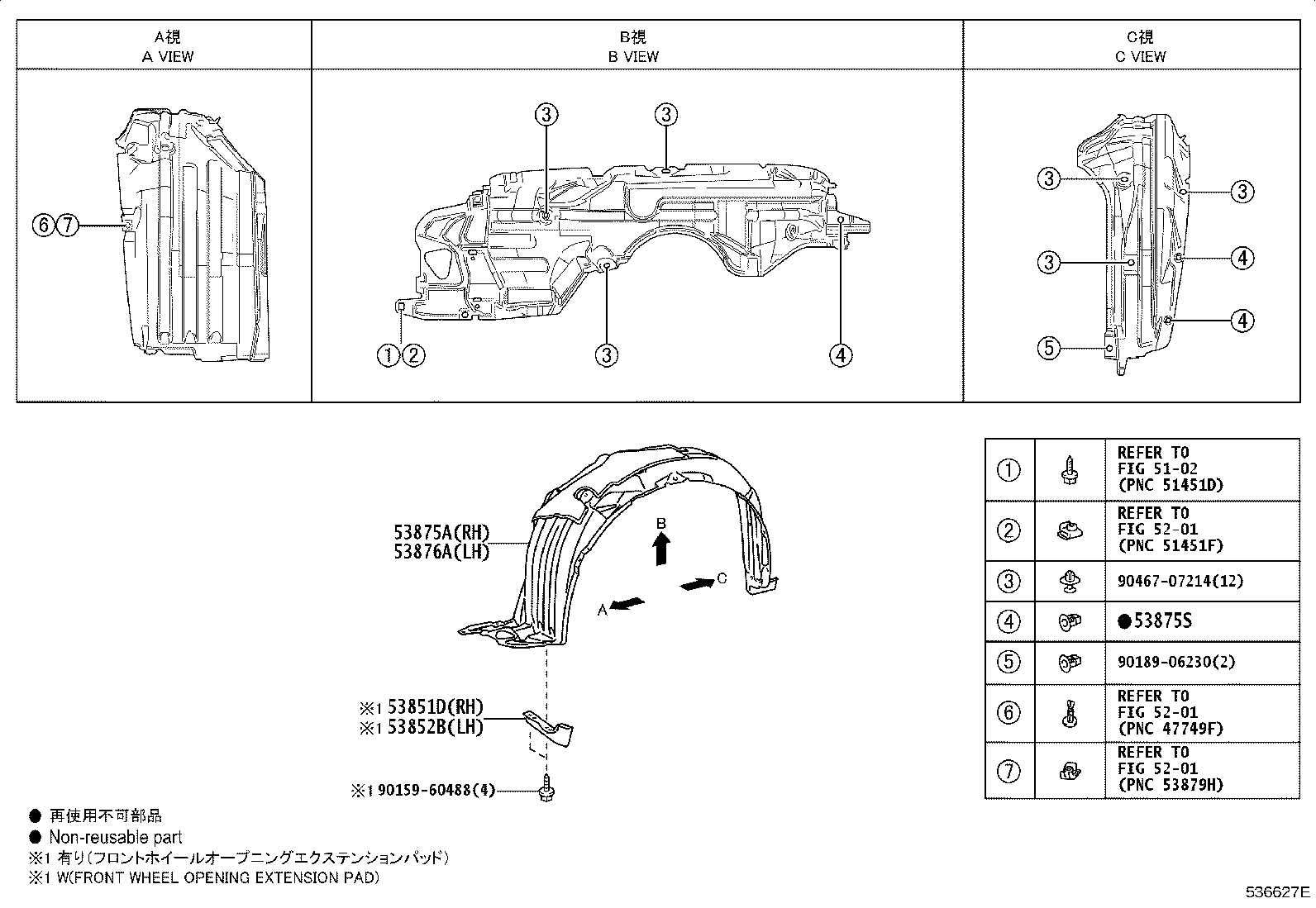

Figure 533317G 533317G 2010-11 → — Figure 536627E 536627E 2010-11 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341D Clip(FOR HOOD INSULATER)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813D Extension, Front Fender
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
