Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

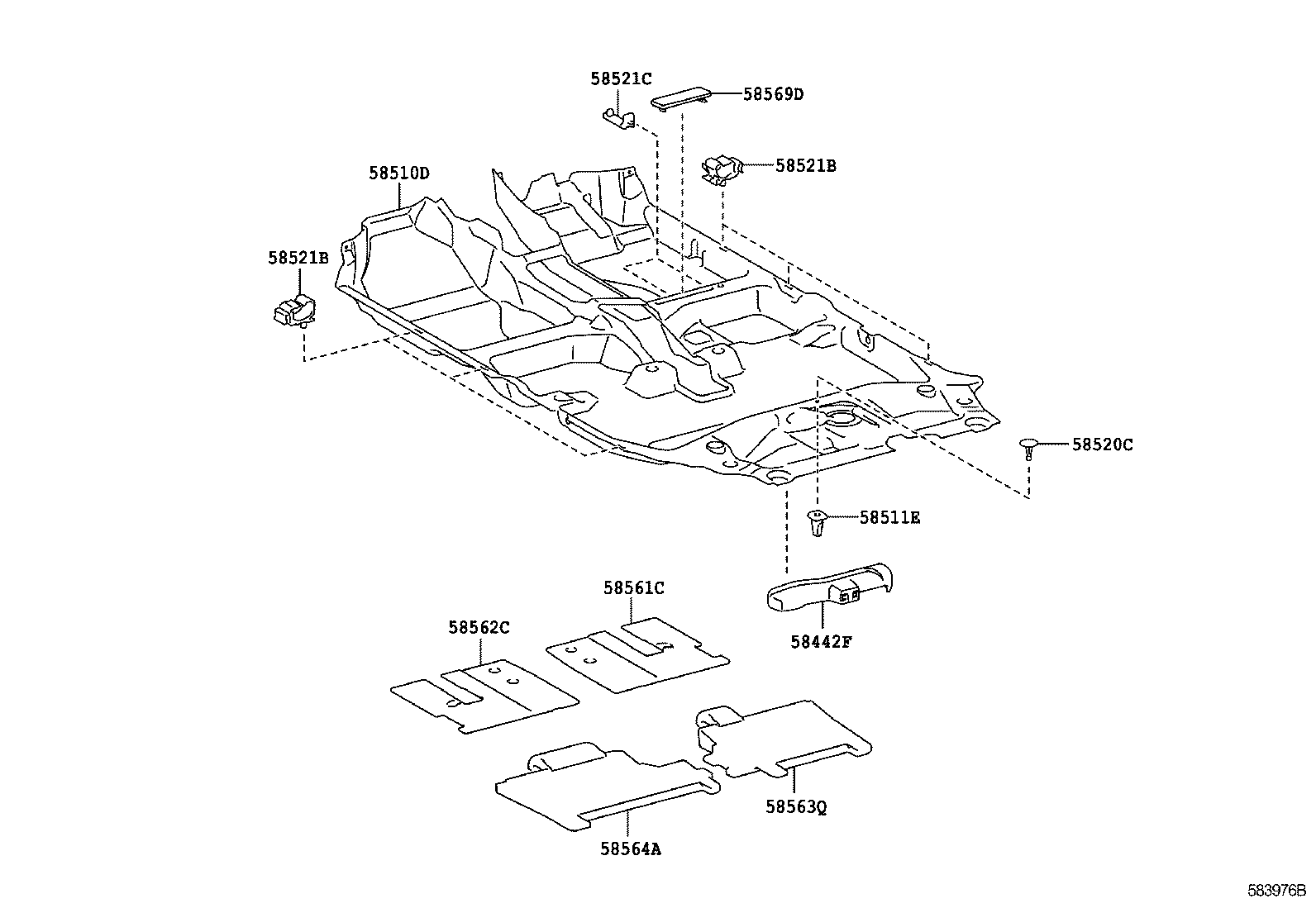

Figure 583975B 583975B 2010-11 → — Figure 583976B 583976B 2010-11 → —

Part groups

PNCDescription
58442F Cover, Jack
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58521C Hook, Floor Carpet NO.2
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58569D Cover, Front Floor Caution Plate
58571F Pad, Front Floor, Front
58572Q Pad, Front Floor, Front NO.2
58573C Pad, Front Floor Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
