Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 3 illustrations

Illustrations

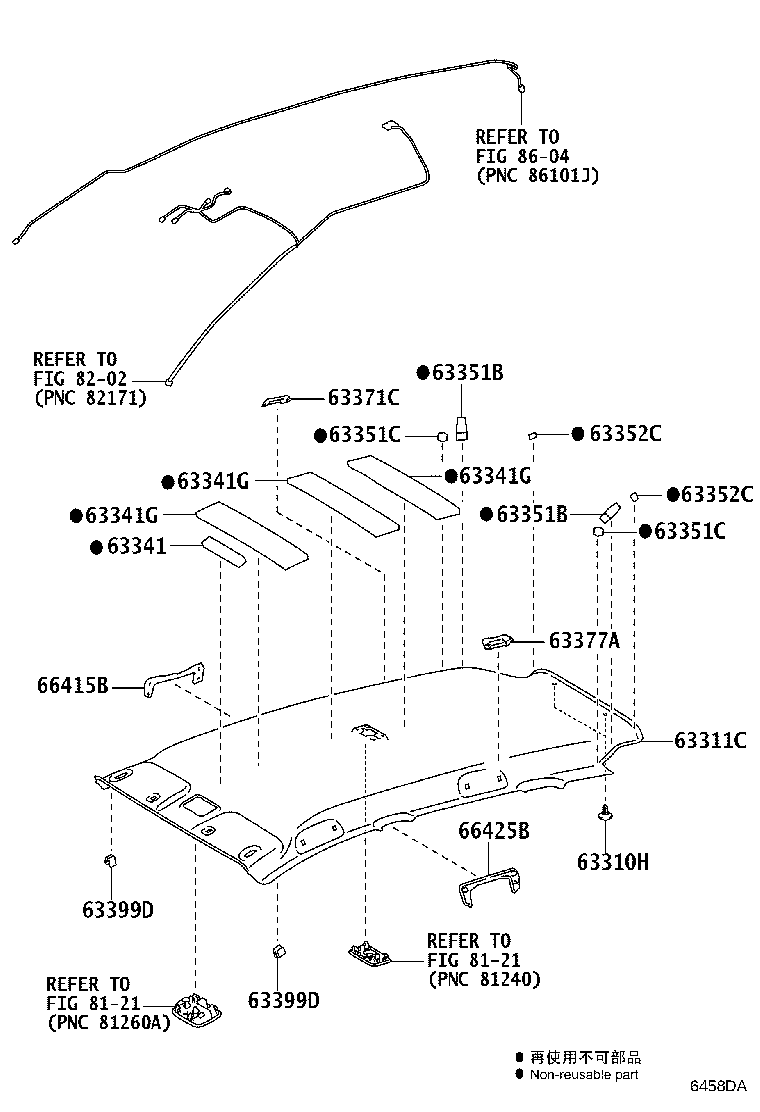

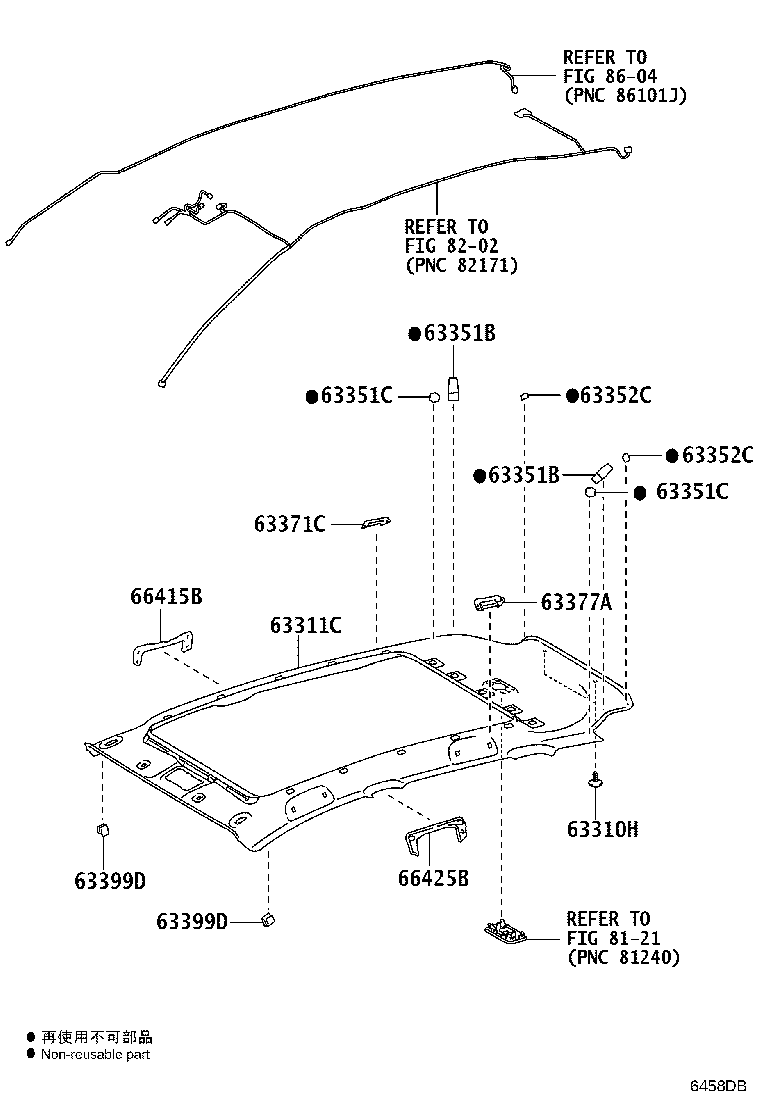

Figure 6458D9 6458D9 2010-11 → — Figure 6458DA 6458DA 2010-11 → — Figure 6458DB 6458DB 2010-11 → —

Part groups

PNCDescription
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63371C Retainer, Roof Headlining, NO.1 RH
63377A Retainer, Roof Headlining Support, NO.1
63399D Clip, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
