Toyota Verso-s
2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe
Supported model
Data version 2014-05

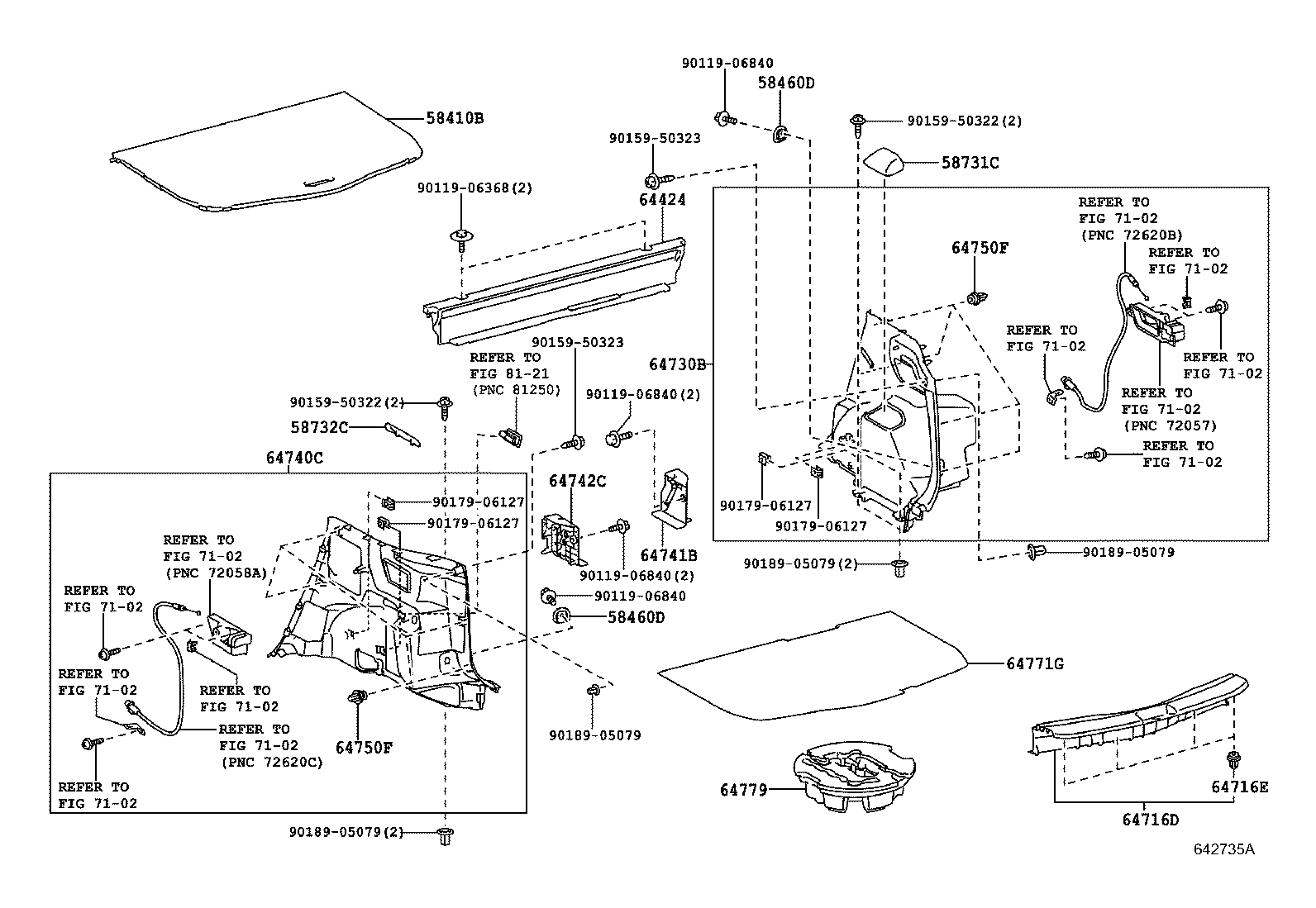

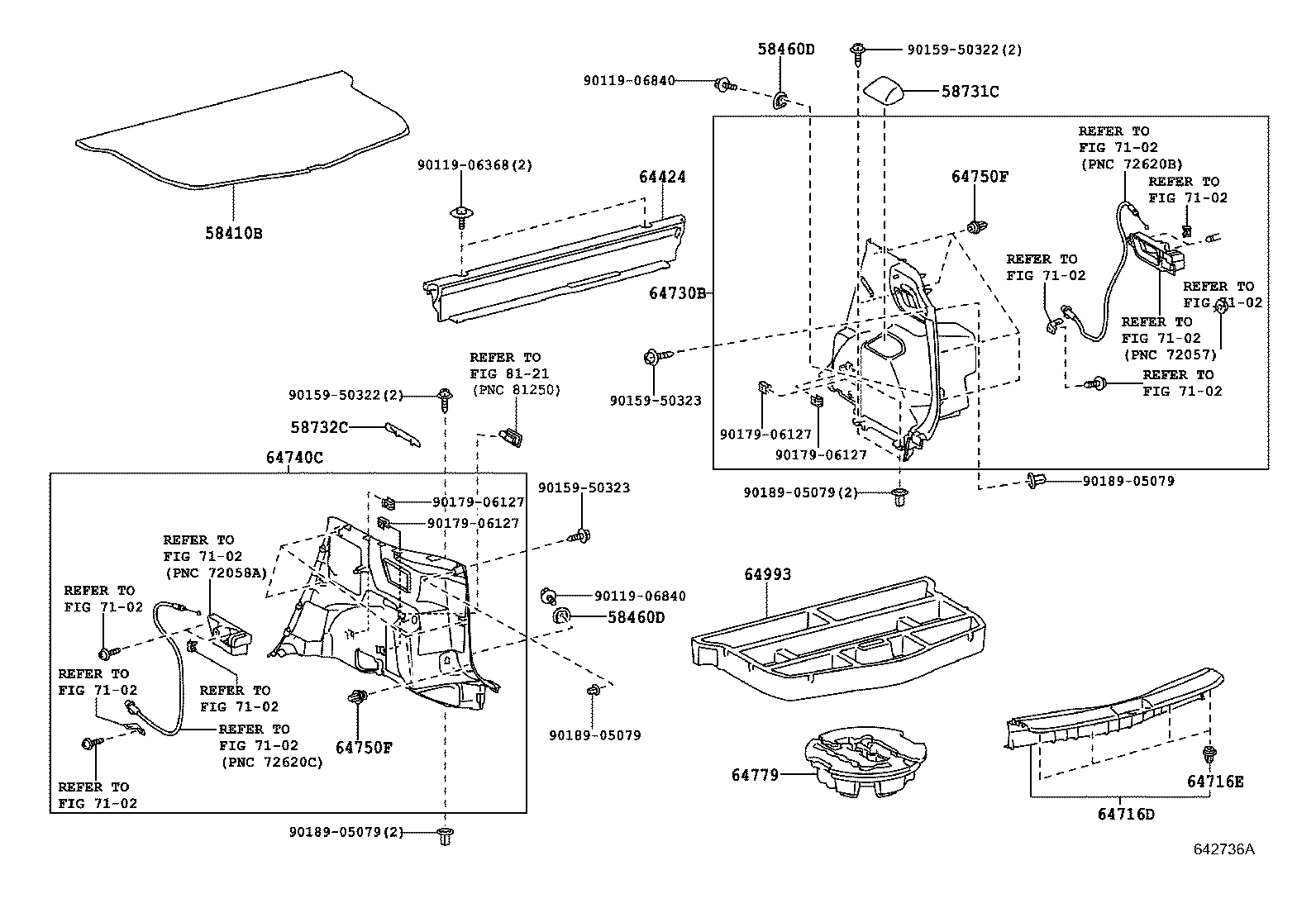

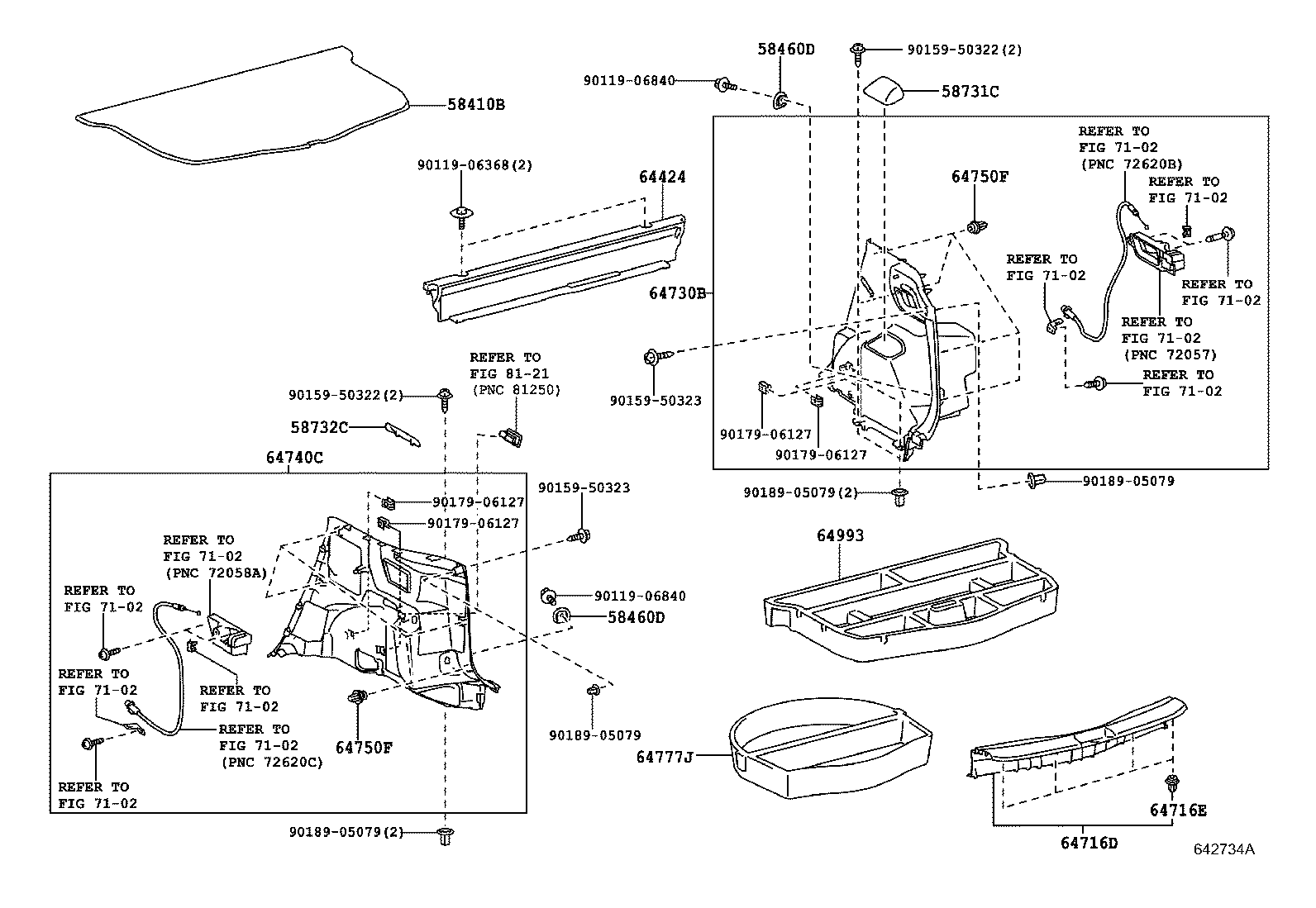

Deck Board & Deck Trim Cover
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401J | Clip(FOR DECK BOAD) |
| 58410B | Board Assy, Deck |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58556D | Silencer, Rear Floor |
| 58582D | Mat, Rear Floor, Rear |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64381A | Hanger, Package Tray Trim |
| 64424 | Separator, Luggage Room Box |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64771G | Cover, Spare Wheel |
| 64777J | Cushion, Spare Wheel |
| 64779 | Tray, Spare Wheel Cover |
| 64910J | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
