Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

47 part groups · 23 illustrations

Illustrations

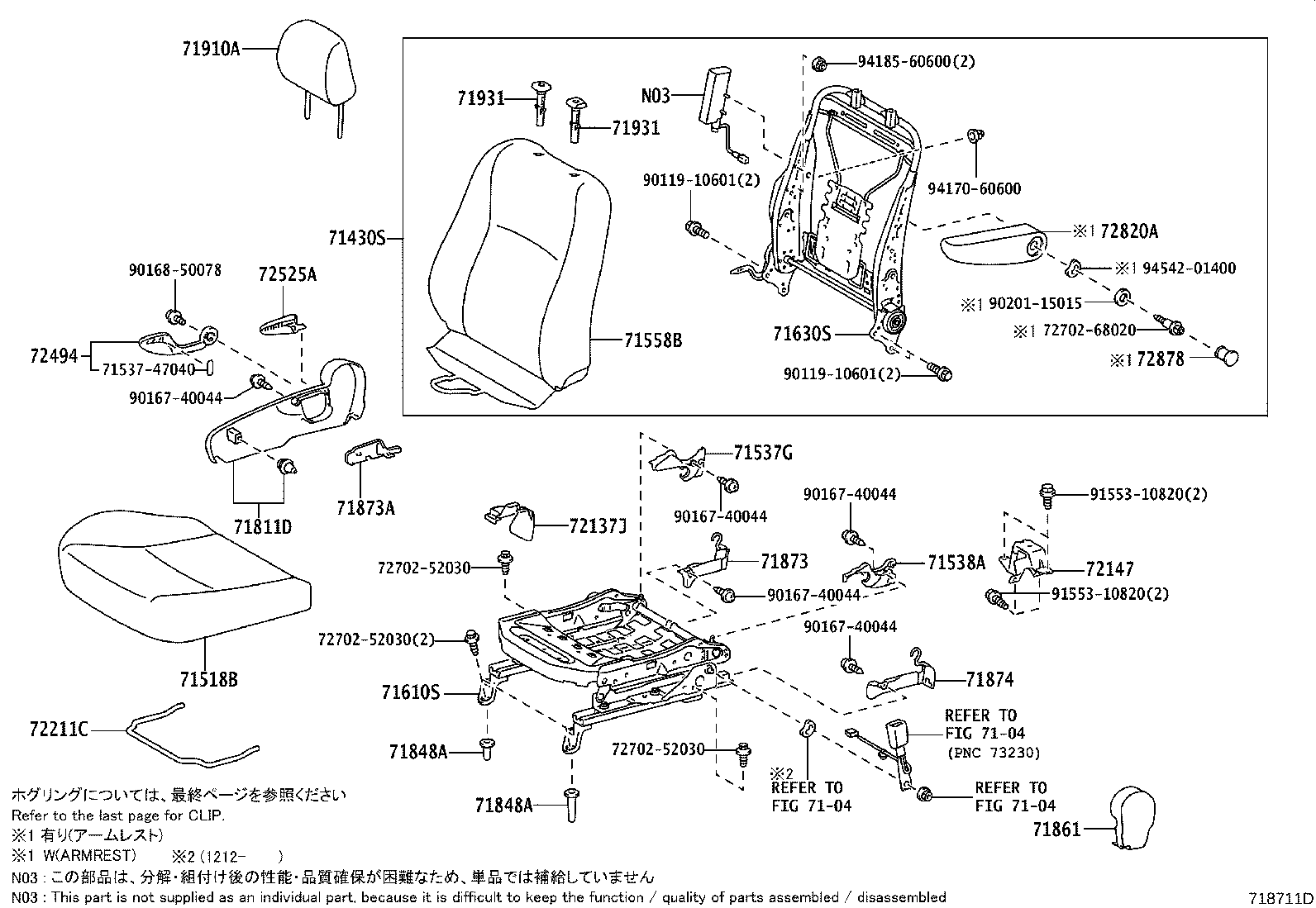

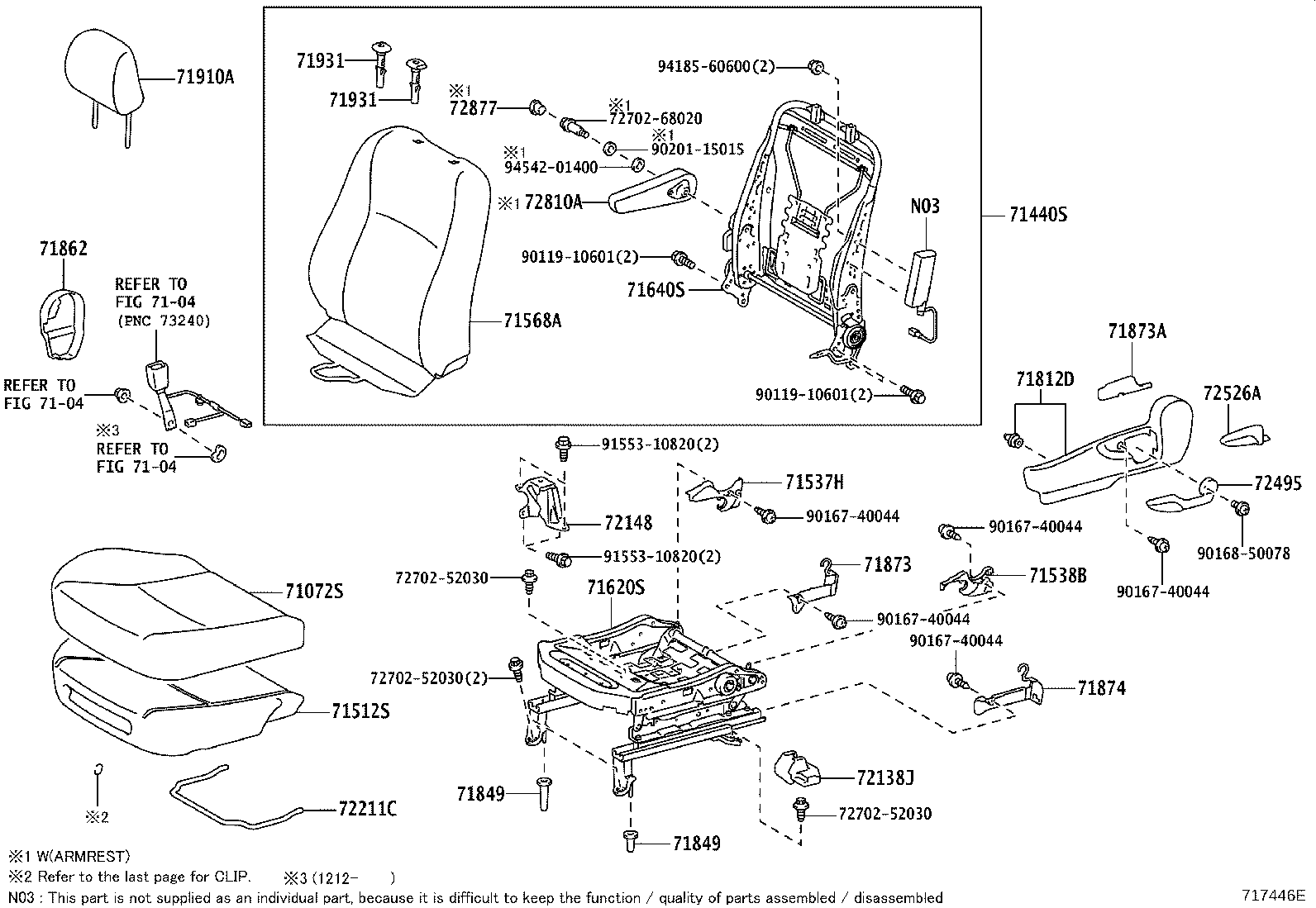

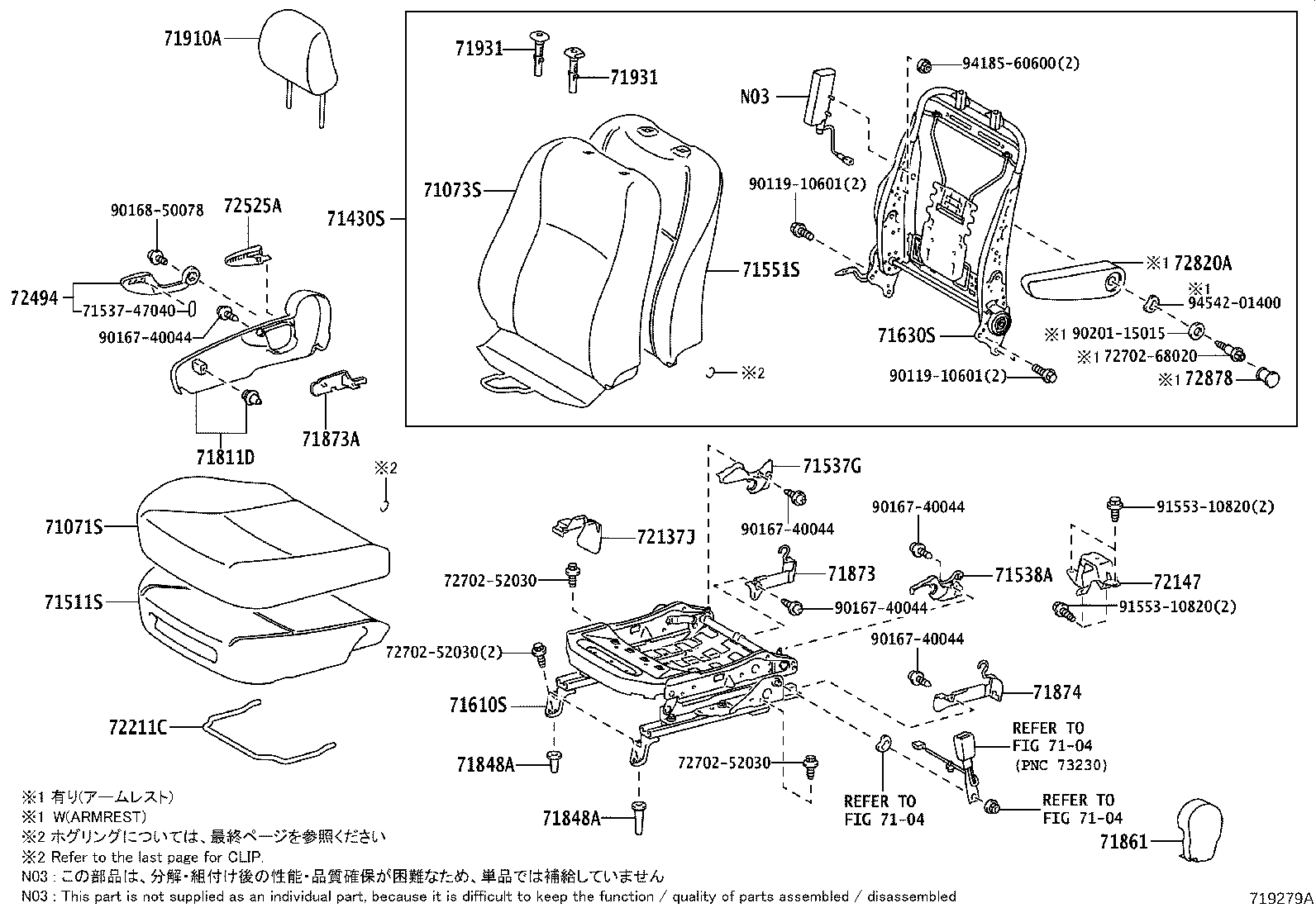

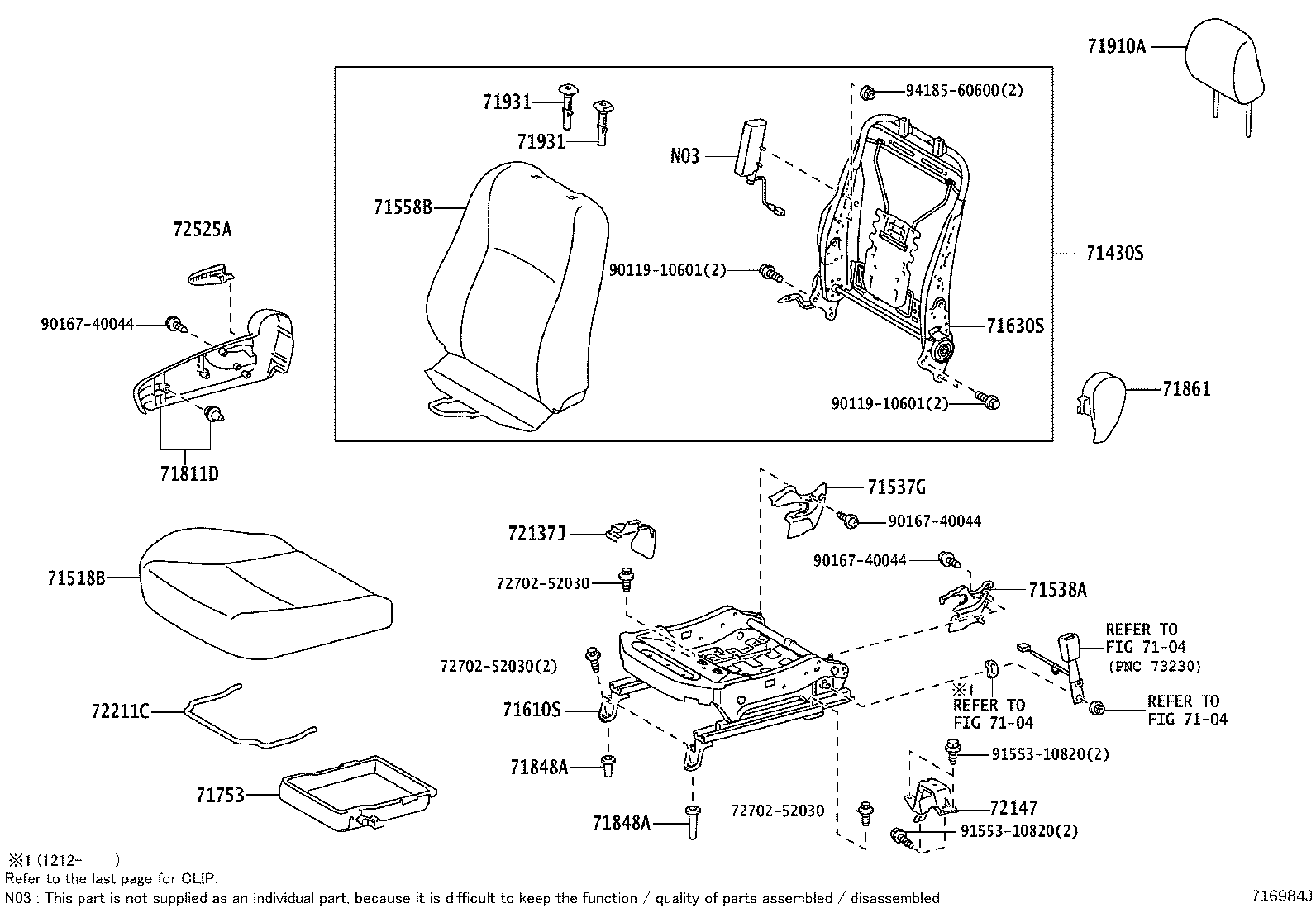

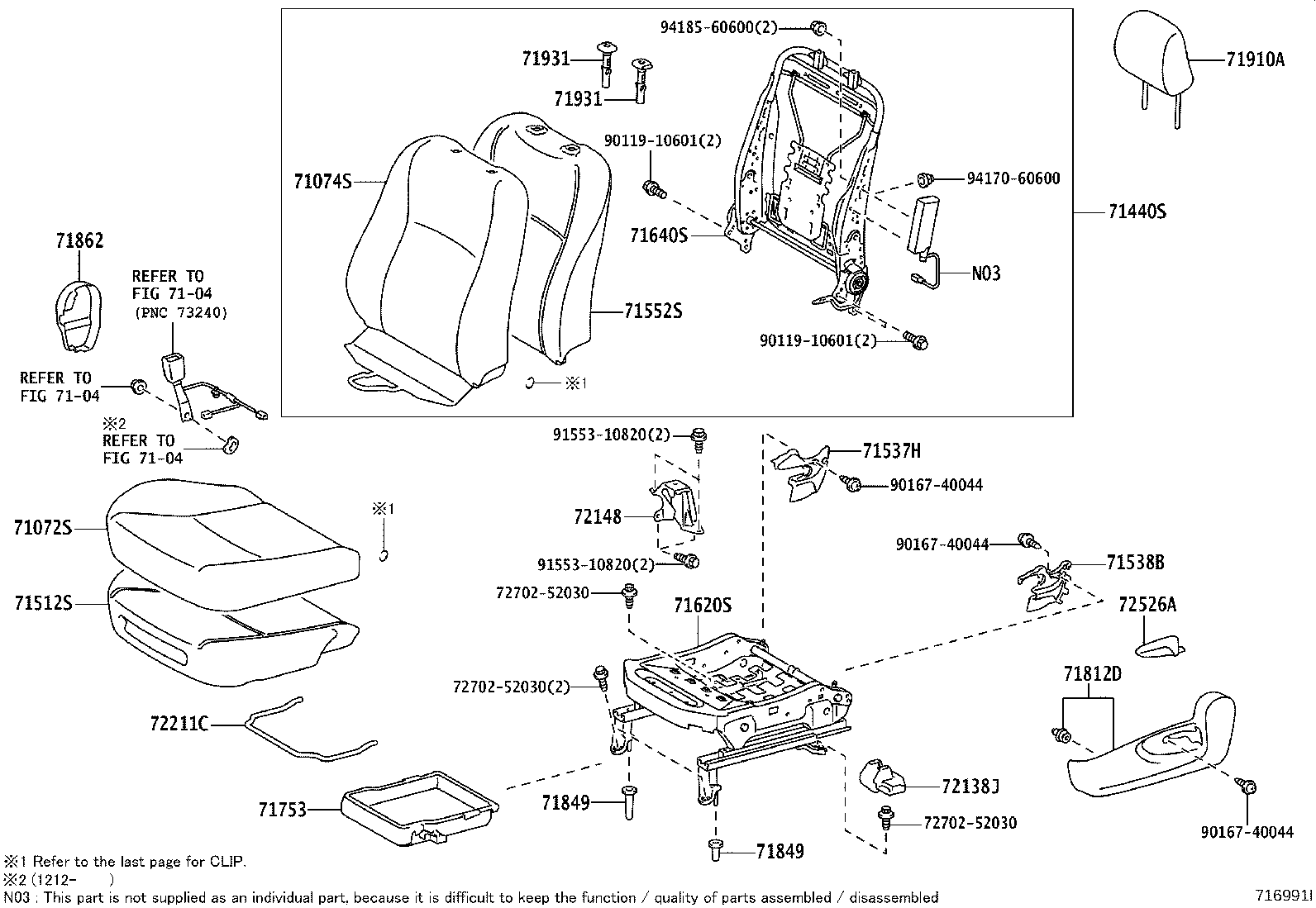

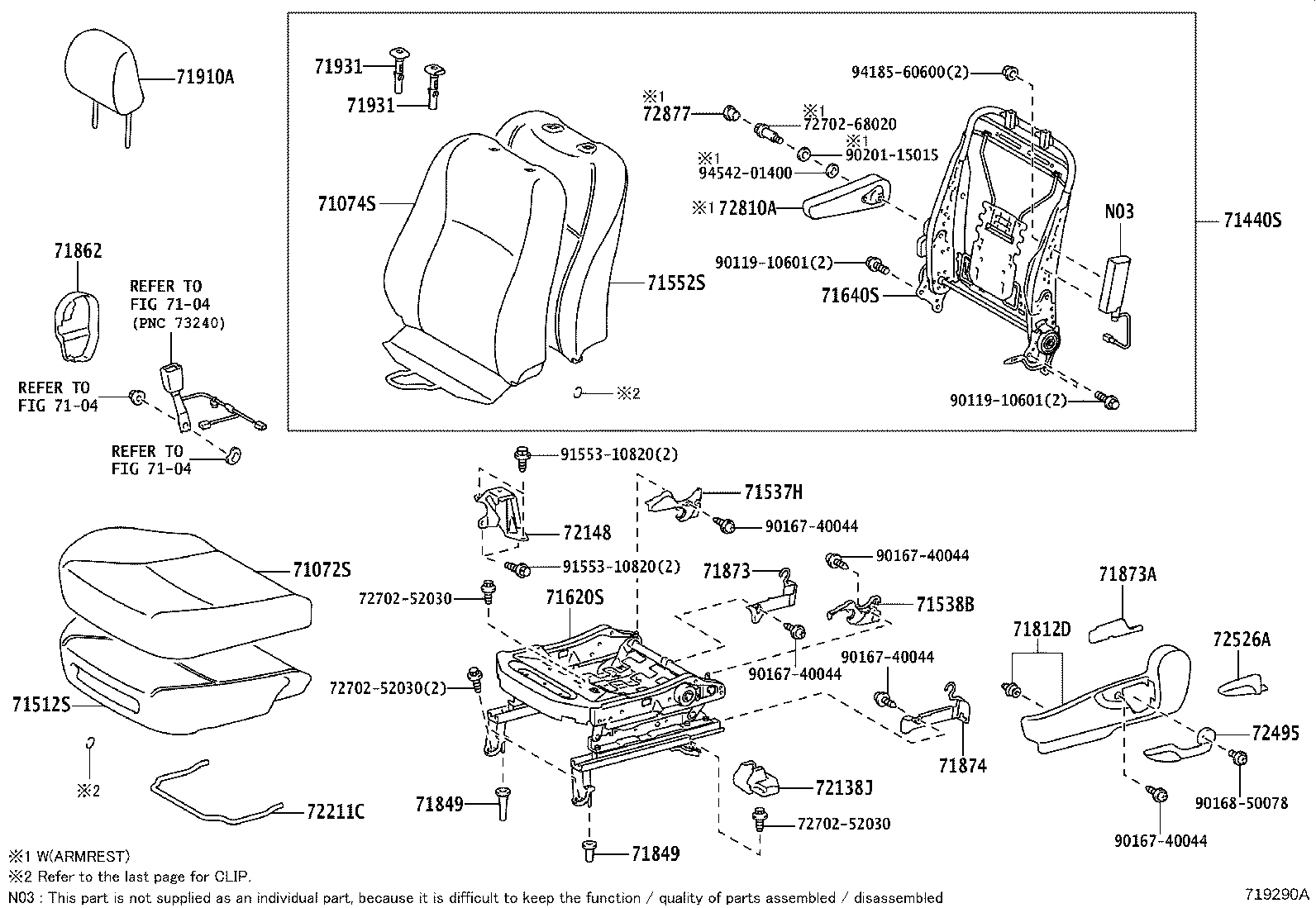

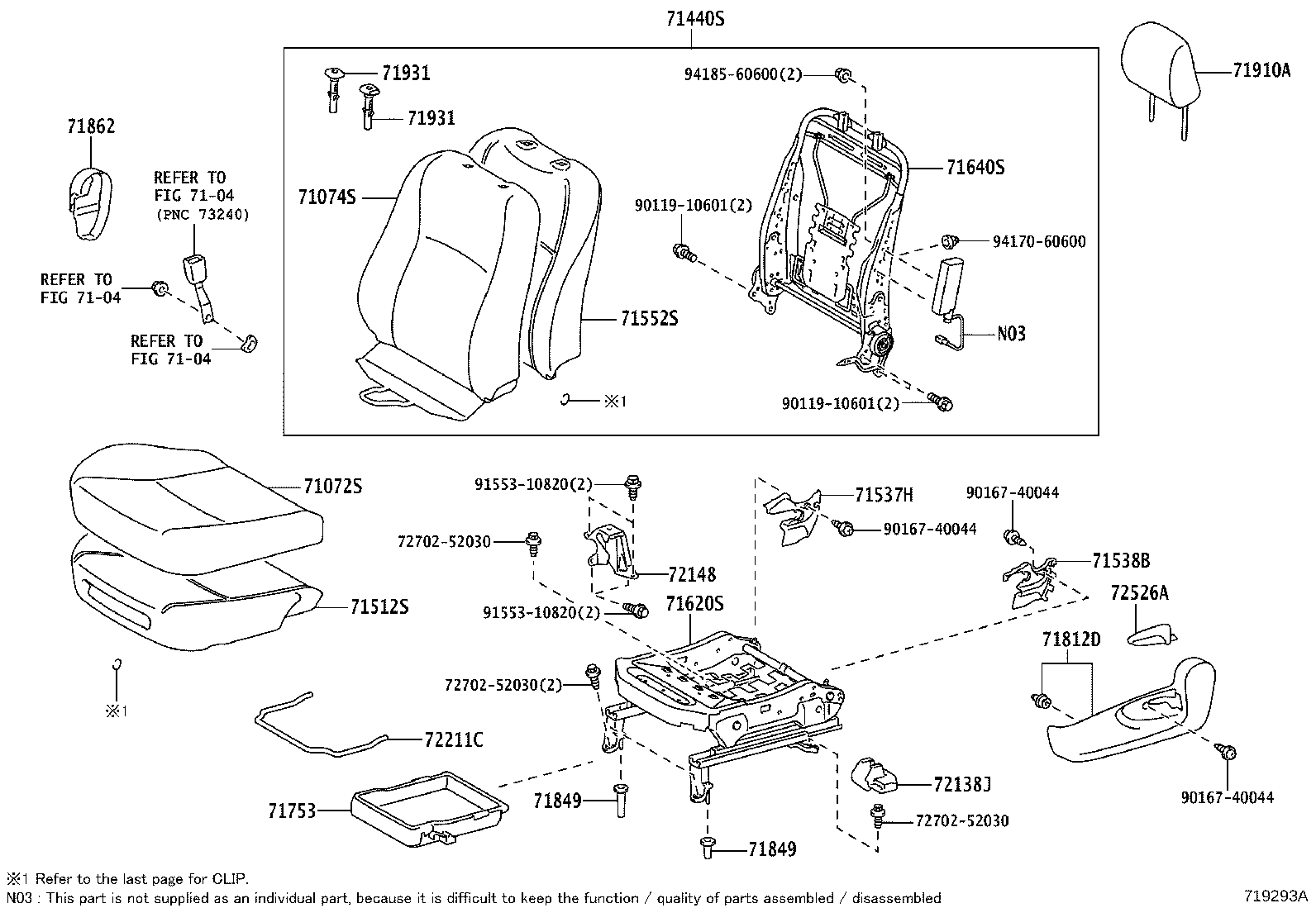

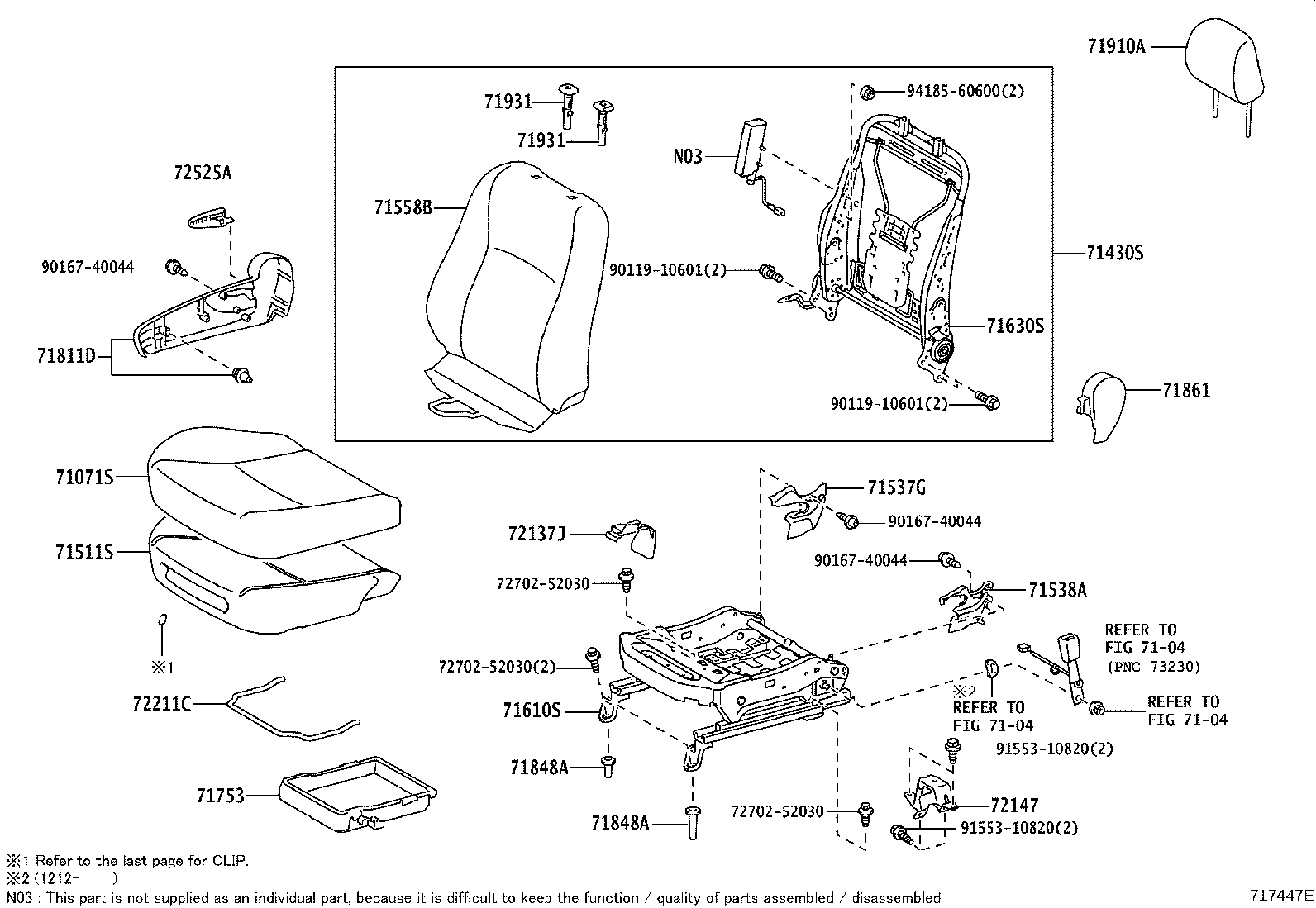

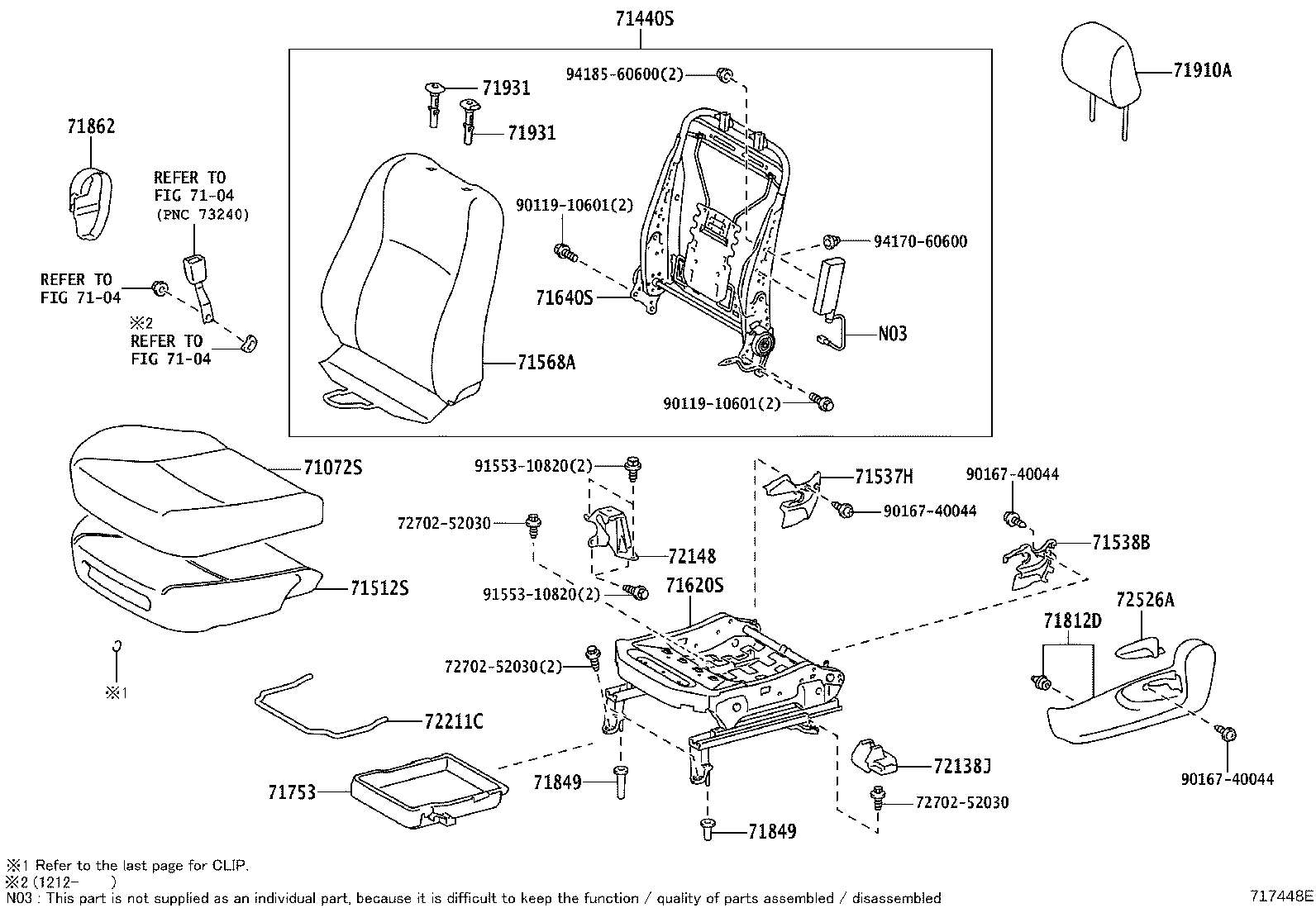

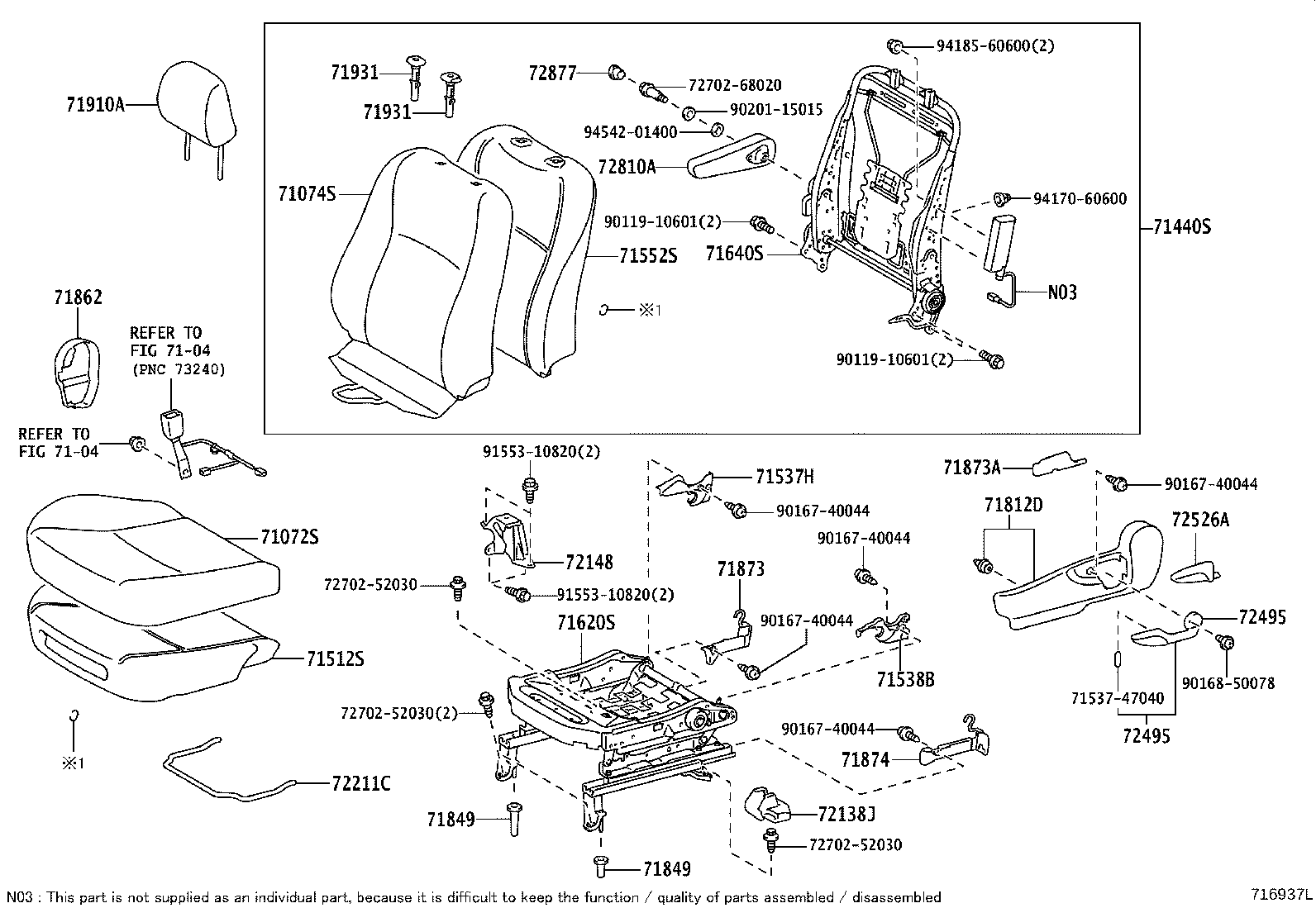

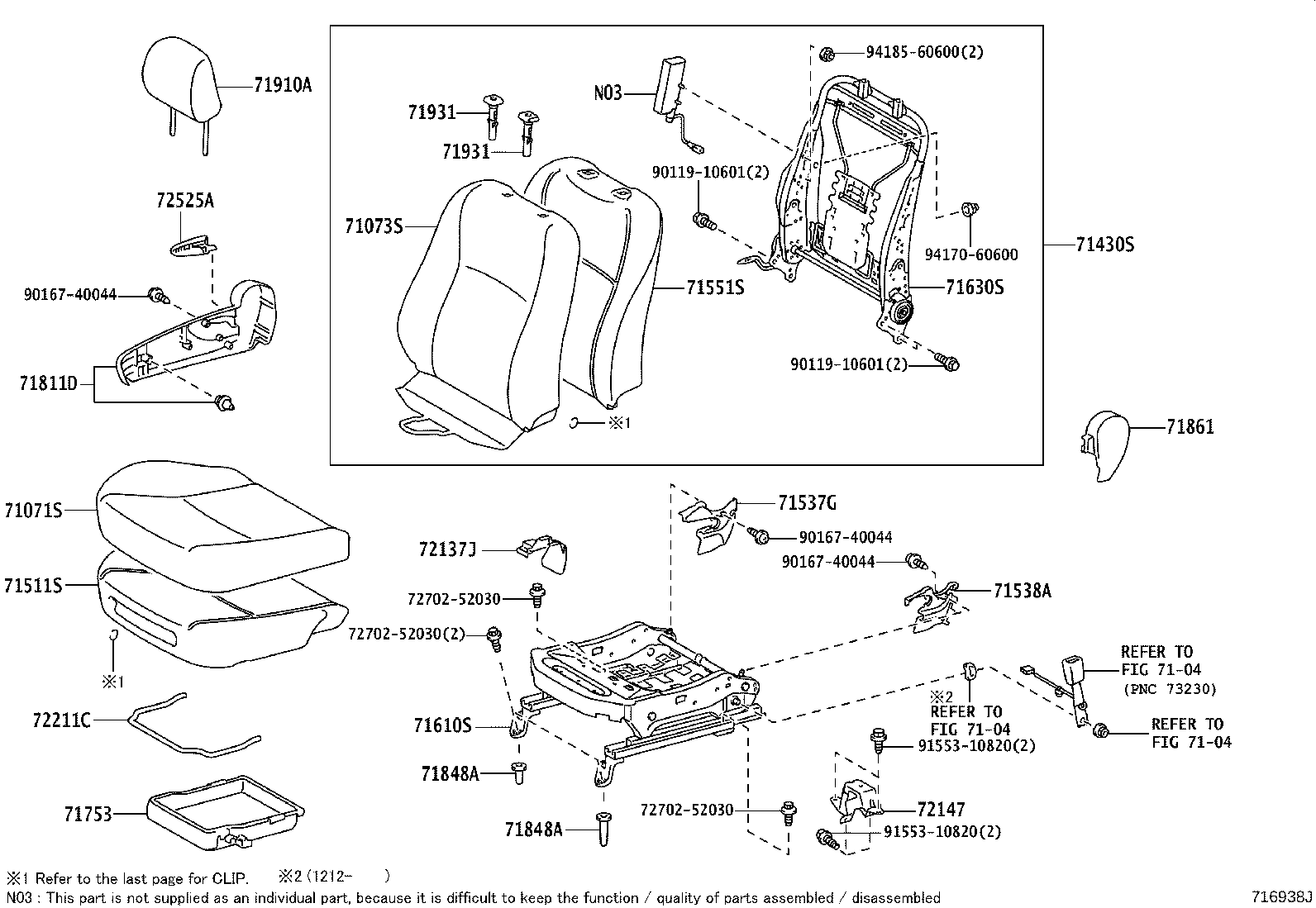

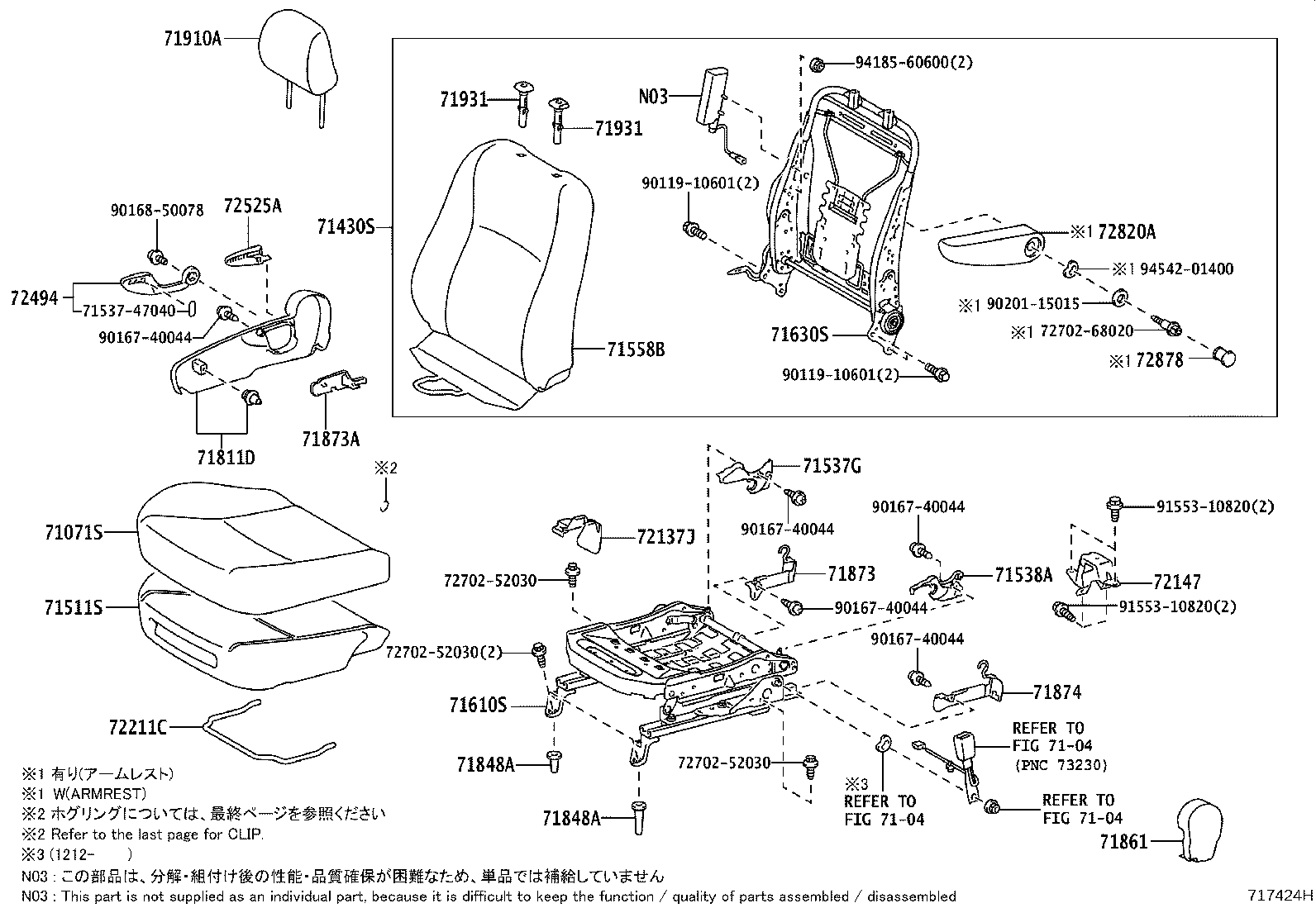

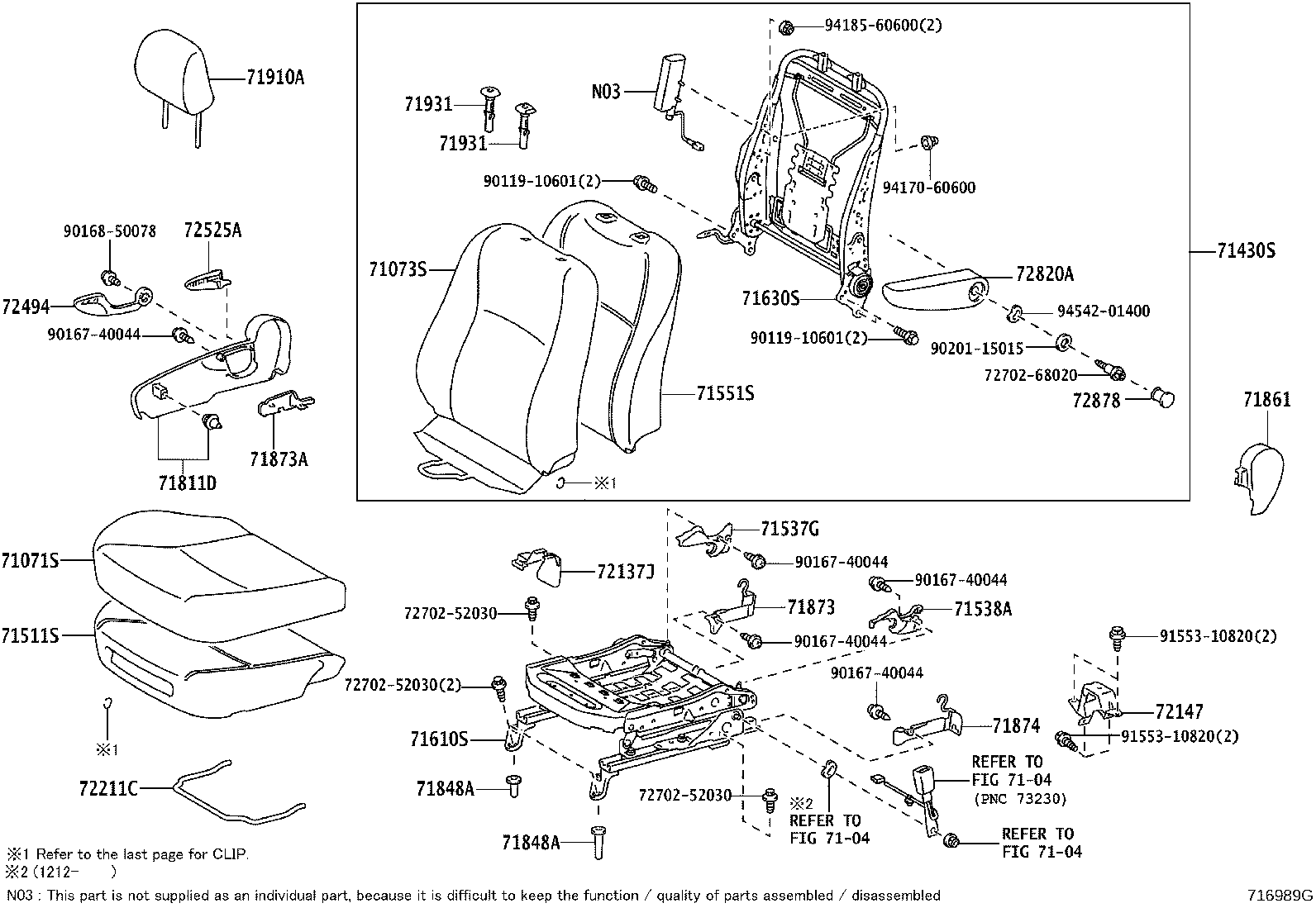

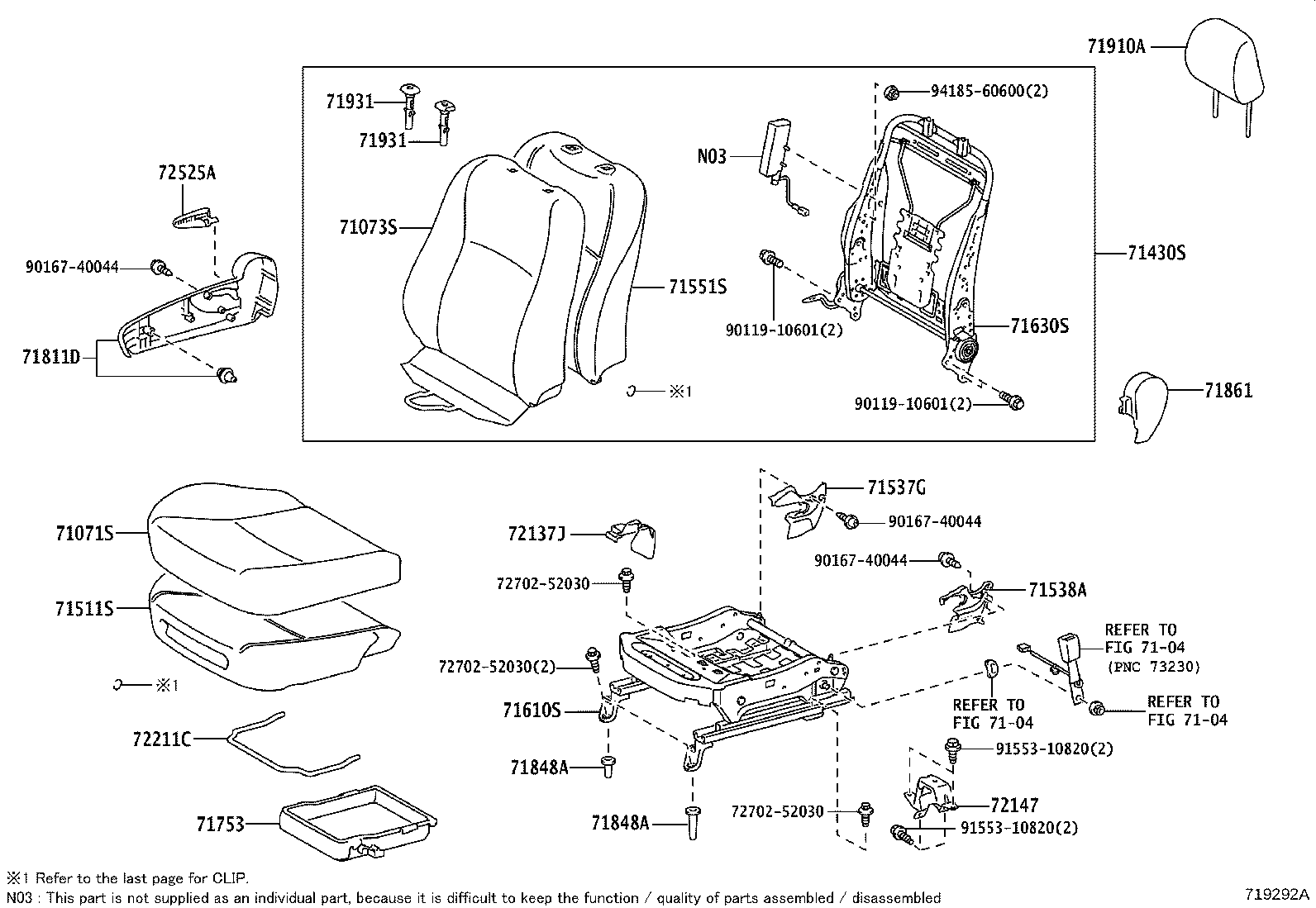

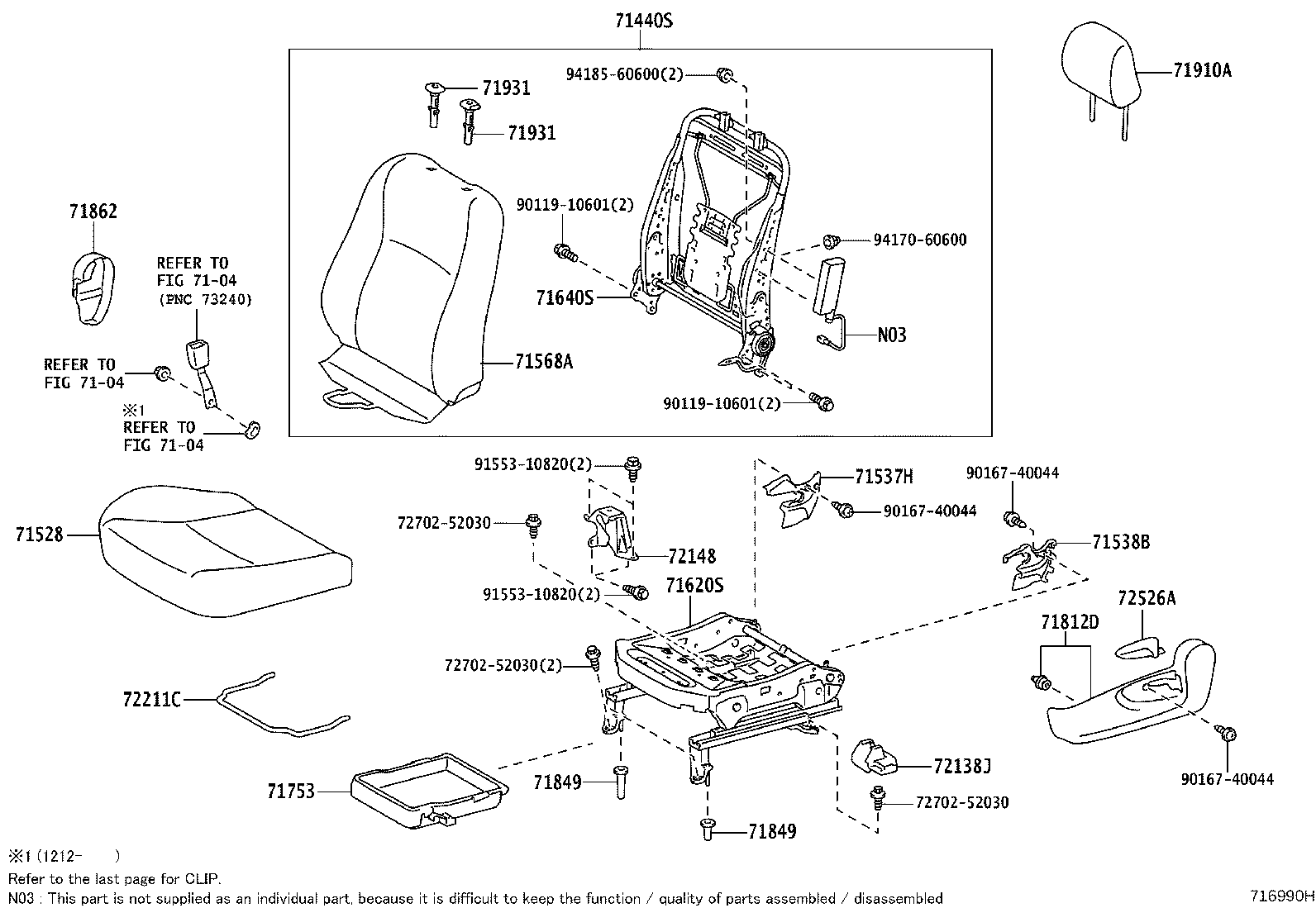

Figure 718714C 718714C 2010-11 → 2011-06 Figure 718714C 718714C 2010-11 → — Figure 718714C 718714C 2011-06 → — Figure 718711D 718711D 2010-11 → 2011-06 Figure 718711D 718711D 2010-11 → — Figure 716937L 716937L 2010-11 → — Figure 716989G 716989G 2010-11 → — Figure 717446E 717446E 2011-06 → 2014-11 Figure 719290A 719290A 2014-11 → — Figure 717424H 717424H 2011-06 → 2014-11 Figure 719279A 719279A 2014-11 → — Figure 716984J 716984J 2010-11 → 2011-06 Figure 716984J 716984J 2010-11 → — Figure 716984J 716984J 2011-06 → — Figure 716990H 716990H 2010-11 → 2011-06 Figure 716990H 716990H 2010-11 → — Figure 716938J 716938J 2010-11 → — Figure 716991I 716991I 2010-11 → — Figure 717447E 717447E 2011-06 → 2014-11 Figure 719292A 719292A 2014-11 → — Figure 717448E 717448E 2011-06 → 2014-11 Figure 719293A 719293A 2014-11 → — Figure 718166C 718166C 2010-11 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72137J Cover, Front Seat Track, RH Rear Outer
72138J Cover, Front Seat Track, LH Rear Outer
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72211C Handle, Seat Track Adjusting
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72810A Armrest Assy, Seat, RH
72820A Armrest Assy, Seat, LH
72877 Cover, Seat Armrest, RH
72878 Cover, Seat Armrest, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
