Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 2 illustrations

Illustrations

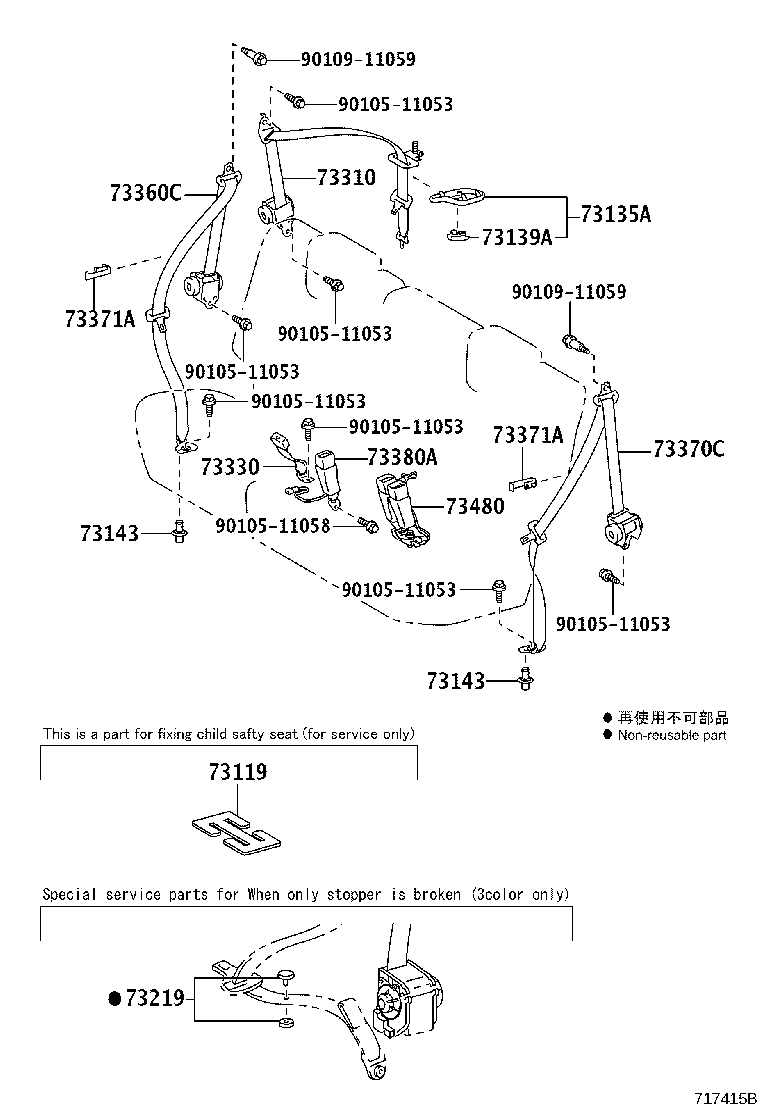

Figure 71F97YA 71F97YA 2010-11 → — Figure 717415B 717415B 2010-11 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73135A Cover, Shoulder Belt Anchor, RH
73139A Cover, Seat Belt Anchor
73143 Seal, Seat Belt Hole
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73330 Belt Assy, Rear Seat Lap Type, RH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
