Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

8 part groups · 2 illustrations

Illustrations

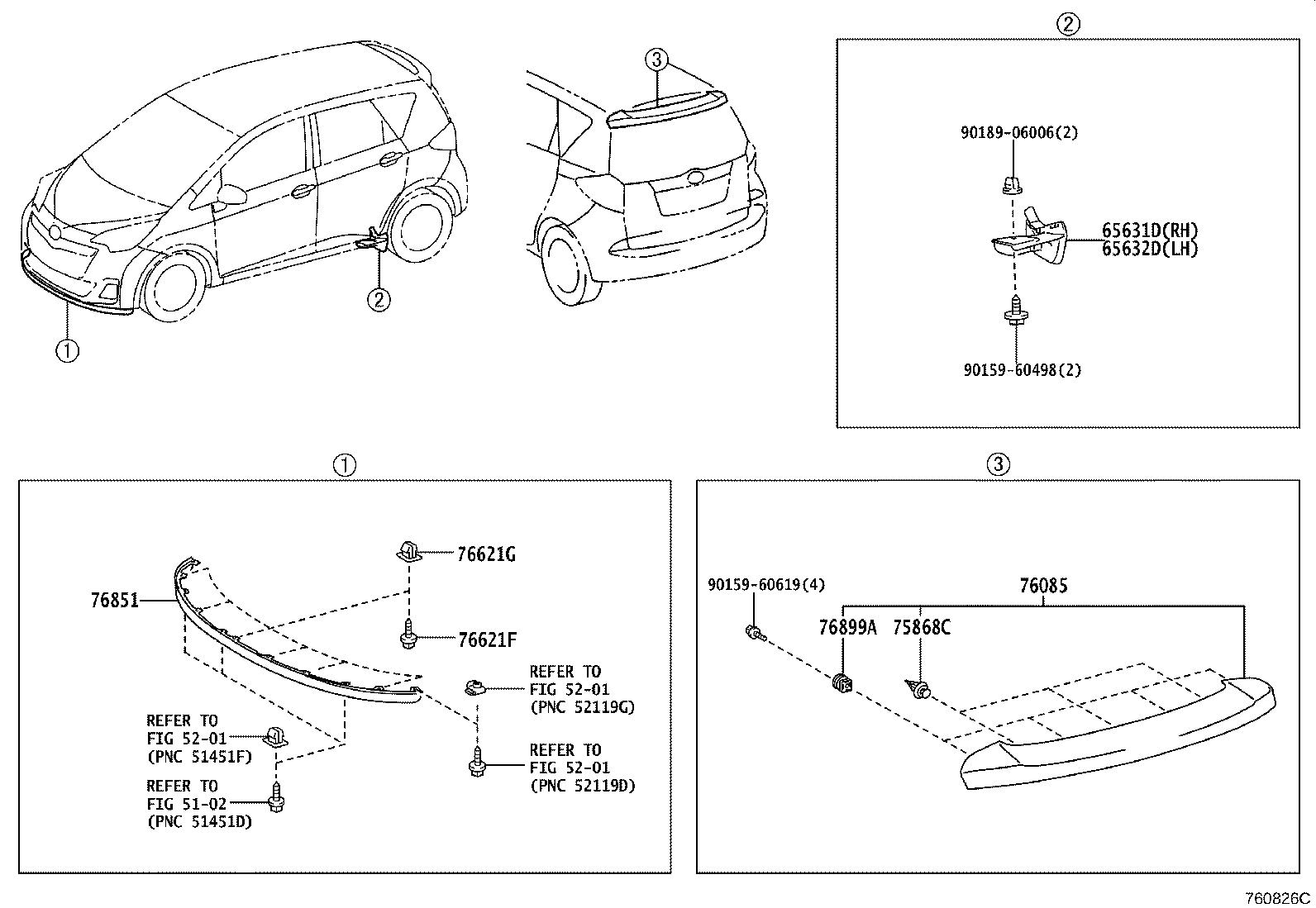

Figure 760765F 760765F 2010-11 → 2012-08 Figure 760826C 760826C 2012-08 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75868C Clip, Rear Spoiler, NO.2
76085 Spoiler Sub-assy, Rear
76621F Screw, NO.1
76621G Grommet, NO.1
76851 Cover, Front Spoiler
76899A Nut, Rear Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
