Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

45 part groups · 14 illustrations

Illustrations

Figure 827281A 827281A 2010-11 → — Figure 827280A 827280A 2010-11 → — Figure 827283B 827283B 2010-11 → — Figure 828360B 828360B 2010-11 → — Figure 827350C 827350C 2010-11 → — Figure 827284G 827284G 2010-11 → — Figure 827286B 827286B 2010-11 → — Figure 827285A 827285A 2010-11 → — Figure 828488 828488 2010-11 → — Figure 827354A 827354A 2010-11 → — Figure 827248B 827248B 2010-11 → — Figure 827249A 827249A 2010-11 → — Figure 827365B 827365B 2010-11 → — Figure 828062A 828062A 2010-11 → —

Part groups

PNCDescription

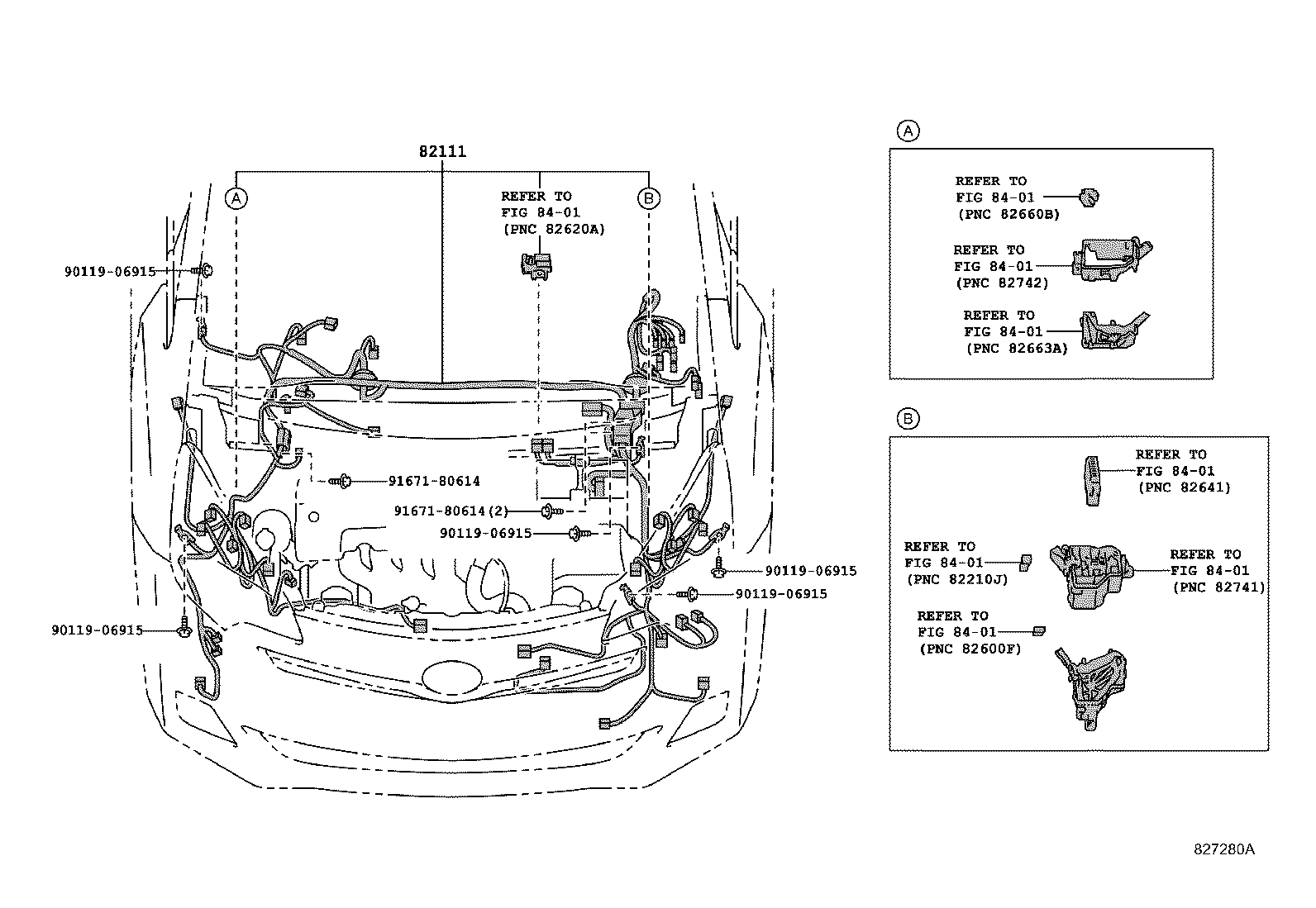

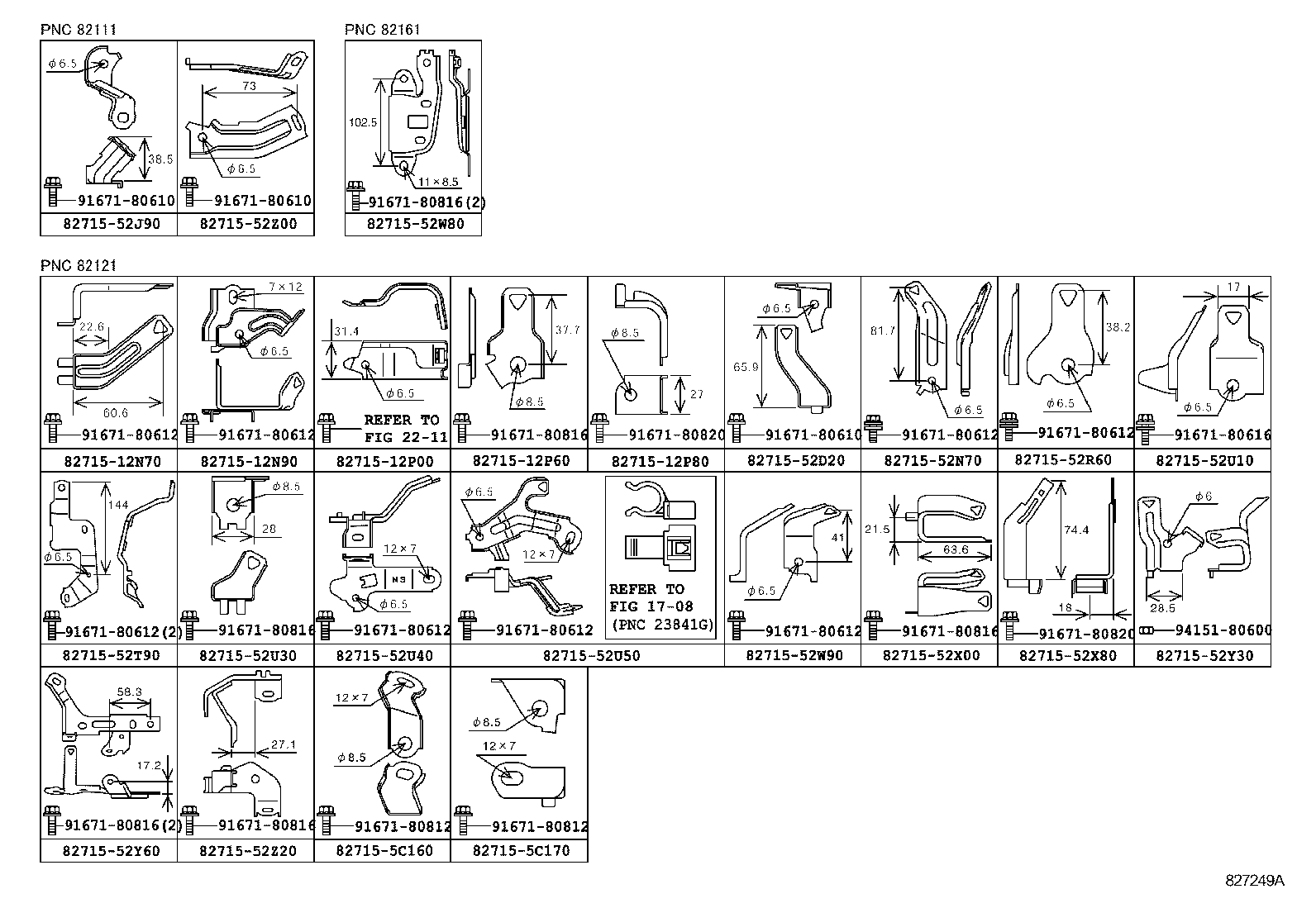

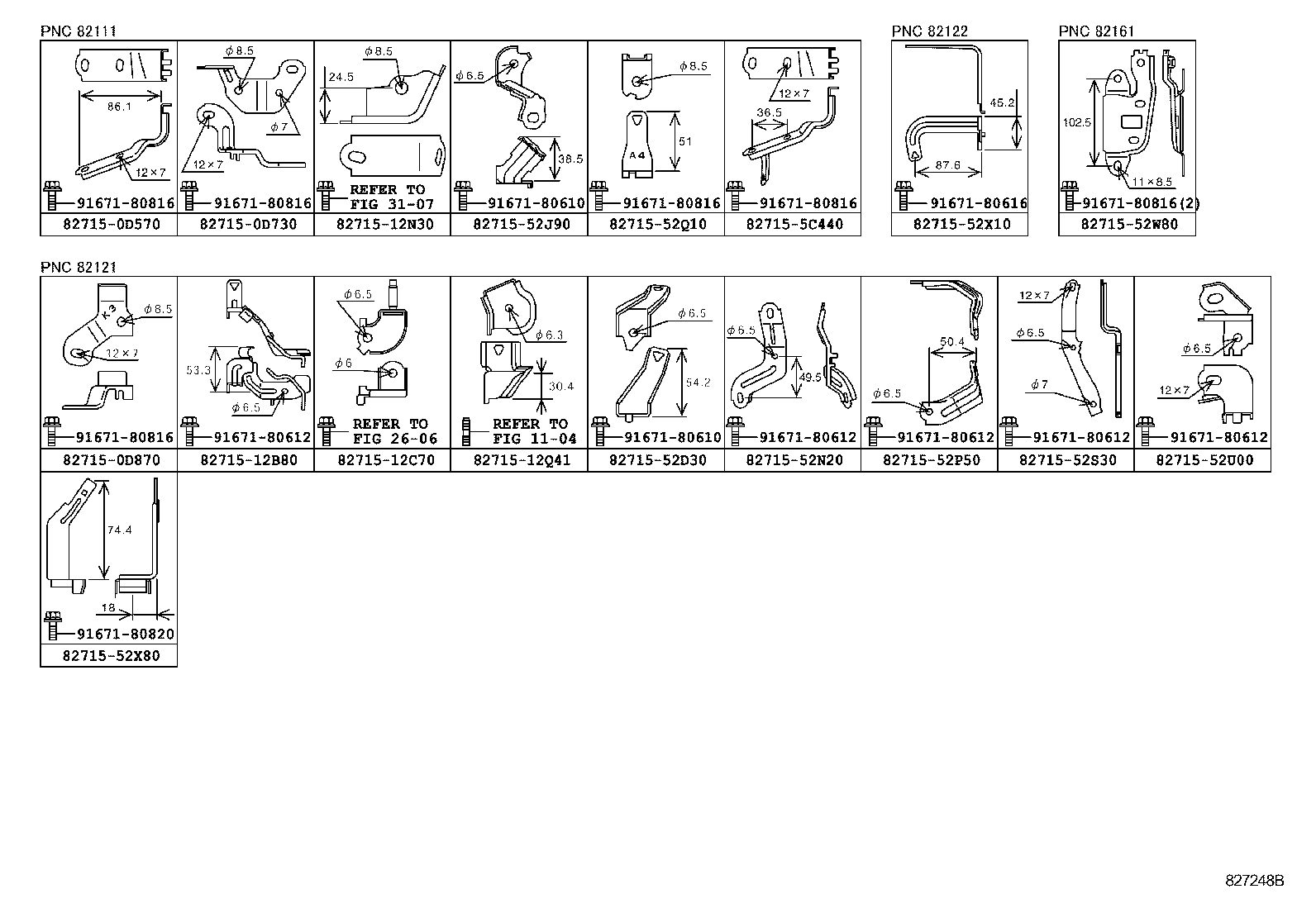

82111 Wire, Engine Room Main

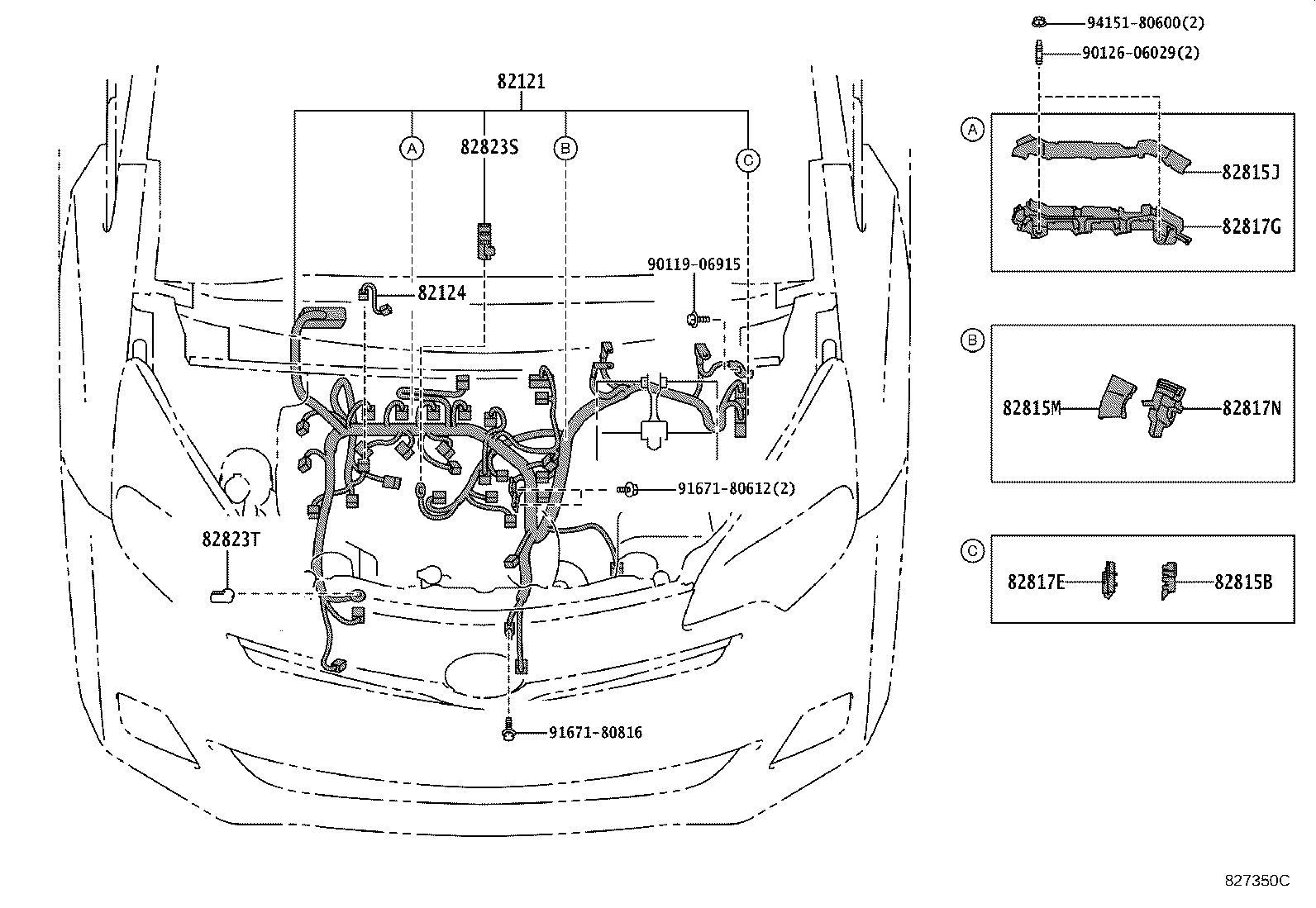

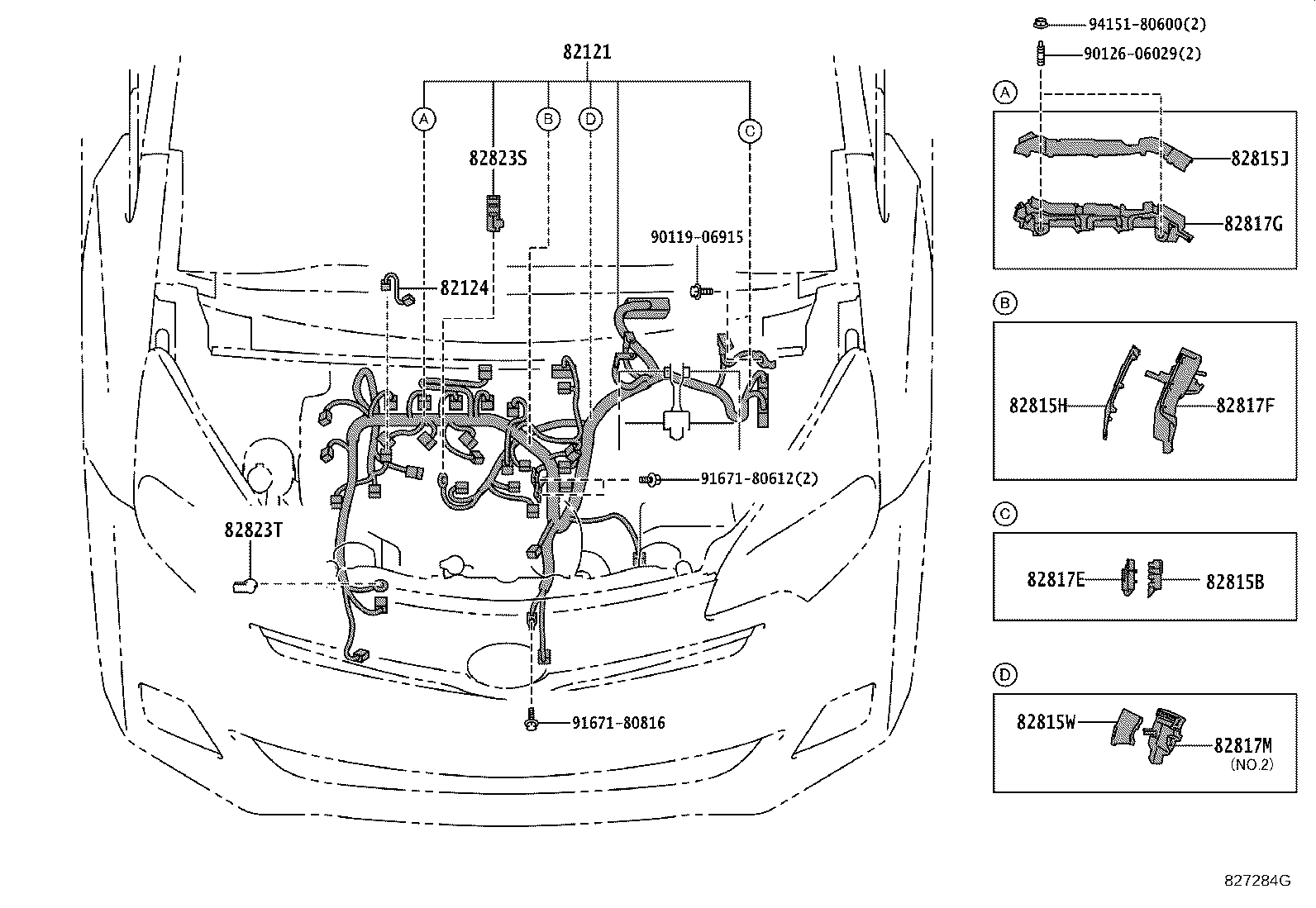

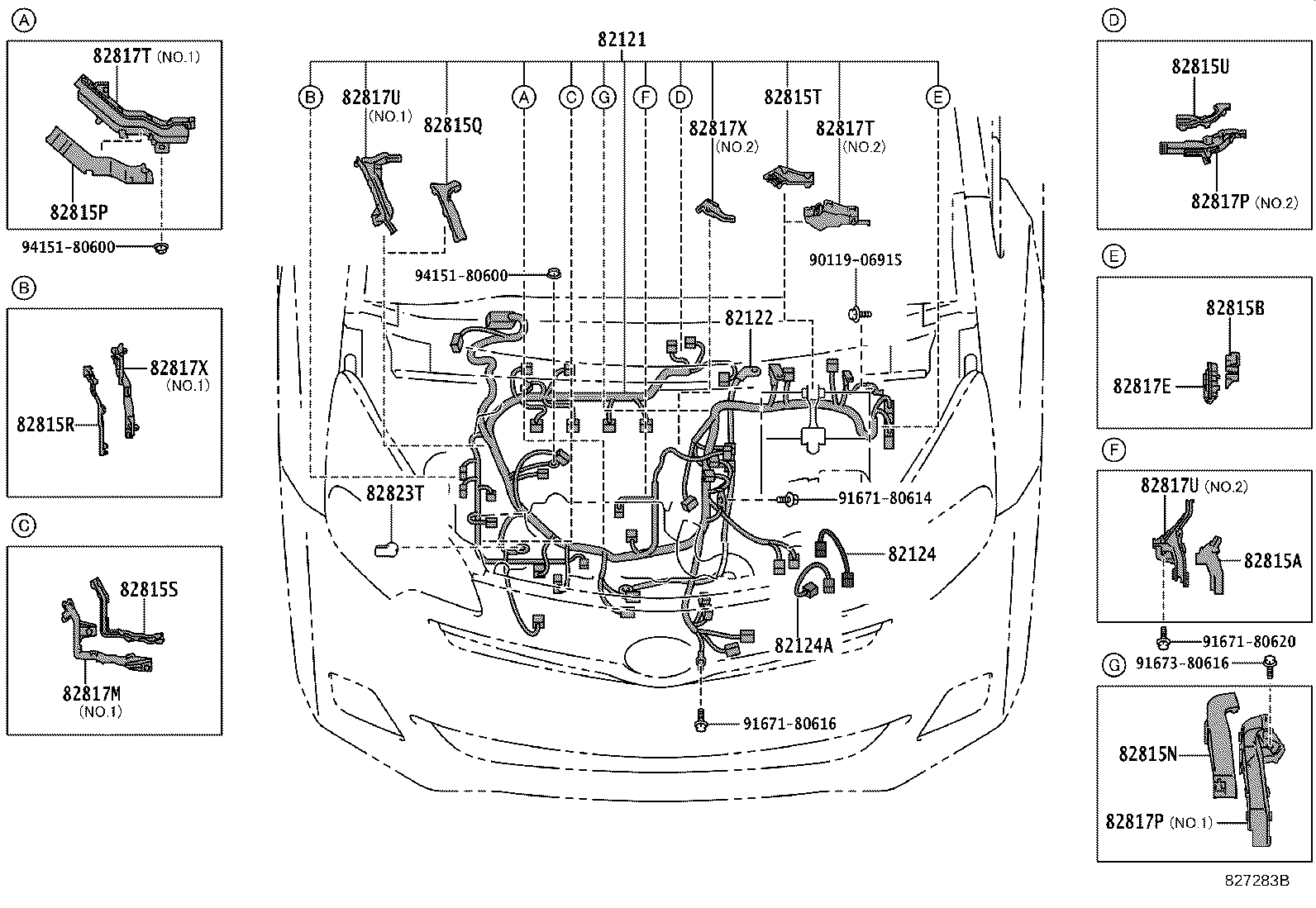

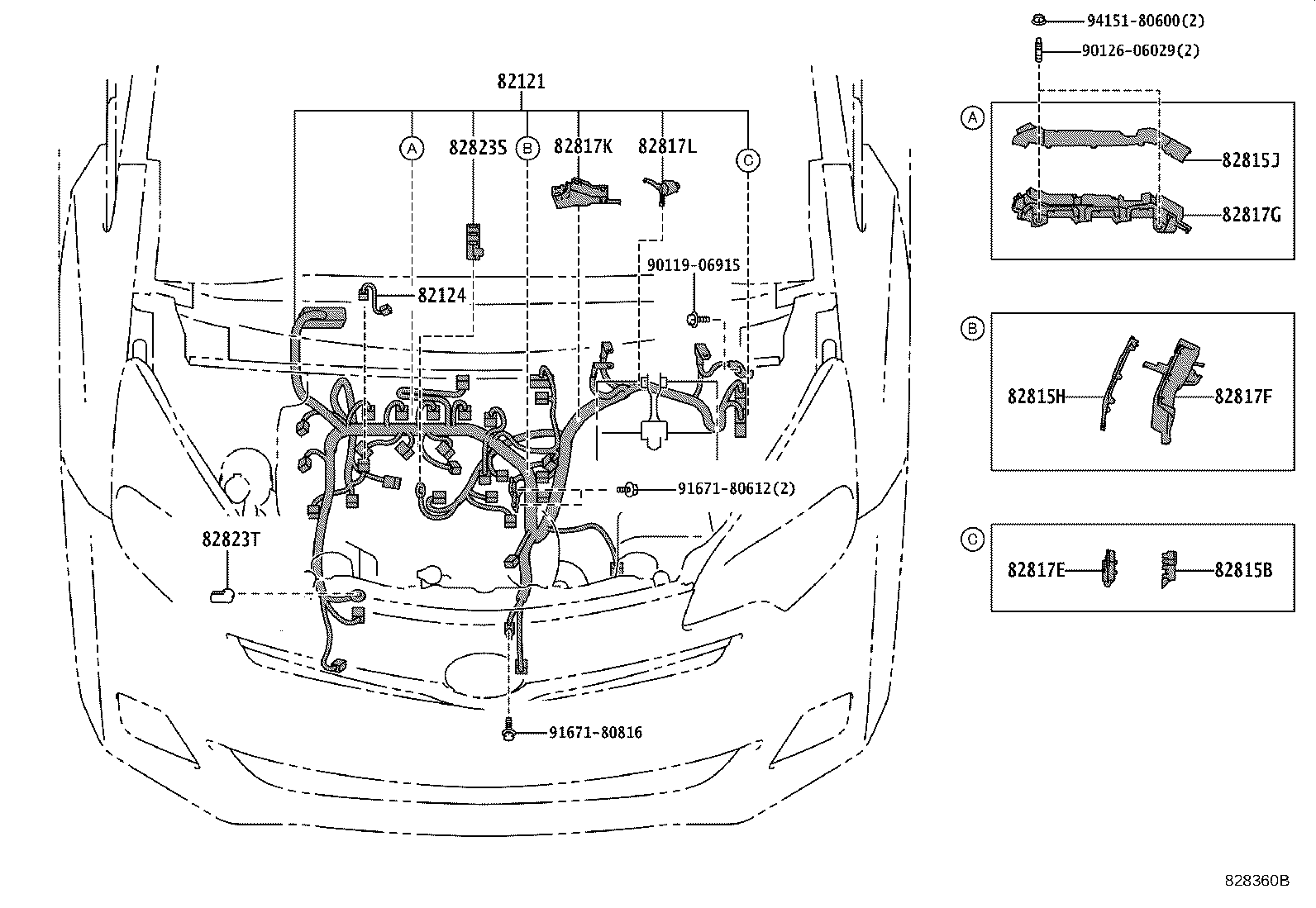

82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5

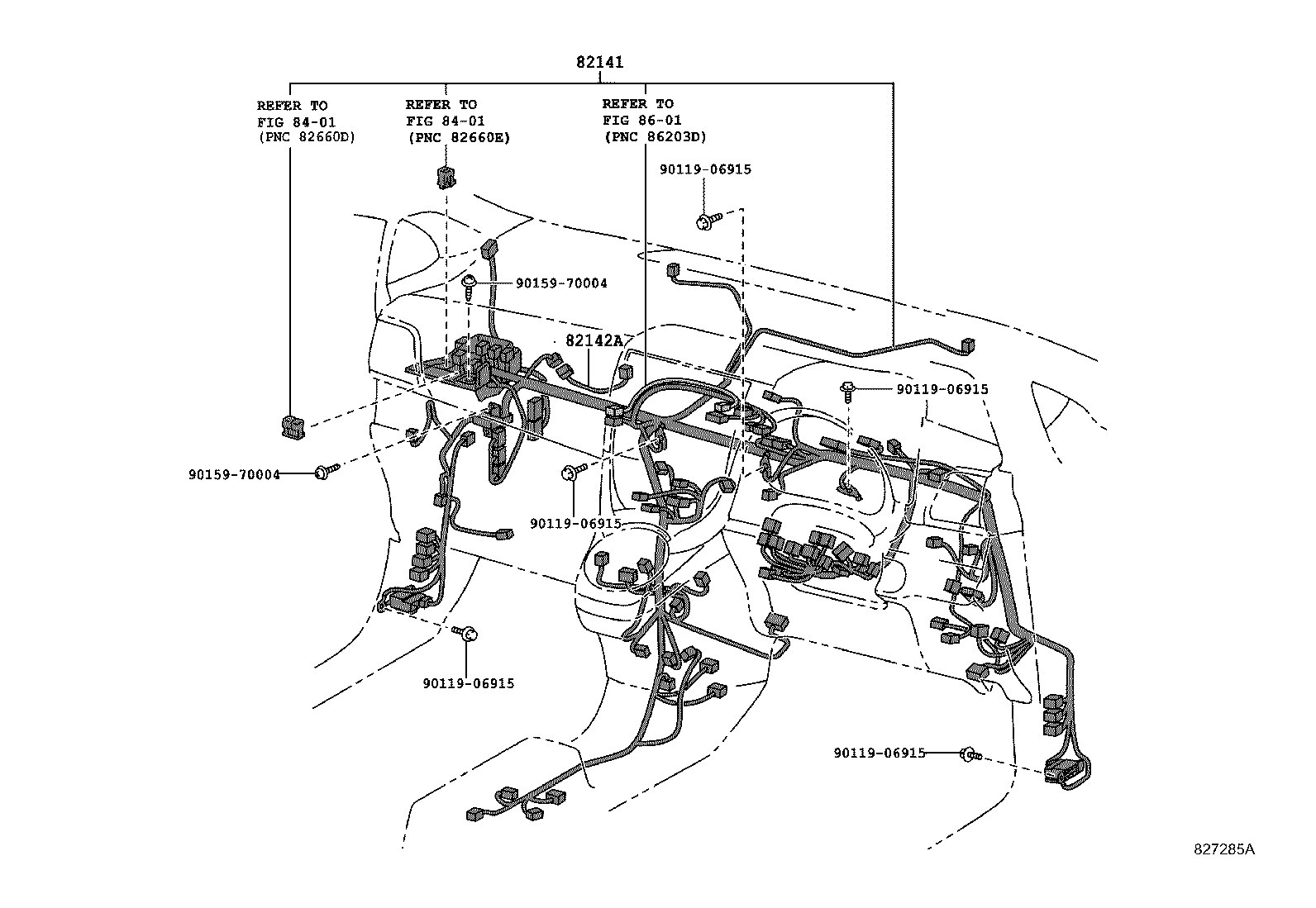

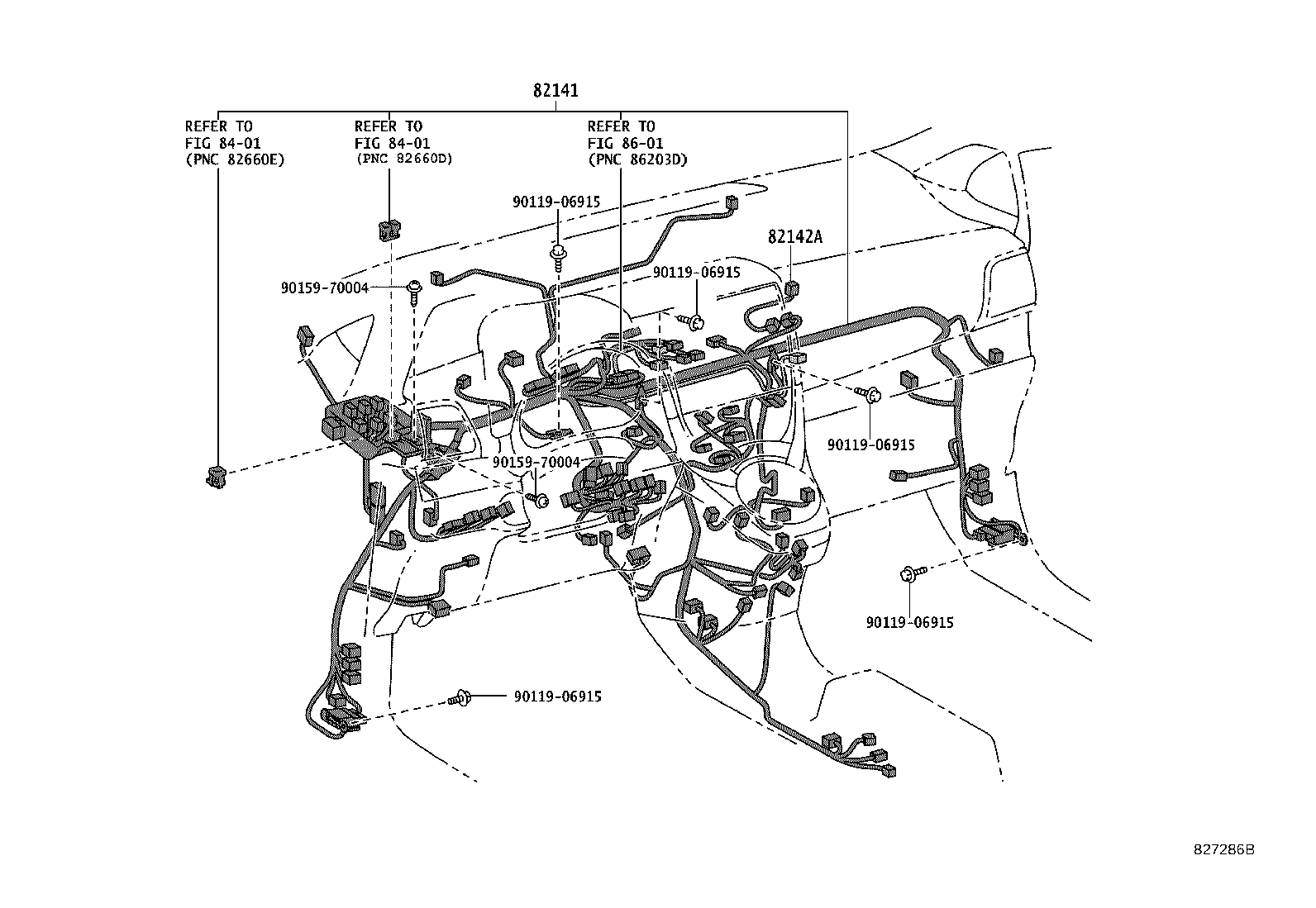

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2

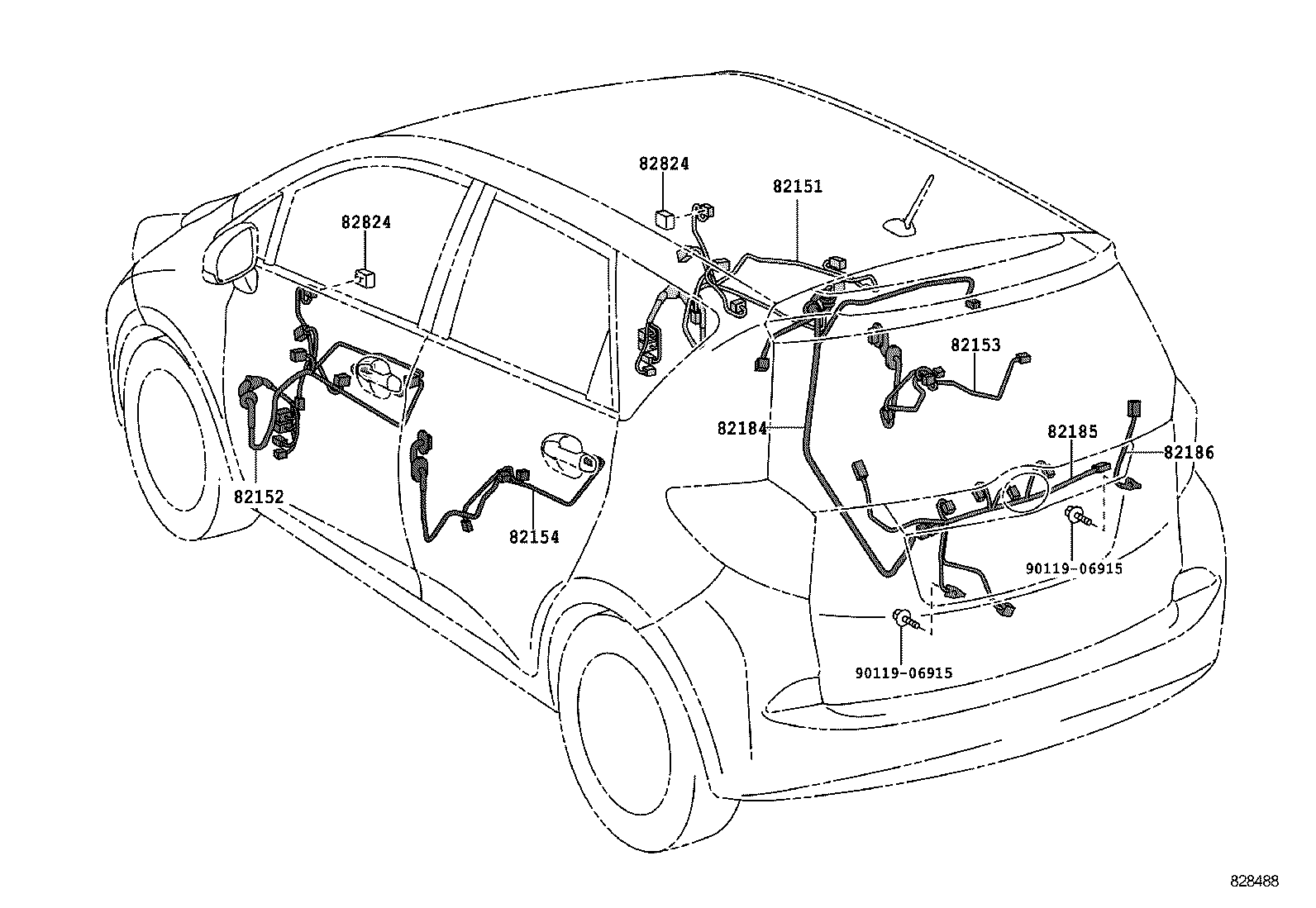

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

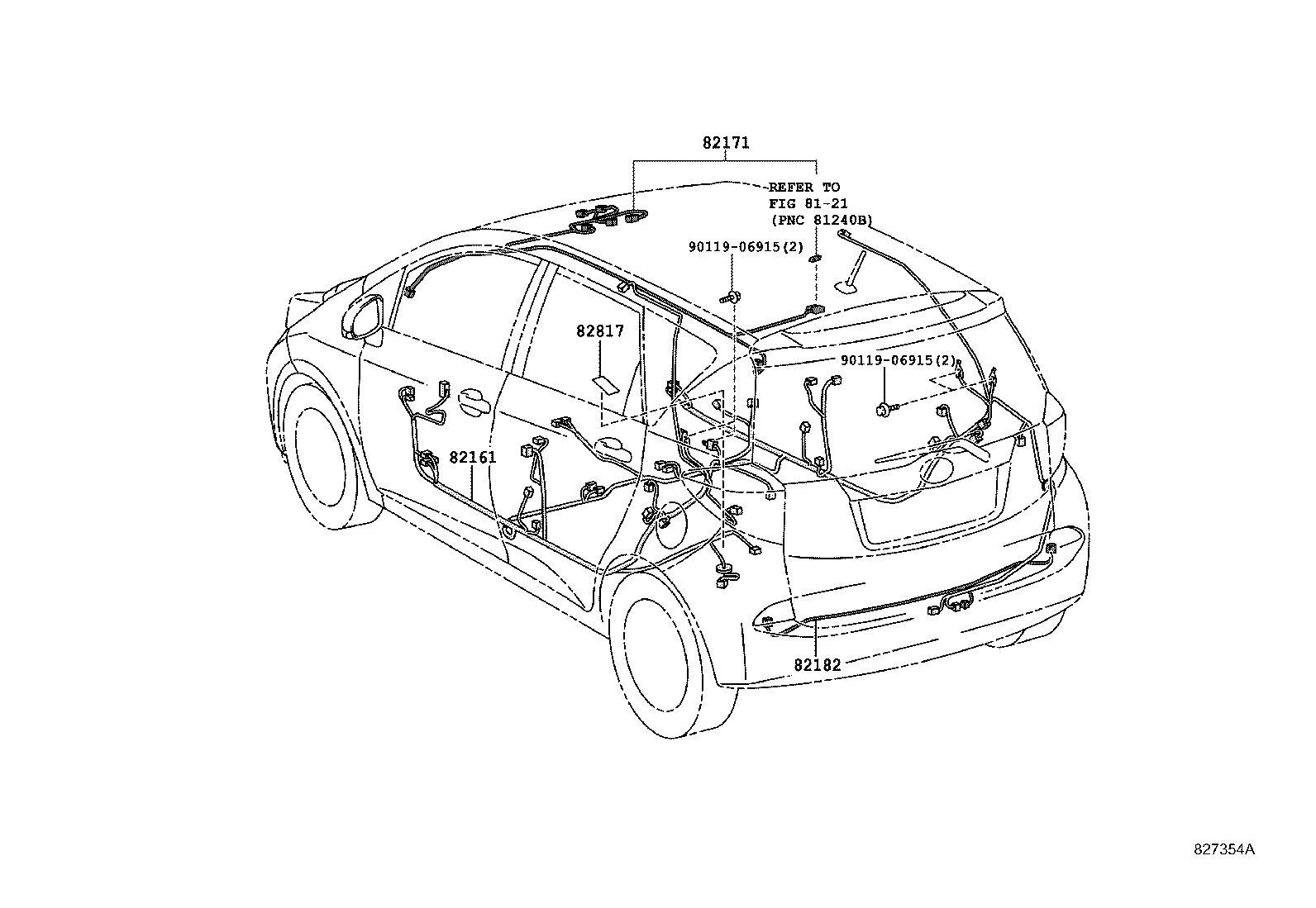

82161 Wire, Floor
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815W Cover, Wiring Harness Protector, NO.2
82817 Protector, Wiring Harness, NO.1
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

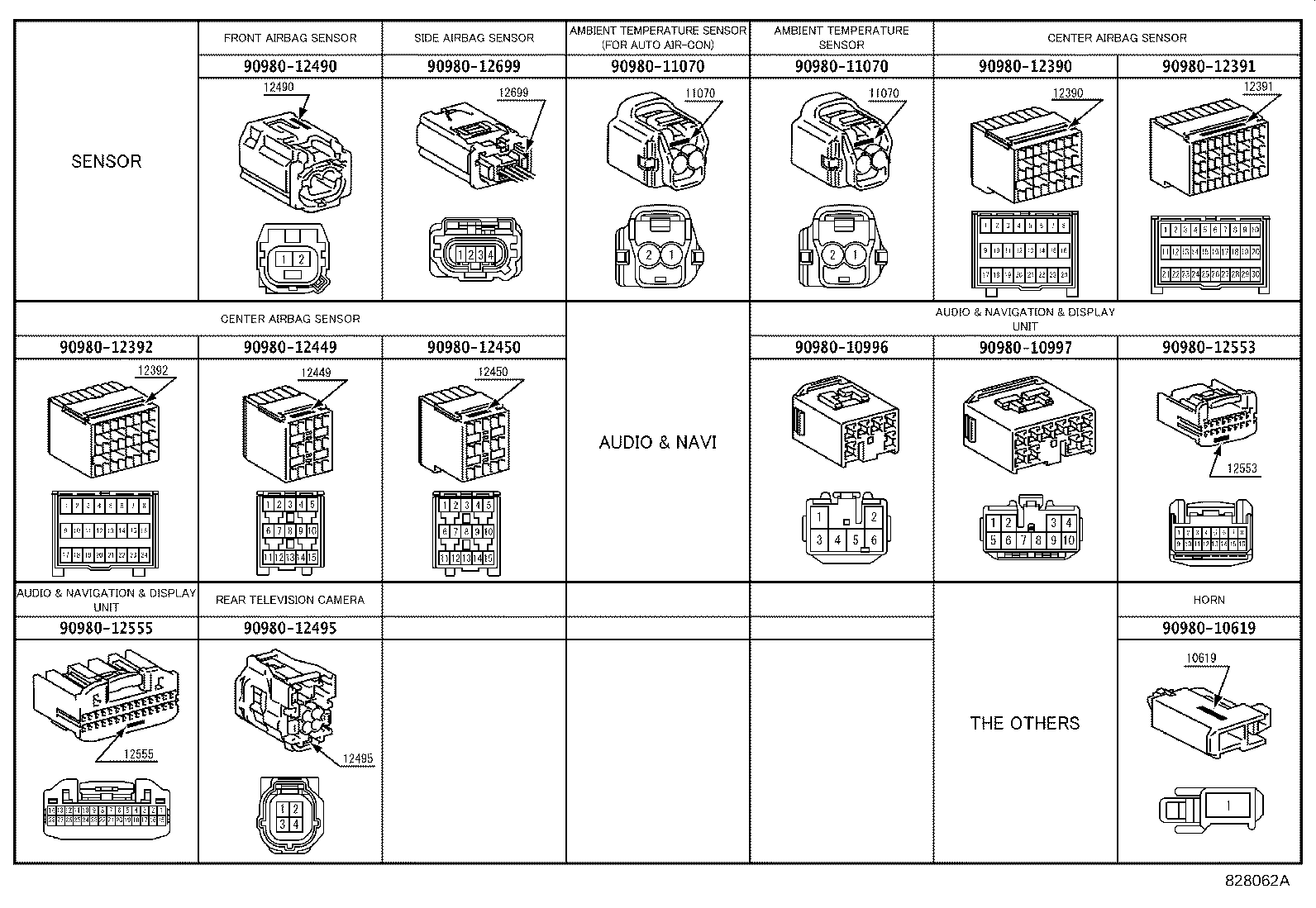

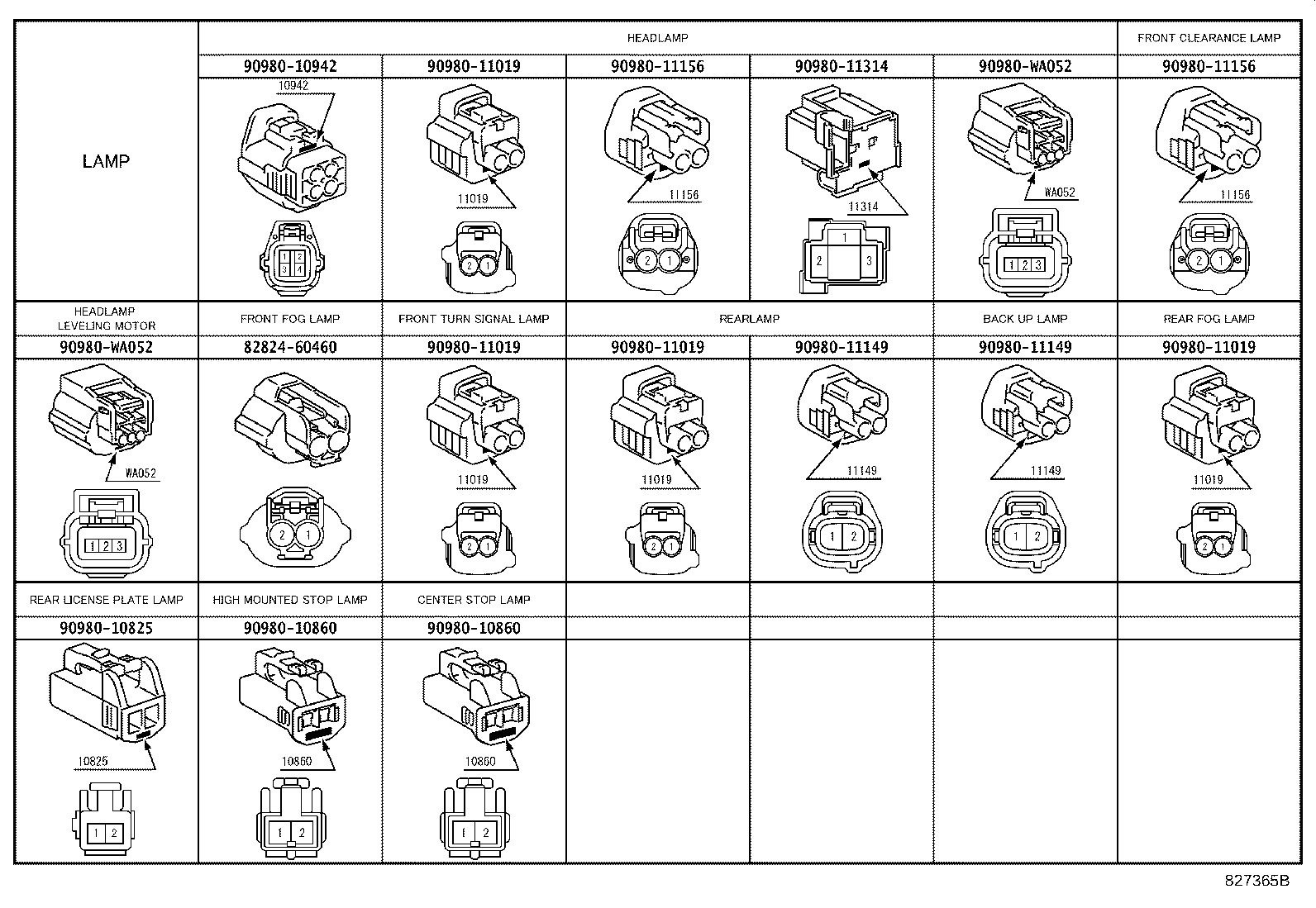

82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
