Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

104 part groups · 11 illustrations

Illustrations

84B731D 2010-11 → —

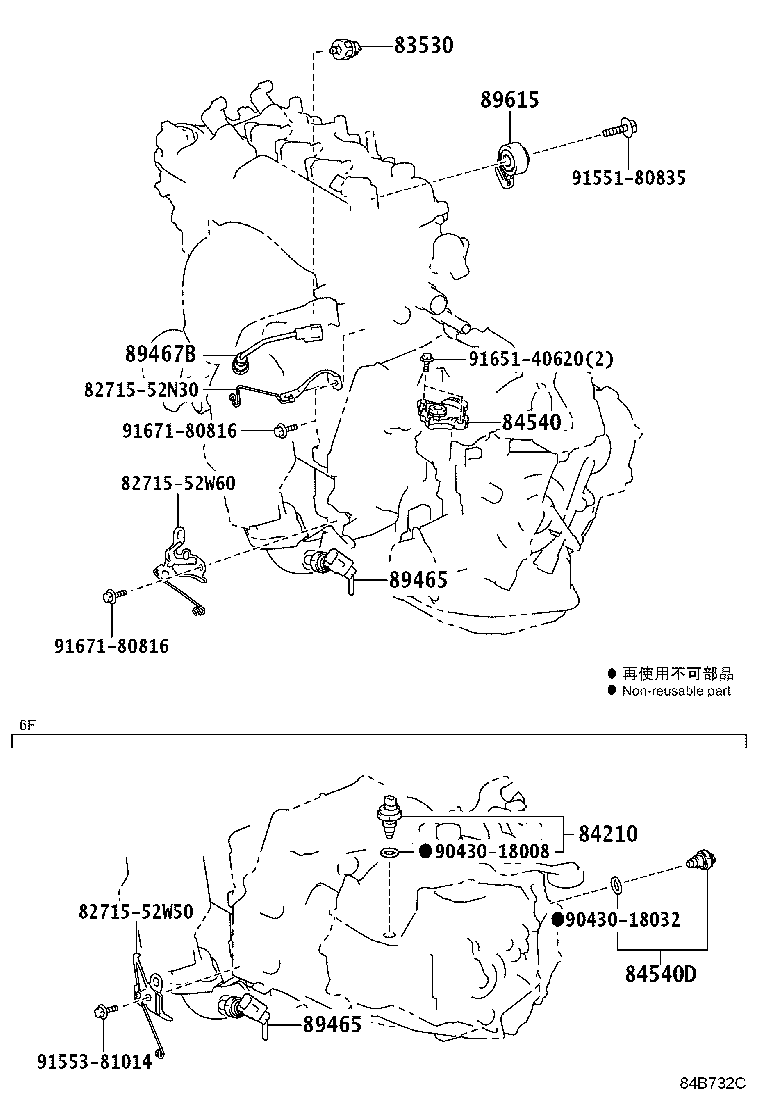

84B732C 2010-11 → —

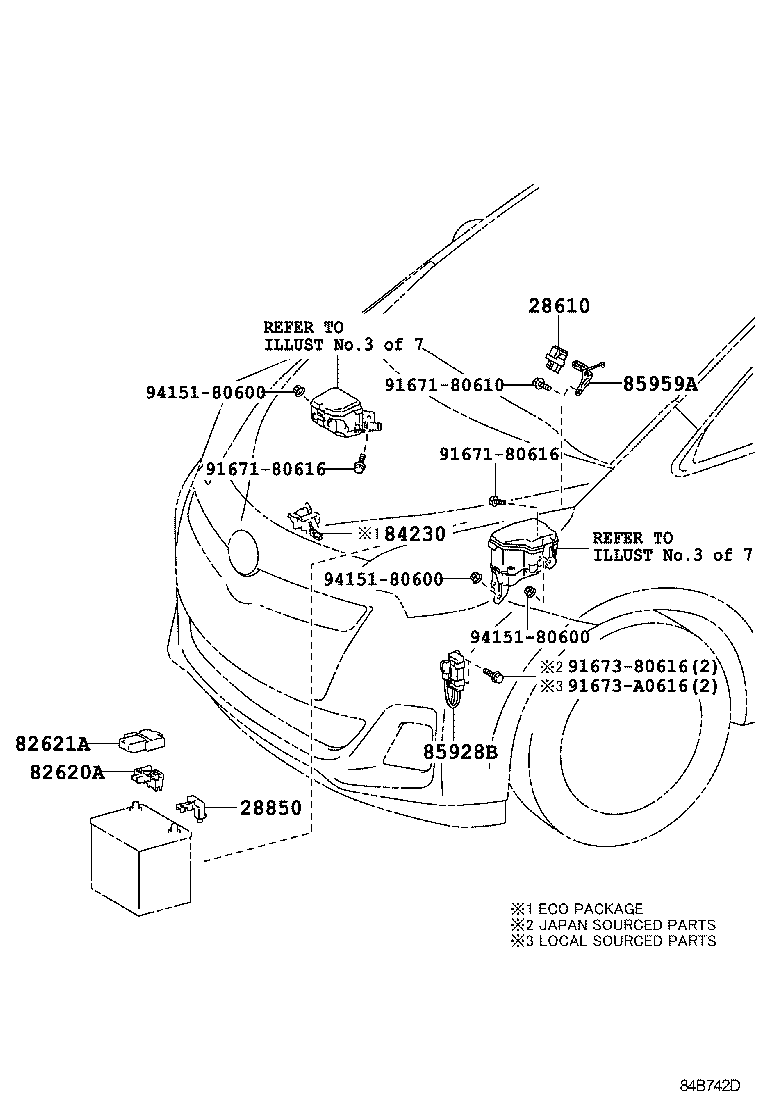

84B742D 2010-11 → —

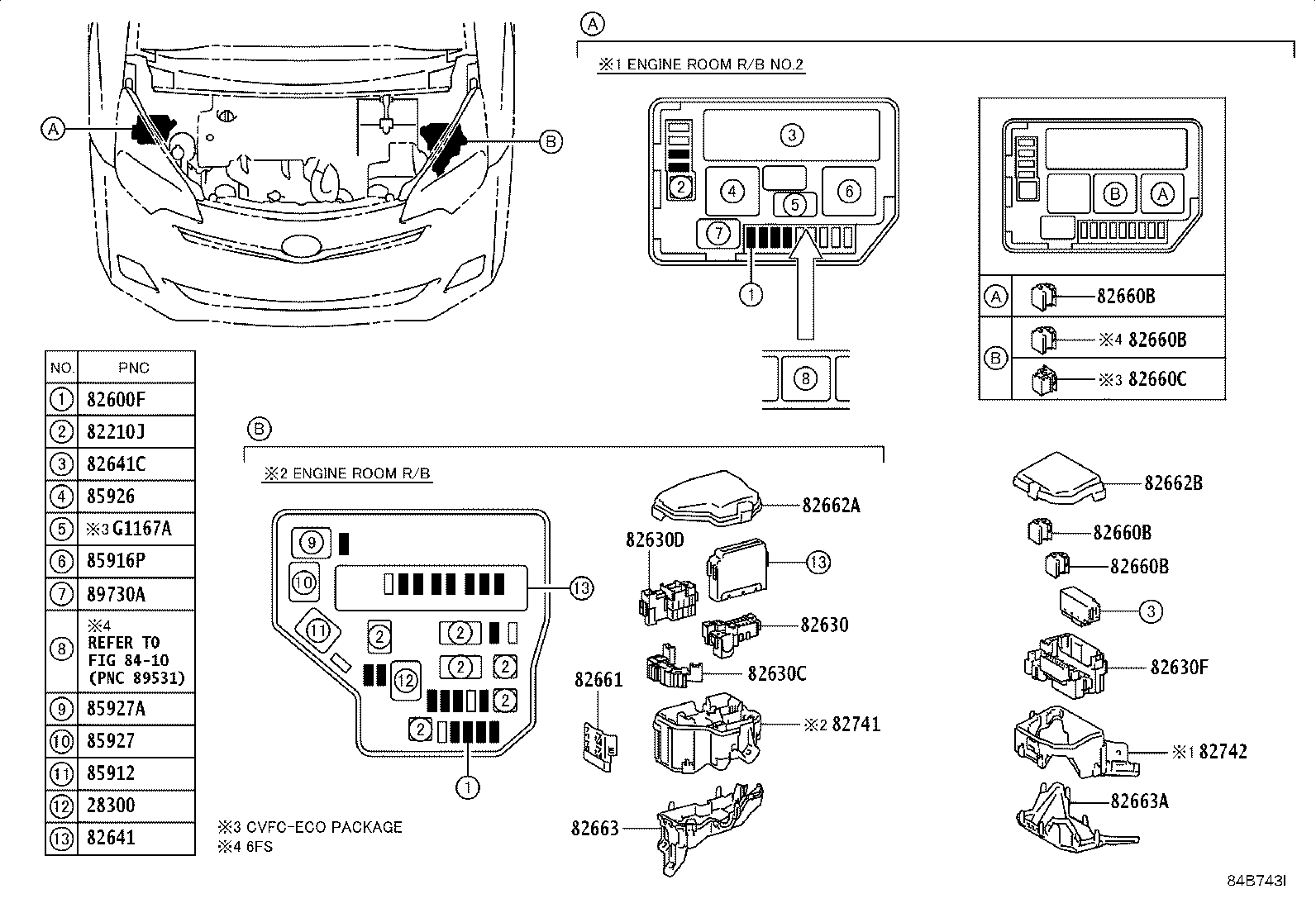

84B743I 2010-11 → 2014-05

Part groups

PNC	Description
28300	Relay Assy, Starter
28610	Relay Assy, Intake Heater OR Glow Plug
28850	Sensor Assy, Battery Current
69065A	Cylinder Sub-assy, Airbag Cut Off Switch
82210J	Fusible Link
82223F	Wire, Switch
82600F	Fuse, Fuse Block
82620A	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82630	Holder Assy, Fuse
82630C	Holder Assy, Fuse
82630D	Holder, Fuse
82630F	Holder, Fuse
82641	Relay, Integration NO.1
82641C	Relay, Integration NO.2
82642A	Relay, Running Light
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82671A	Block, Junction
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
83320	Gage Assy, Fuel Sender
83520	Gage Assy,Oil Pressure Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83950M	Lamp Assy, Telltale
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84210	Switch Assy, Back-up Lamp
84230	Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84520	Switch Assy, Clutch Start
84520E	Switch Assy, Clutch Start, NO.2
84523	Wire, Switch NO.1
84523A	Wire, Switch NO.2
84540	Switch Assy, Neutral Start
84540D	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84751	Switch, Seat Heater
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84840G	Switch Assy, Back Door Opener
84862	Switch, Slide Roof Motor
84870A	Switch Assy, Outer Mirror
84988L	Switch, Vsc Off
85432	Solenoid, Key Interlock
85530B	Socket Assy, Power Outlet, Rear NO.1
85530E	Socket Assy, Power Outlet, NO.3
85535E	Cover, Power Outlet Socket, NO.2
85535F	Cover, Power Outlet Socket, Rear
85539B	Label, Power Outlet Notice, Center
85903	Computer Sub-assy, Shift Lock Control
85912	Relay, Defogger
85913C	Relay, Heater, NO.1
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85928B	Resistor, Cooling Fan
85940	Relay Assy, Windshield Wiper
85959A	Holder, Relay
85970A	Relay Assy, Double Lock Door Control
87290	Switch Assy, Heater
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89437	Cover, Sensor
89439	Bracket, Sensor
89451A	Sensor, Shift Lever Position
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
89530C	Computer Assy, Transmission Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89681A	Computer, Power Management Control
89730A	Relay(FOR SECURITY WARNING)
G1167A	Relay (FOR OIL PUMP MOTOR)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
