Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 4 illustrations

Illustrations

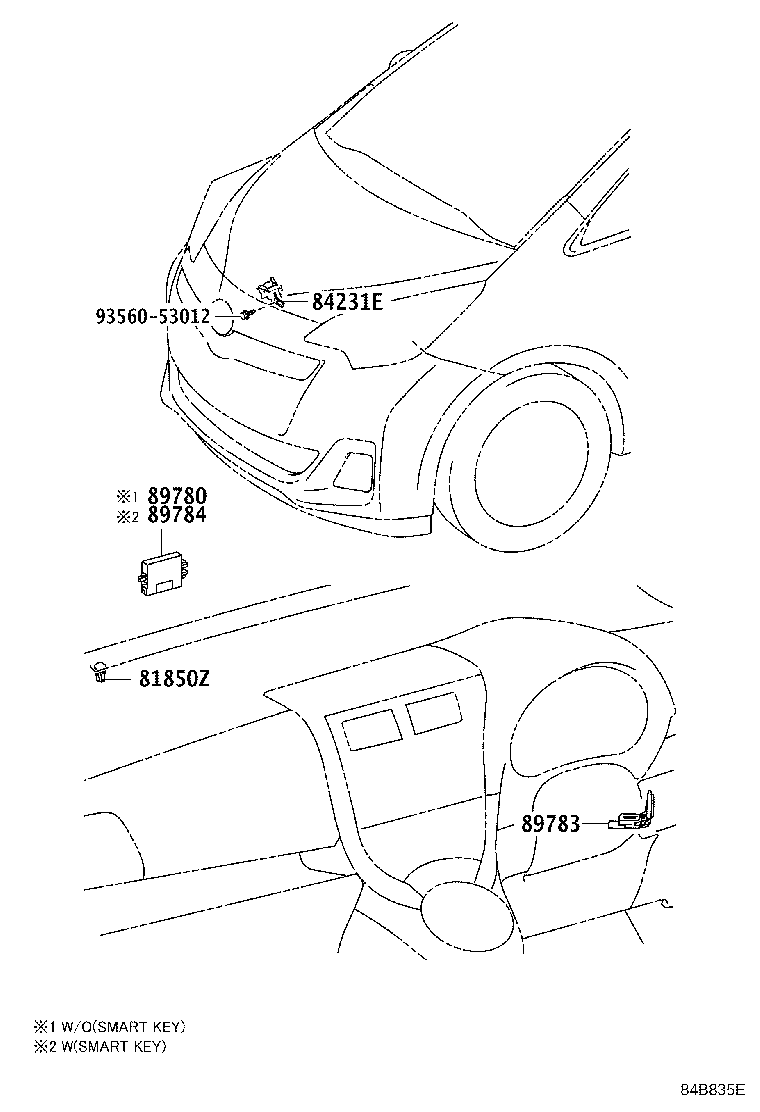

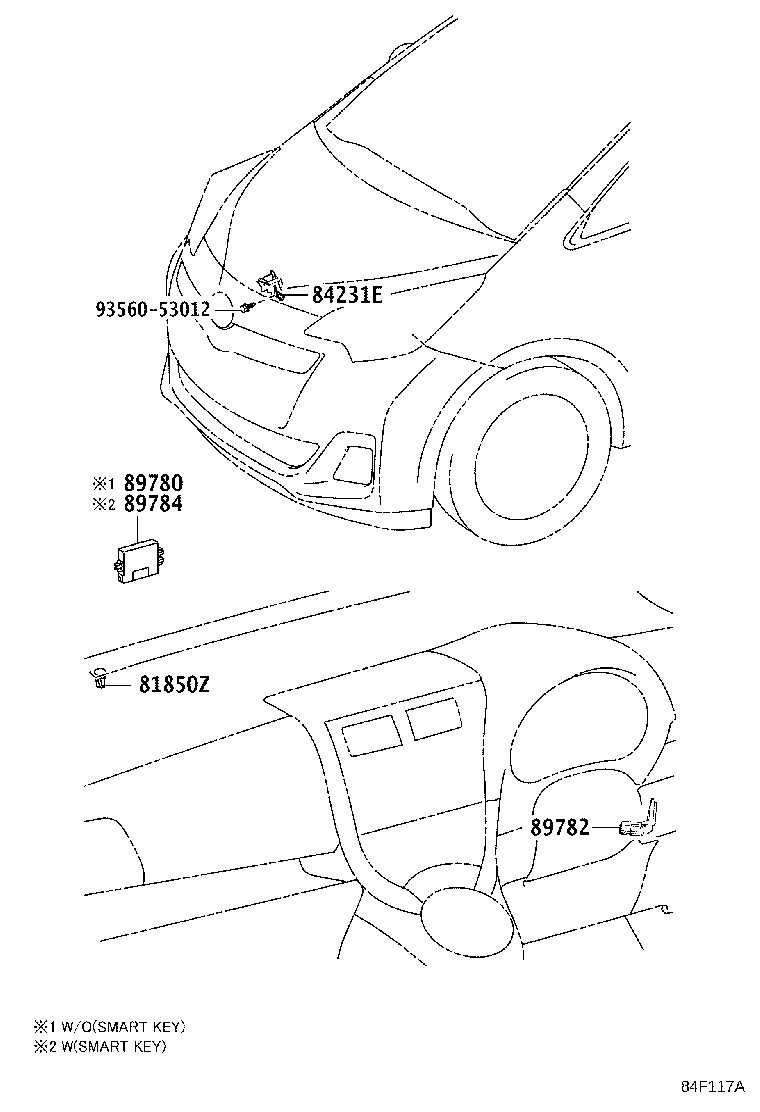

Figure 84B676F 84B676F 2010-11 → 2014-05 Figure 84F118A 84F118A 2014-05 → — Figure 84B835E 84B835E 2010-11 → 2014-05 Figure 84F117A 84F117A 2014-05 → —

Part groups

PNCDescription
81850Z Lamp Assy, Theft Warning Indicator
84231E Switch, Courtesy(FOR SECURITY)
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
