Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

19 part groups · 9 illustrations

Illustrations

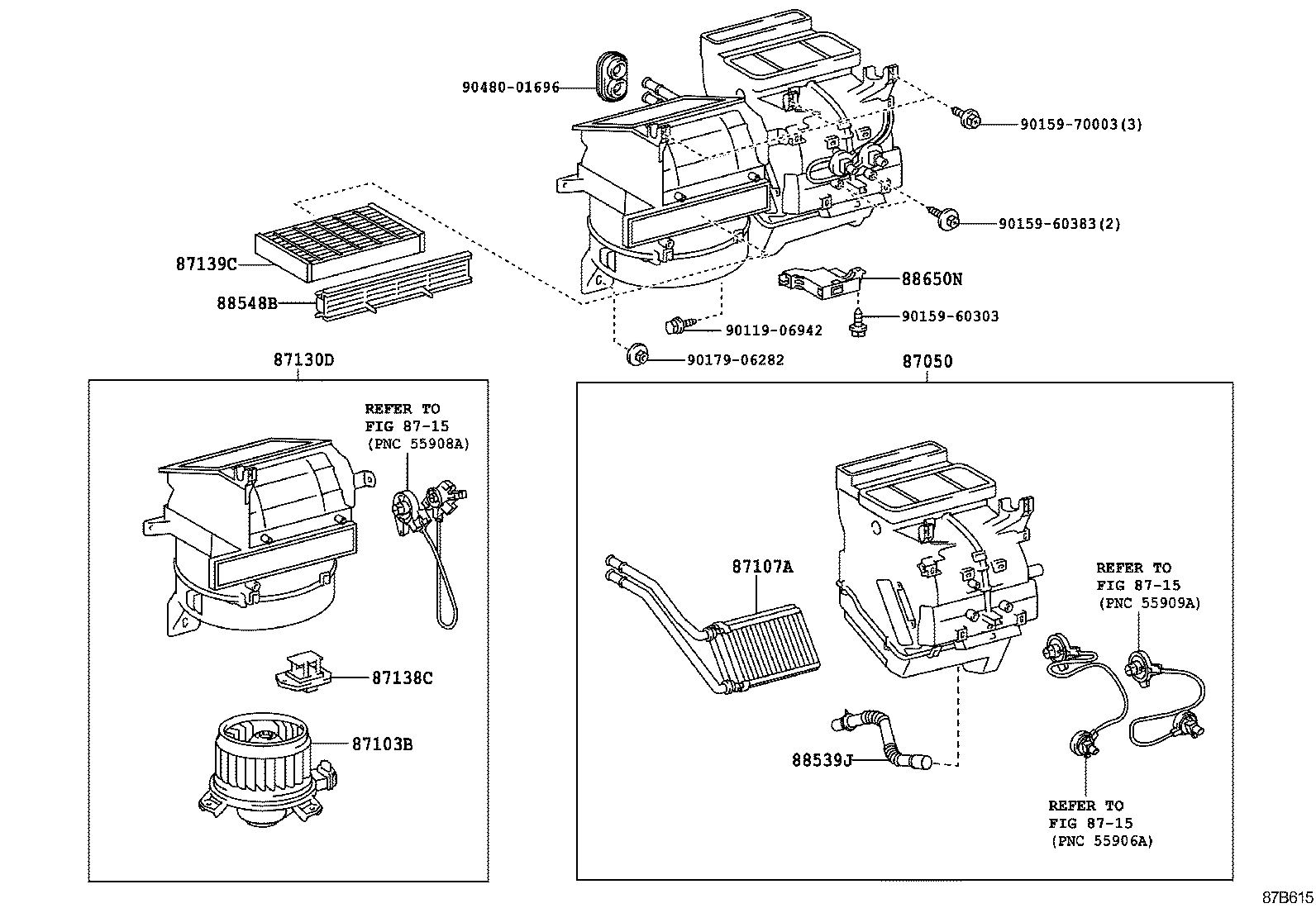

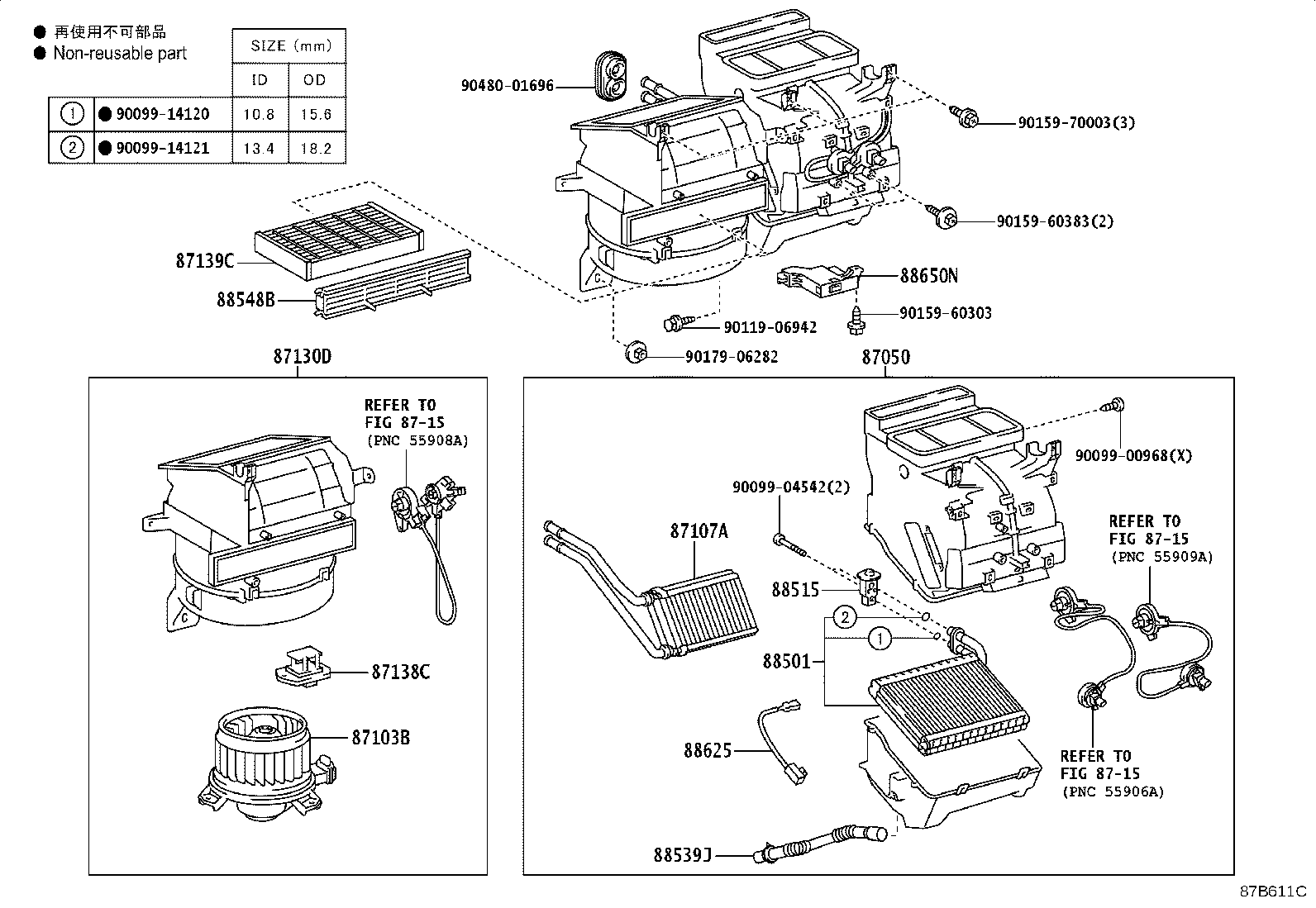

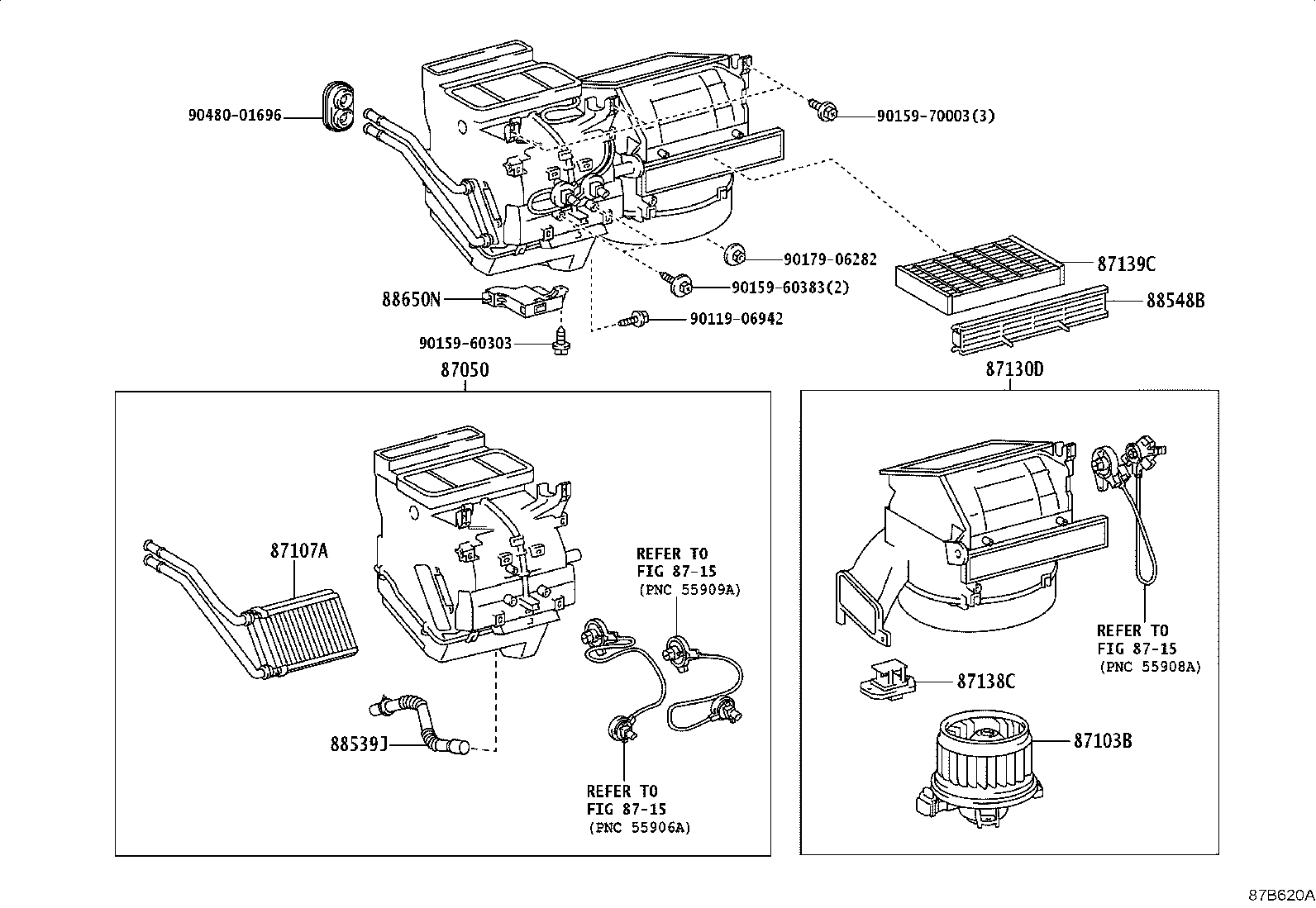

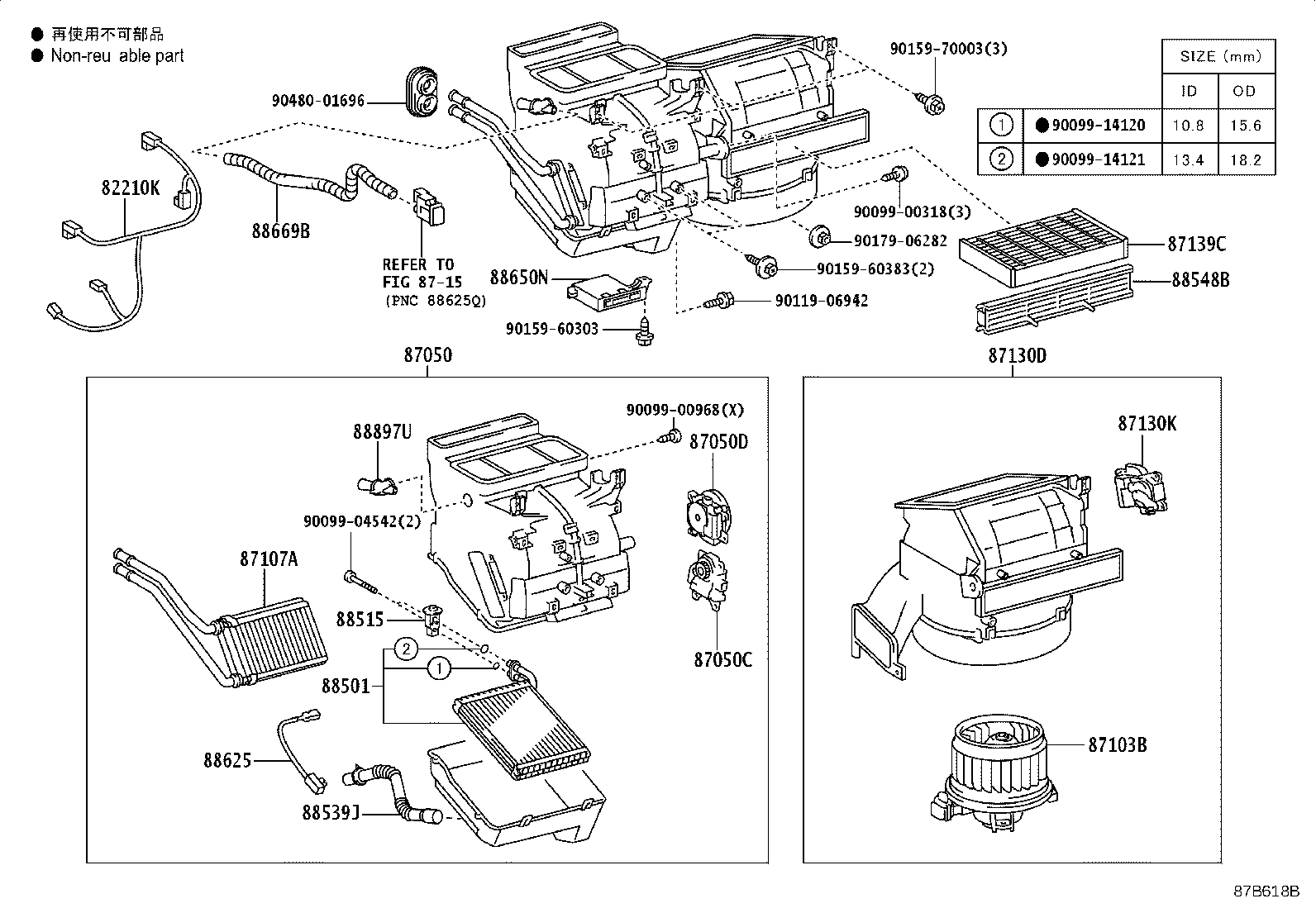

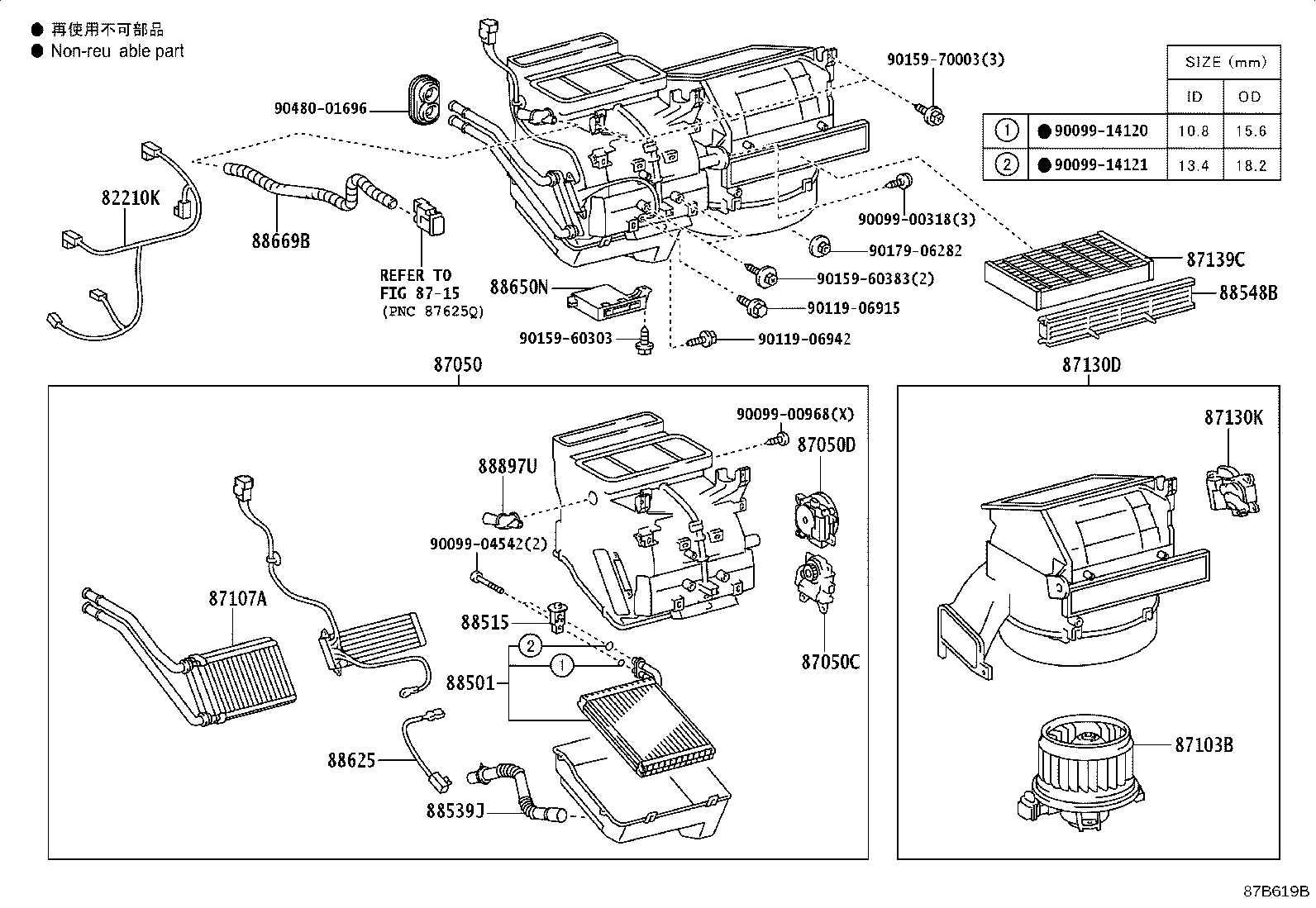

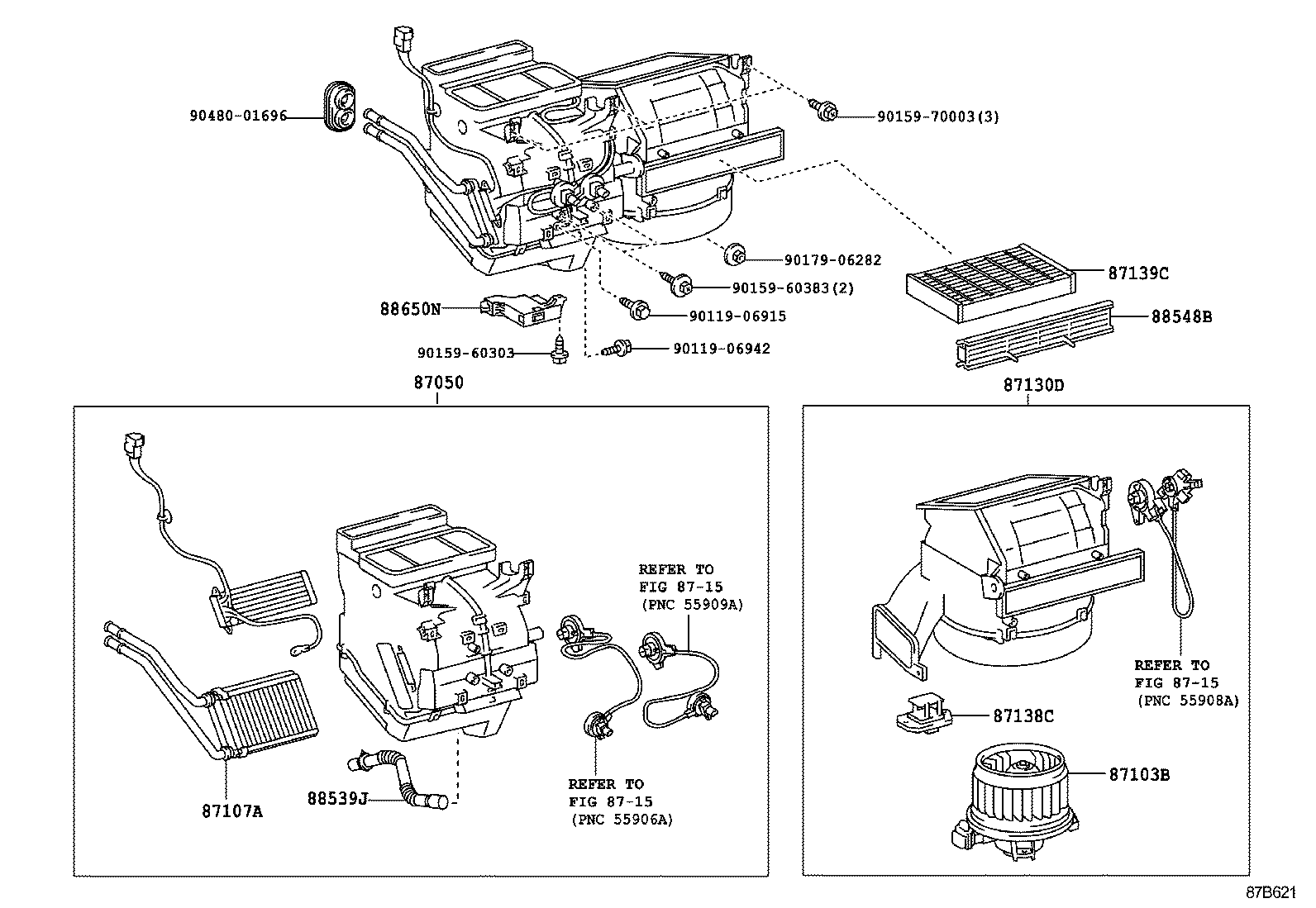

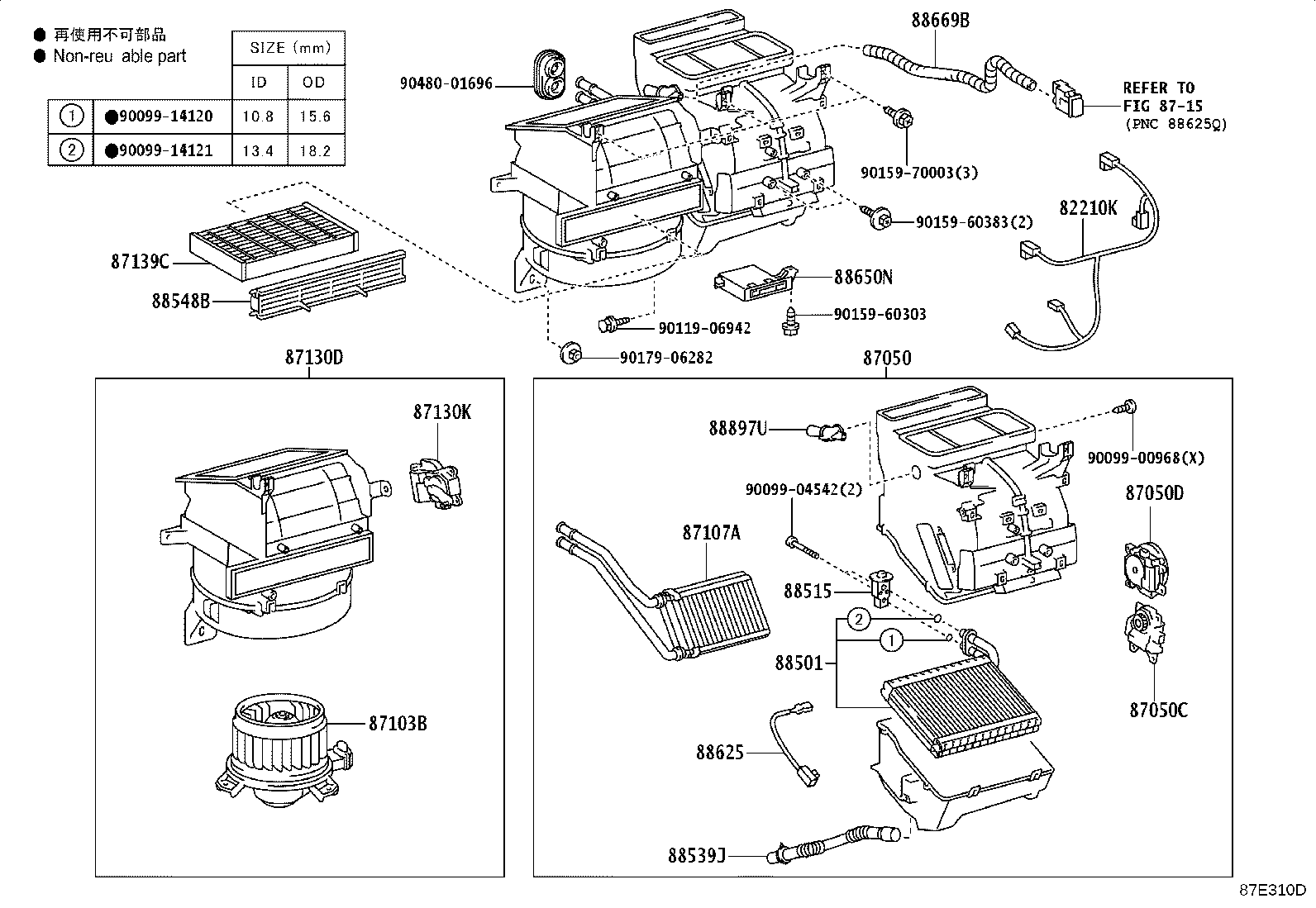

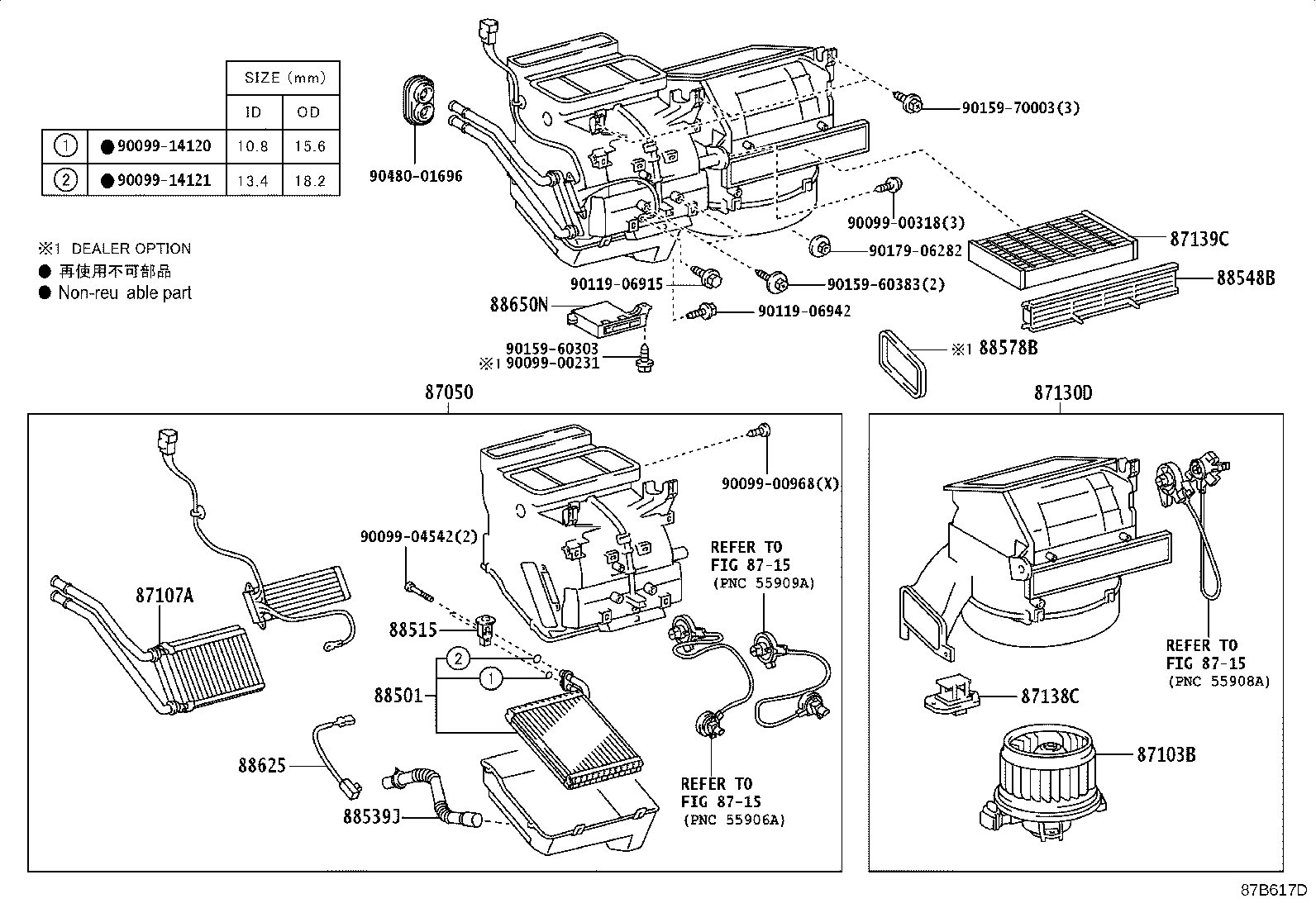

Figure 87B616D 87B616D 2010-11 → — Figure 87B617D 87B617D 2010-11 → — Figure 87B618B 87B618B 2010-11 → — Figure 87B619B 87B619B 2010-11 → — Figure 87B620A 87B620A 2010-11 → — Figure 87B621 87B621 2010-11 → — Figure 87B611C 87B611C 2010-11 → — Figure 87E310D 87E310D 2010-11 → — Figure 87B615 87B615 2010-11 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139C Filter, Clean Air
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88669B Hose, Cooler Air
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
