Heating & Air Conditioning - Water Piping

11 part groups · 4 illustrations

Illustrations

Figure 87B640A

87B640A 2010-11 → —

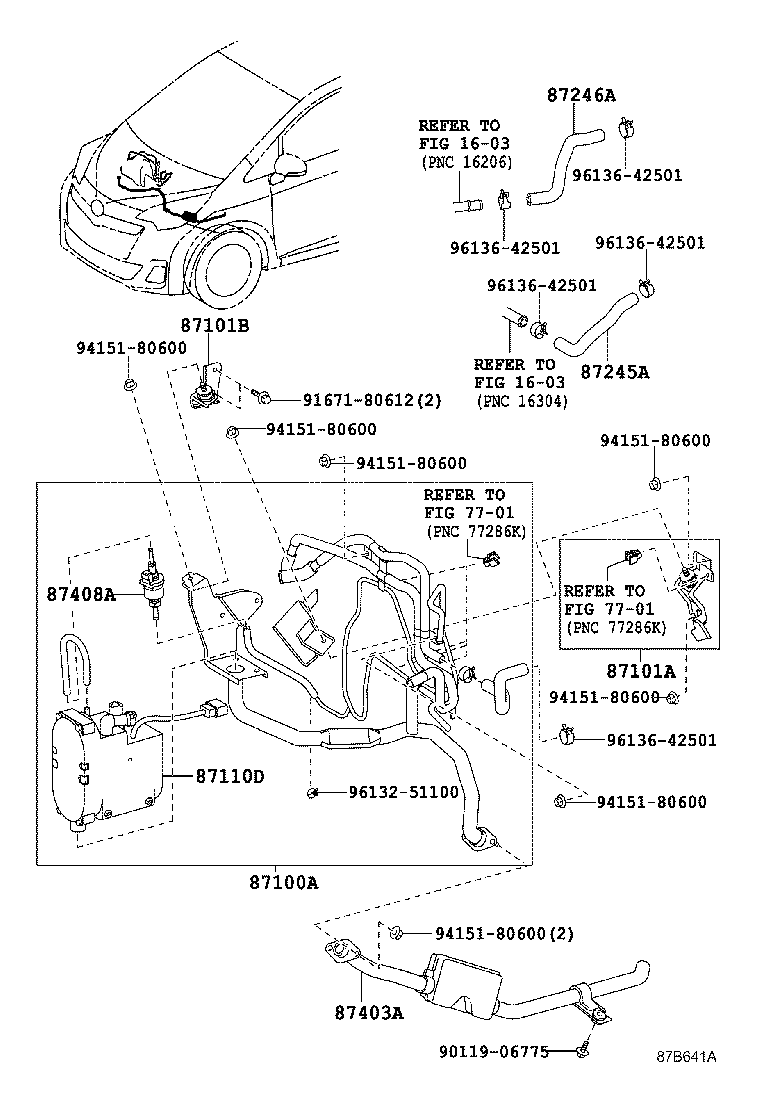

Figure 87B641A

87B641A 2010-11 → —

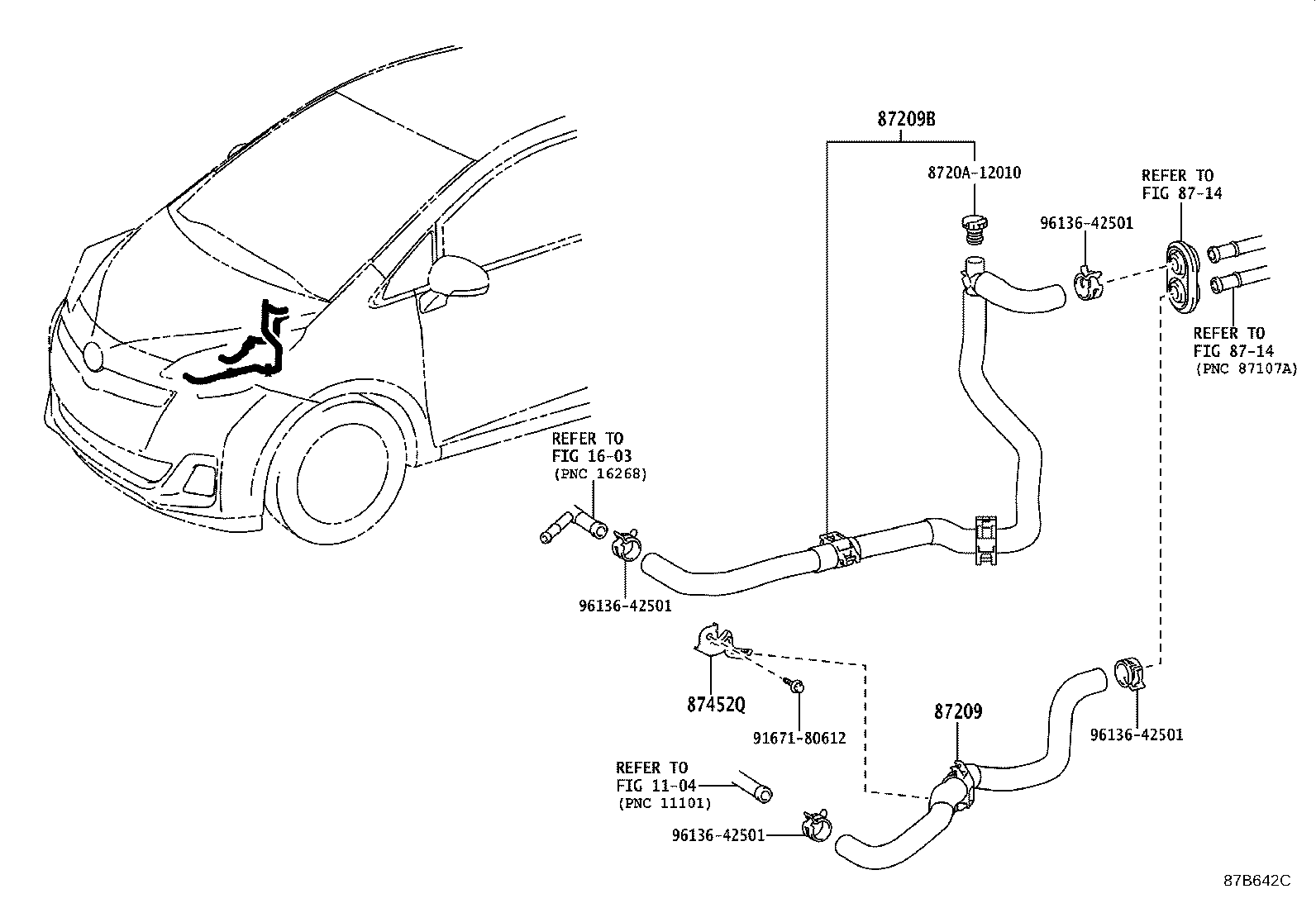

Figure 87B642C

87B642C 2010-11 → —

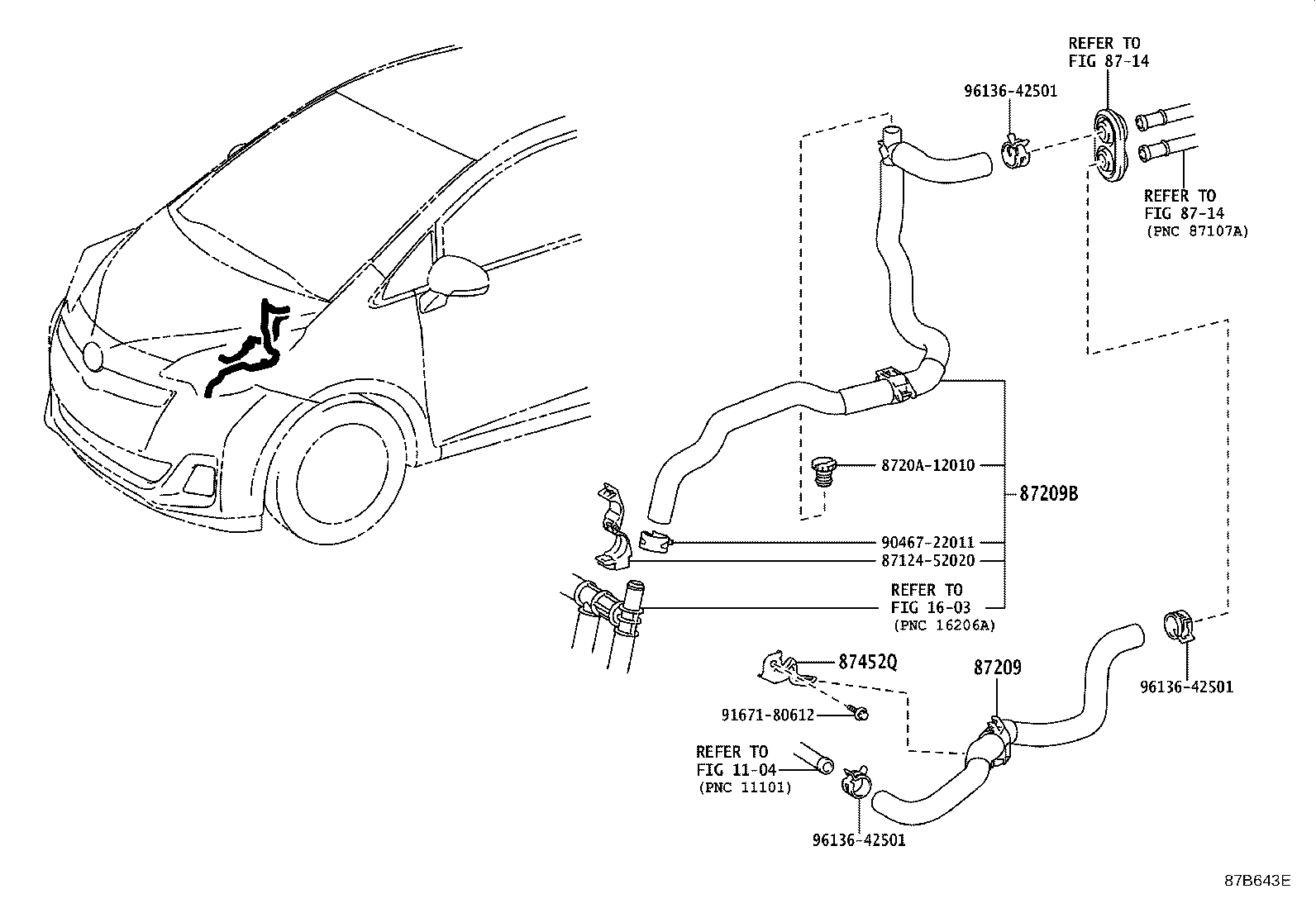

Figure 87B643E

87B643E 2010-11 → —

Part groups

PNC	Description
87100A	Heater & Accessory Assy
87101A	Bracket Sub-assy, Heater NO.1
87101B	Bracket Sub-assy, Heater NO.2
87110D	Heater Assy
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87403A	Pipe Sub-assy, Exhaust
87408A	Pump Sub-assy, Fuel
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
