Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 5 illustrations

Illustrations

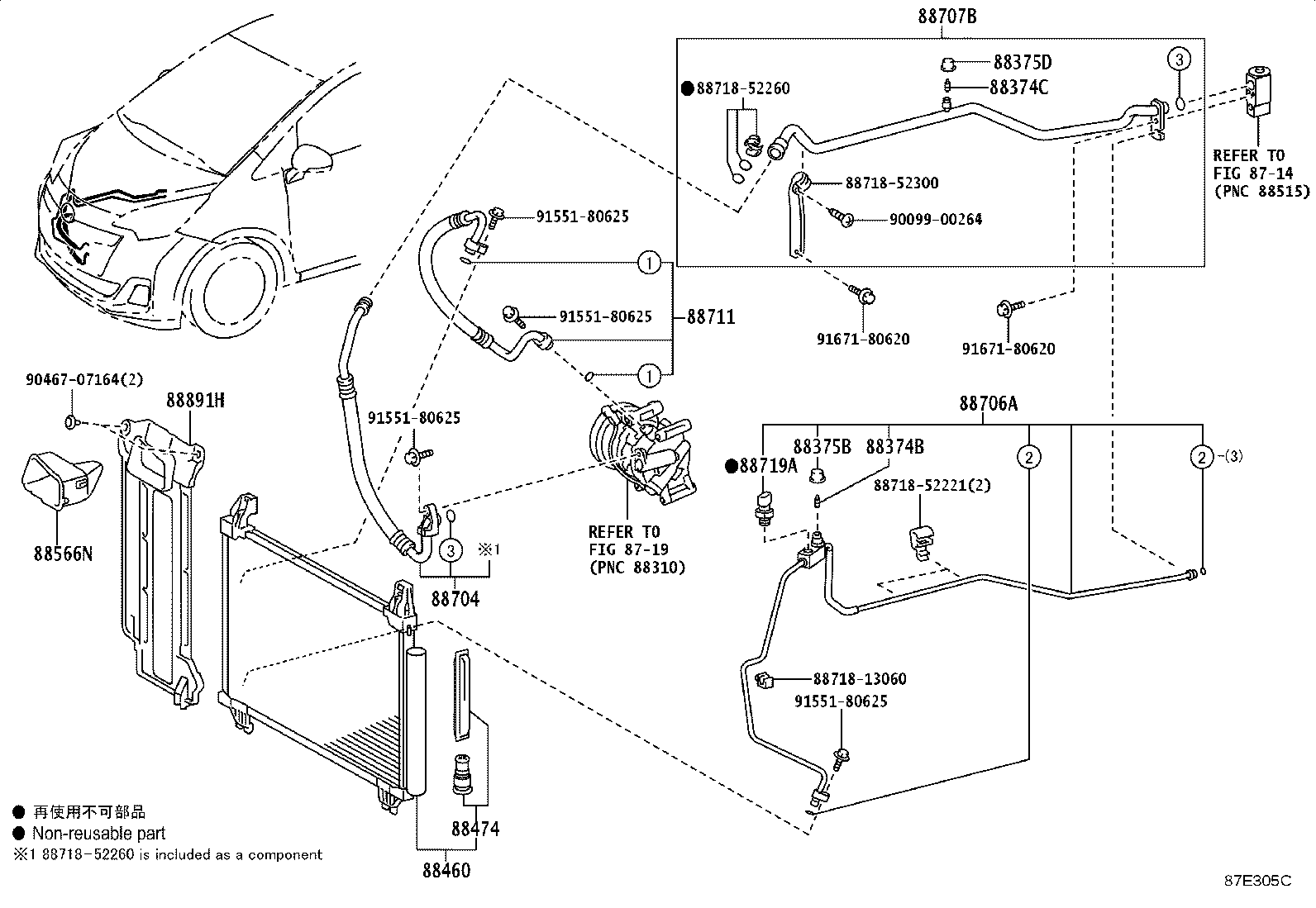

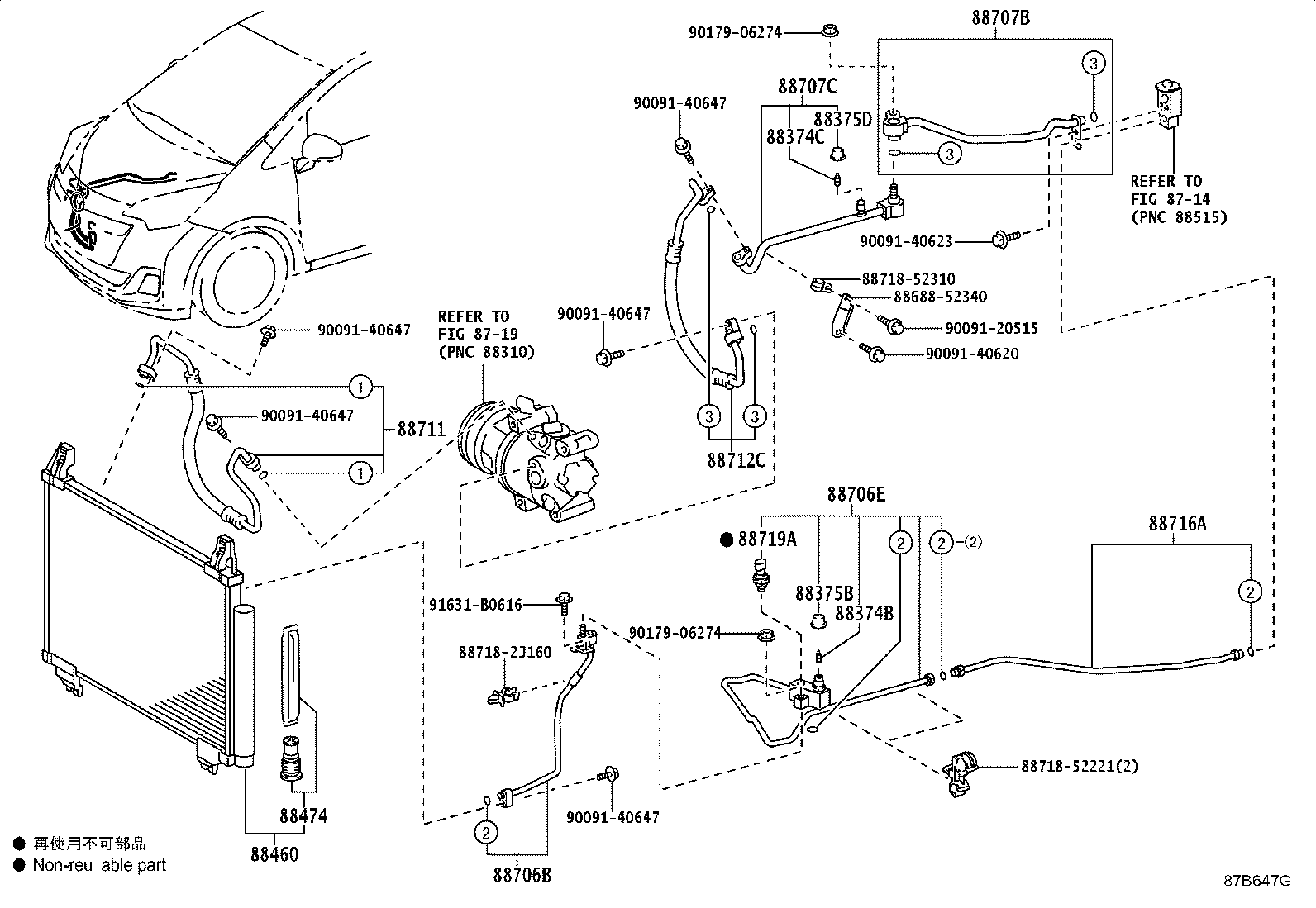

Figure 87B646D 87B646D 2010-11 → — Figure 87B647G 87B647G 2010-11 → — Figure 87E305C 87E305C 2010-11 → 2014-05 Figure 87E316C 87E316C 2014-05 → — Figure 879932D 879932D 2010-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88566N Duct, Cooler Air, NO.1
88688G Bracket, Cooler Refrigerant Pipe
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706E Tube Sub-assy, Liquid, E
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
