Toyota Yaris (FRP)
2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe
Discontinued model
Data version 2006-05

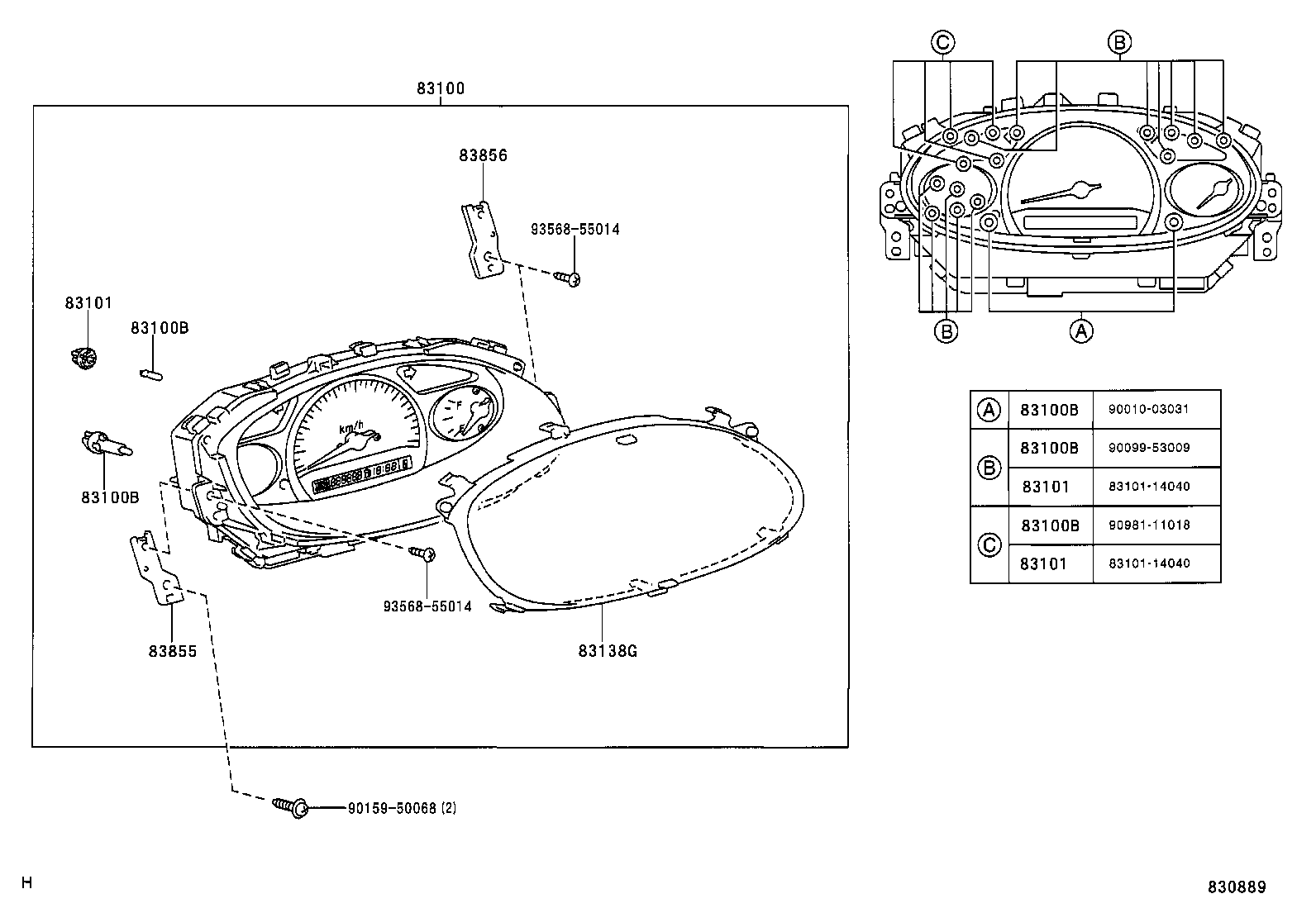

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-0D010 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# LHD (LUNA,TRSTD) | — | |
| 83800-0D010 |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# LHD SOL | — | |
| 83800-0D020 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD (LUNA,TRSTD) | — | |
| 83800-0D020 |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD SOL | — | |
| 83800-0D030 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD | — | |
| 83800-0D040 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# LHD (LUNA,TRSTD) | — | |
| 83800-0D050 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD (LUNA,TRSTD) | — | |
| 83800-52540 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# 5F | — | |
| 83800-52550 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD 5F | — | |
| 83800-52570 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# LHD (LUNA,TRSTD) | — | |
| 83800-52570 note |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD (LUNA,TRSTD) | — | |
| 83800-52580 |
Meter Assy, Combination
2001-01 → 2003-02
ended
|
SCP1# RHD (LUNA,TRSTD) | — | |
| 83800-0D330 note |
Meter Assy, Combination
2003-02 → 2003-12
ended
|
SCP10 FRP LHD 5FS | — | |
| 83800-0D331 note |
Meter Assy, Combination
2003-12 → —
|
SCP10 FRP LHD 5FS | — | |
| 83800-0D340 note |
Meter Assy, Combination
2003-02 → —
|
SCP10 FRP RHD 5FS | — | |
| 83800-0D350 note |
Meter Assy, Combination
2003-02 → —
|
SCP10 FRP RHD 5FS | — | |
| 83800-0D360 note |
Meter Assy, Combination
2003-02 → 2003-12
ended
|
SCP1# FRP LHD TRSTD +1 | — | |
| 83800-0D361 note |
Meter Assy, Combination
2003-12 → —
|
SCP1# FRP LHD TRSTD +1 | — | |
| 83800-0D370 note |
Meter Assy, Combination
2003-02 → —
|
SCP1# FRP RHD TRSTD +1 | — | |
| 83800-0D380 note |
Meter Assy, Combination
2003-02 → —
|
SCP1# FRP RHD TRSTD +1 | — | |
| 83800-0D390 note |
Meter Assy, Combination
2003-02 → 2004-01
ended
|
SCP1# FRP LHD (SOL,TRSTD) +1 | — | |
| 83800-0D391 note |
Meter Assy, Combination
2004-01 → —
|
SCP1# FRP LHD (SOL,TRSTD) +1 | — | |
| 83800-0D400 note |
Meter Assy, Combination
2003-02 → —
|
SCP1# FRP RHD (4FC,5F) | — | |
| 83800-0D410 note |
Meter Assy, Combination
2003-02 → —
|
SCP1# FRP RHD (4FC,5F) | — | |
| 83800-0D420 note |
Meter Assy, Combination
2003-02 → 2003-12
ended
|
NLP10 FRP LHD TRSTD | — | |
| 83800-0D421 note |
Meter Assy, Combination
2003-12 → —
|
NLP10 FRP LHD TRSTD | — | |
| 83800-0D430 note |
Meter Assy, Combination
2003-02 → —
|
NLP10 FRP RHD TRSTD | — | |
| 83800-0D440 note |
Meter Assy, Combination
2003-02 → —
|
NLP10 FRP RHD TRSTD | — | |
| 83800-0D450 note |
Meter Assy, Combination
2003-02 → 2003-12
ended
|
NLP10 FRP LHD | — | |
| 83800-0D451 note |
Meter Assy, Combination
2003-12 → —
|
NLP10 FRP LHD | — | |
| 83800-0D460 note |
Meter Assy, Combination
2003-02 → —
|
NLP10 FRP RHD | — | |
| 83800-0D470 note |
Meter Assy, Combination
2003-02 → —
|
NLP10 FRP RHD | — | |
| 83800-0D600 |
Meter Assy, Combination
2003-06 → 2003-12
ended
|
SCP10 FRP TSGS | — | |
| 83800-0D601 |
Meter Assy, Combination
2003-12 → —
|
SCP10 FRP TSGS | — | |
| 83800-5C480 note |
Meter Assy, Combination
2003-02 → 2003-10
ended
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 83800-5C481 note |
Meter Assy, Combination
2003-10 → —
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 83800-5C490 note |
Meter Assy, Combination
2003-02 → 2003-10
ended
|
SCP1# FRP RHD 5F | — | |
| 83800-5C491 note |
Meter Assy, Combination
2003-10 → —
|
SCP1# FRP RHD 5F | — | |
| 83800-5C500 note |
Meter Assy, Combination
2003-02 → 2003-10
ended
|
SCP1# FRP TRSTD 5F | — | |
| 83800-5C501 note |
Meter Assy, Combination
2003-10 → —
|
SCP1# FRP TRSTD 5F | — | |
| 83800-5C510 note |
Meter Assy, Combination
2003-02 → 2003-10
ended
|
SCP1# FRP RHD TRSTD +1 | — | |
| 83800-5C511 note |
Meter Assy, Combination
2003-10 → —
|
SCP1# FRP RHD TRSTD +1 | — | |
| 83100B — Bulb, Combination Meter, NO.1 | ||||
| 90010-03024 note |
Bulb, Combination Meter, NO.1
2001-01 → 2003-02
ended
|
SCP1# 5F | — | |
| 90011-03004 note |
Bulb, Combination Meter, NO.1
2001-01 → 2003-02
ended
|
SCP1# | — | |
| 90099-53009 note |
Bulb, Combination Meter, NO.1
2001-01 → 2003-02
ended
|
SCP1# 5F | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
2001-01 → 2003-02
ended
|
SCP1# 5F | — | |
| 90010-03024 note |
Bulb, Combination Meter, NO.1
2003-02 → 2003-08
ended
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 90010-03031 note |
Bulb, Combination Meter, NO.1
2003-08 → —
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 90010-03067 note |
Bulb, Combination Meter, NO.1
2003-02 → —
|
NLP10,SCP1# FRP (SOL,TRSTD) | — | |
| 90010-03067 note |
Bulb, Combination Meter, NO.1
2003-06 → —
|
SCP10 FRP TSGS | — | |
| 90099-53009 note |
Bulb, Combination Meter, NO.1
2003-06 → —
|
SCP10 FRP TSGS | — | |
| 90099-53009 note |
Bulb, Combination Meter, NO.1
2003-02 → —
|
NLP10,SCP1# FRP (SOL,TRSTD) | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
2003-02 → —
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 83101 — Socket Sub-assy, Combination Meter Bulb | ||||
| 83101-14040 |
Socket Sub-assy, Combination Meter Bulb
2001-01 → 2003-02
ended
|
SCP1# 5F | — | |
| 83101-14040 |
Socket Sub-assy, Combination Meter Bulb
2003-02 → —
|
NLP10,SCP1# FRP | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-0D010 note |
Glass, Combination Meter
2001-01 → 2003-02
ended
|
SCP1# | — | |
| 83852-52040 note |
Glass, Combination Meter
2001-01 → 2003-02
ended
|
SCP1# 5F | — | |
| 83852-0D010 note |
Glass, Combination Meter
2003-02 → 2003-12
ended
|
SCP1# FRP LHD SOL +1 | — | |
| 83852-0D010 note |
Glass, Combination Meter
2003-02 → —
|
NLP10 FRP;SCP1# FRP RHD;SCP10 +7 | — | |
| 83852-0D010 note |
Glass, Combination Meter
2004-01 → —
|
SCP1# FRP LHD SOL +1 | — | |
| 83852-52040 note |
Glass, Combination Meter
2003-02 → —
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 83855 — Bracket, Combination Meter, NO.1 | ||||
| 83855-5C040 |
Bracket, Combination Meter, NO.1
2003-02 → —
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
| 83856 — Bracket, Combination Meter, NO.2 | ||||
| 83856-5C040 |
Bracket, Combination Meter, NO.2
2003-02 → —
|
SCP1# FRP (SOL,TRSTD) 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
