Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

14 part groups · 5 illustrations

Illustrations

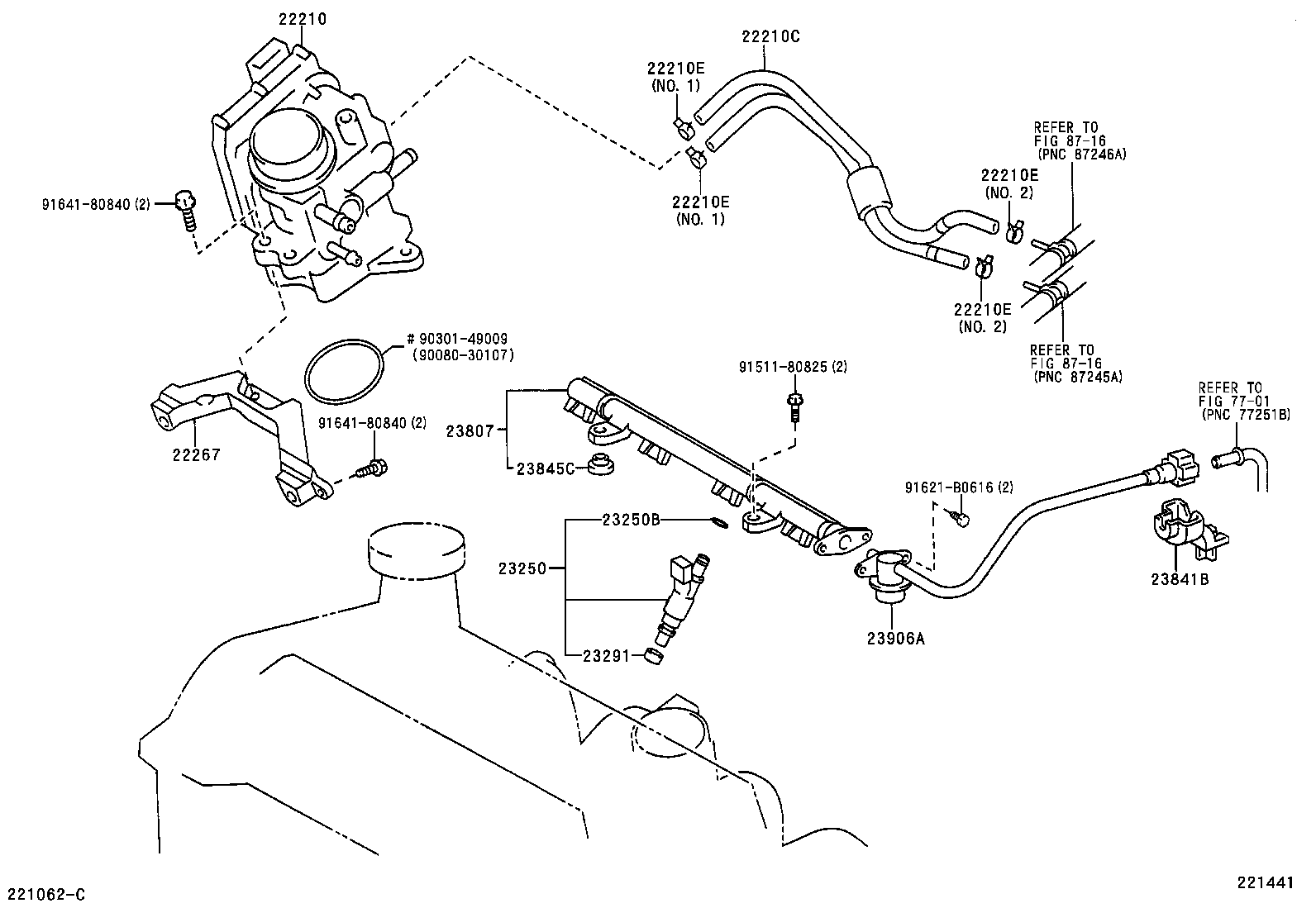

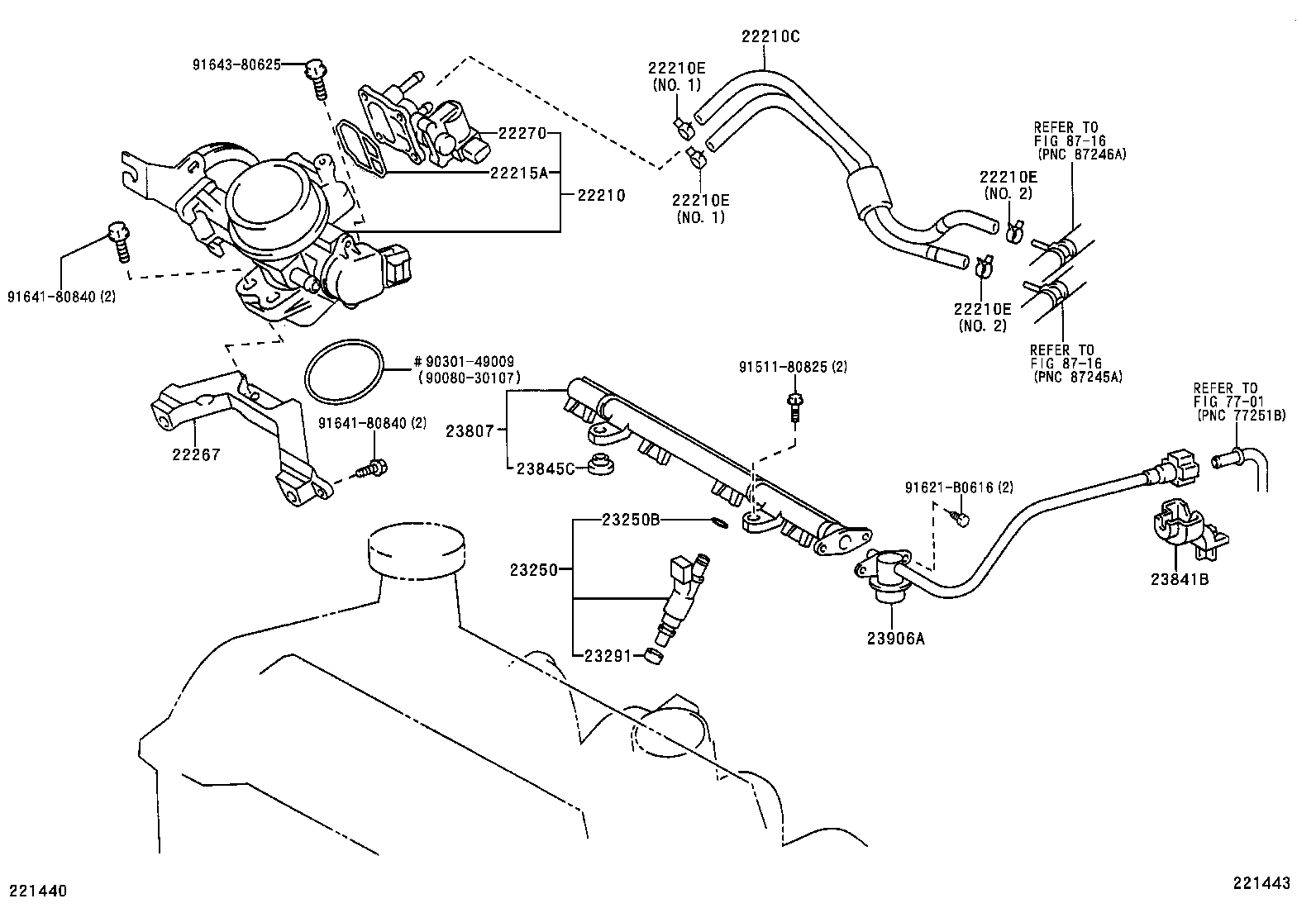

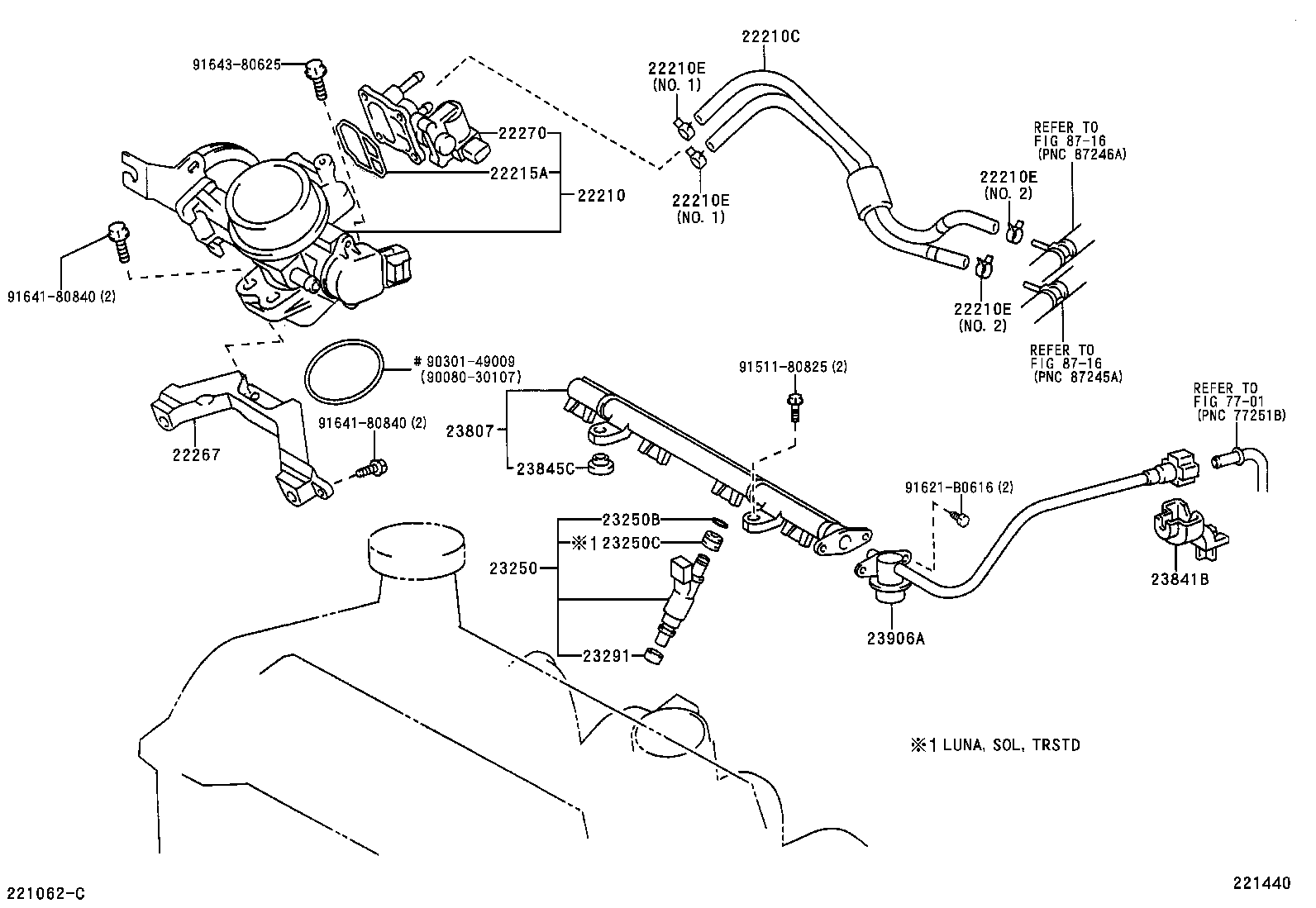

Figure 221062C 221062C 2001-01 → 2003-02 Figure 221440 221440 2003-02 → — Figure 221441 221441 2003-02 → — Figure 221443 221443 2003-02 → — Figure 221141 221141 2001-01 → —

Part groups

PNCDescription
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22215A Gasket, Idle Speed Control Valve
22267 Bracket, Throttle Body
22270 Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23845C Insulator, Fuel Pipe
23906A Hose Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
