Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

14 part groups · 2 illustrations

Illustrations

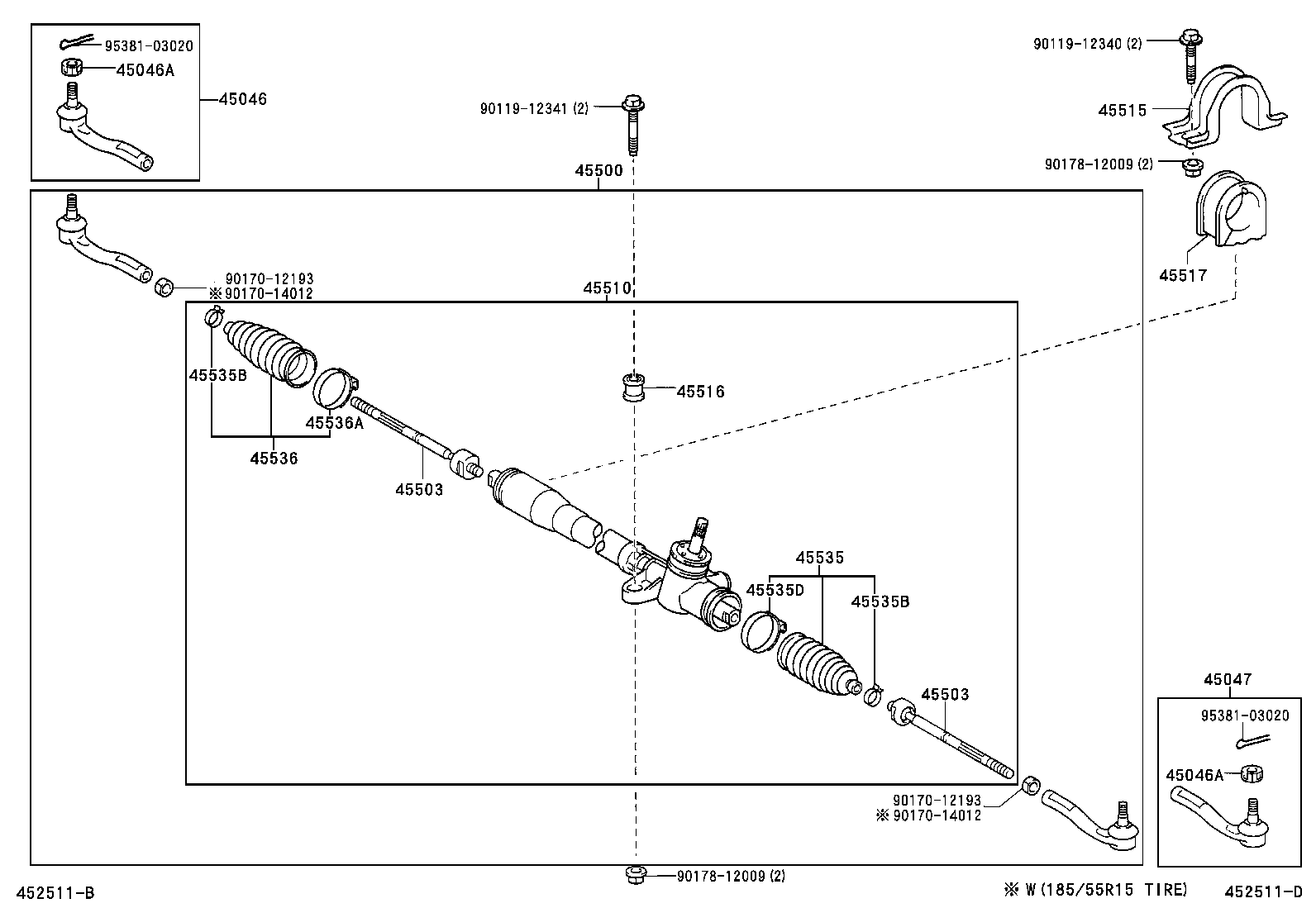

Figure 452510C 452510C 2001-01 → — Figure 452511D 452511D 2001-01 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45500 Link Assy, Steering
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
45515 Bracket, Steering Rack Housing, NO.2
45516 Grommet, Steering Rack Housing, NO.1
45517 Grommet, Steering Rack Housing, NO.2
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
