Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

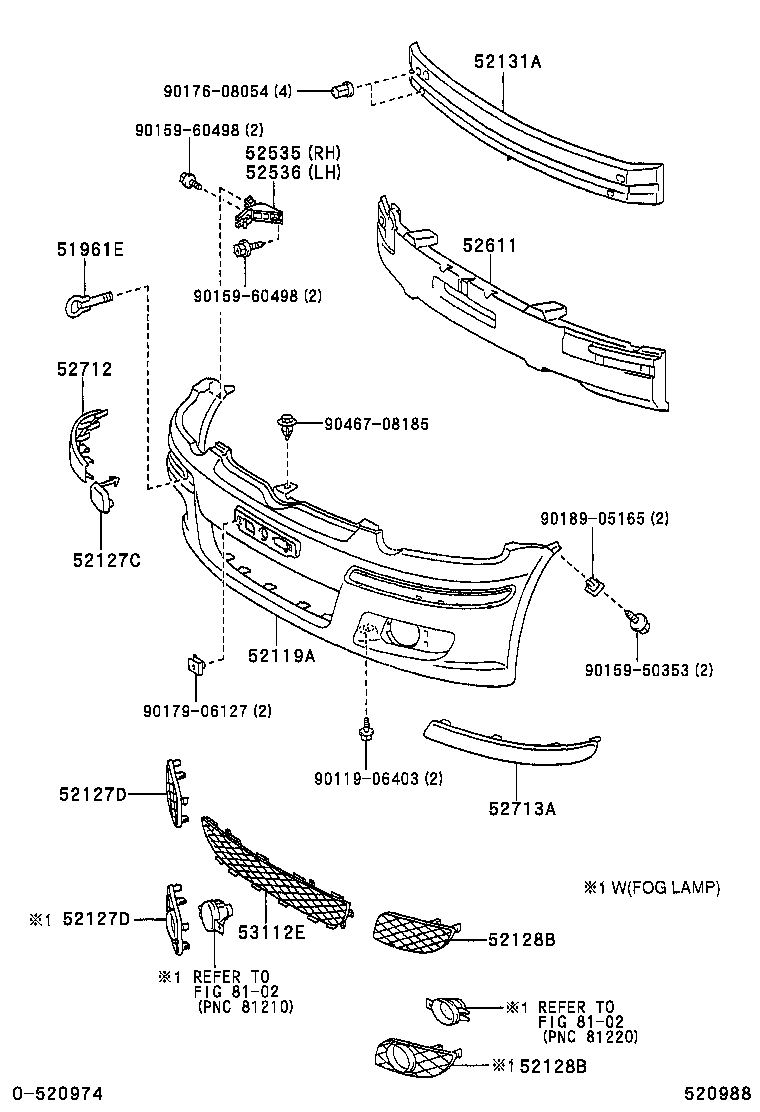

Figure 520691 520691 2001-01 → 2003-02 Figure 520988 520988 2003-02 → —

Part groups

PNCDescription
51961E Hook, Front
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
