Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

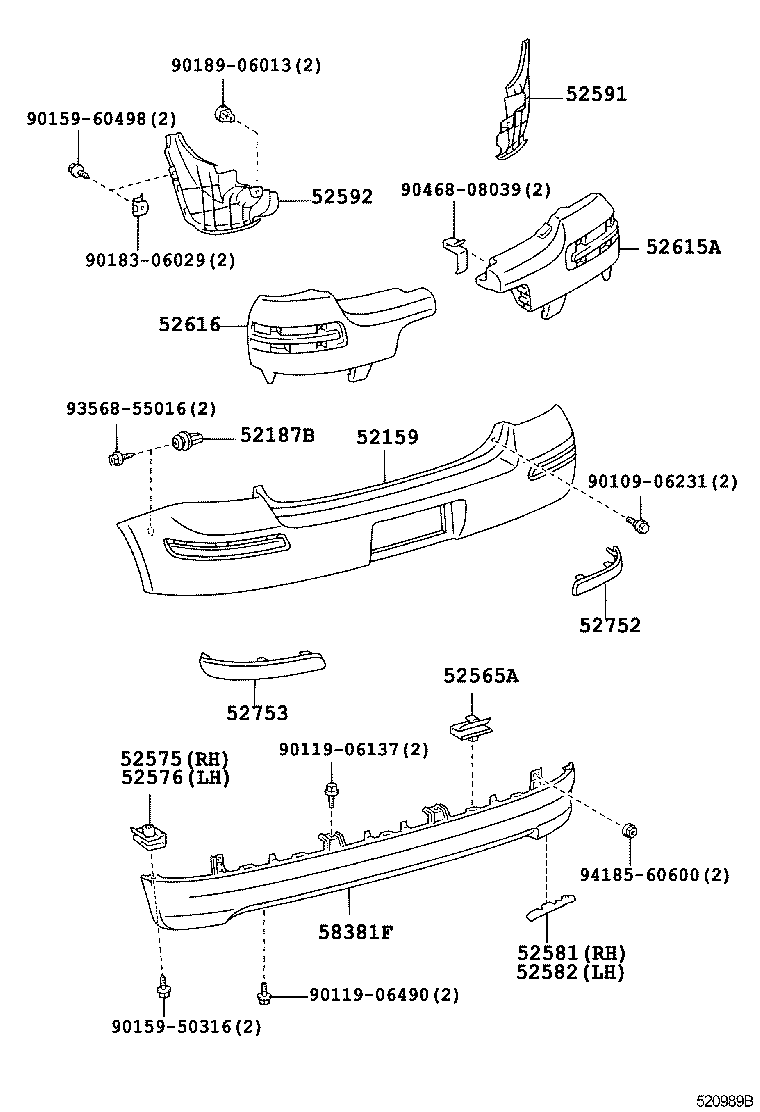

Figure 520692B 520692B 2001-01 → 2003-02 Figure 520989B 520989B 2003-02 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52187B Guide, Rear Bumper Location
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52615A Absorber, Rear Bumper Energy, RH
52616 Absorber, Rear Bumper Energy, LH
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
58381F Panel, Rear Valance
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
