Toyota Yaris (FRP)
2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe
Discontinued model
Data version 2006-05

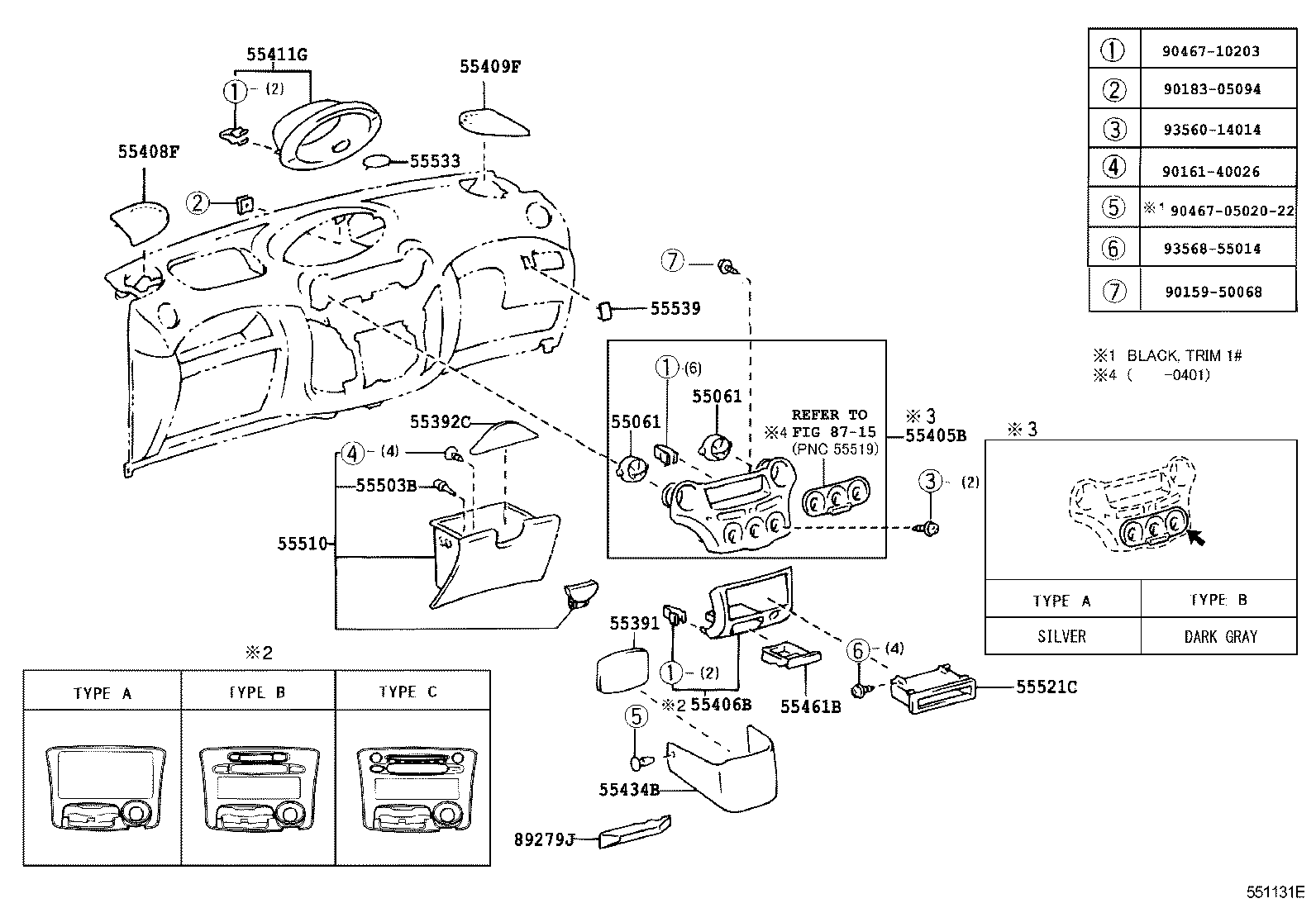

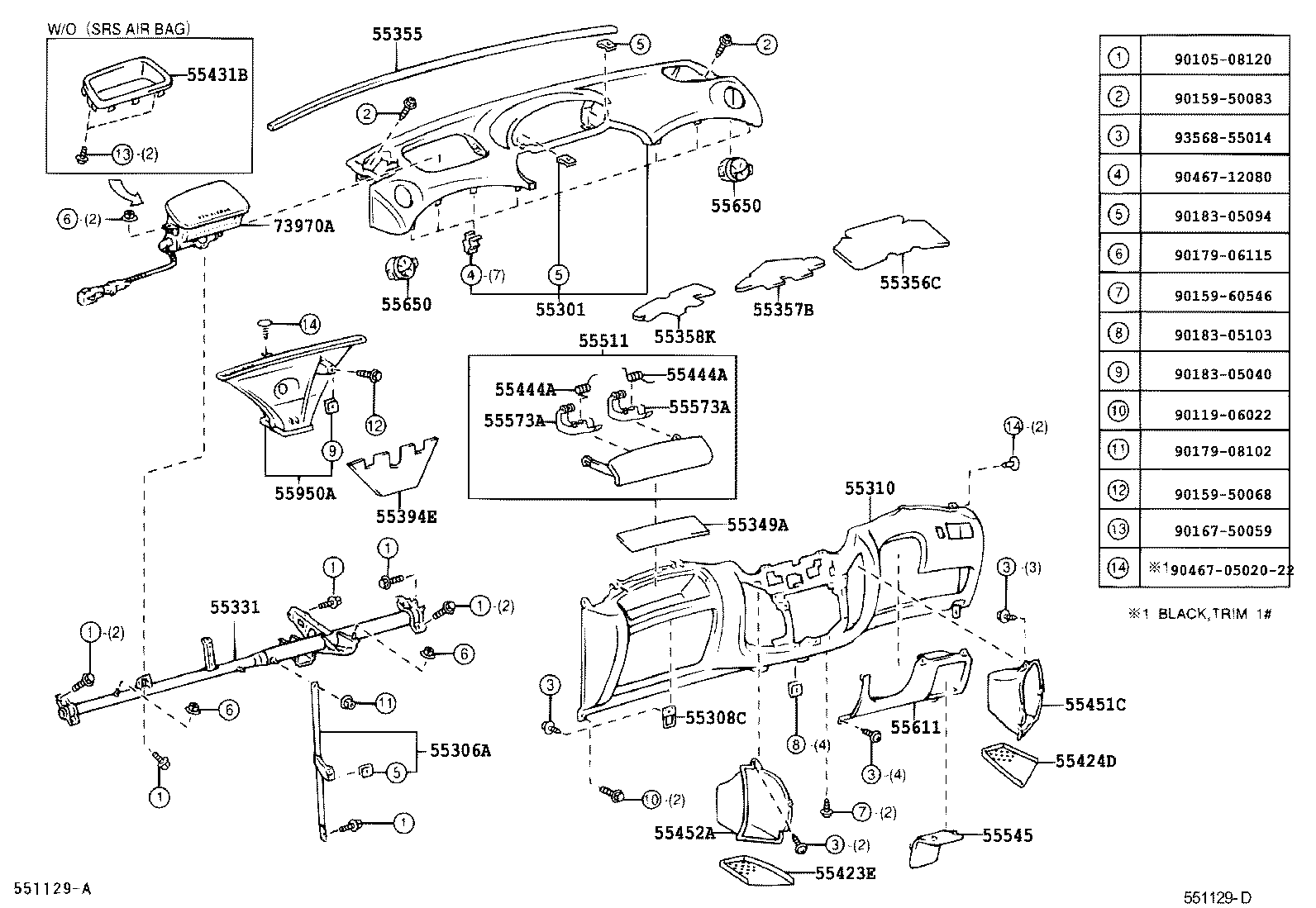

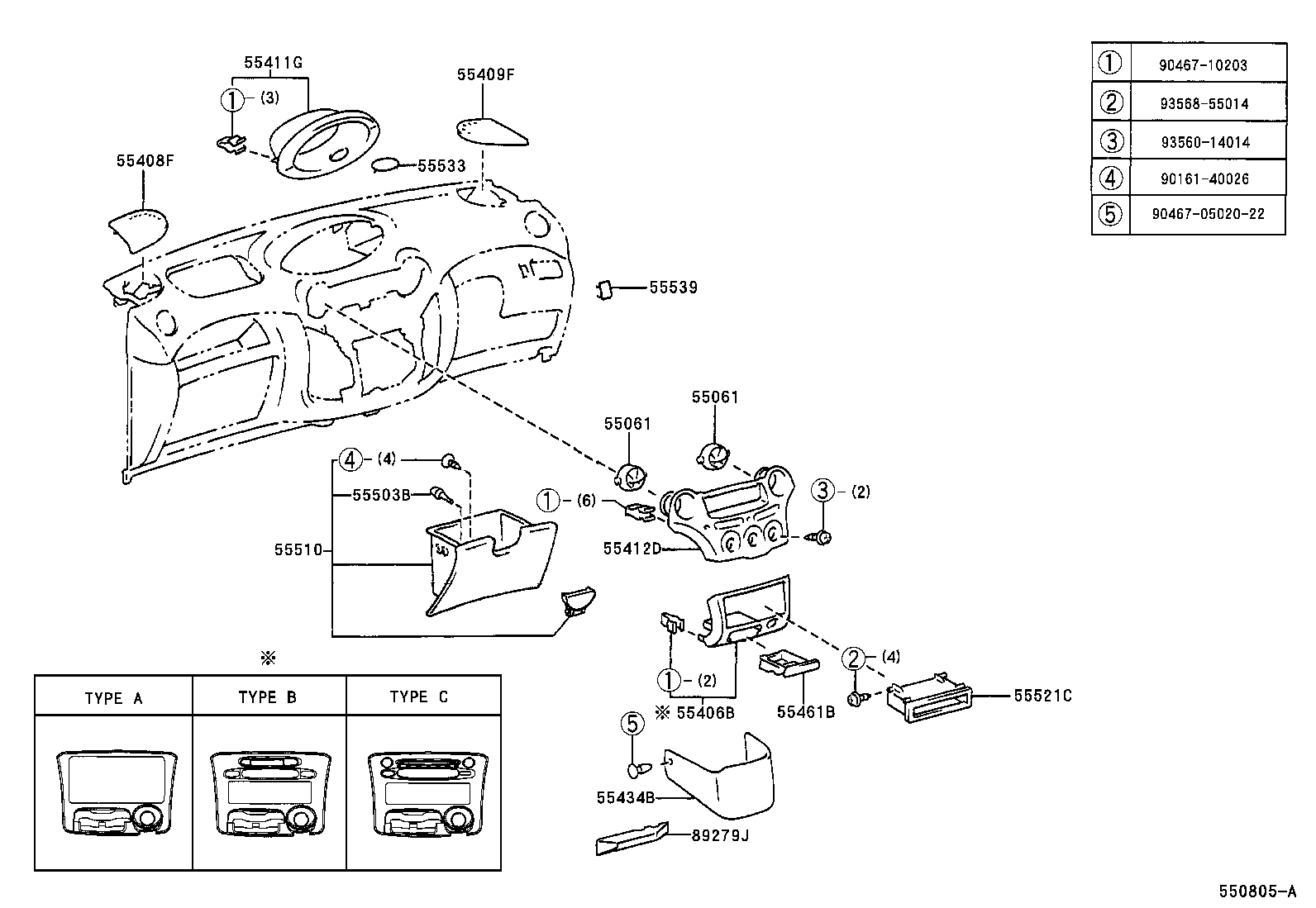

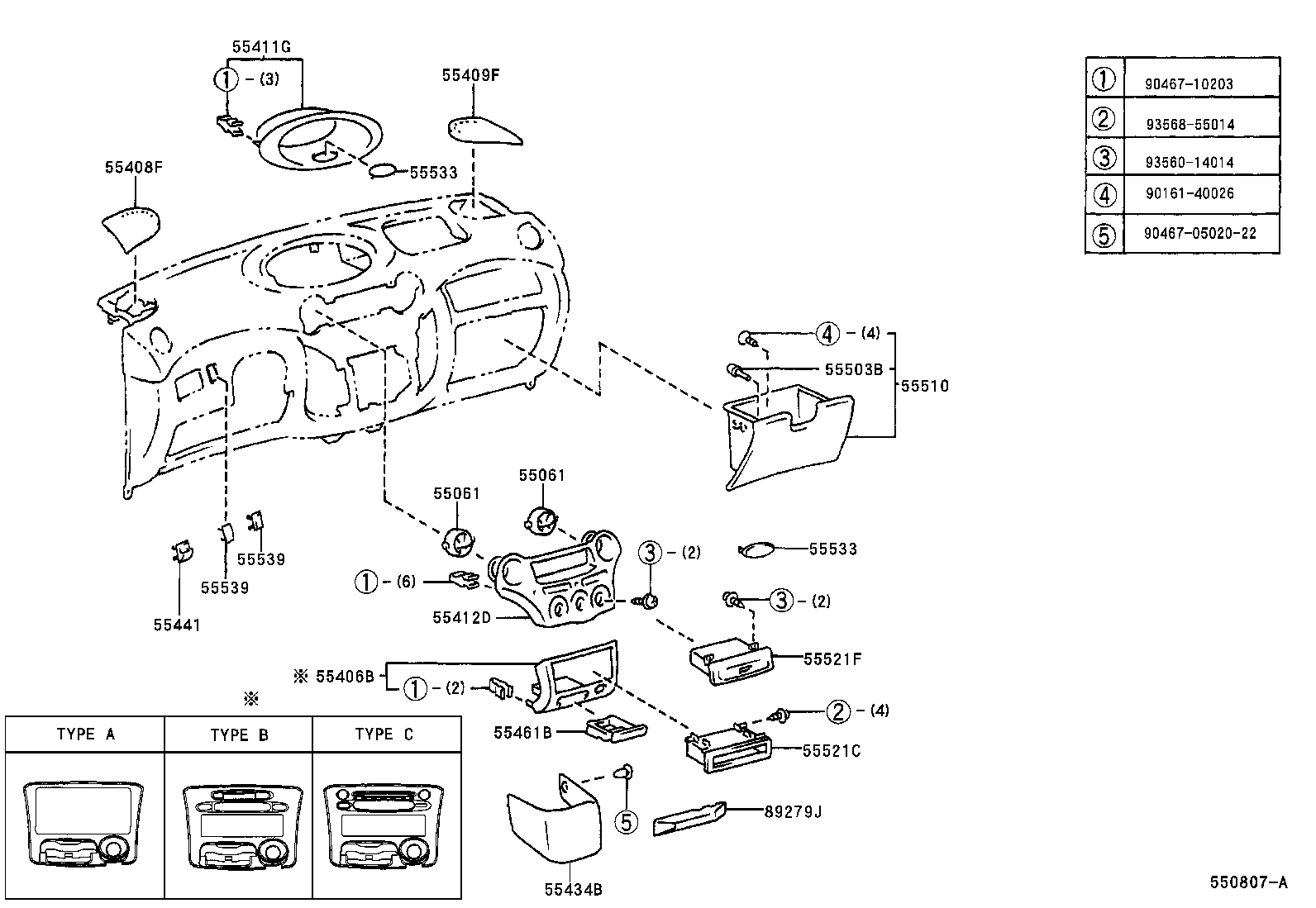

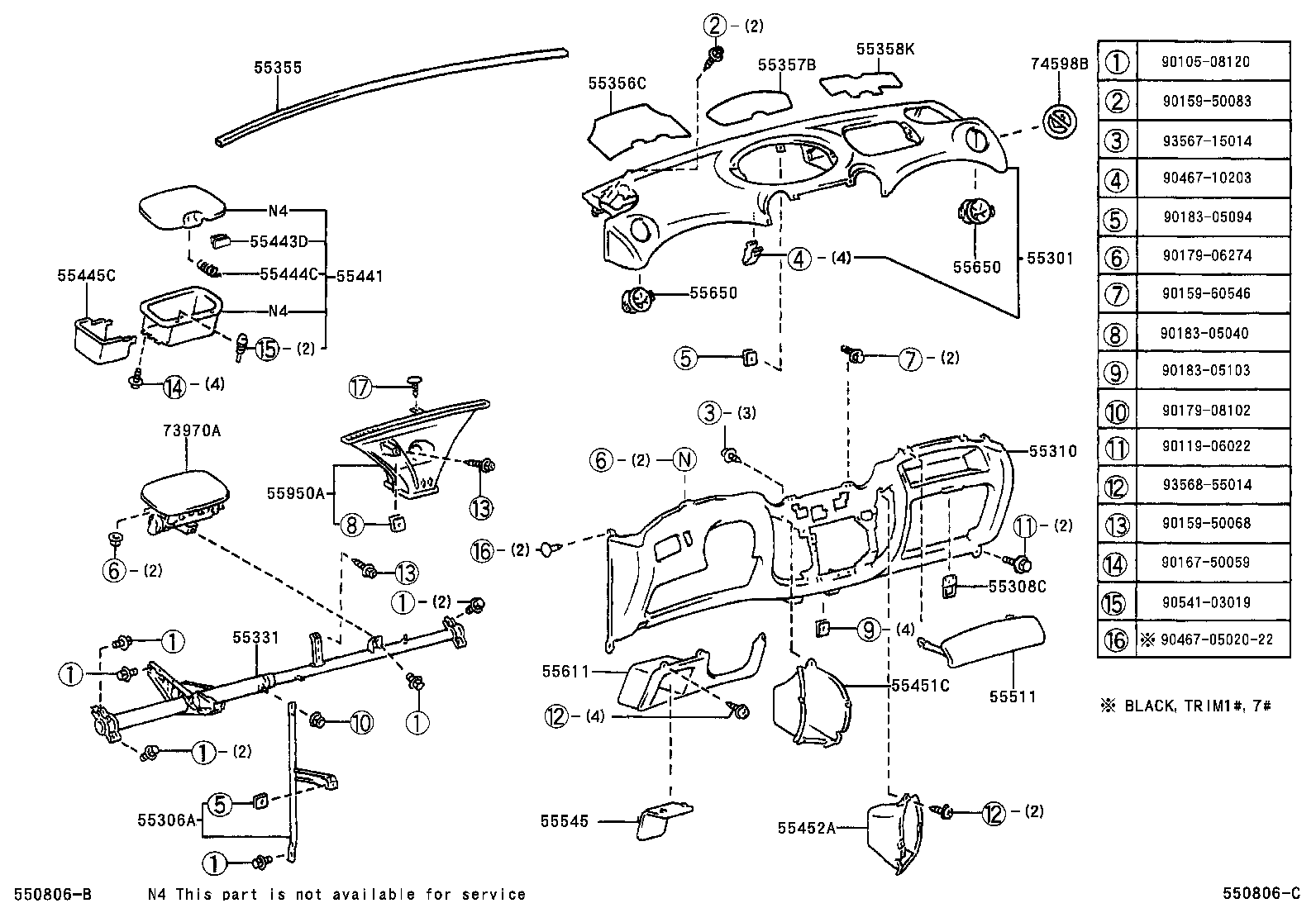

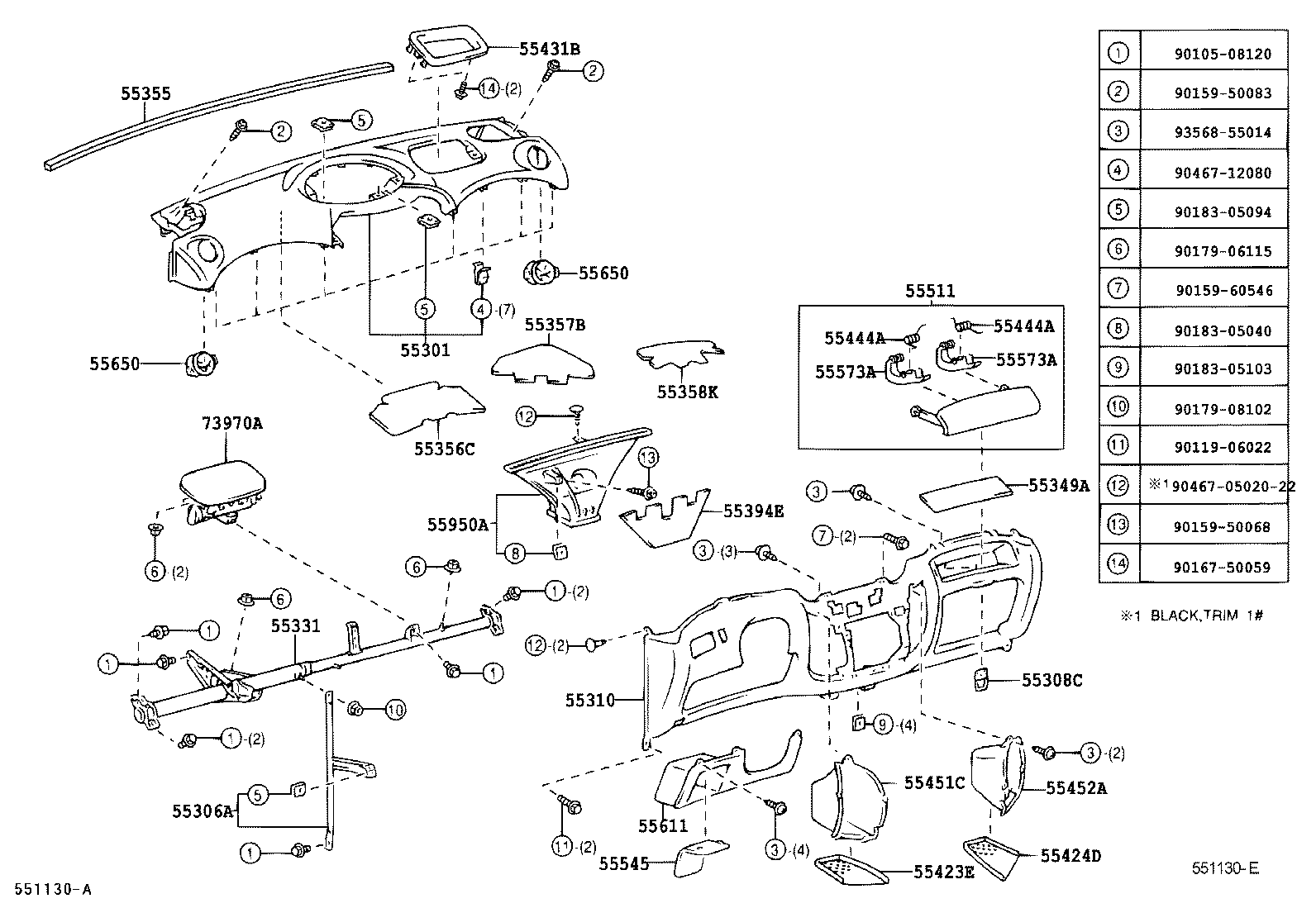

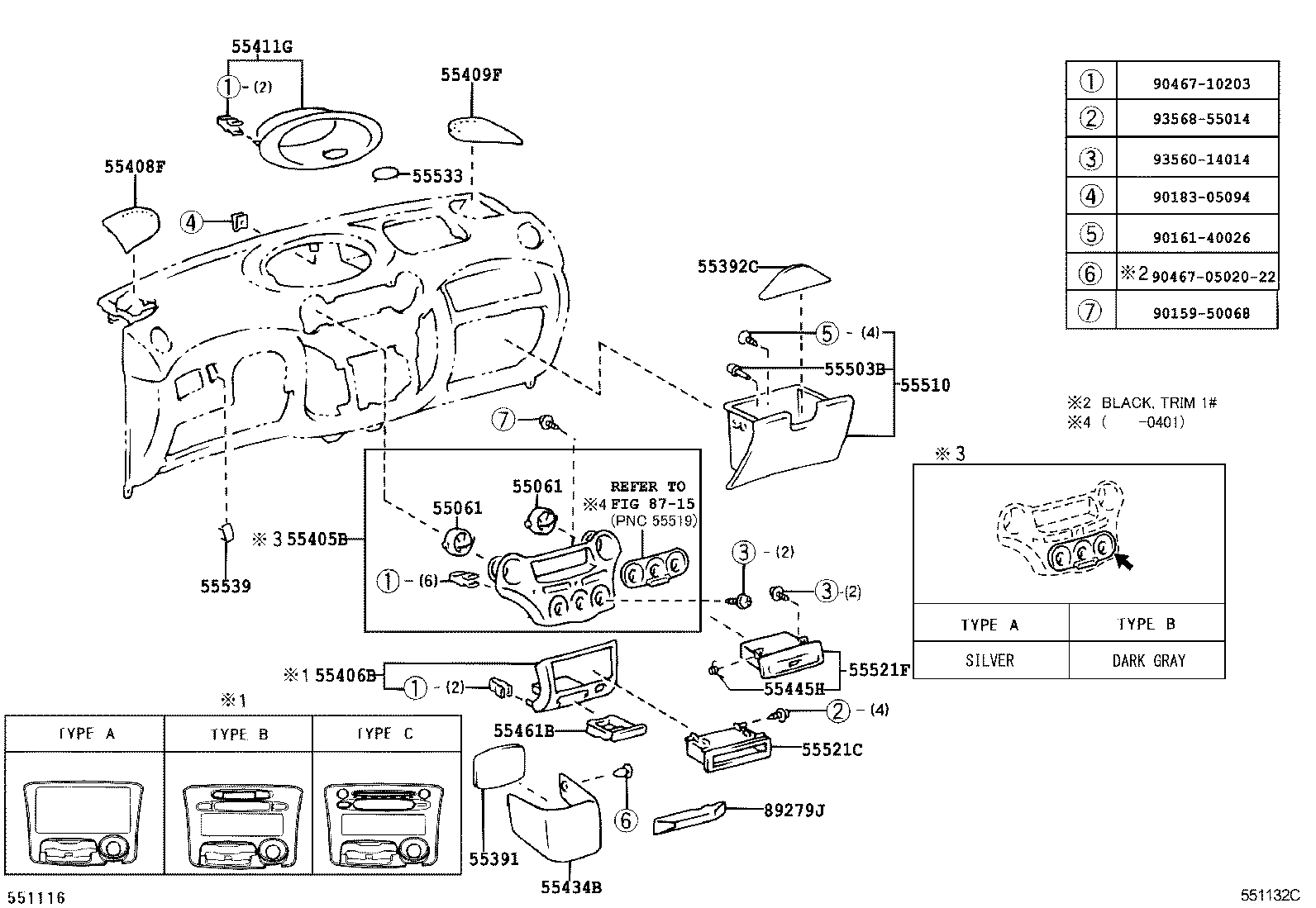

Instrument Panel & Glove Compartment
48 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55310 | Panel Assy, Instrument, Lower |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55392C | Cushion, Instrument Panel, Lower NO.2 |
| 55394E | Cushion, Instrument Panel, Lower NO.4 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55423E | Cushion, Center Cluster, NO.1 |
| 55424D | Cushion, Center Cluster, NO.2 |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55443D | Knob, Instrument Panel Box Door |
| 55444A | Spring, Instrument Panel Box |
| 55444C | Spring, Instrument Panel Box |
| 55445C | Plate, Instrument Panel Box |
| 55445H | Spring, Stereo Opening Cover |
| 55451C | Box, Instrument Panel, NO.1 |
| 55452A | Box, Instrument Panel, NO.2 |
| 55461B | Box, Instrument Panel, Center |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510 | Door Assy, Glove Compartment |
| 55511 | Door, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55573A | Hinge, Glove Compartment Door |
| 55611 | Tray, Instrument Panel Under |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
| 89279J | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
