Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

31 part groups · 3 illustrations

Illustrations

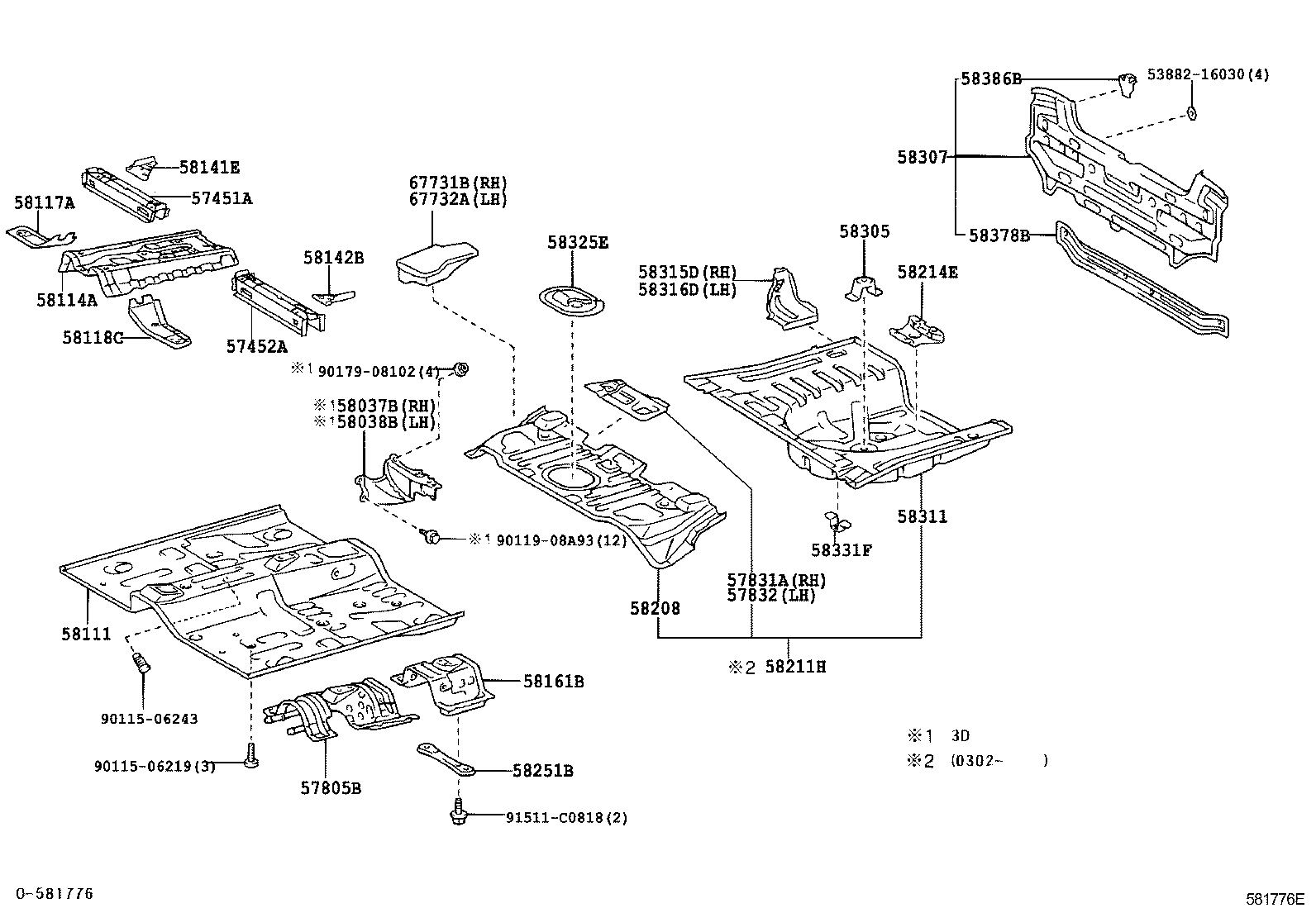

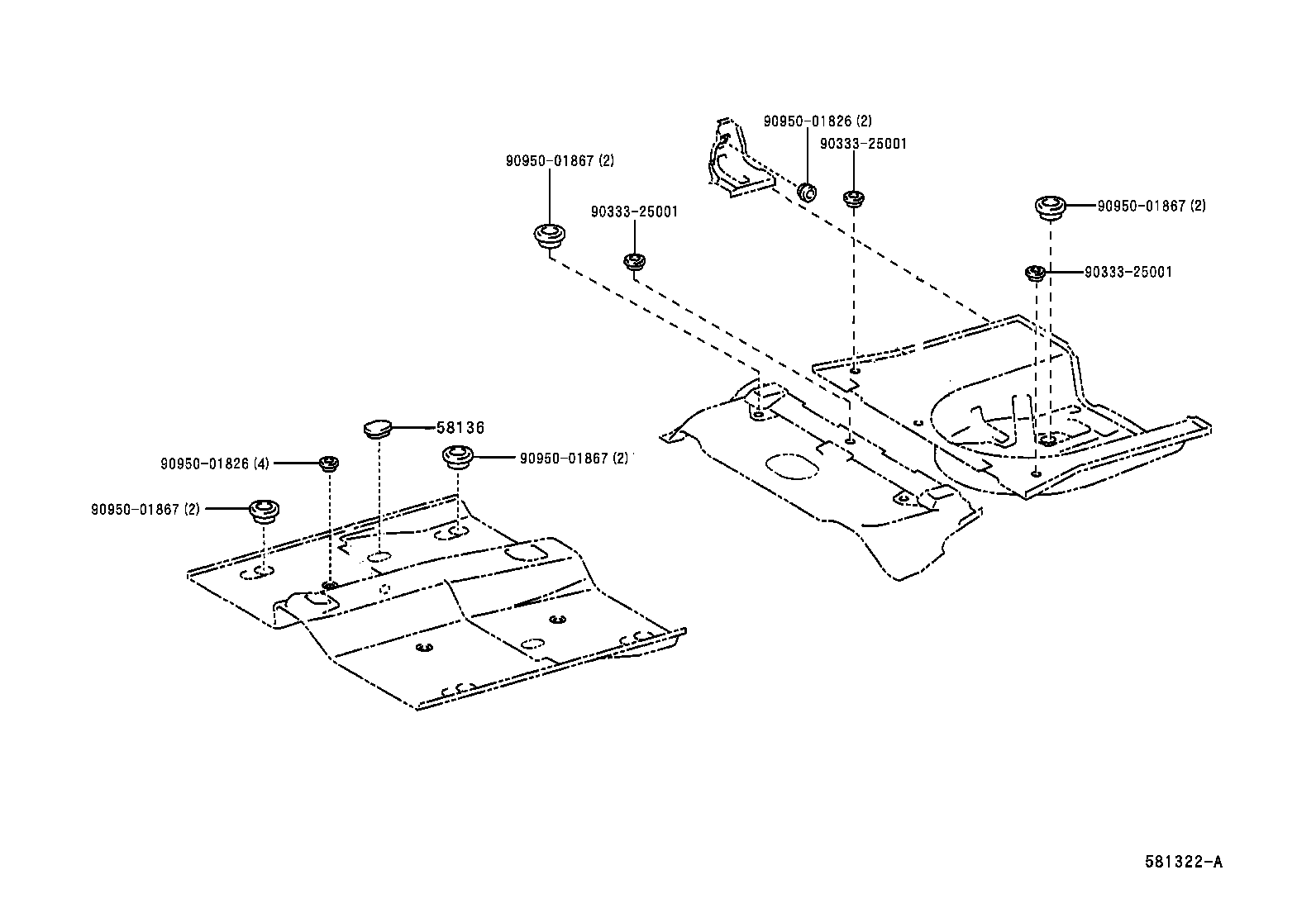

Figure 581321B 581321B 2001-01 → 2003-02 Figure 581776E 581776E 2003-02 → — Figure 581322A 581322A 2001-01 → —

Part groups

PNCDescription
57451A Member, Front Floor Cross, RH
57452A Member, Front Floor Cross, NO.2
57805B Reinforcement Sub-assy, Belt Anchor, RH
57831A Reinforcement, Rear NO.1 Seat Leg, Front NO.1
57832 Reinforcement, Rear NO.1 Seat Leg, Front NO.2
58037B Reinforce, Center Pillar TO Floor, RH
58038B Reinforce, Center Pillar TO Floor, LH
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58117A Reinforcement, Front Floor Side, RH
58118C Reinforcement, Front Floor Side, LH
58136 Cover, Front Floor Hole
58141E Reinforcement, Front Side Member TO Floor Pan, RH
58142B Reinforcemnet, Front Side Member TO Floor Pan, LH
58161B Reinforcement, Belt Anchor TO Floor Pan
58191 Footrest, Front Floor
58208 Pan, Center Floor
58211H Pan, Center Floor
58214E Bracket, Jack Support
58251B Brace, Floor Panel, Front
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58315D Extension, Rear Floor Pan, RH
58316D Extension, Rear Floor Pan, LH
58325E Cover, Rear Floor Service Hole
58331F Bracket, Rear Floor Heat Insulator, NO.3
58378B Reinforcement, Body Lower Back Panel
58386B Bracket, Rear Bumper Cover, NO.2
67731B Spacer, Side Trim, NO.1
67732A Spacer, Side Trim, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
