Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

28 part groups · 3 illustrations

Illustrations

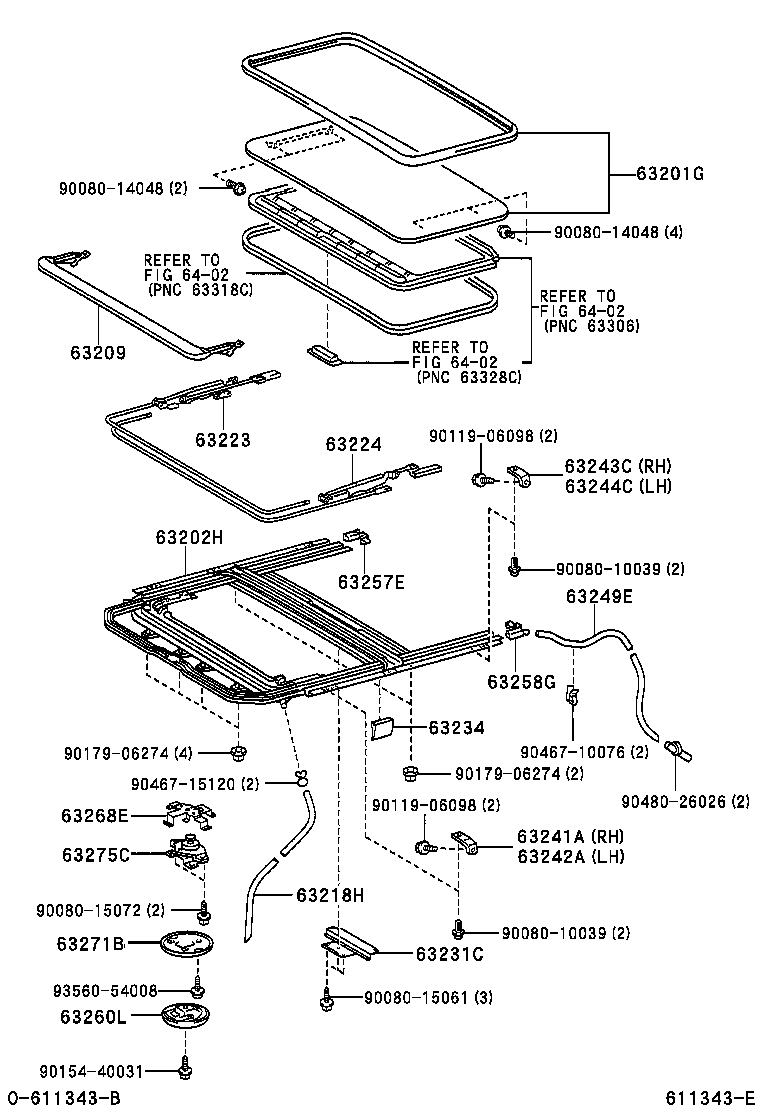

Figure 611341A 611341A 2001-01 → — Figure 611342A 611342A 2001-01 → — Figure 611343E 611343E 2001-01 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63132 Panel, Windshield Header, Inner
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63201G Glass Sub-assy, Sliding Roof
63202H Rail Sub-assy, Slide Roof
63209 Panel Sub-assy, Roof Wind Deflector
63218H Hose, Sliding Roof Drain
63223 Cable, Sliding Roof Drive, RH
63224 Cable, Sliding Roof Drive, LH
63231C Bracket, Room Lamp
63234 Protector, Slide Roof Housing
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63243C Bracket, Sliding Roof Housing Center Mounting, RH
63244C Bracket, Sliding Roof Housing Center Mounting, LH
63249E Hose, Sliding Roof Drain
63257E Holder, Sliding Roof Guide Rail, RH
63258G Holder, Sliding Roof Guide Rail, LH
63260L Handle Assy, Sliding Roof Regulator
63268E Bracket, Slide Roof Regulator Handle Bezel
63271B Bezel, Sliding Roof
63275C Box, Sliding Roof Drive Gear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
