Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

19 part groups · 3 illustrations

Illustrations

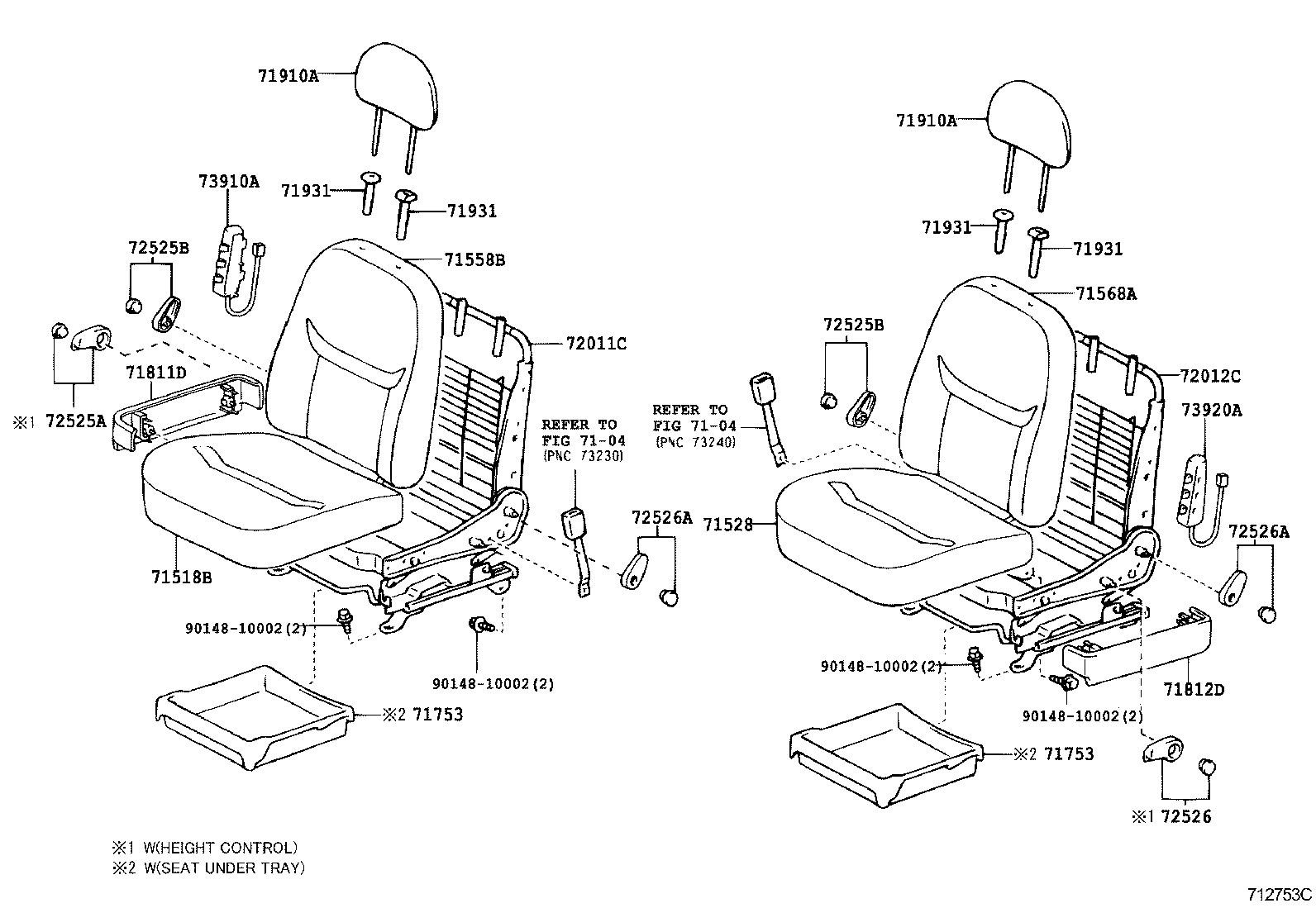

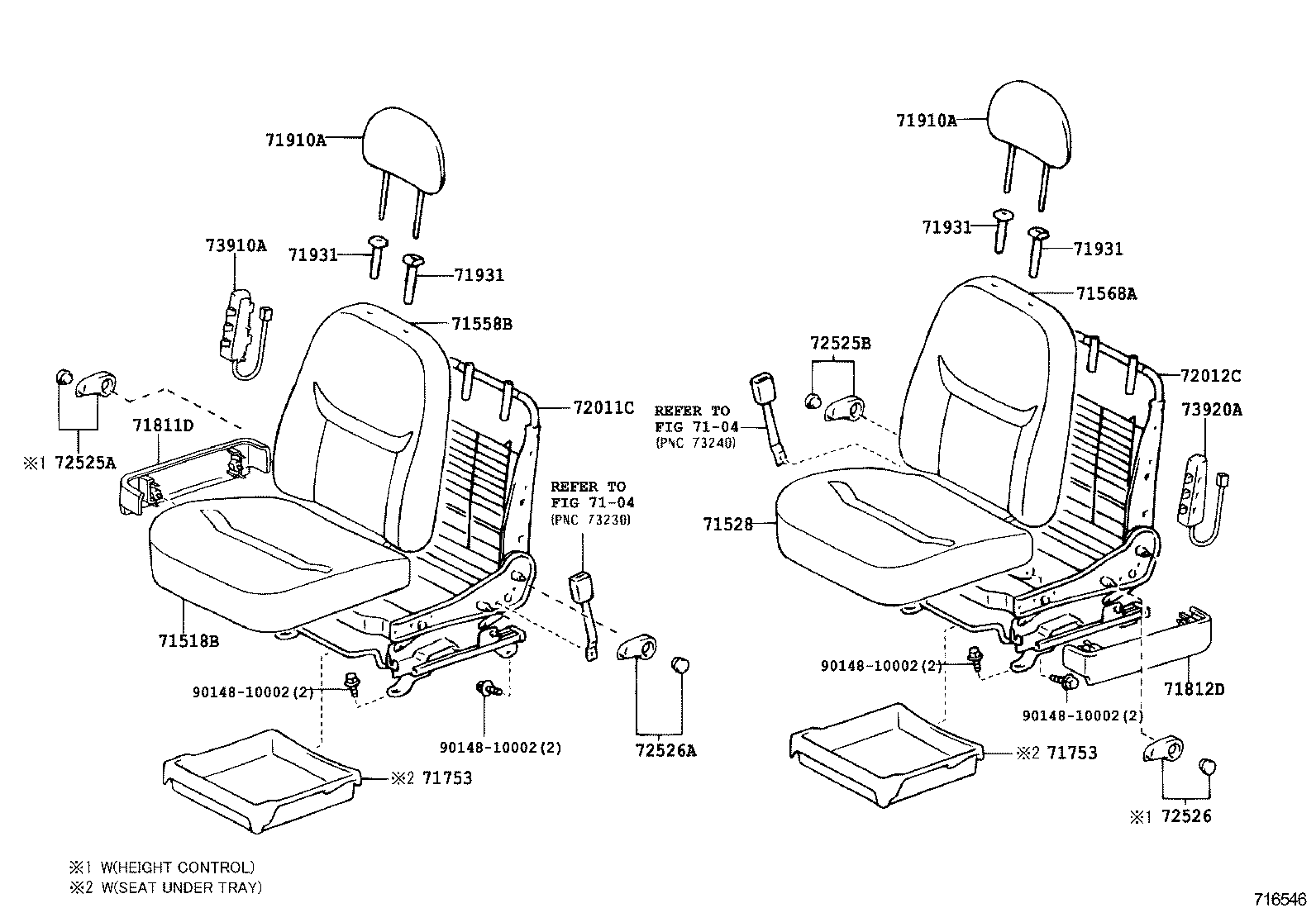

Figure 711942F 711942F 2001-01 → 2003-02 Figure 712753C 712753C 2003-02 → 2005-11 Figure 716546 716546 2003-02 → 2005-11

Part groups

PNCDescription
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
