Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

15 part groups · 2 illustrations

Illustrations

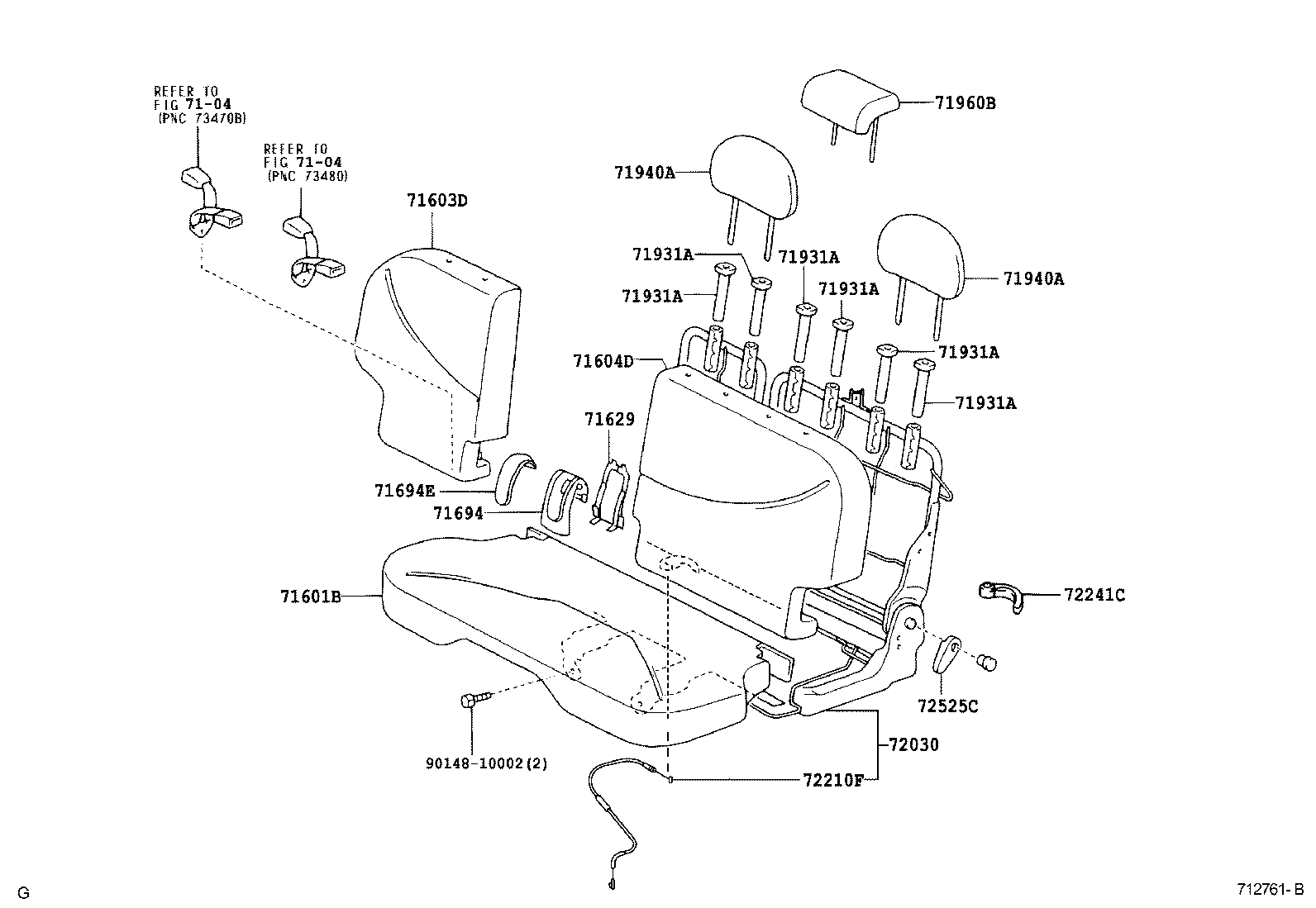

Figure 711941C 711941C 2001-01 → 2003-02 Figure 712761B 712761B 2003-02 → 2005-11

Part groups

PNCDescription
71300B Seat Assy, Rear (BENCH SEAT)
71601B Pad Sub-assy, Rear Seat Cushion W/Cover
71603D Pad Sub-assy, Rear Seatback W/Cover, RH
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71629 Cover, Rear Seat Cushion Hinge
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71694E Cover, Rear Seat Cushion Hinge, Inner LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72030 Adjuster Assy, Rear NO.1 Seat
72210F Cable Assy, Seat Track Control
72241C Lever, Outer Seat Track Lock, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
73789 Label, Crs Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
