Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 13 illustrations

Illustrations

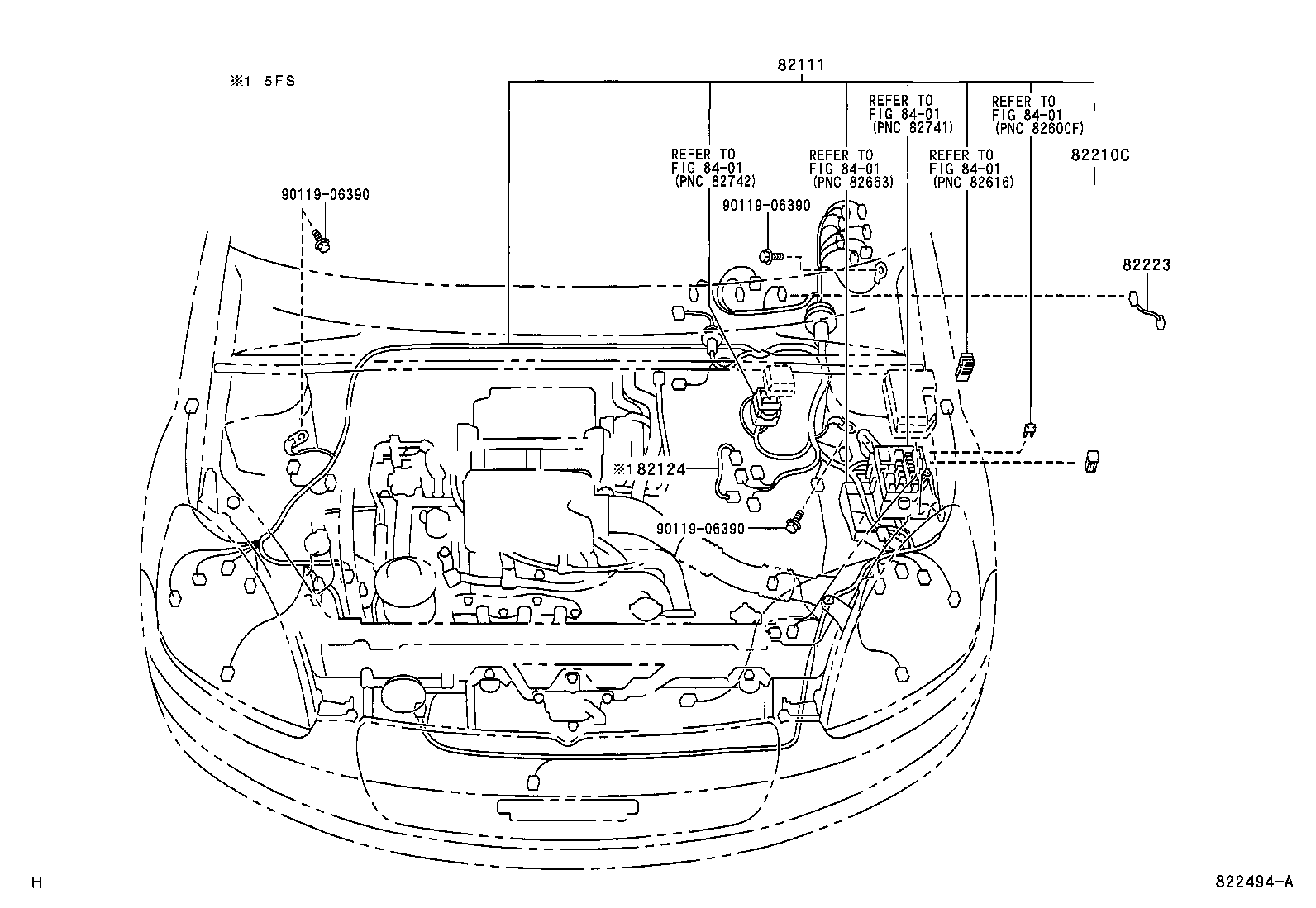

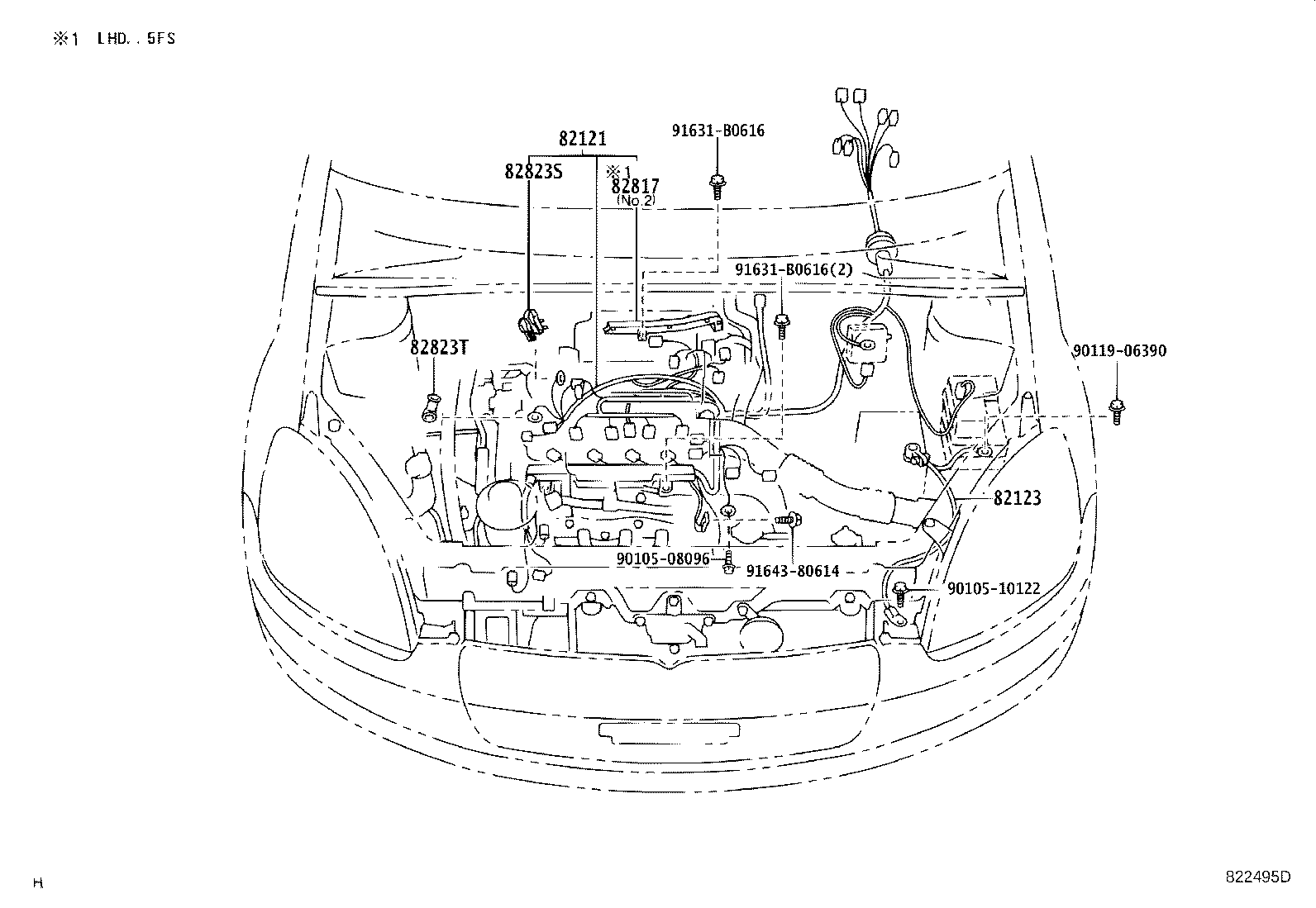

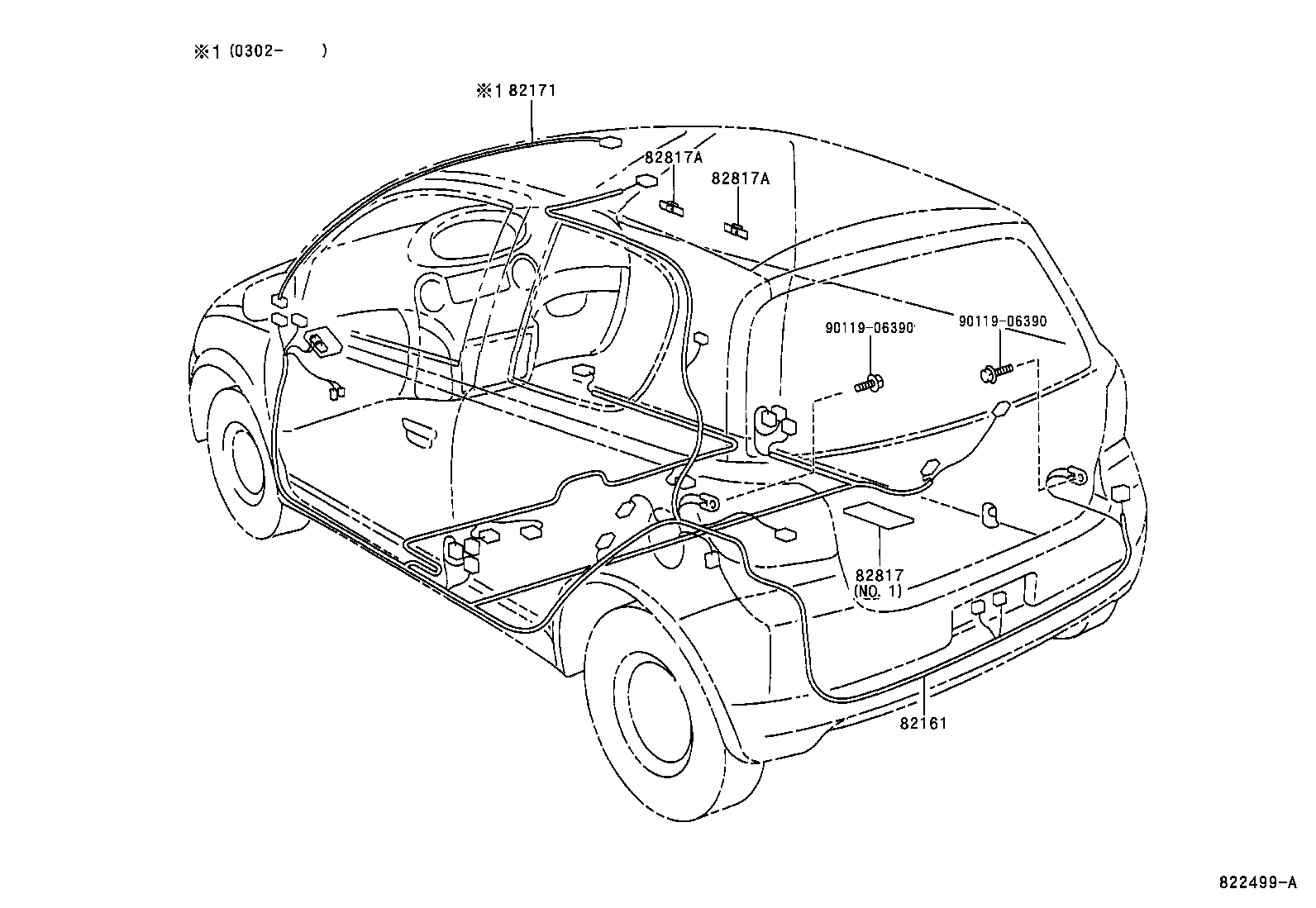

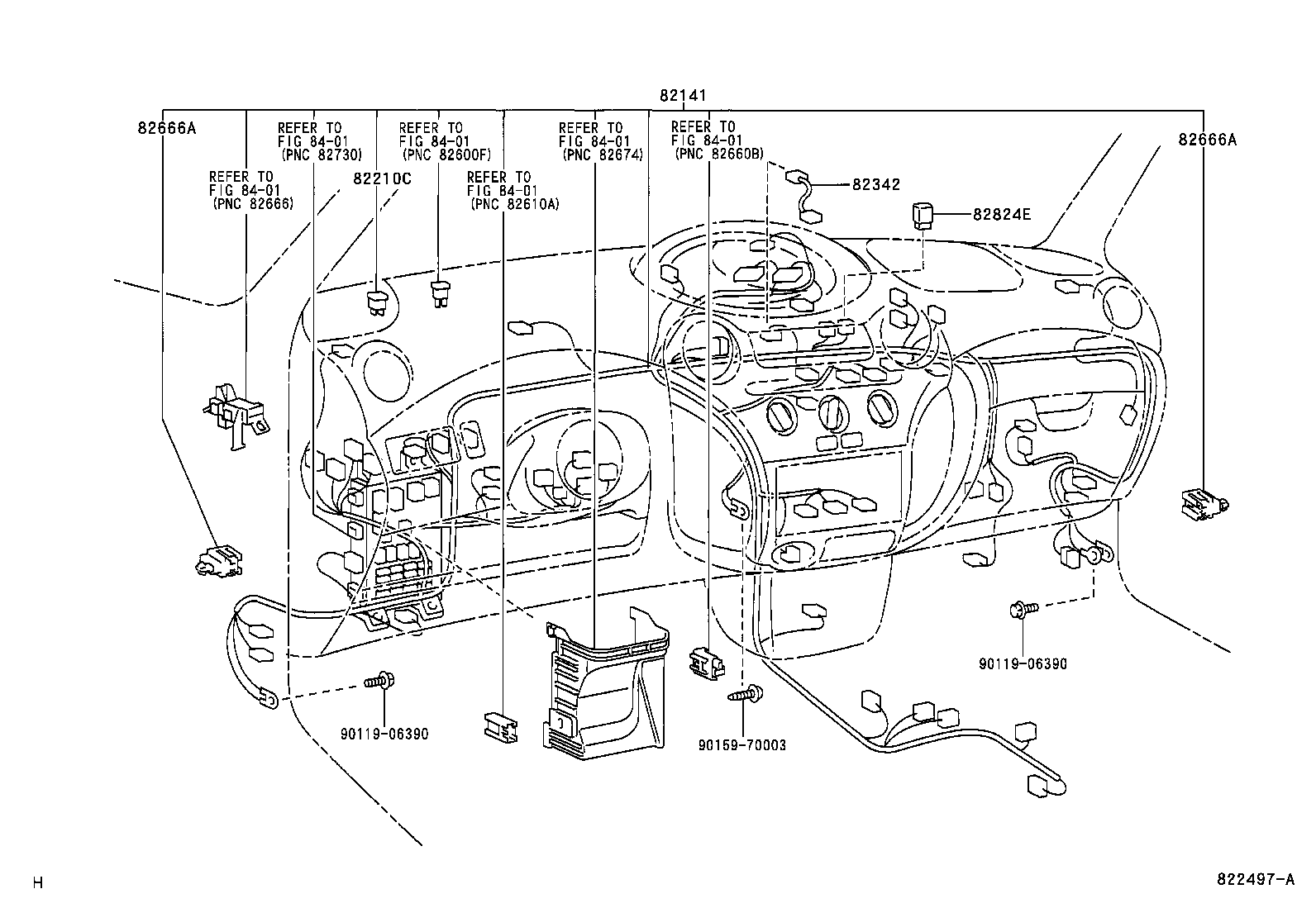

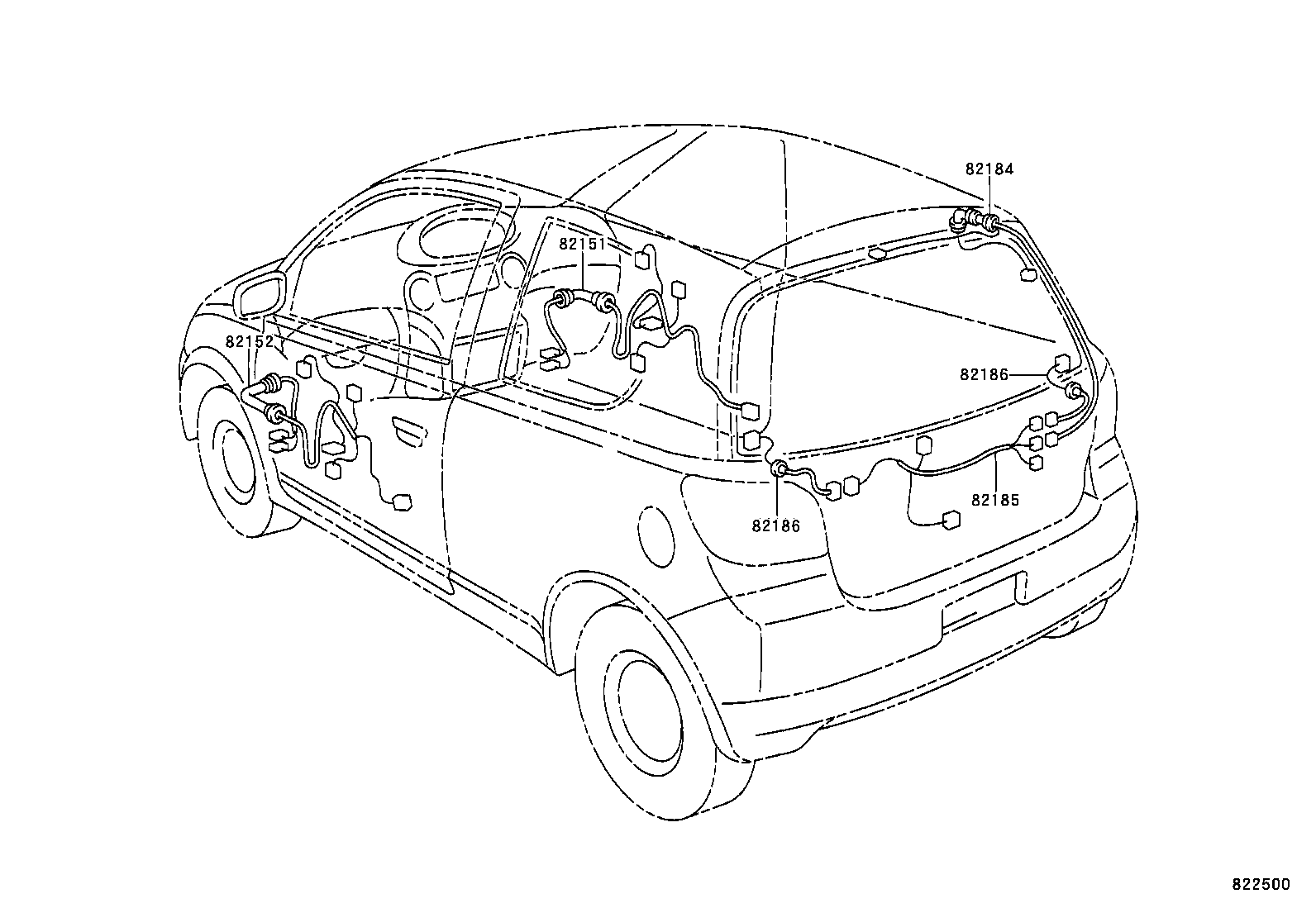

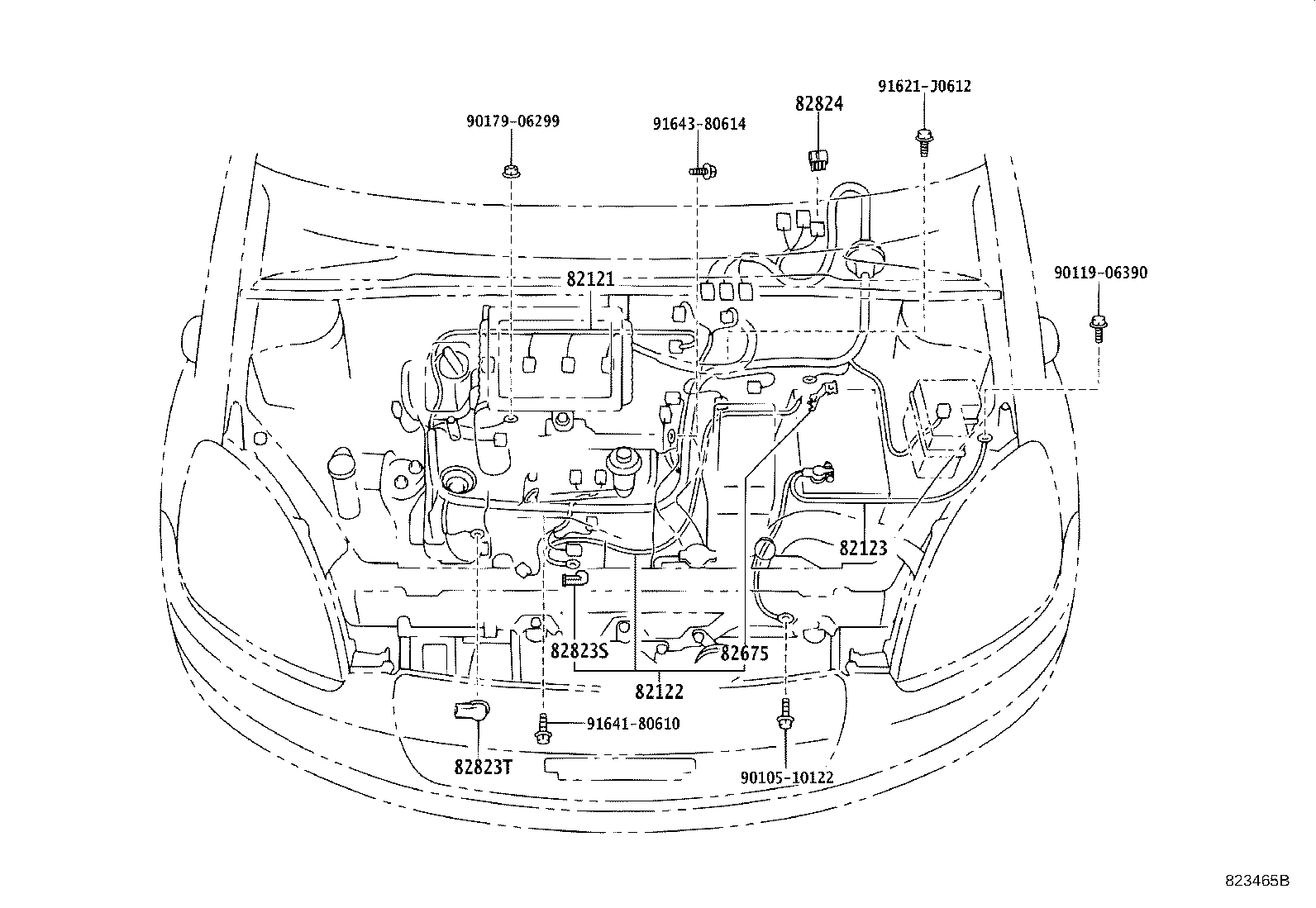

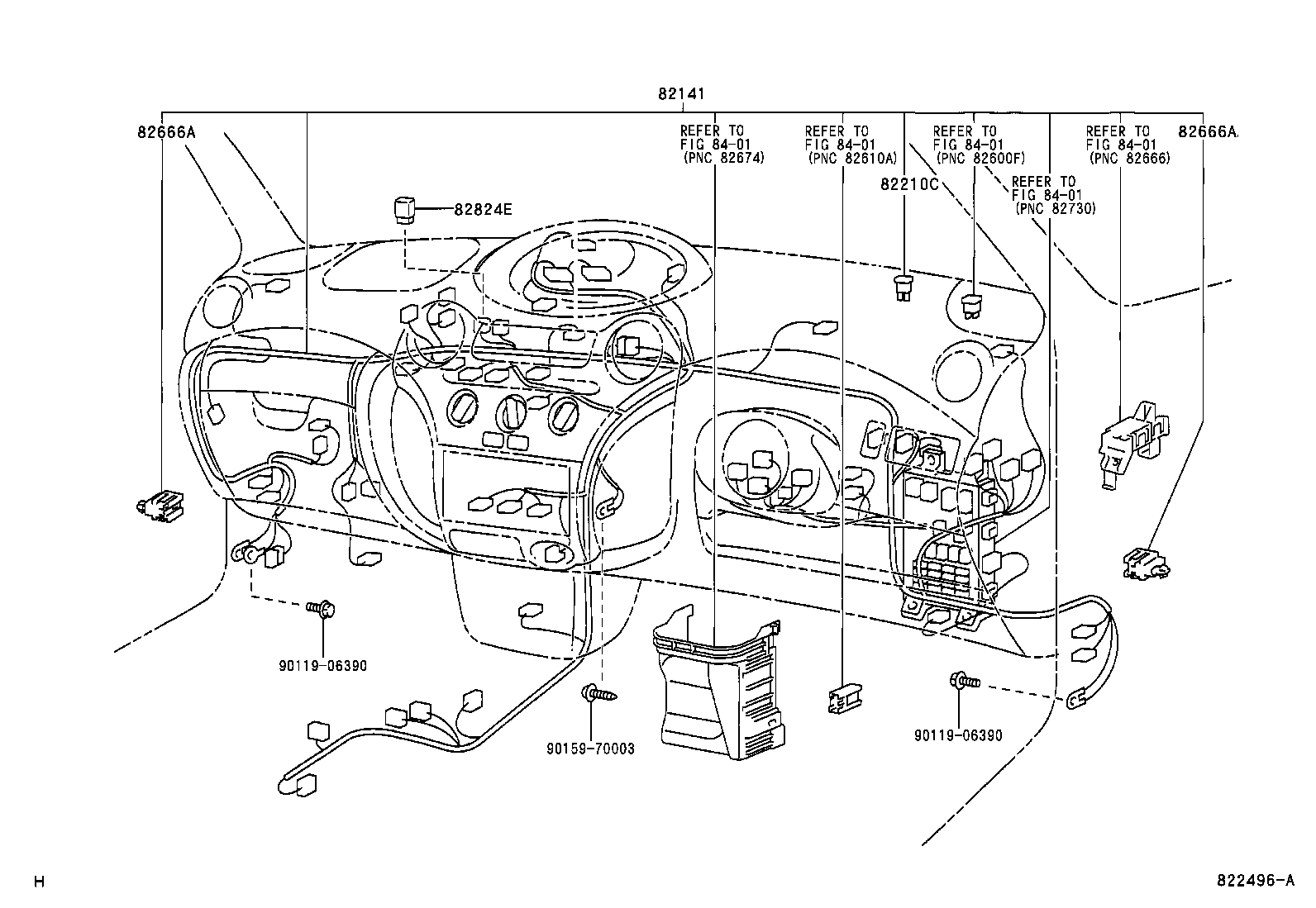

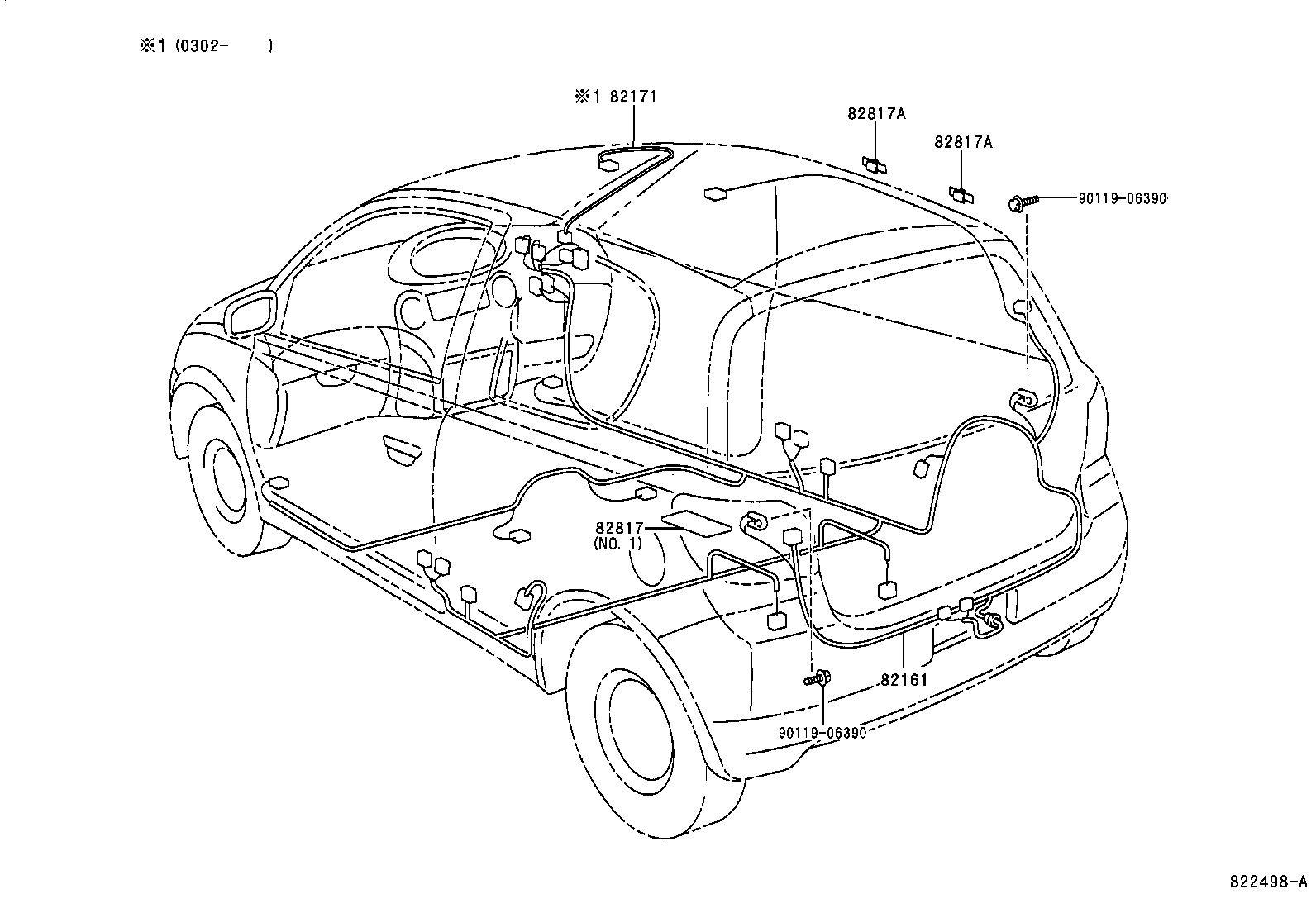

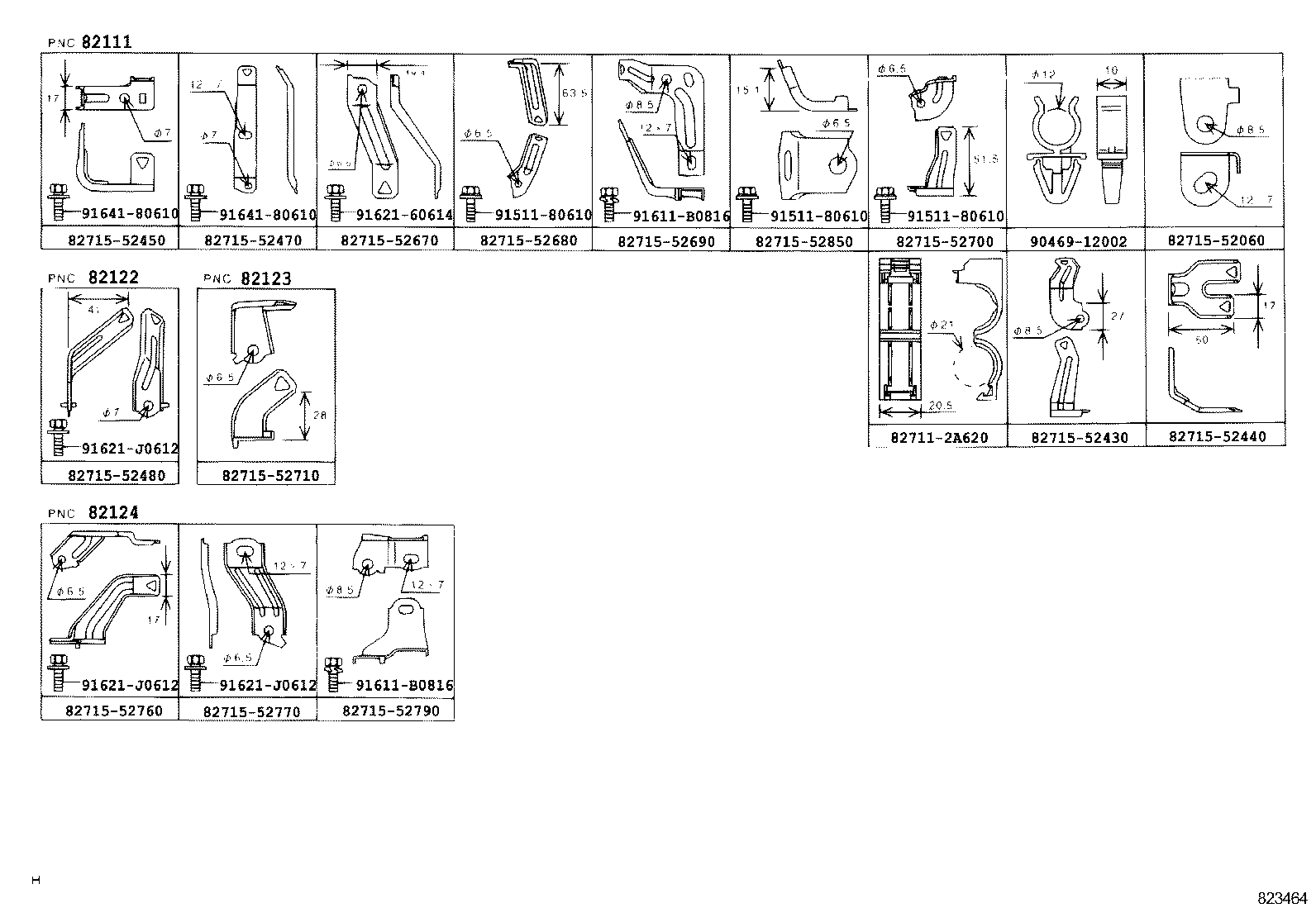

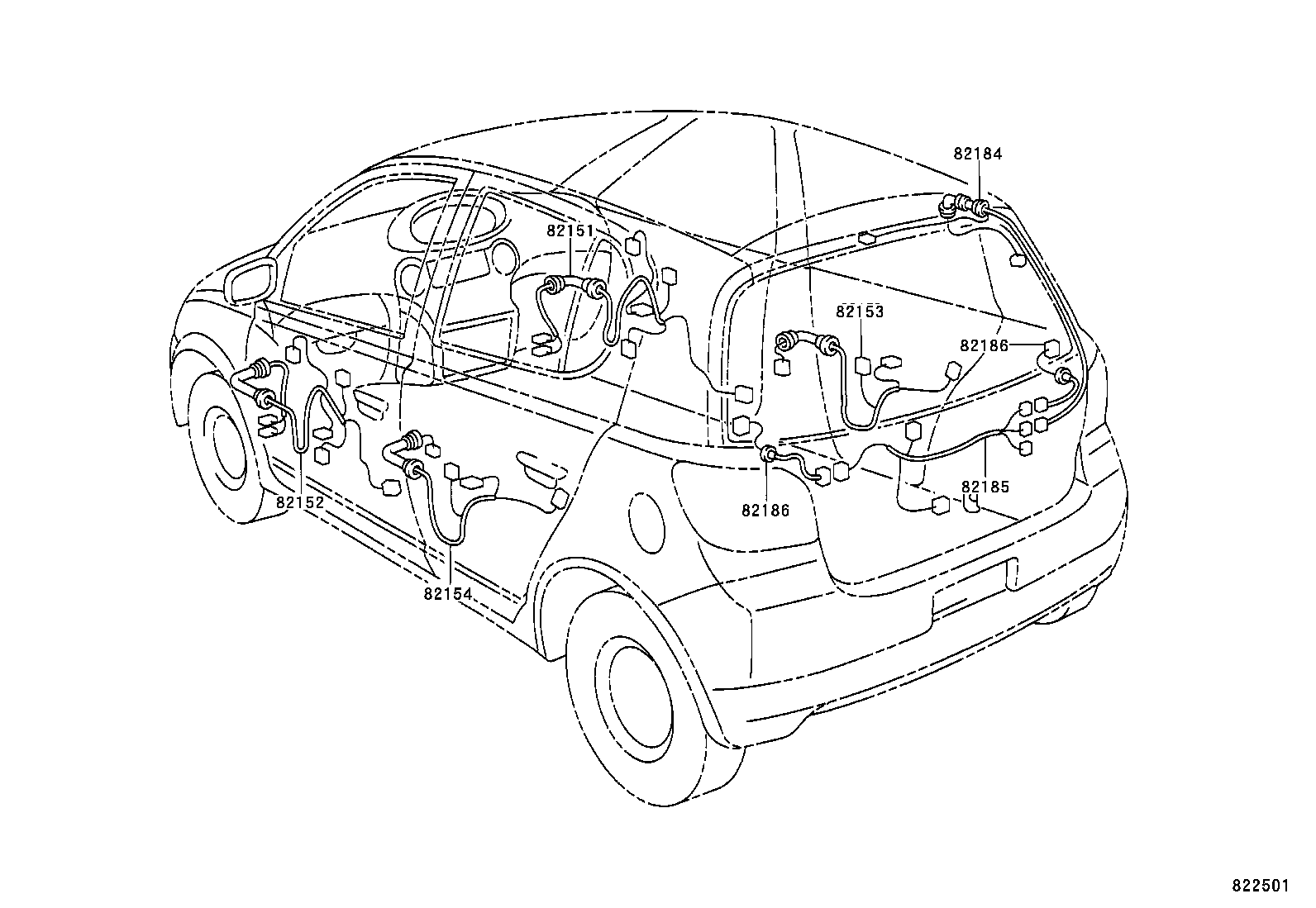

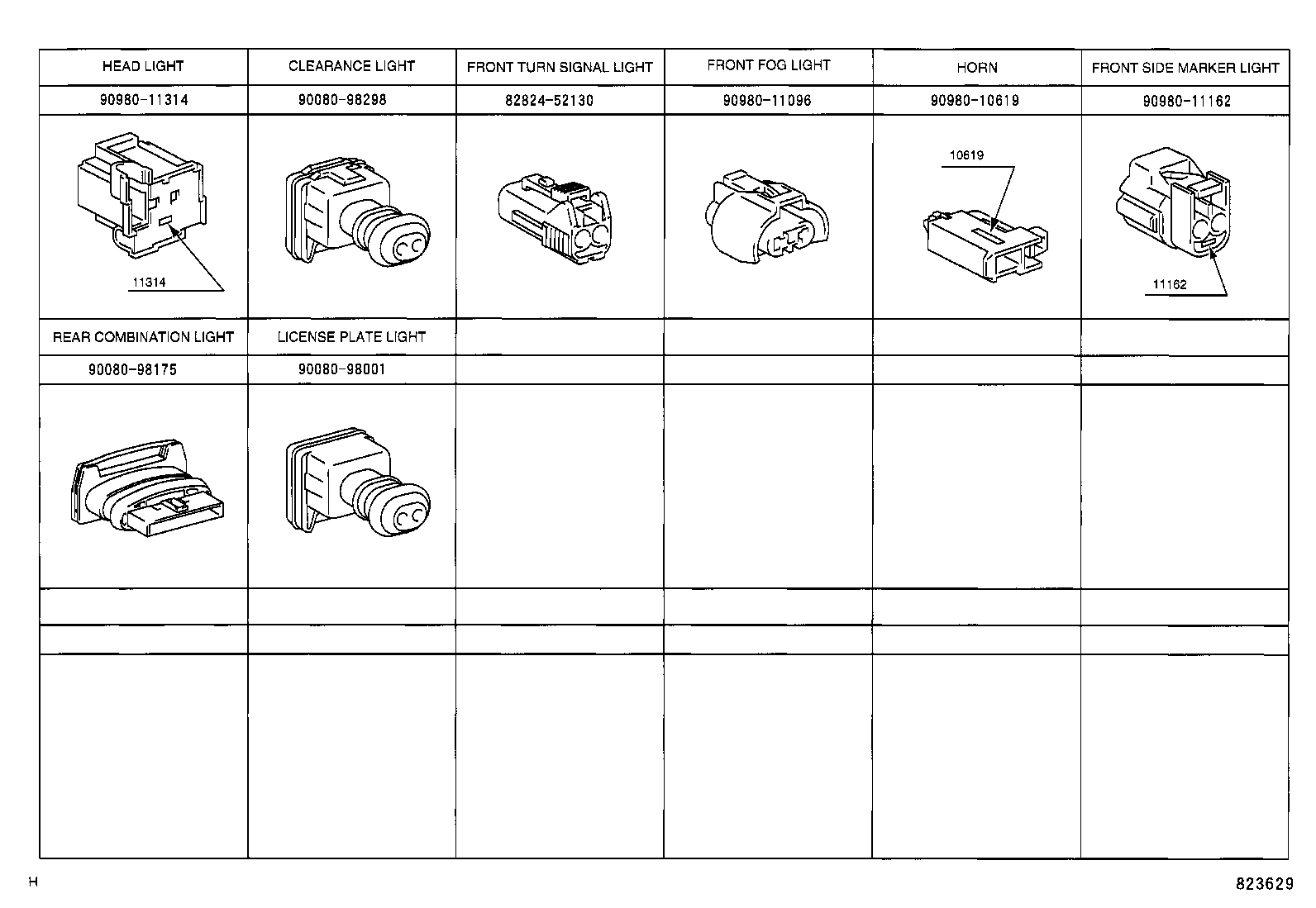

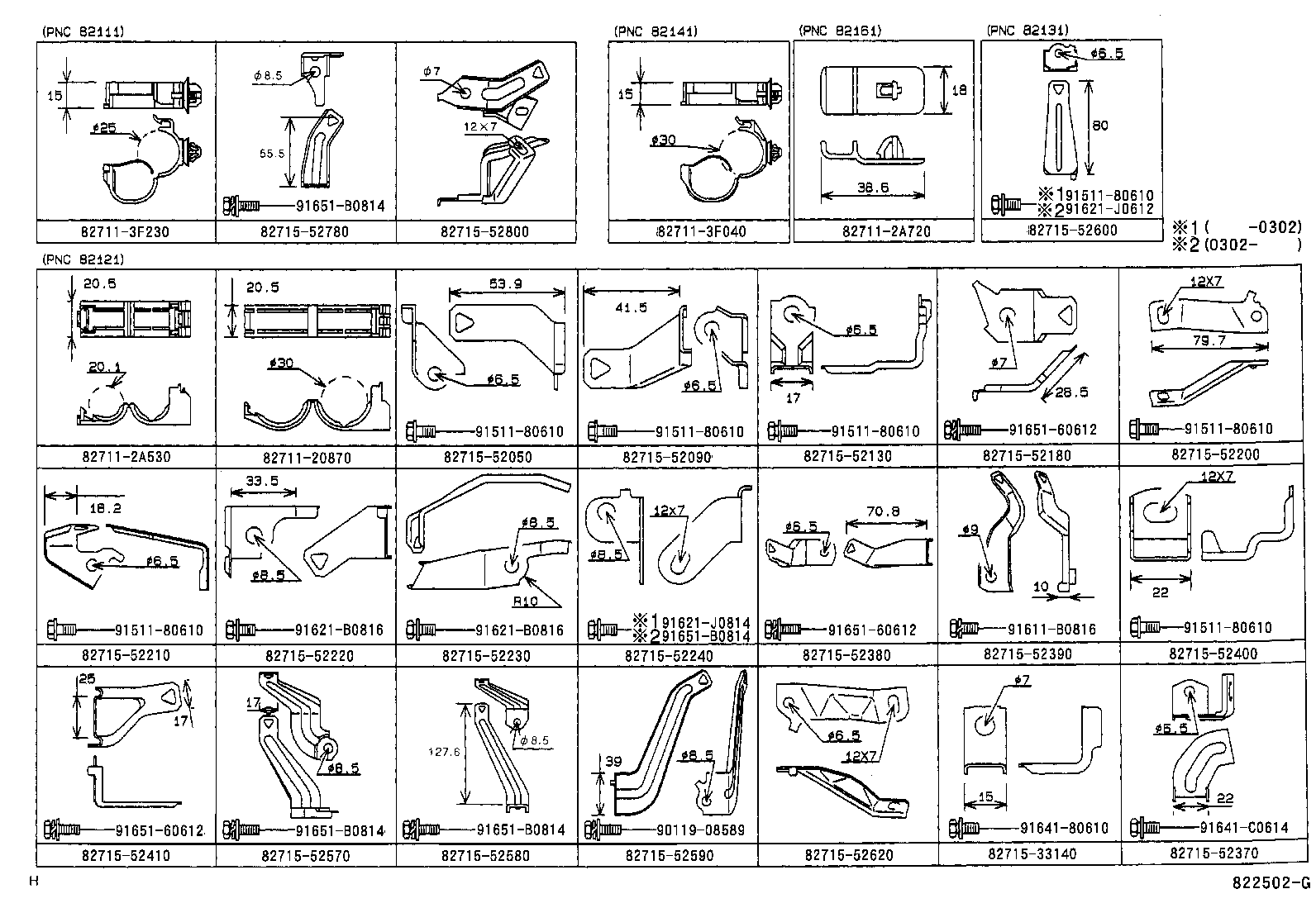

Figure 822493A 822493A 2001-01 → — Figure 822494A 822494A 2001-01 → — Figure 823465B 823465B 2003-02 → — Figure 822495D 822495D 2001-01 → — Figure 822496A 822496A 2001-01 → — Figure 822497A 822497A 2001-01 → — Figure 822498A 822498A 2001-01 → — Figure 822499A 822499A 2001-01 → — Figure 822500 822500 2001-01 → — Figure 822501 822501 2001-01 → — Figure 822502G 822502G 2001-01 → — Figure 823464B 823464B 2001-01 → — Figure 823629 823629 2001-01 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82223 Wire, Switch
82342 Wire, Clock
82666A Holder, Connector NO.2
82675 Terminal, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
