Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

11 part groups · 3 illustrations

Illustrations

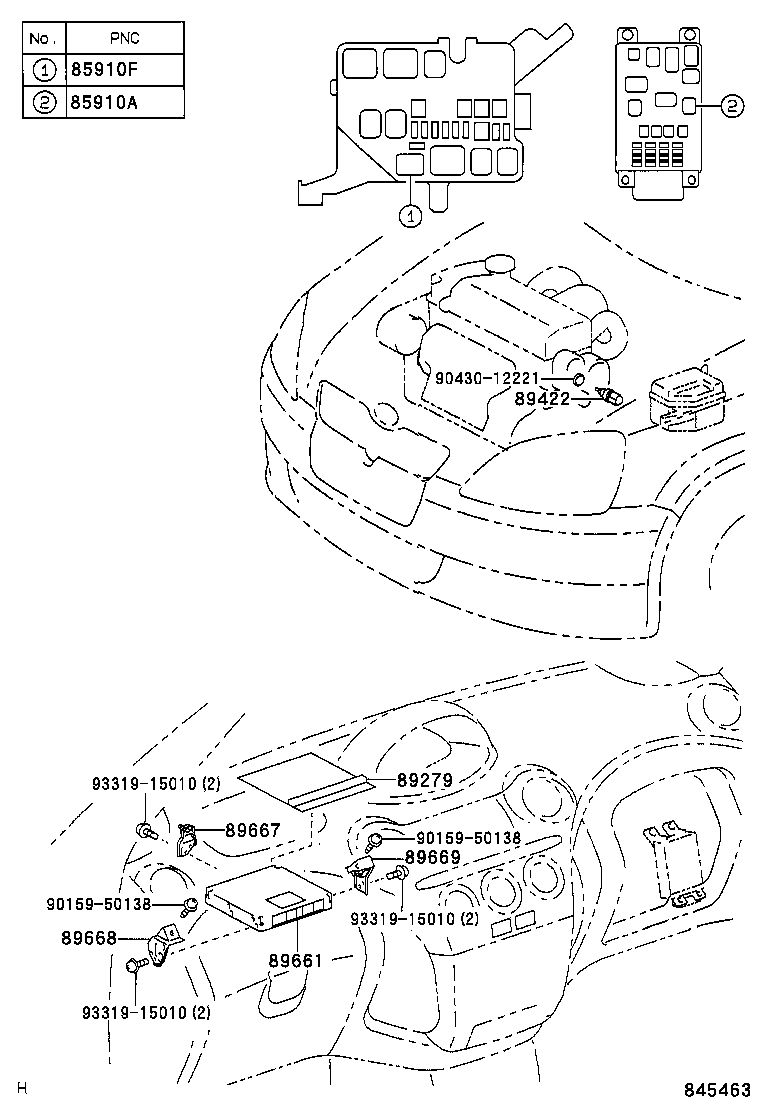

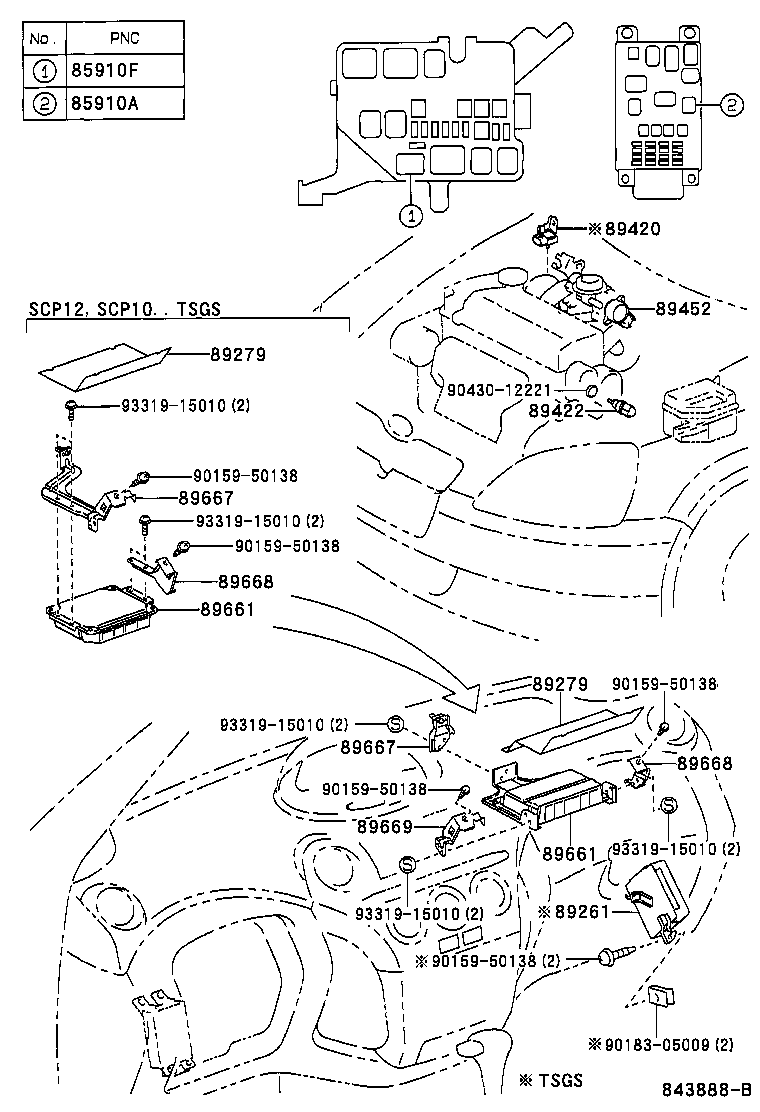

Figure 843887A 843887A 2001-01 → — Figure 843888B 843888B 2001-01 → — Figure 845463 845463 2003-02 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89261 Computer, Engine Stop And Start
89279 Cover, Engine Control Computer
89420 Sensor Assy, Vacuum
89422 Sensor, Water Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
