Toyota Yaris (FRP)
2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe
Discontinued model
Data version 2006-05
Anti-theft Device

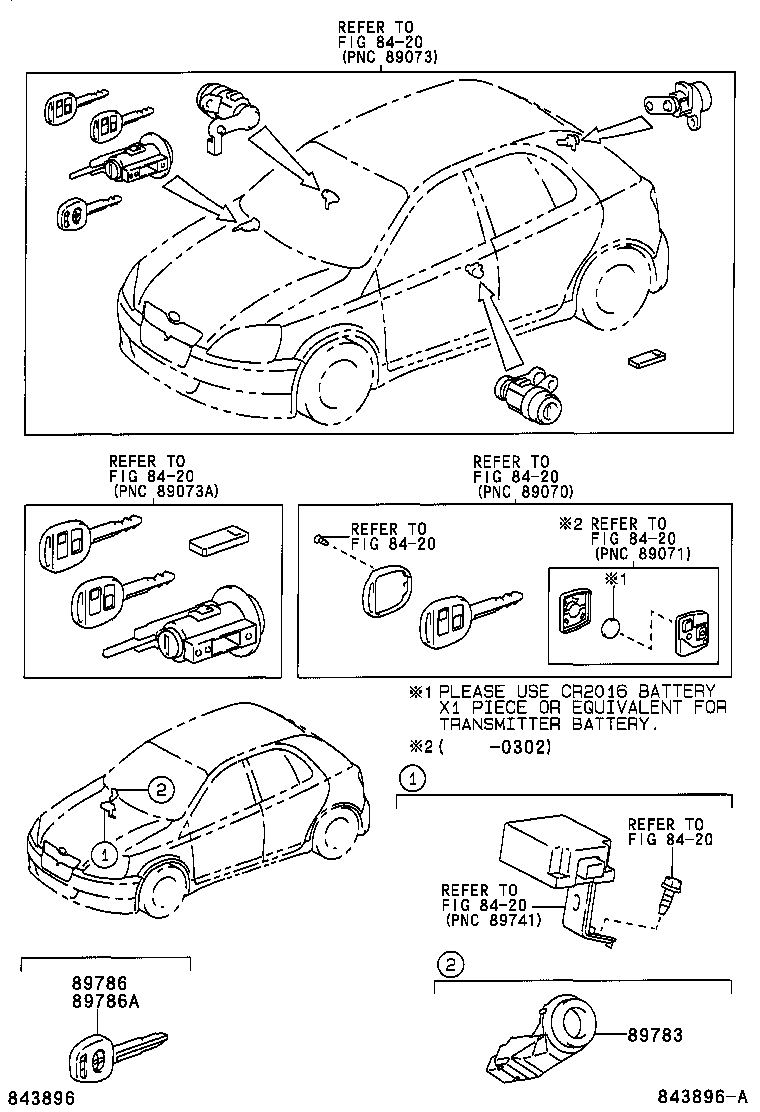

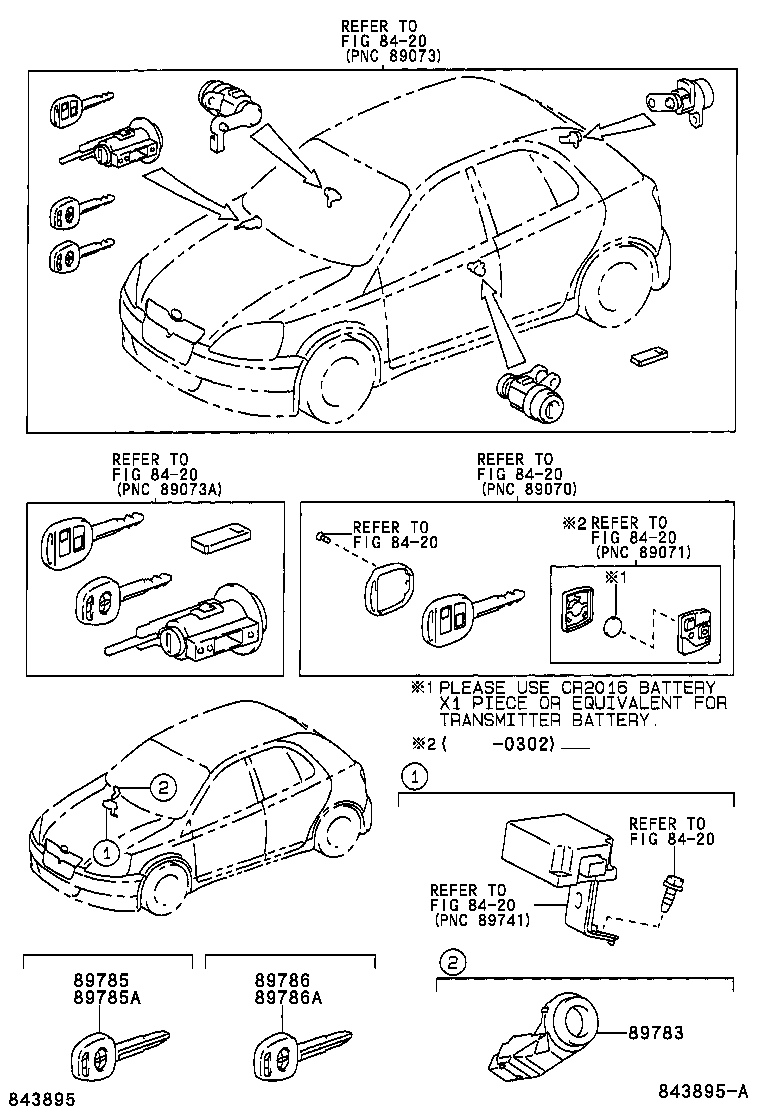

7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89708C | Cylinder Set, Lock W/Transponder Key Transmitter |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89785A | Transmitter, Transponder Cut Key Master |
| 89786 | Transmitter, Transponder Key Sub |
| 89786A | Transmitter, Transponder Cut Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
