Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

9 part groups · 3 illustrations

Illustrations

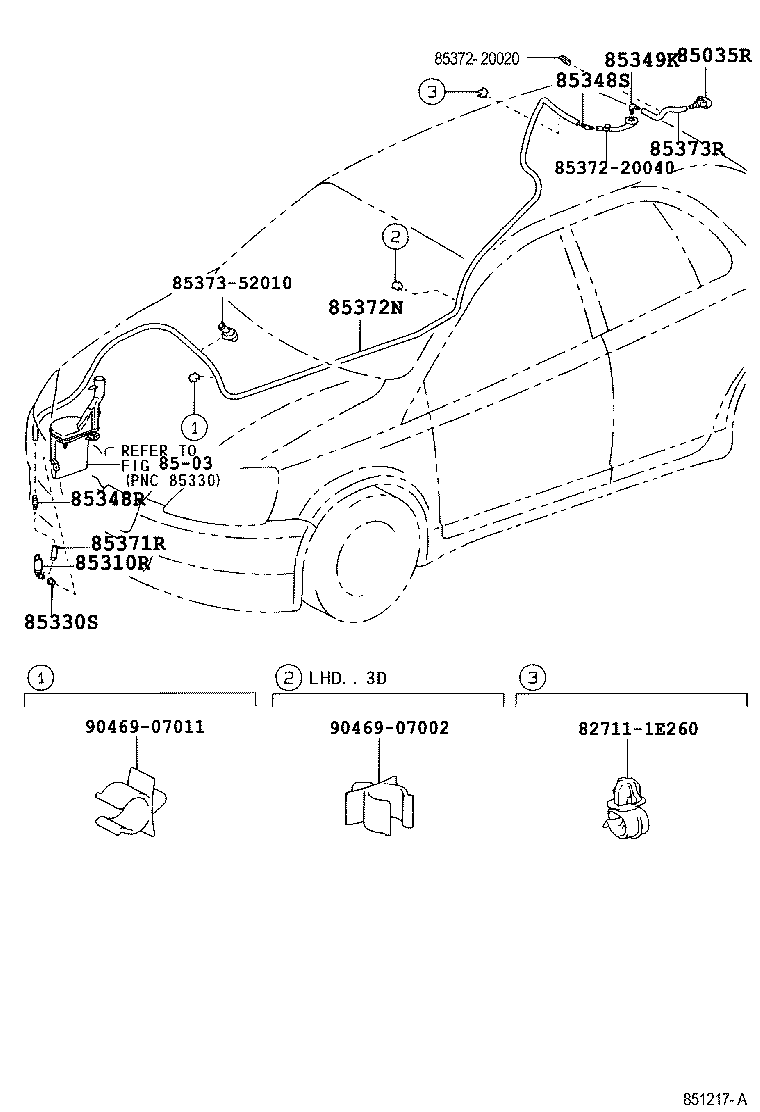

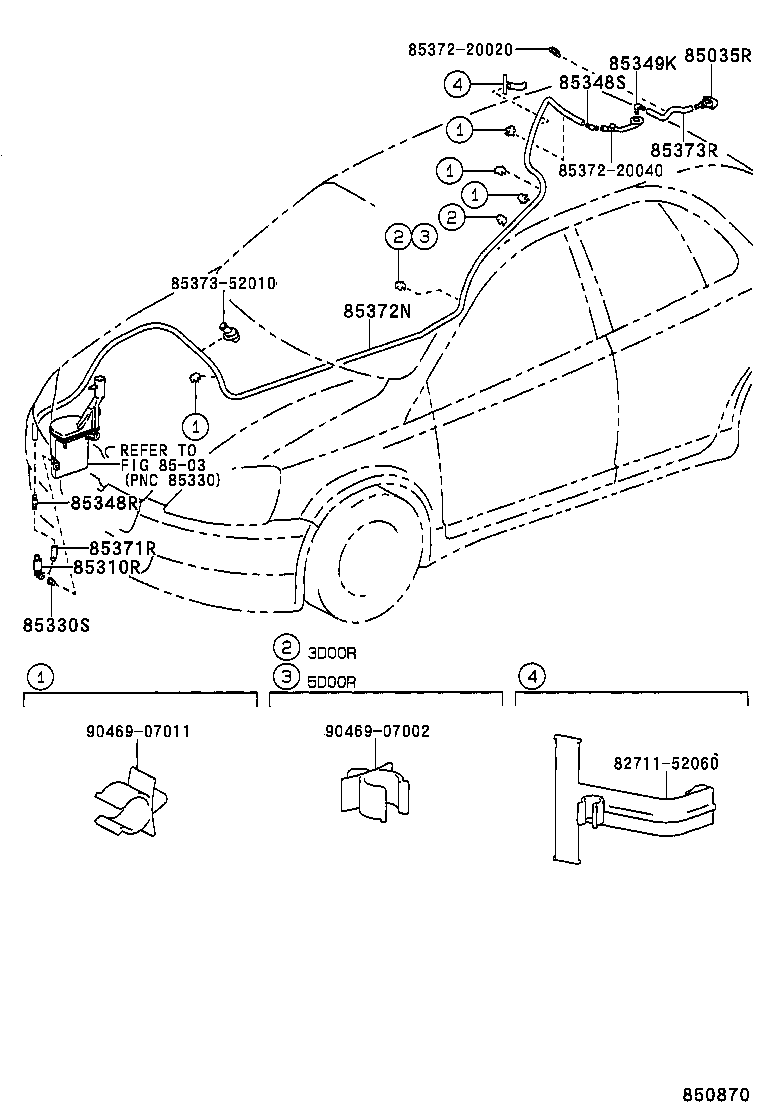

Figure 850869 850869 2001-01 → 2003-02 Figure 850870 850870 2001-01 → 2003-02 Figure 851217A 851217A 2003-02 → —

Part groups

PNCDescription
85035R Nozzle Sub-assy, Rear Washer
85310R Motor Assy, Rear Washer
85330S Bush, Rear Washer Jar
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85349K Joint, Rear Washer Elbow, NO.2
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
