Toyota Yaris (FRP)
2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe
Discontinued model
Data version 2006-05

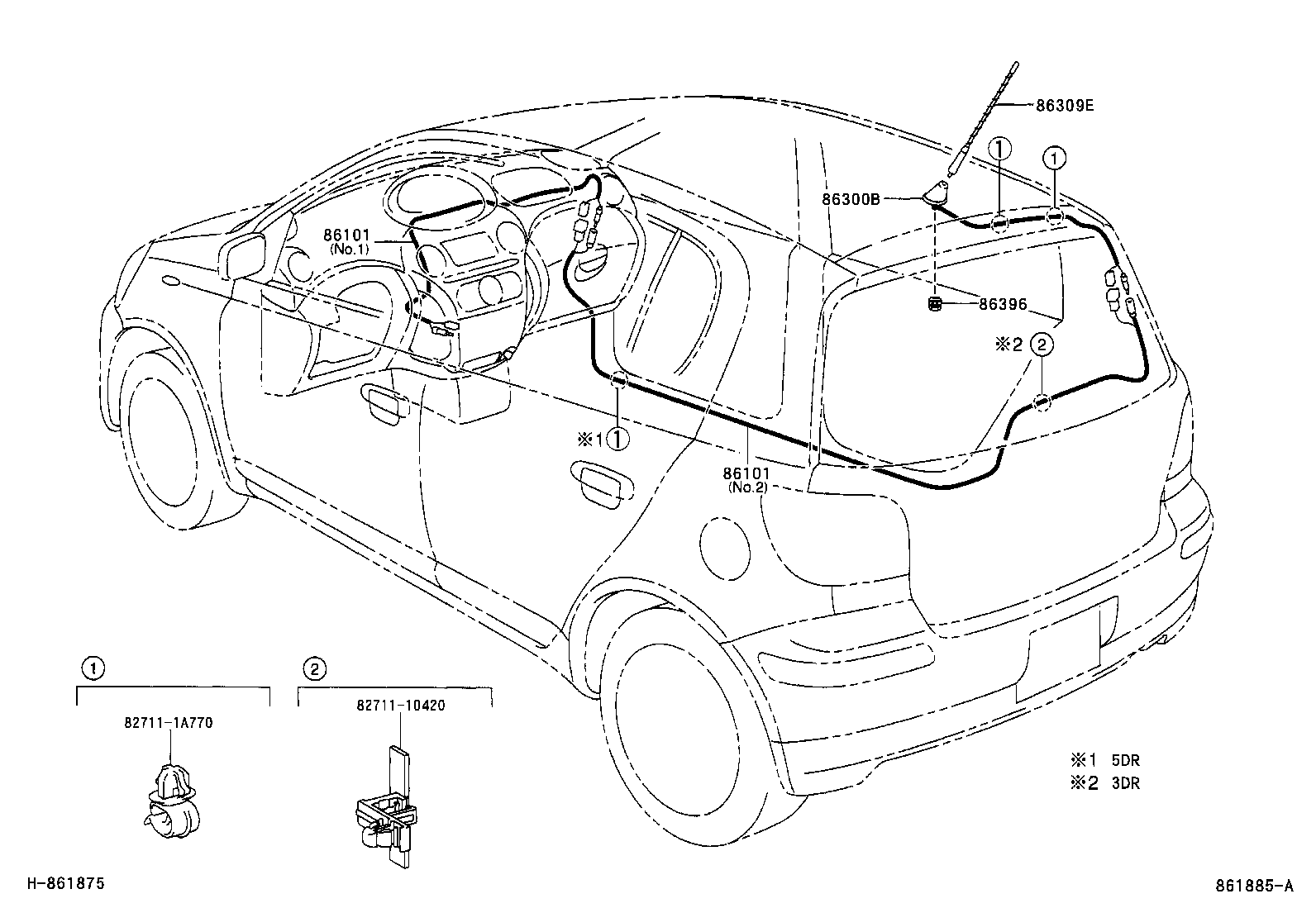

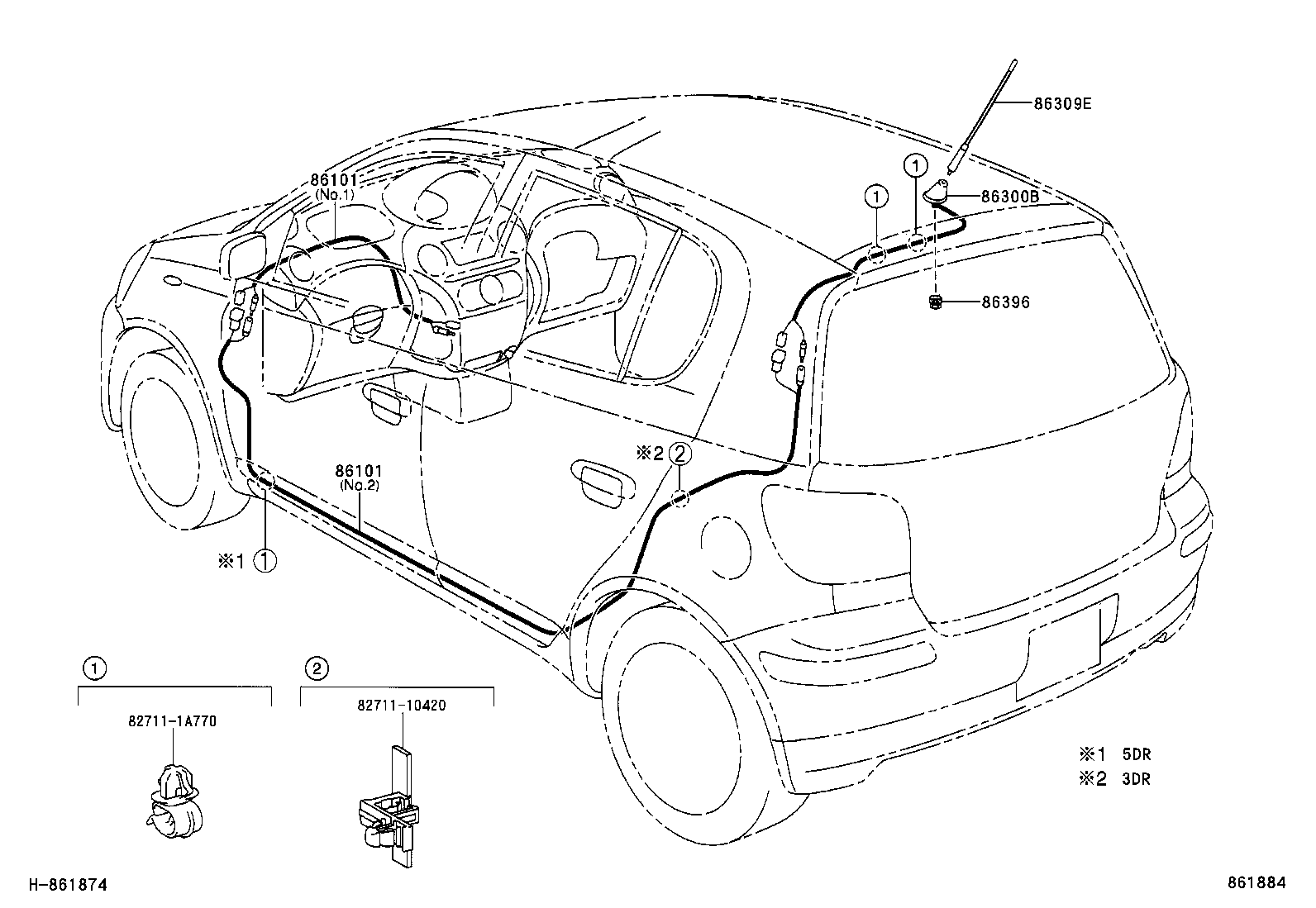

Antenna
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300F | Holder Assy, Antenna (CORD/POLE SEPARATE TYPE) |
| 86309 | Pole Sub-assy, Pillar Antenna |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
