Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

27 part groups · 13 illustrations

Illustrations

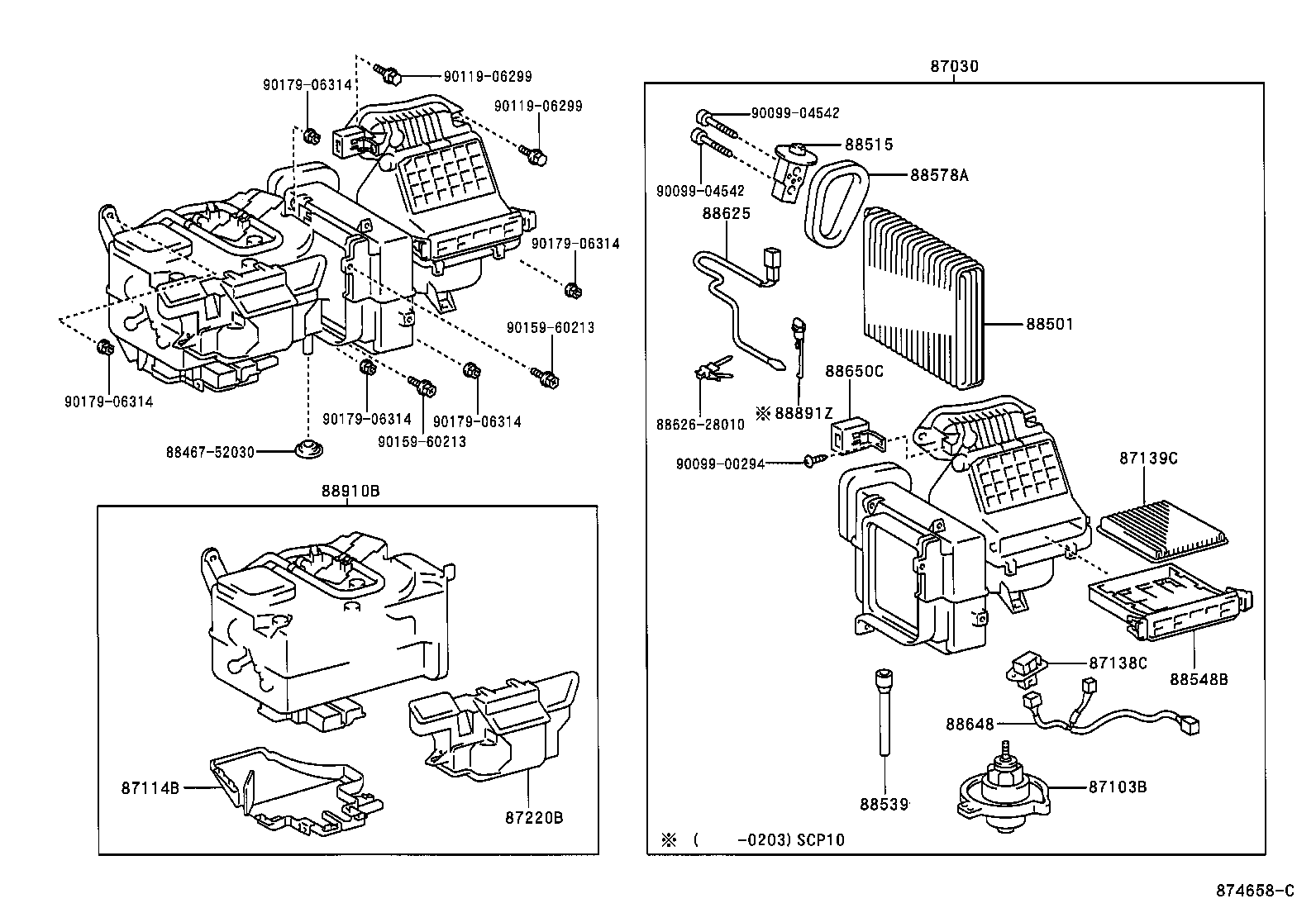

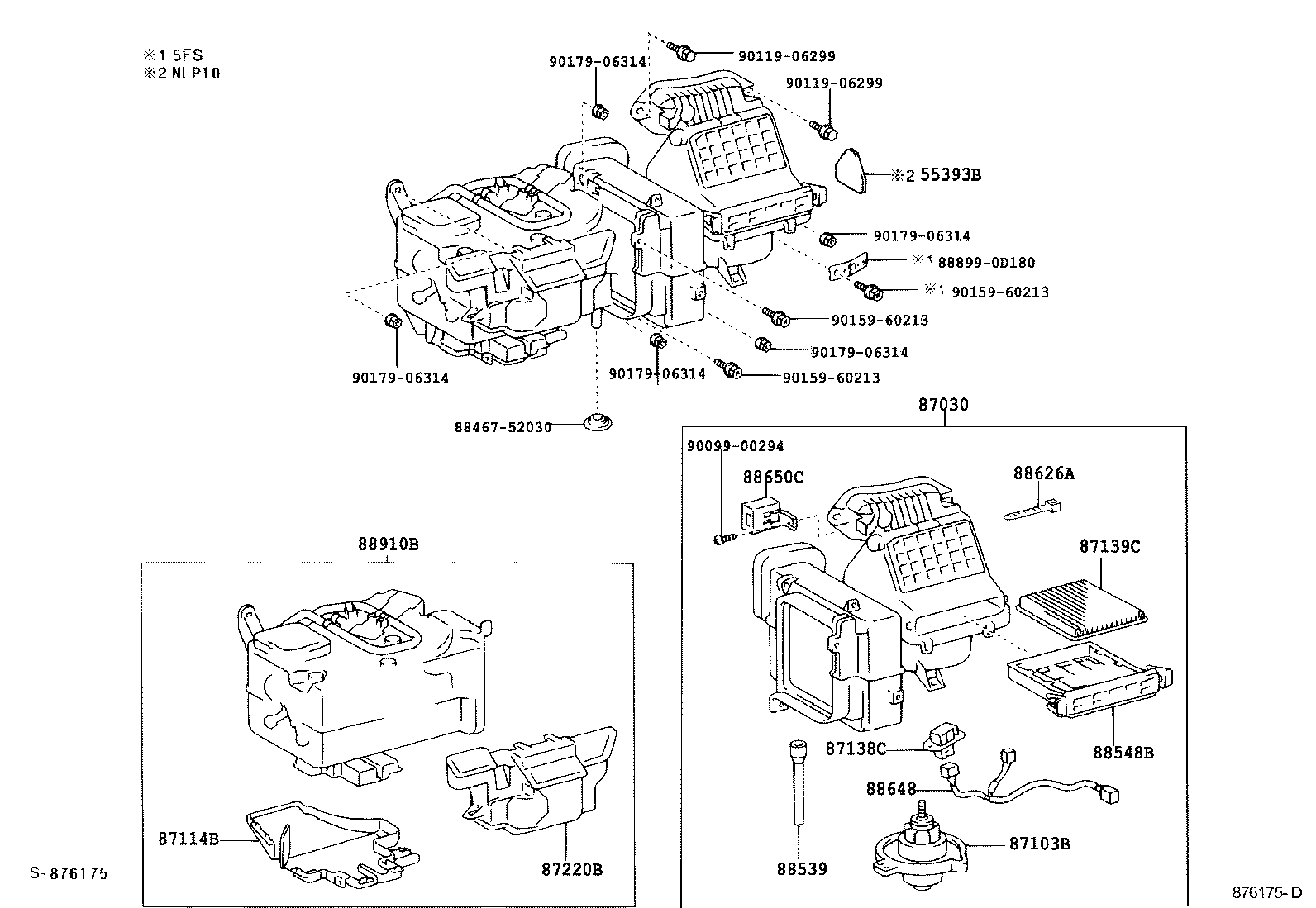

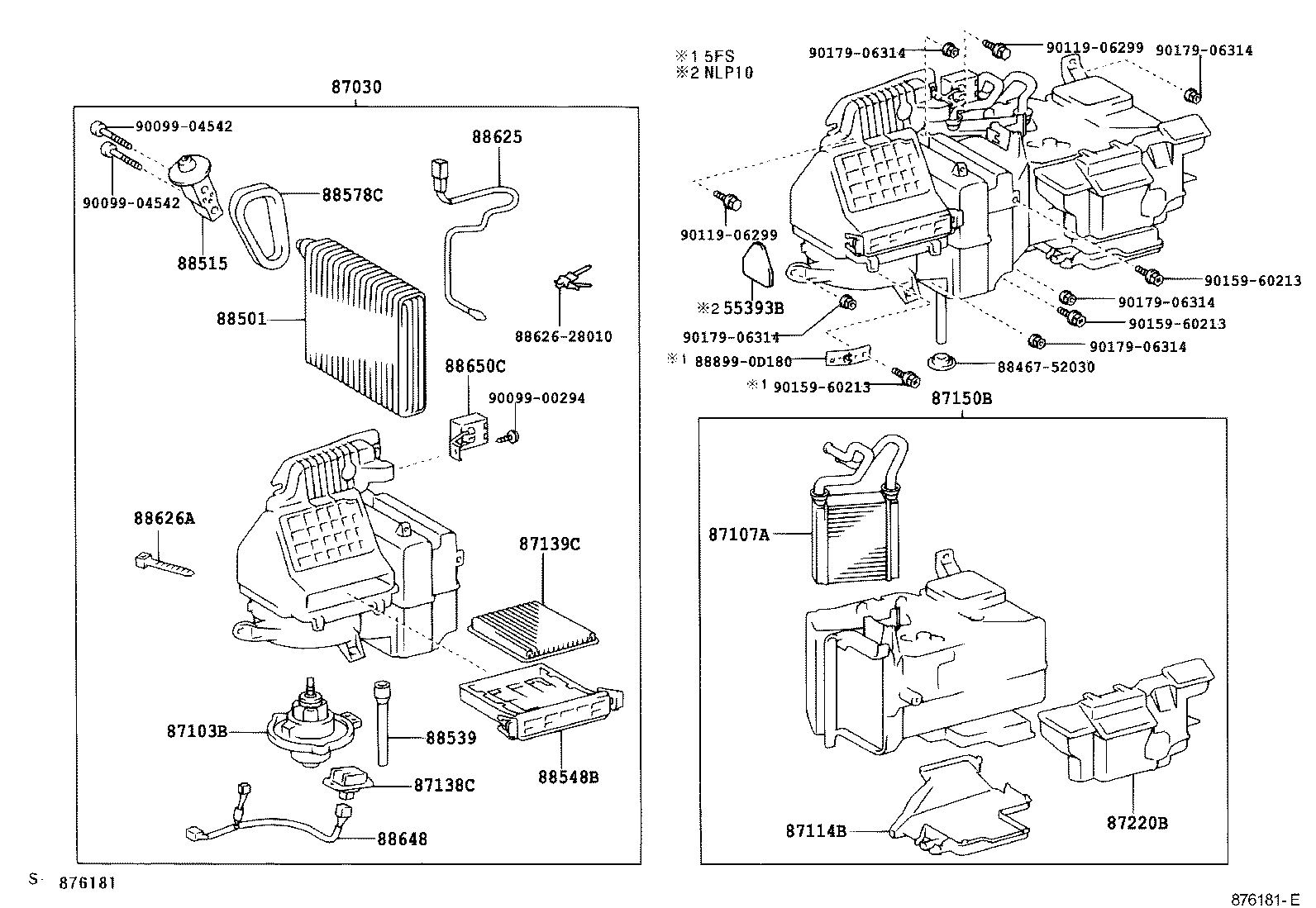

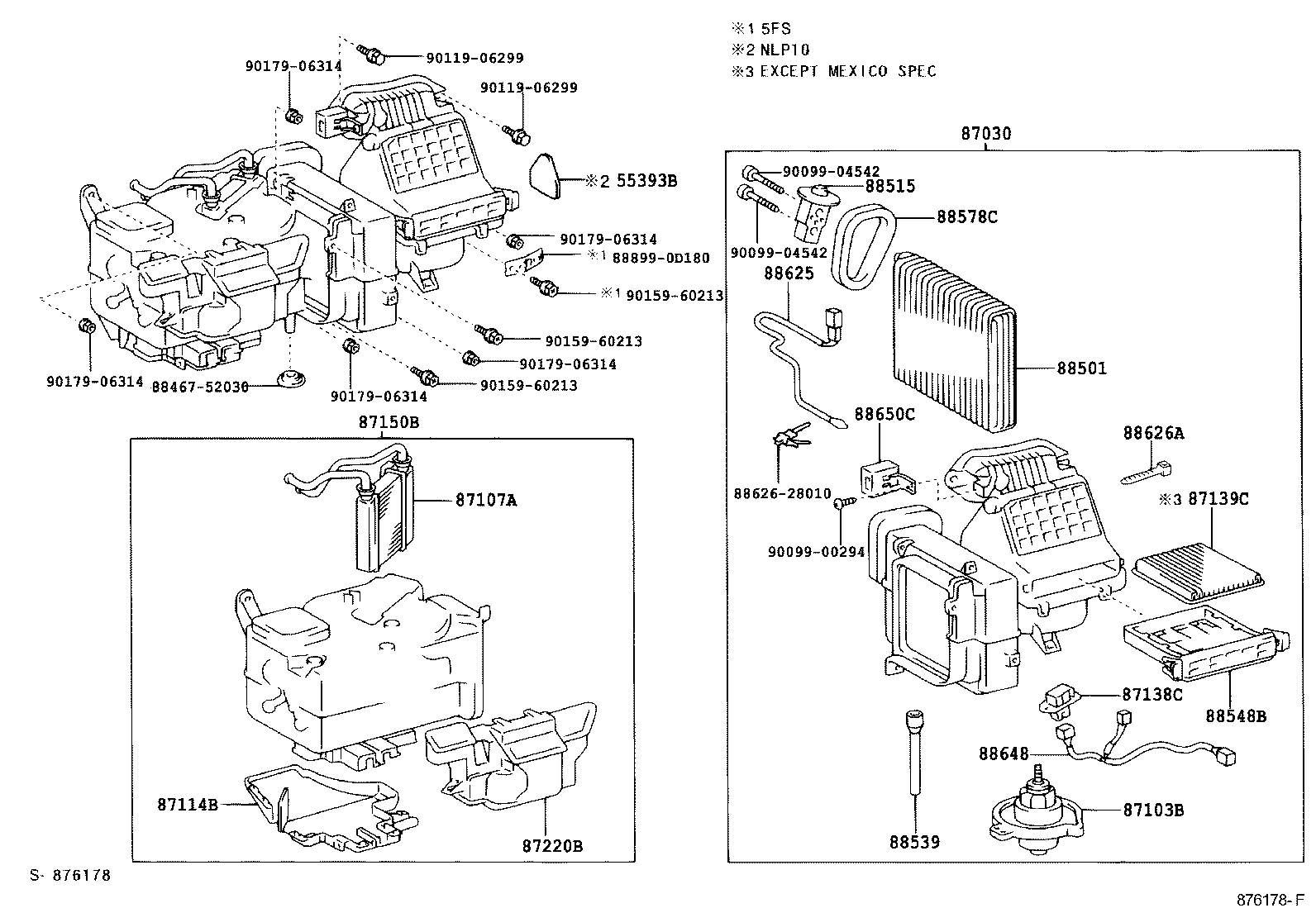

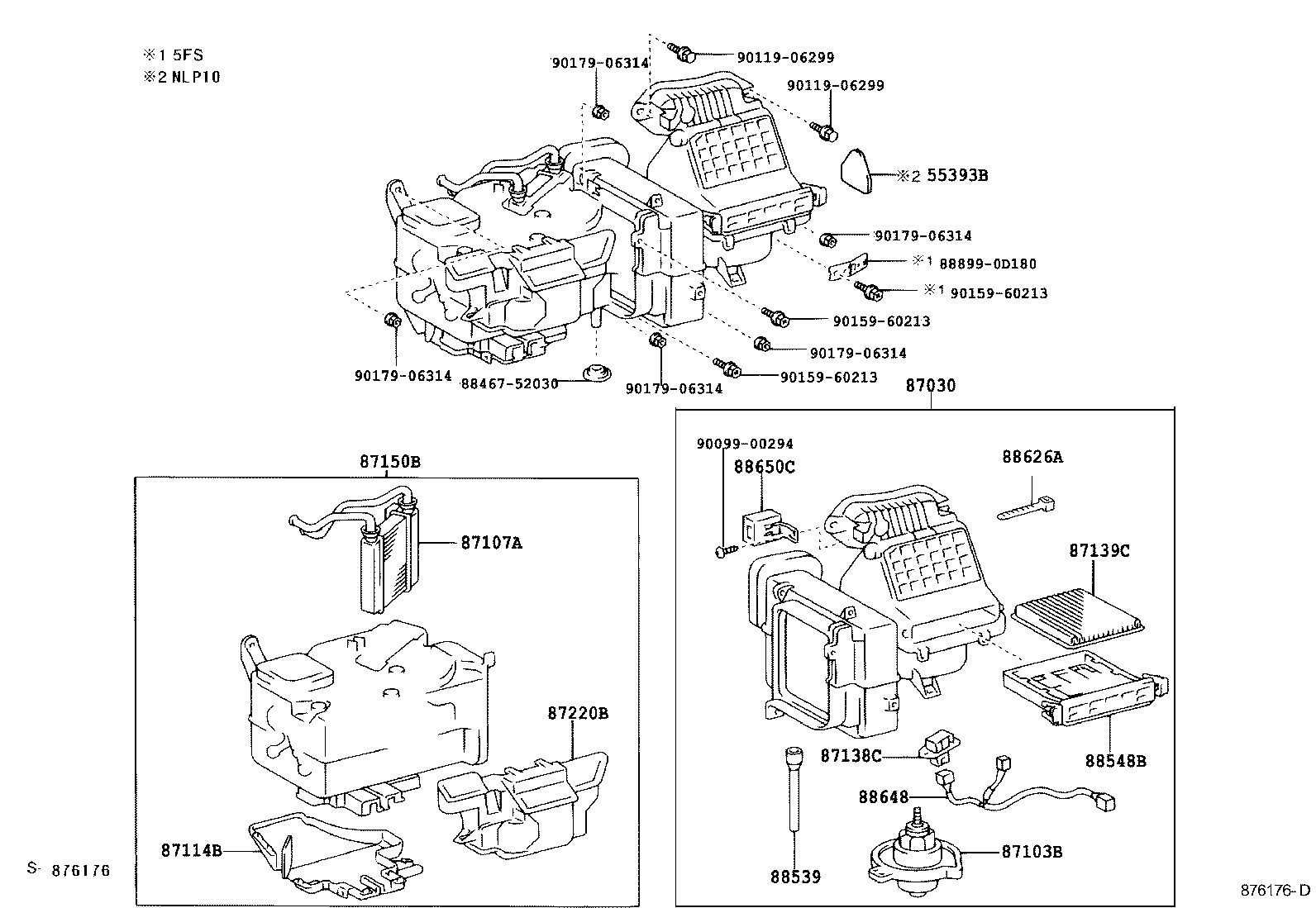

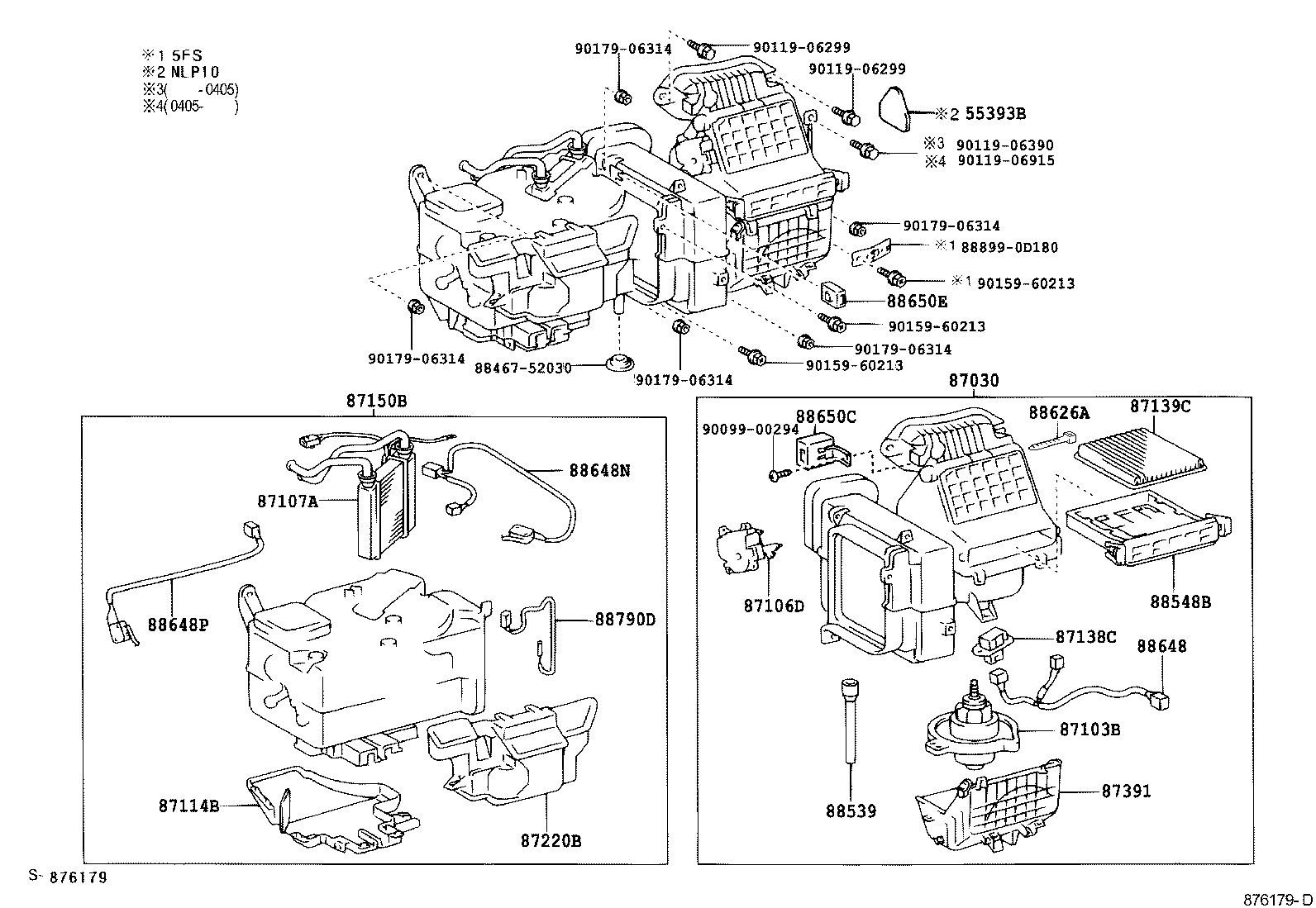

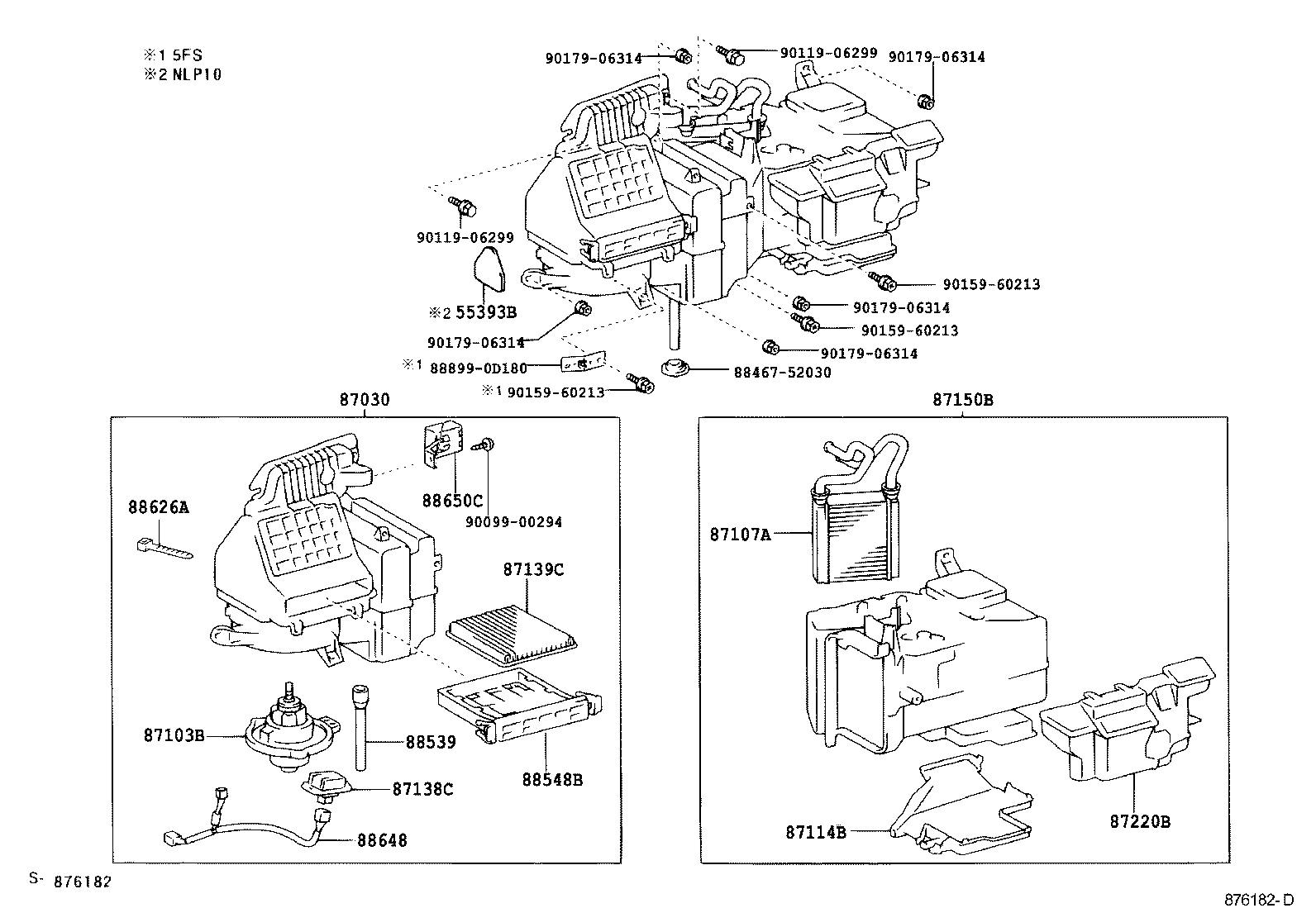

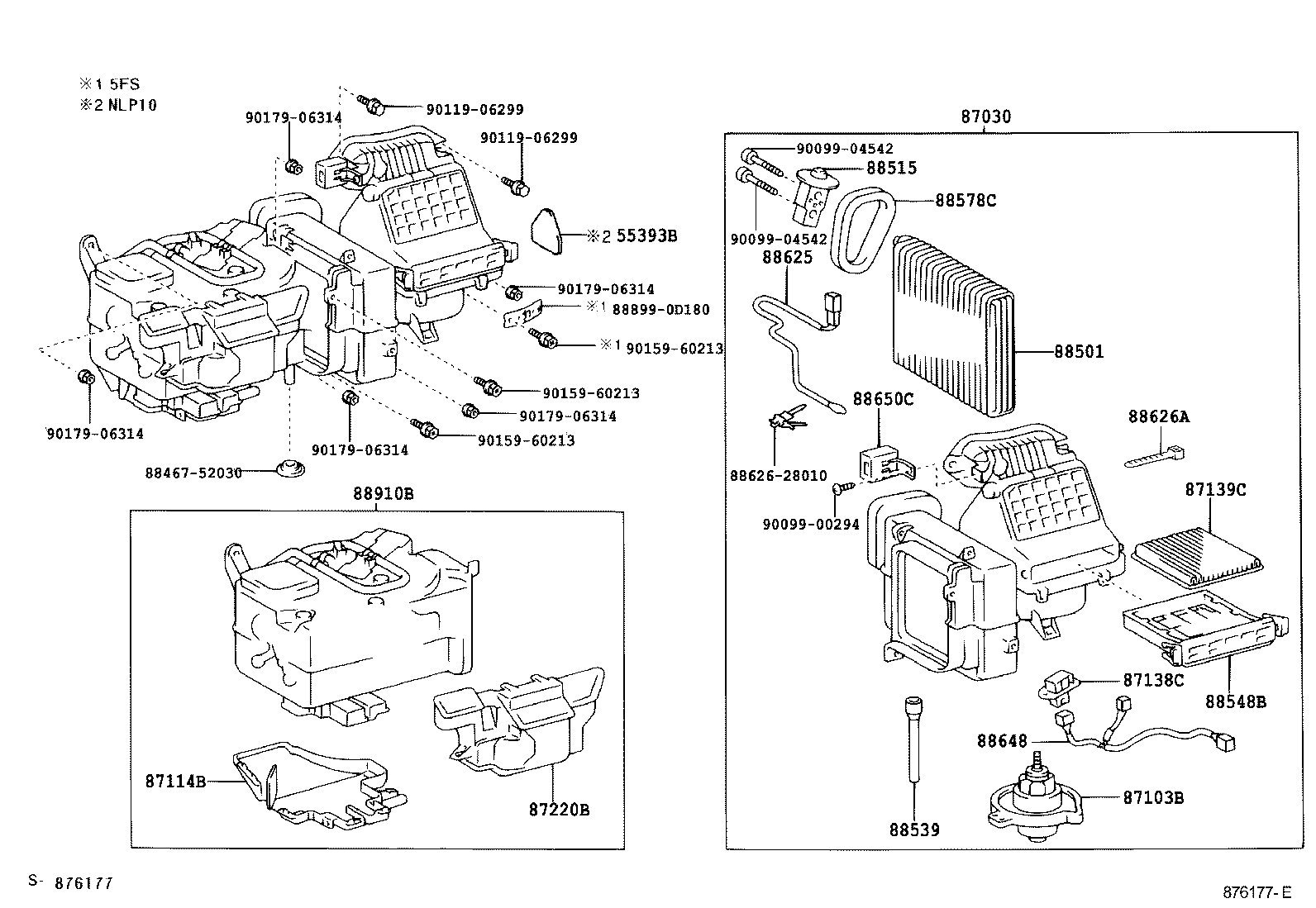

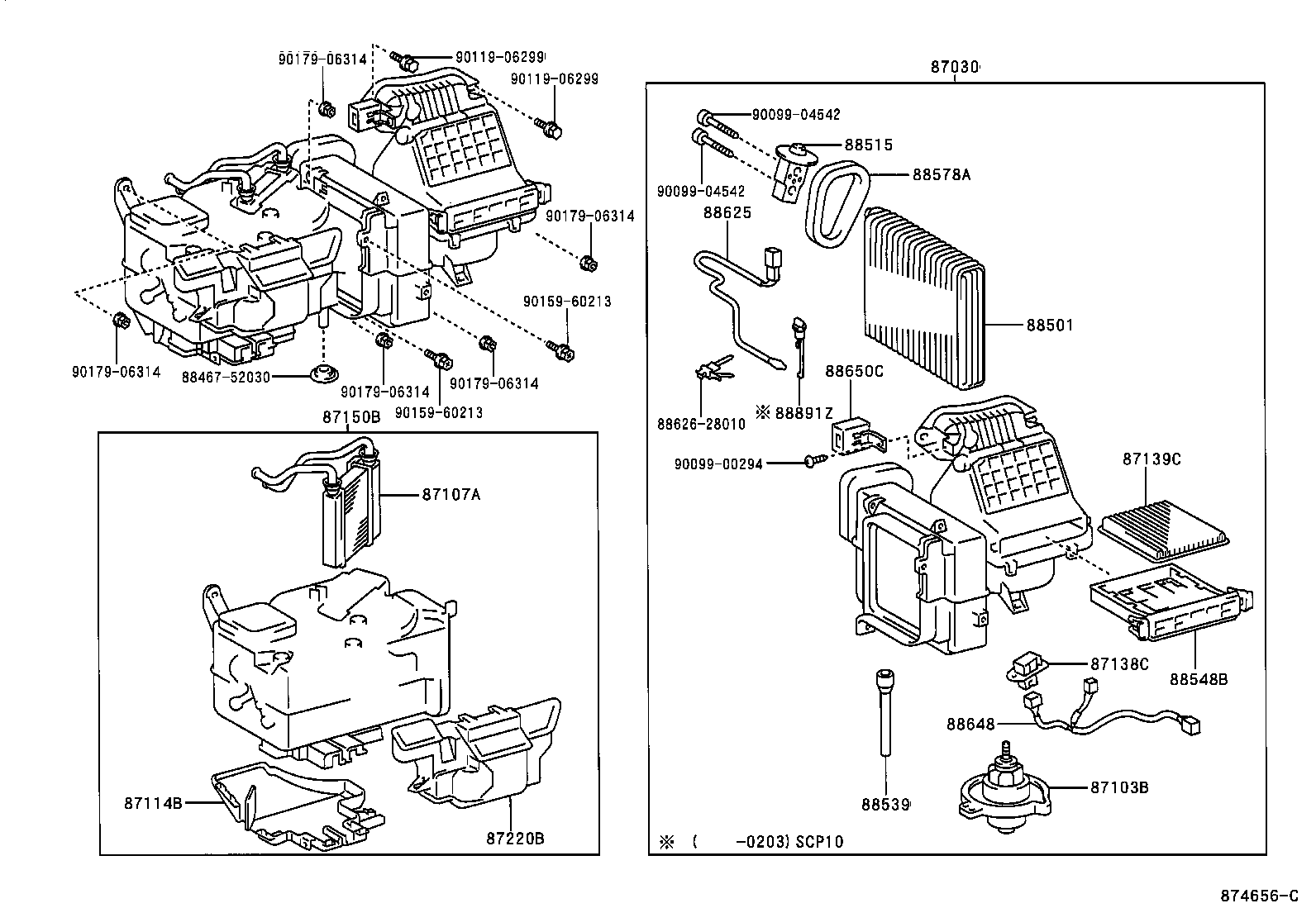

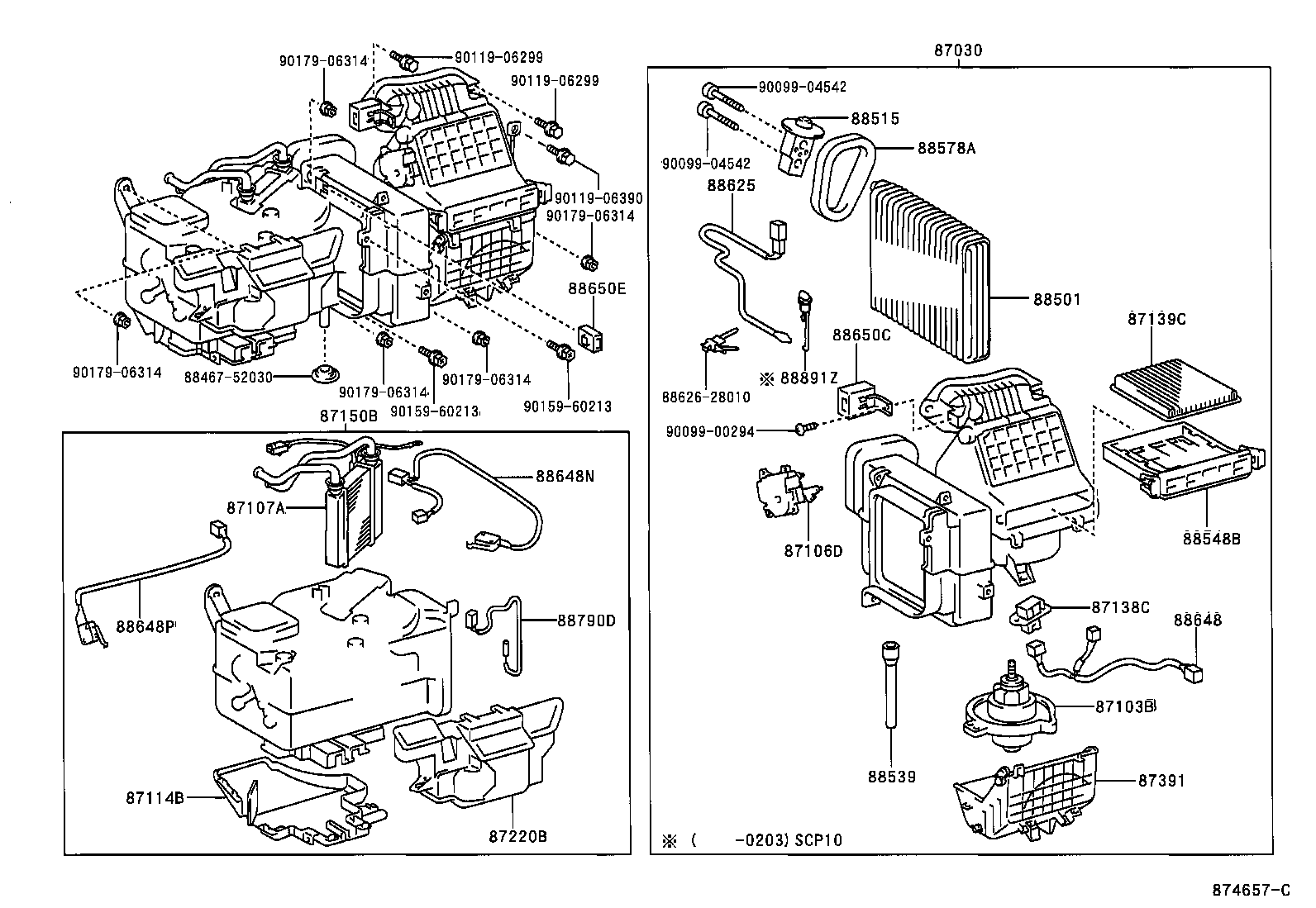

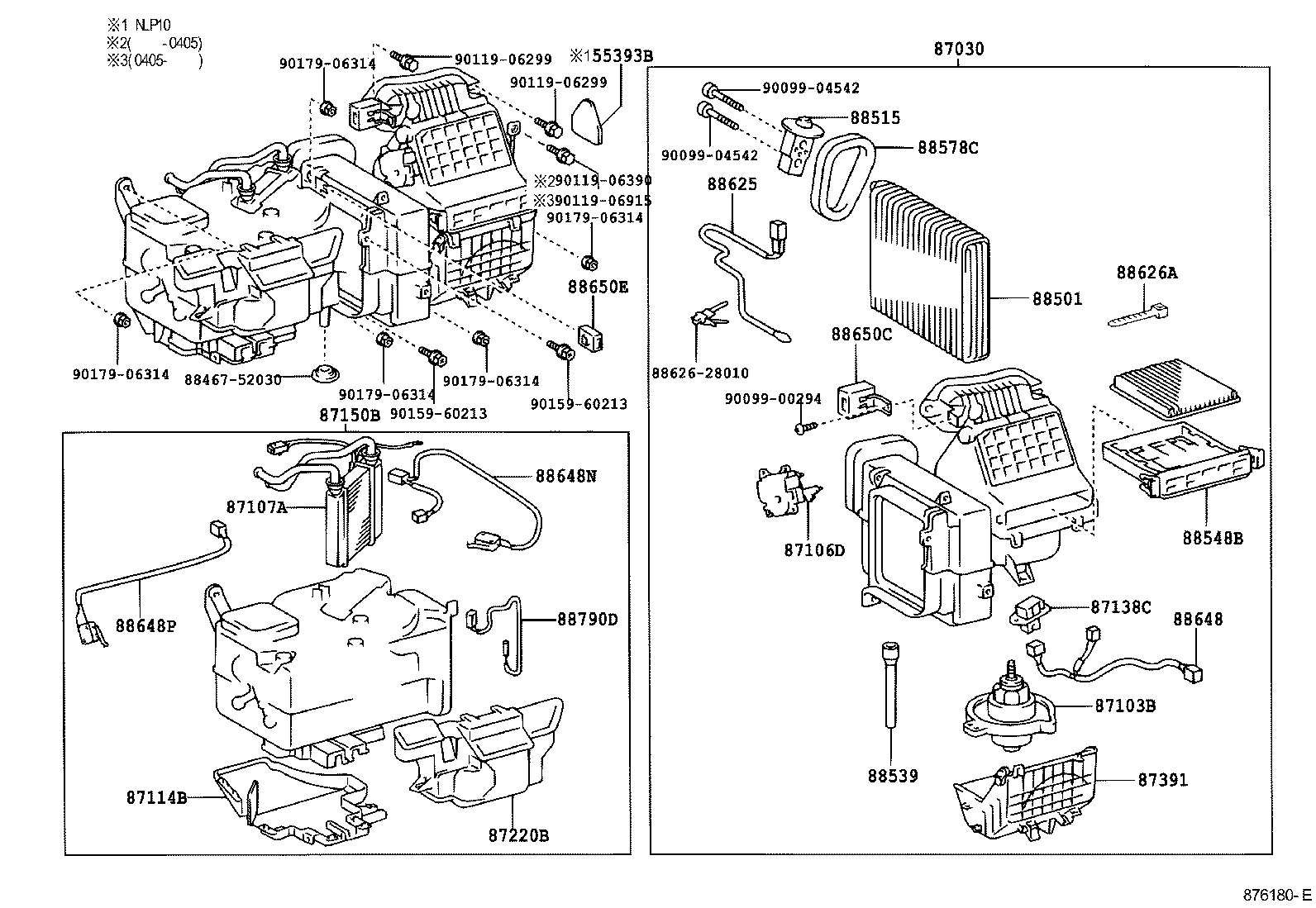

Figure 874655C 874655C 2001-01 → 2003-02 Figure 874656C 874656C 2001-01 → 2003-02 Figure 874657C 874657C 2001-01 → 2003-02 Figure 874658C 874658C 2001-01 → 2003-02 Figure 876175D 876175D 2003-02 → — Figure 876176D 876176D 2003-02 → — Figure 876177E 876177E 2003-02 → — Figure 876178F 876178F 2003-02 → — Figure 876179D 876179D 2003-02 → — Figure 876180E 876180E 2003-02 → — Figure 876181E 876181E 2003-02 → — Figure 876182D 876182D 2003-02 → — Figure 873225 873225 2001-01 → —

Part groups

PNCDescription
55393B Cushion, Air Conditioning Cooler Unit
87030 Blower Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106D Servo Sub-assy, Damper, NO.1
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87150B Radiator Assy, Heater
87220B Duct Assy, Air
87391 Cover, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88578A Packing, Cooler Stabilizer Amplifier
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88648 Wiring, Cooler, NO.1
88648N Wiring, Cooler, NO.2
88648P Wire,Air Conditioner,NO.1
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88790D Thermistor Assy
88891Z Bracket, Cooler Thermistor
88910B Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
