Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

31 part groups · 8 illustrations

Illustrations

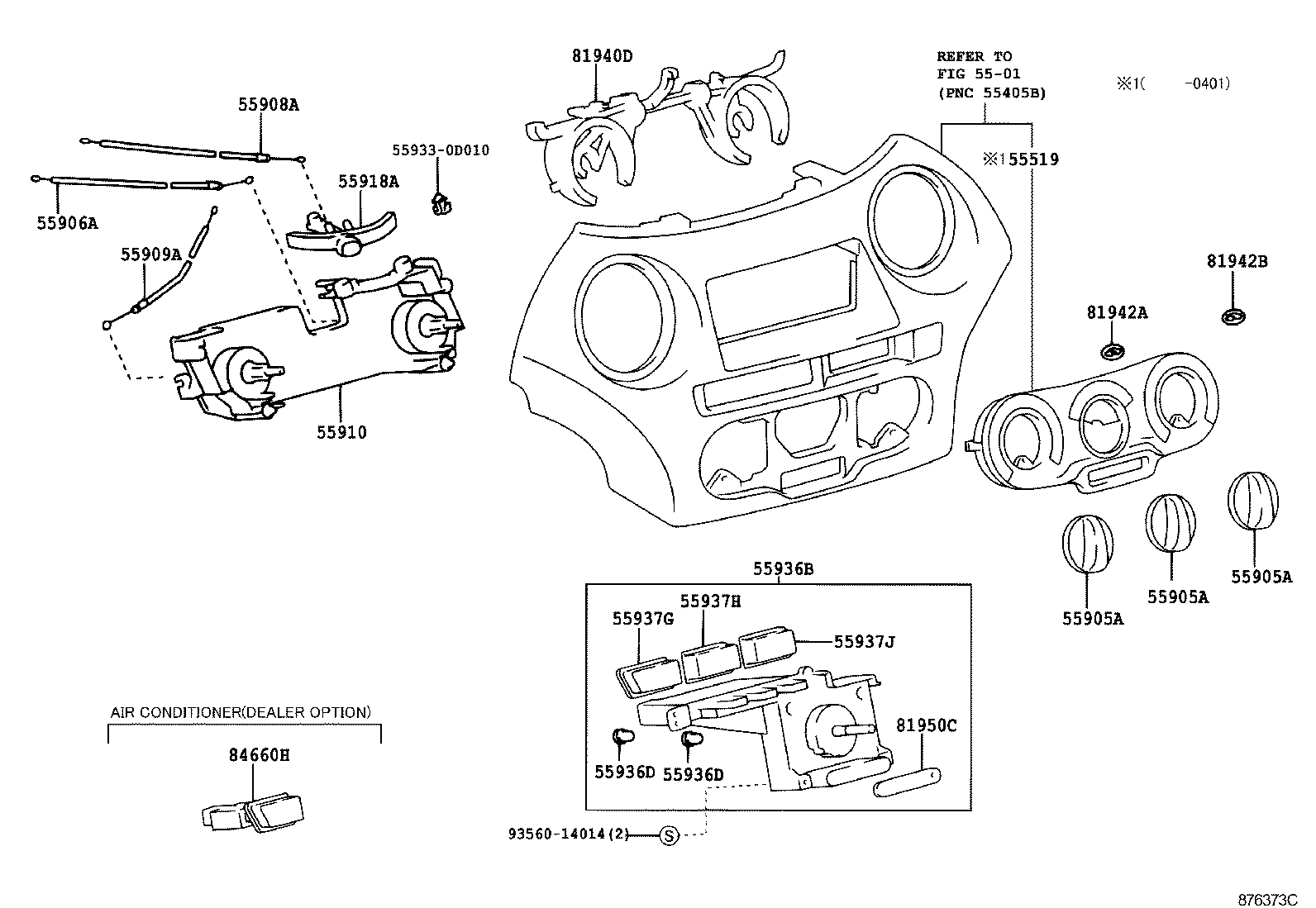

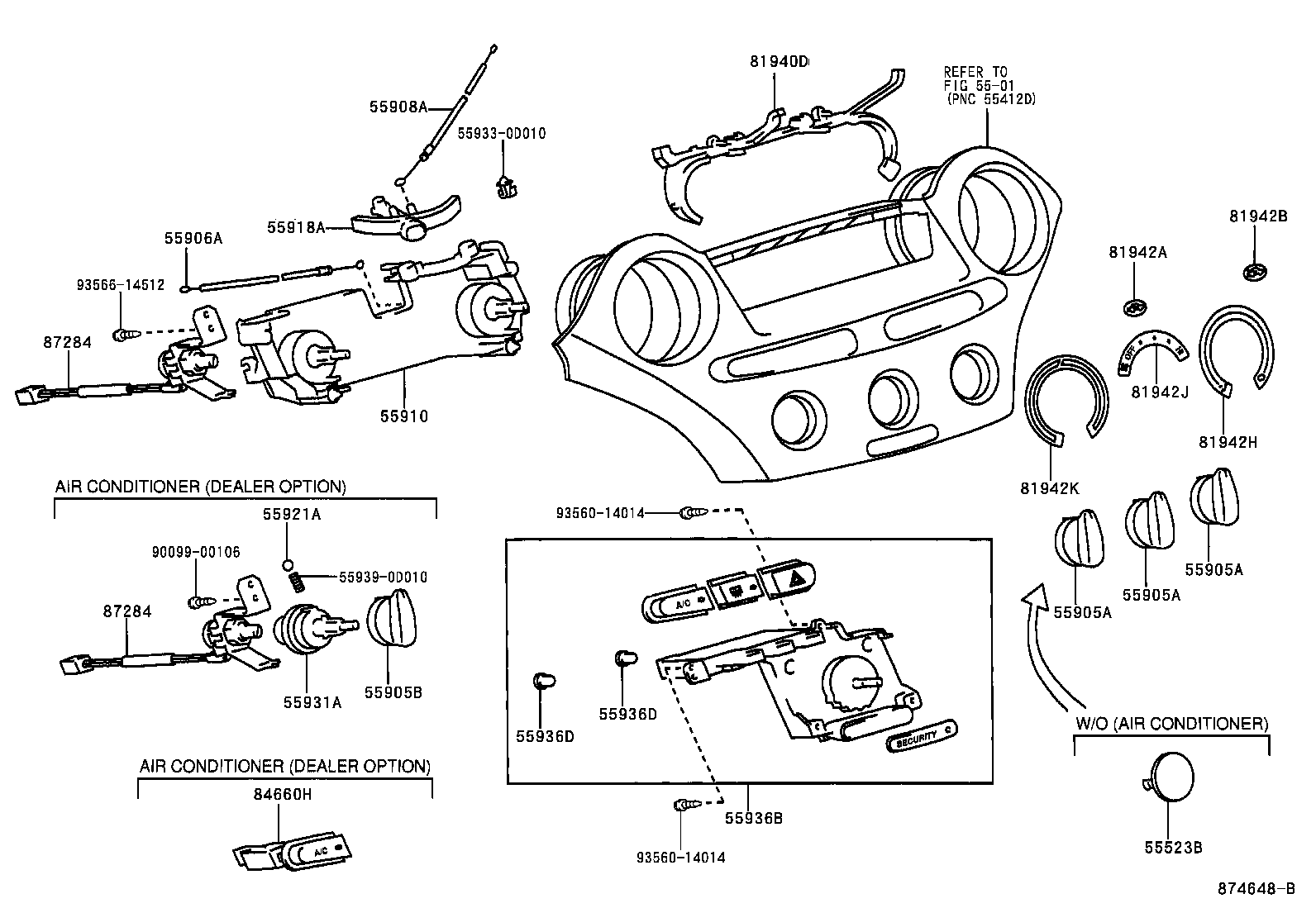

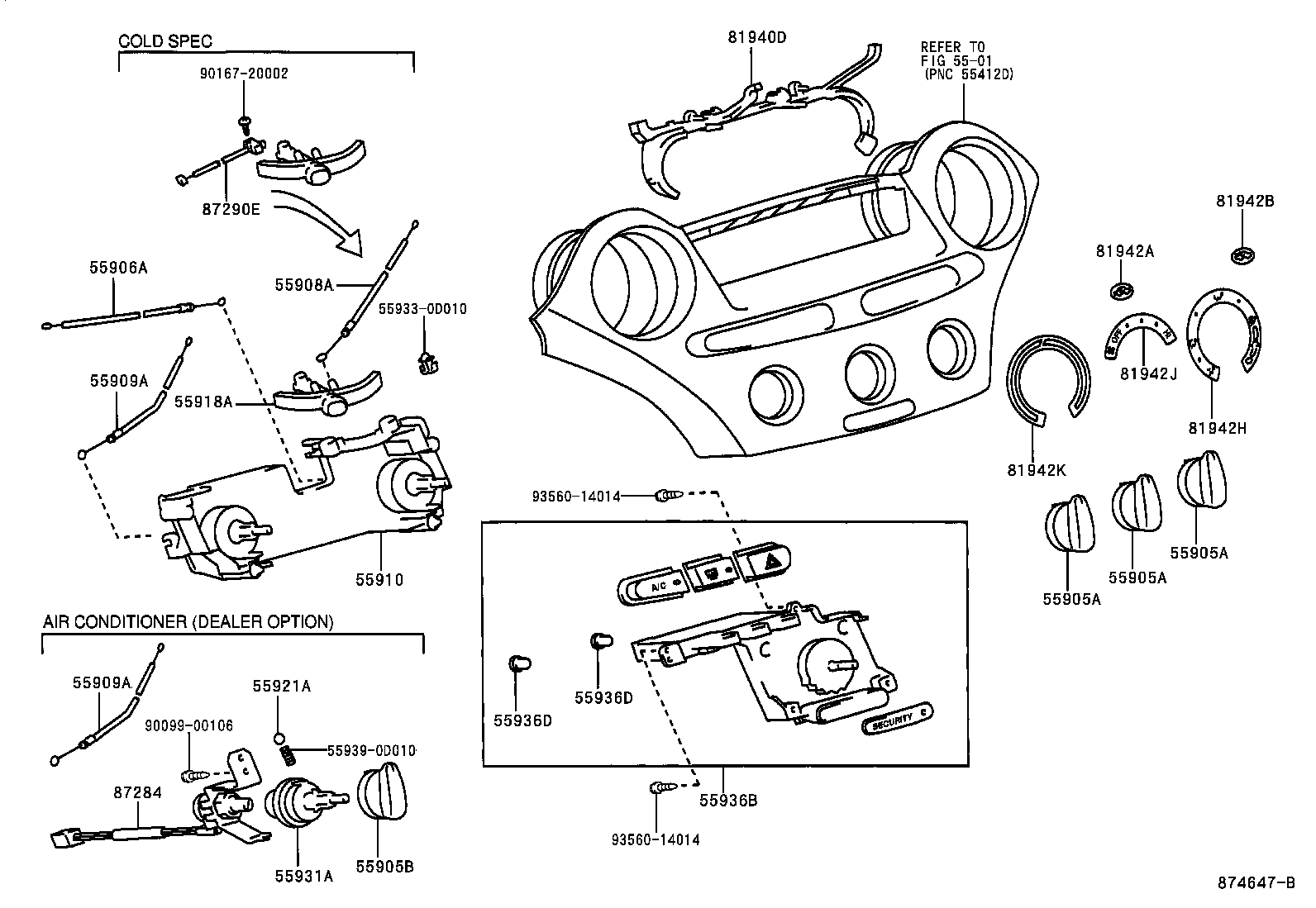

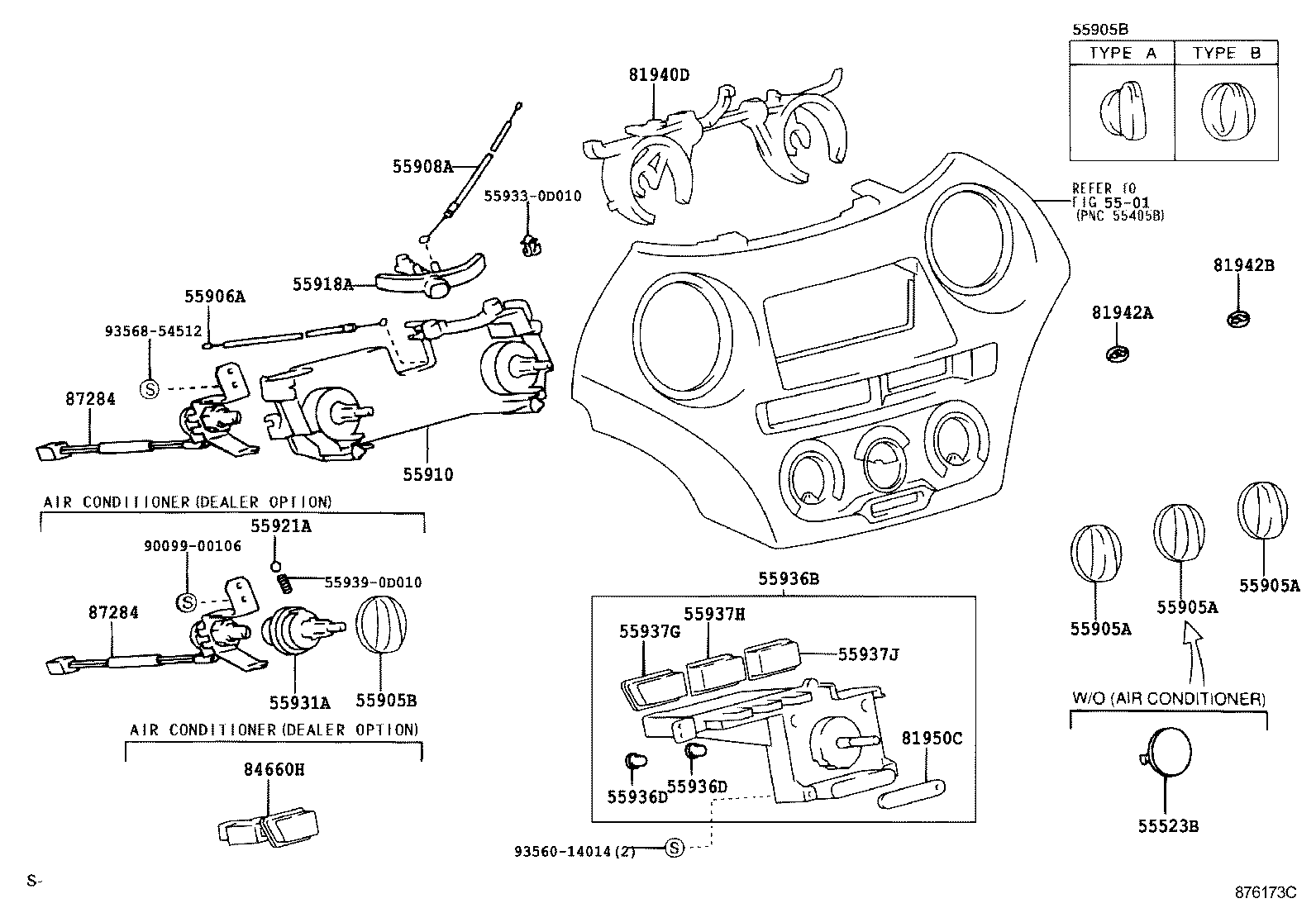

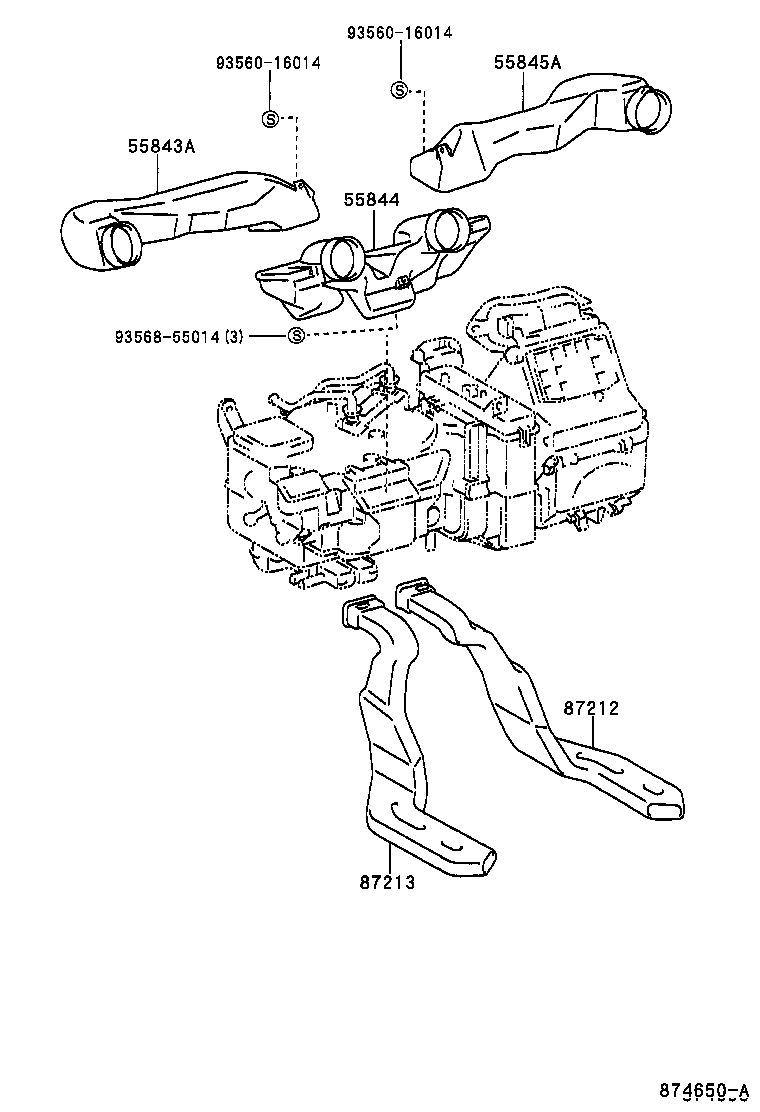

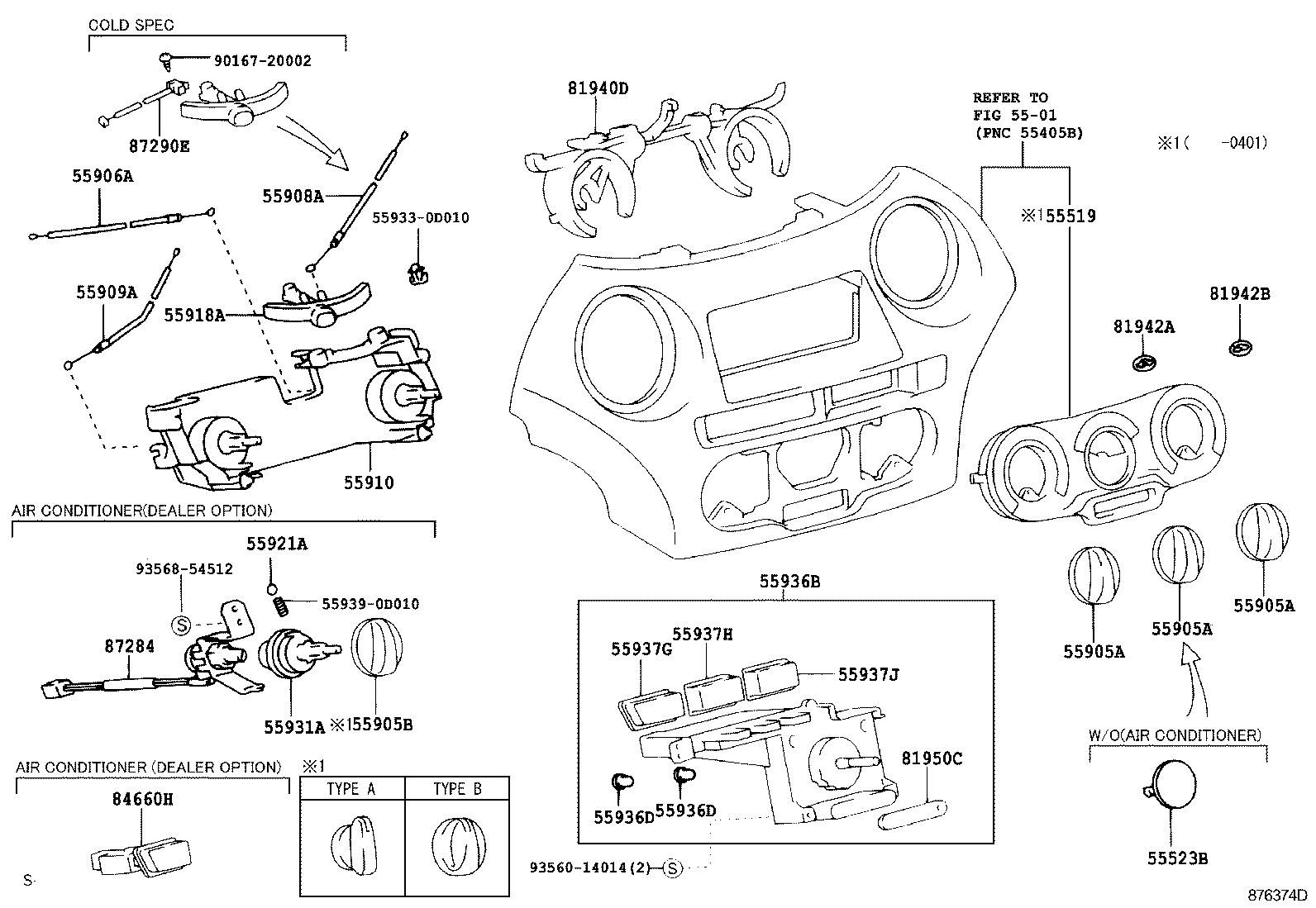

Figure 874646A 874646A 2001-01 → 2003-02 Figure 874647B 874647B 2001-01 → 2003-02 Figure 874648B 874648B 2001-01 → 2003-02 Figure 876373C 876373C 2003-02 → — Figure 876374D 876374D 2003-02 → — Figure 876173C 876173C 2003-02 → — Figure 874649A 874649A 2001-01 → — Figure 874650A 874650A 2001-01 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55523B Cover, Heater Control Opening
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55918A Lever, Air Inlet Damper Control
55921A Retainer, Heater Control
55931A Shaft, Heater Control Lever
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937G Knob, Center Cluster Module, NO.4
55937H Knob, Center Cluster Module, NO.5
55937J Knob, Center Cluster Module, NO.6
81940D Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
81950C Lens Assy, Center Cluster Module Indicator
84660H Switch Assy, Cooler Control
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87284 Resistor Sub-assy, Variable
87290E Switch Assy, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
