Heating & Air Conditioning - Water Piping

9 part groups · 3 illustrations

Illustrations

Figure 874627C

874627C 2001-01 → —

Figure 873648A

873648A 2003-02 → —

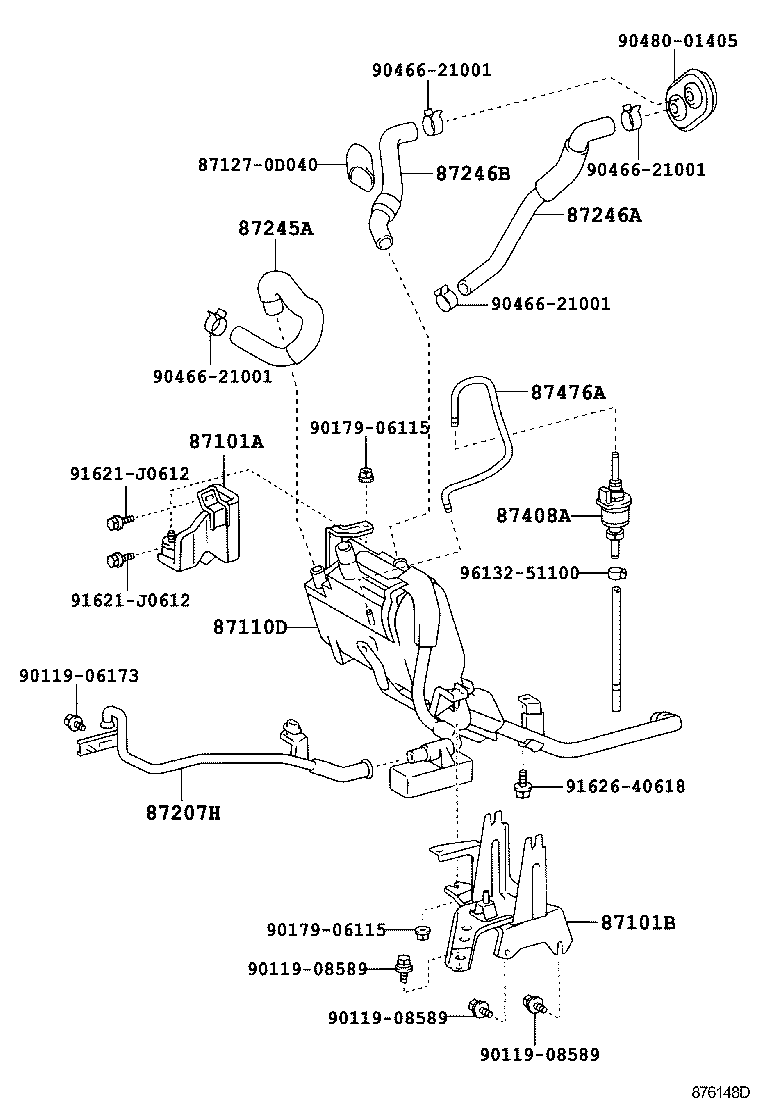

Figure 876148D

876148D 2003-02 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87101B	Bracket Sub-assy, Heater NO.2
87110D	Heater Assy
87207H	Pipe Sub-assy, Vacuum
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87408A	Pump Sub-assy, Fuel
87476A	Hose, Heater Fuel, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
