Toyota Yaris (FRP)

2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

17 part groups · 6 illustrations

Illustrations

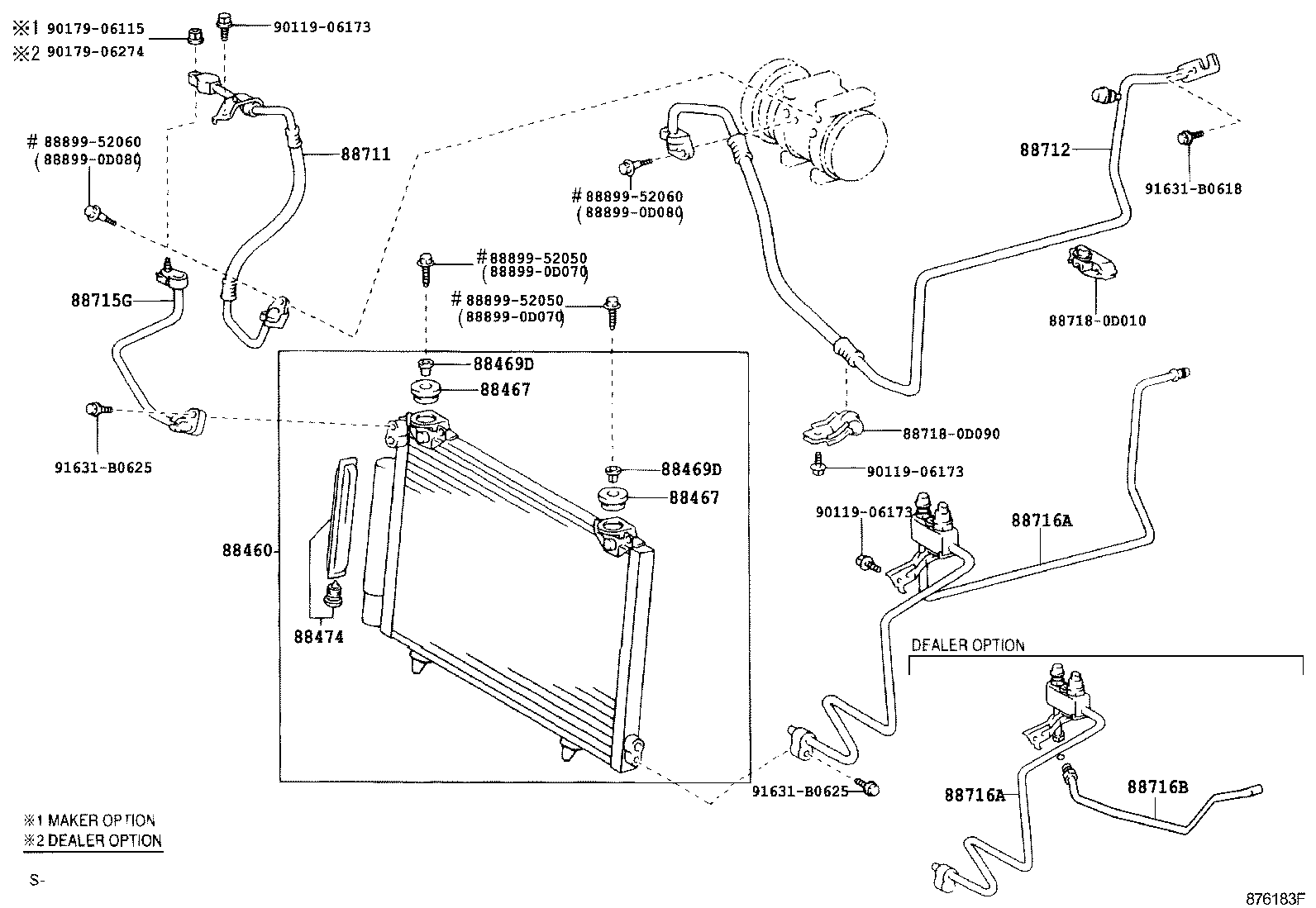

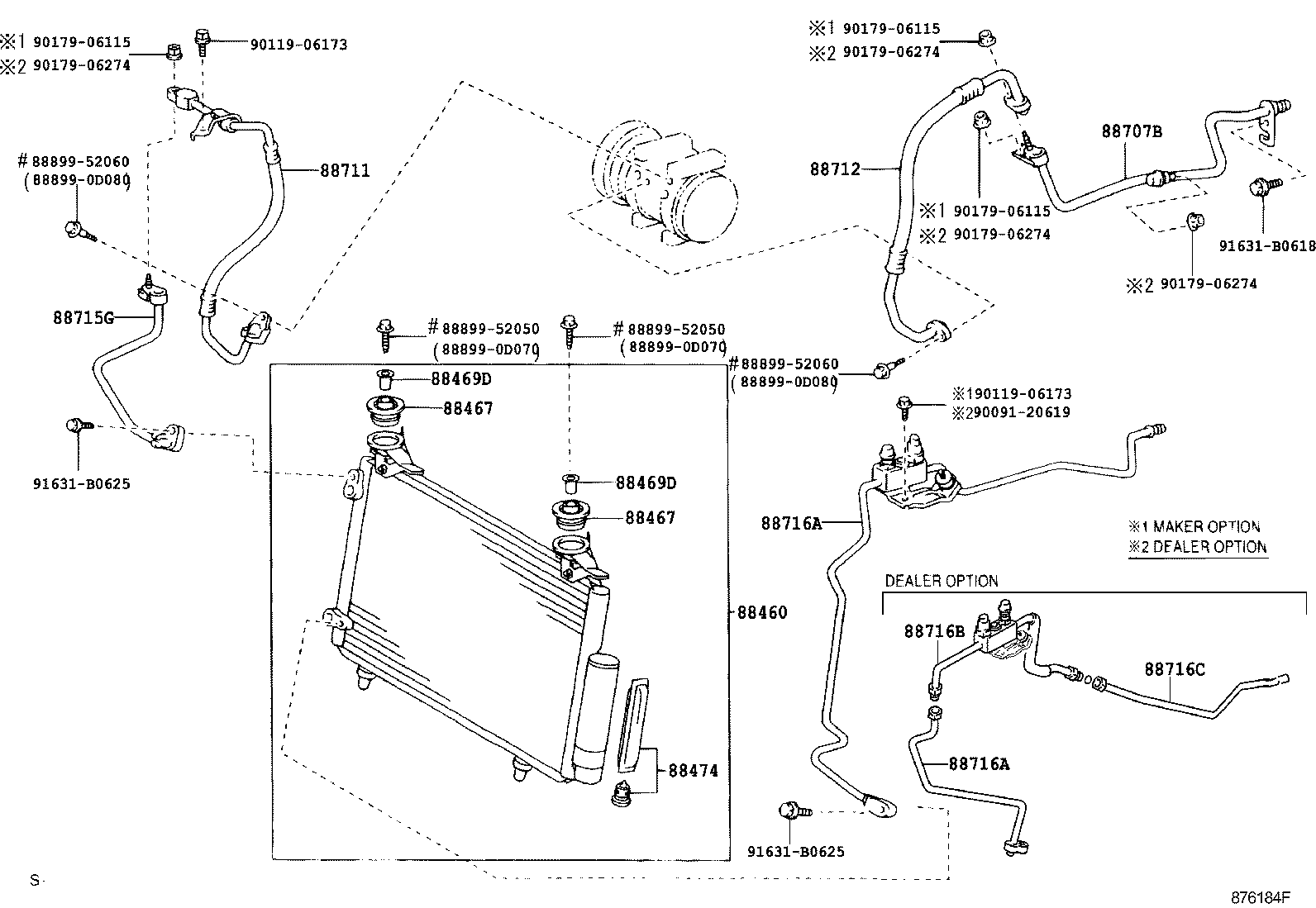

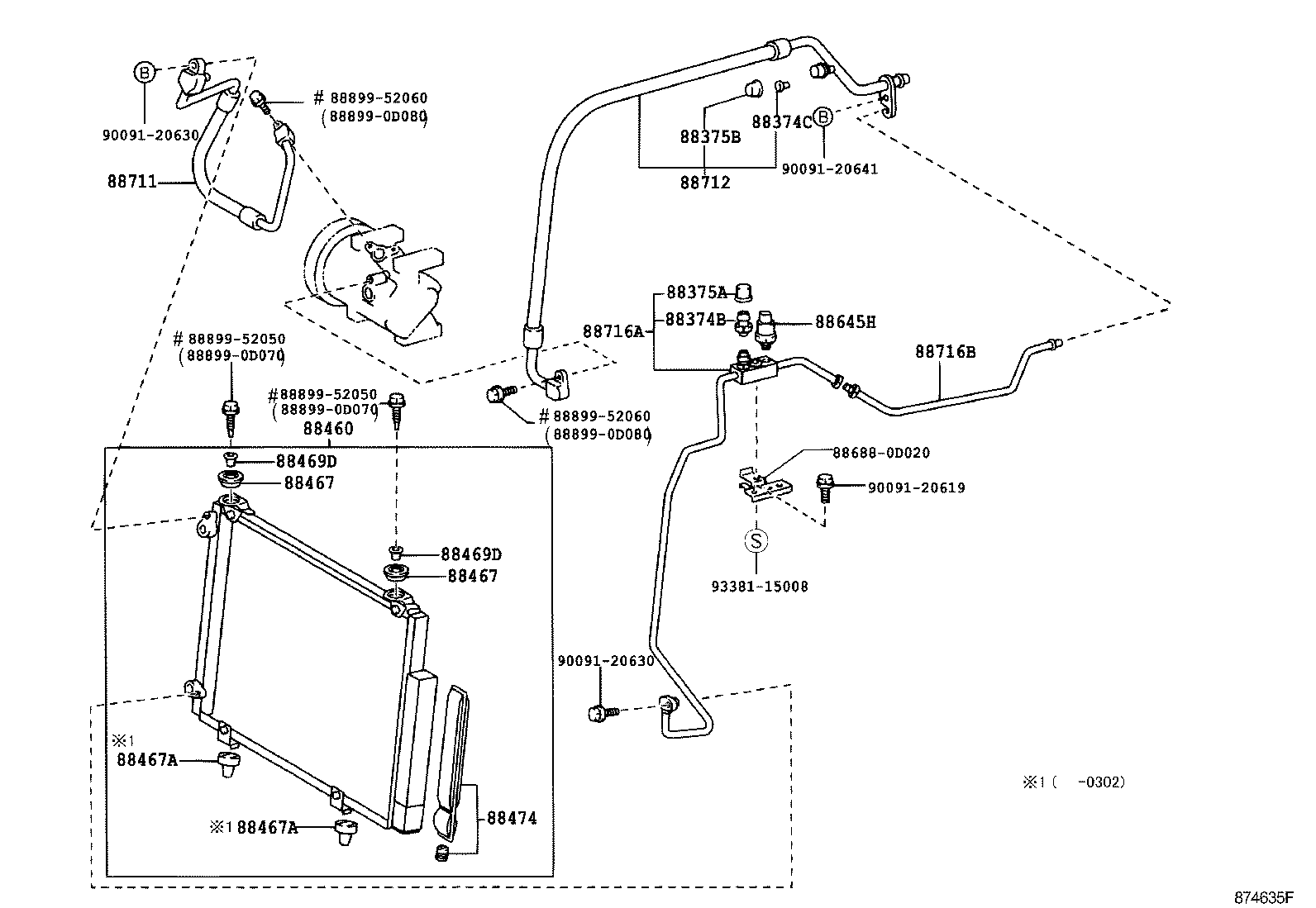

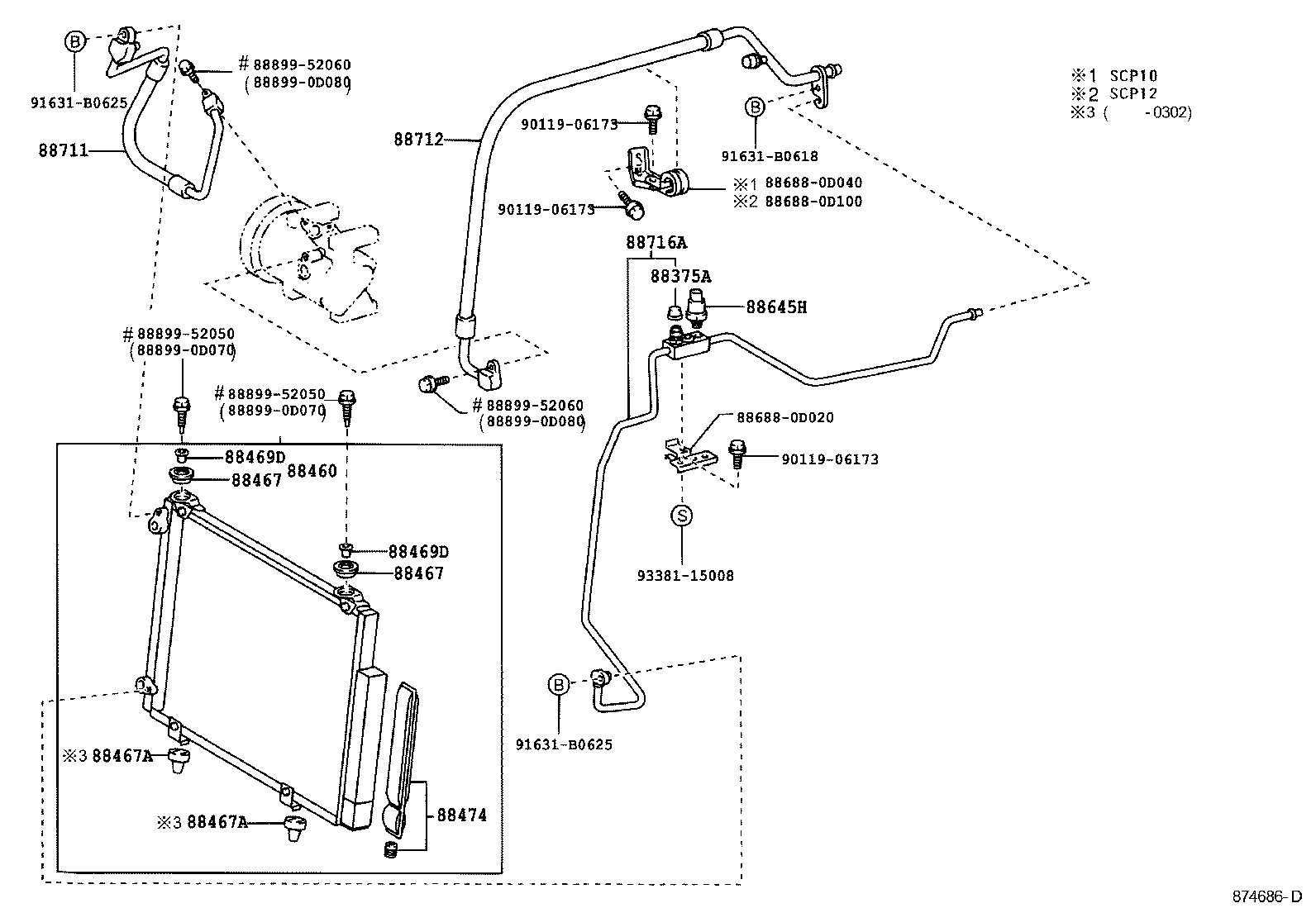

Figure 874634D 874634D 2001-01 → — Figure 874686D 874686D 2001-01 → — Figure 874635F 874635F 2001-01 → — Figure 876183F 876183F 2003-02 → — Figure 876184F 876184F 2003-02 → — Figure 873225 873225 2001-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
