Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01

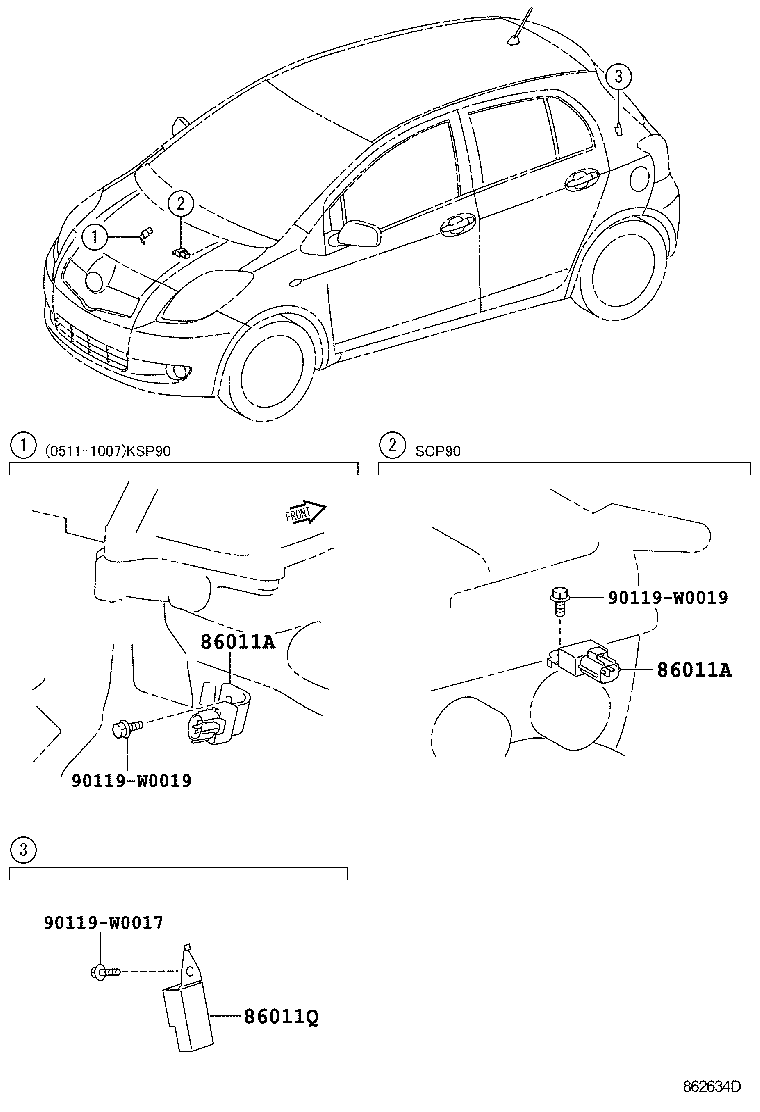

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04140 |
Condenser, Radio Setting
2005-11 → 2008-11
ended
|
SCP90 FRP | — | |
| 90980-W4001 |
Condenser, Radio Setting
2005-11 → 2008-11
ended
|
KSP90 FRP | — | |
| 90980-04185 |
Condenser, Radio Setting
2008-11 → 2010-07
ended
|
KSP90 FRP | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04148 |
Condenser, Radio Setting
2005-11 → 2008-11
ended
|
KSP90,NLP90,SCP90 FRP | — | |
| 90980-04148 |
Condenser, Radio Setting
2008-11 → —
|
KSP90,NLP90,NSP90 FRP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
