Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

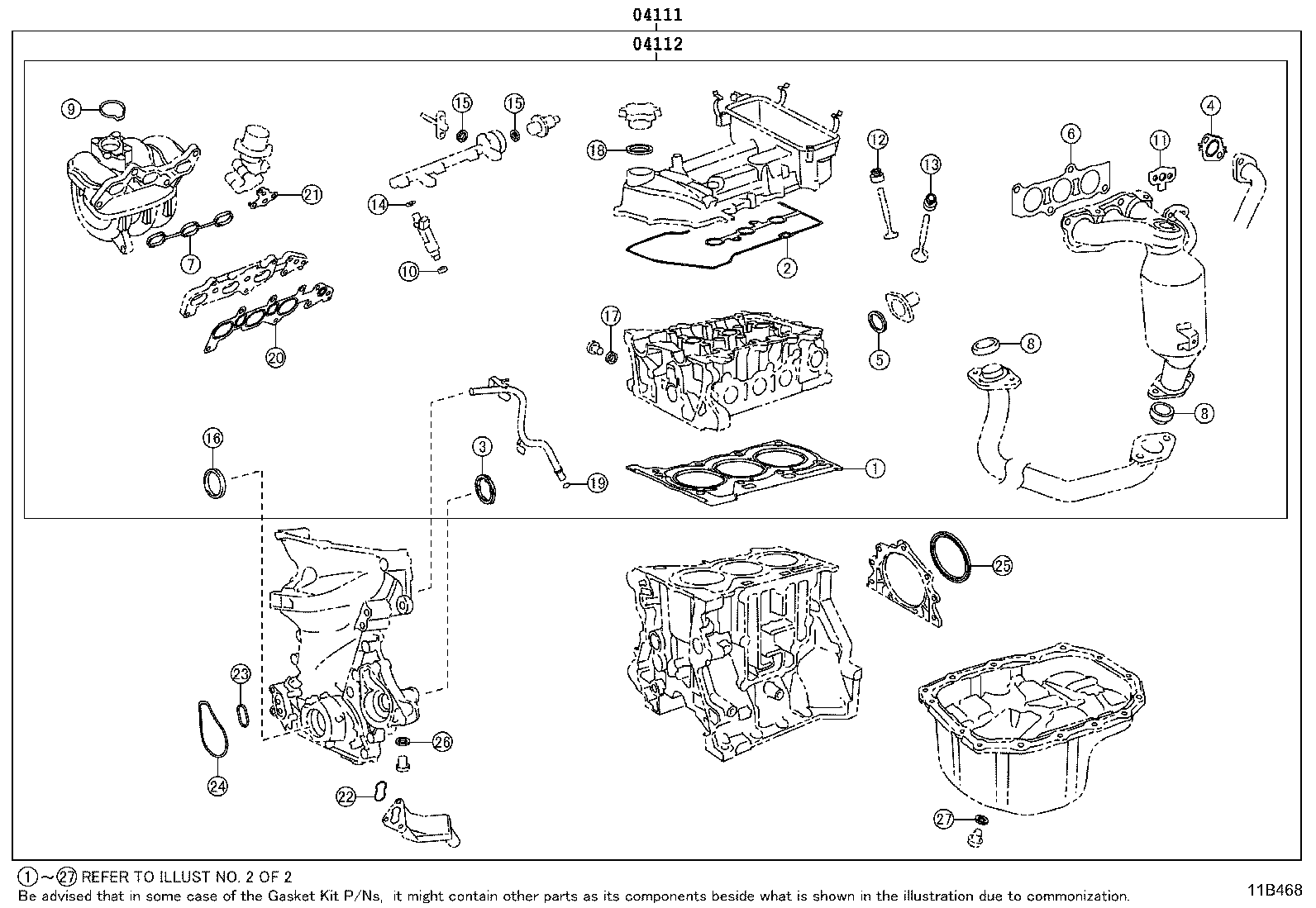

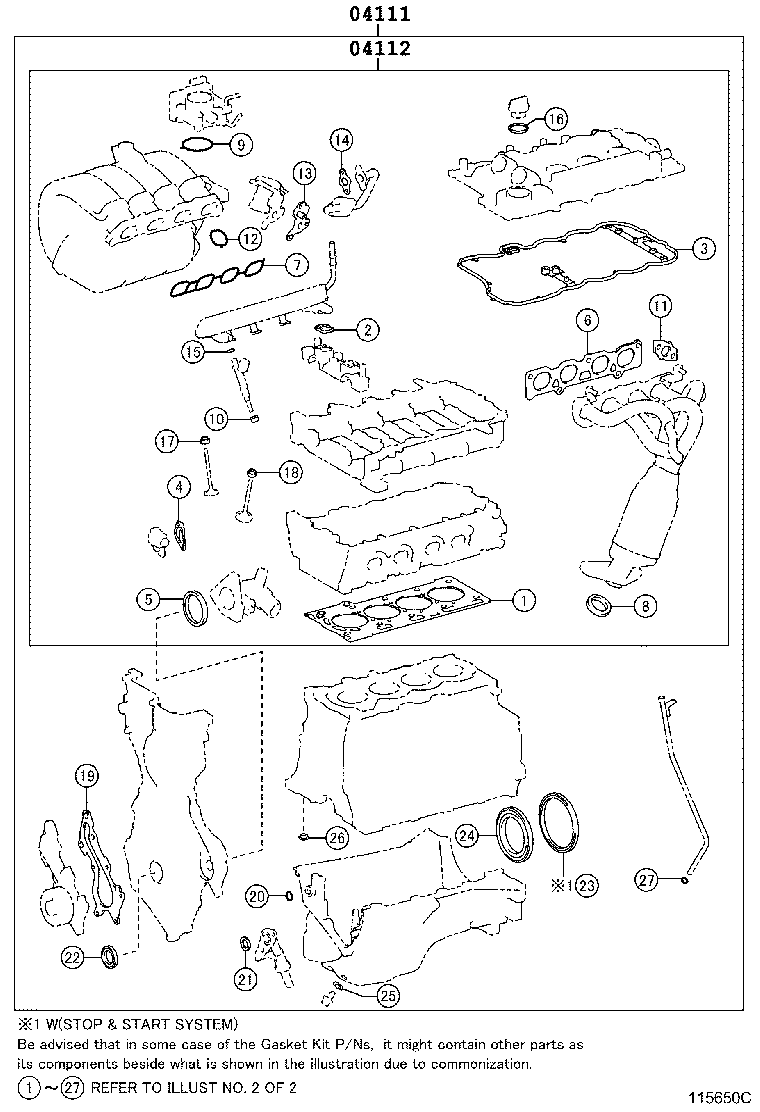

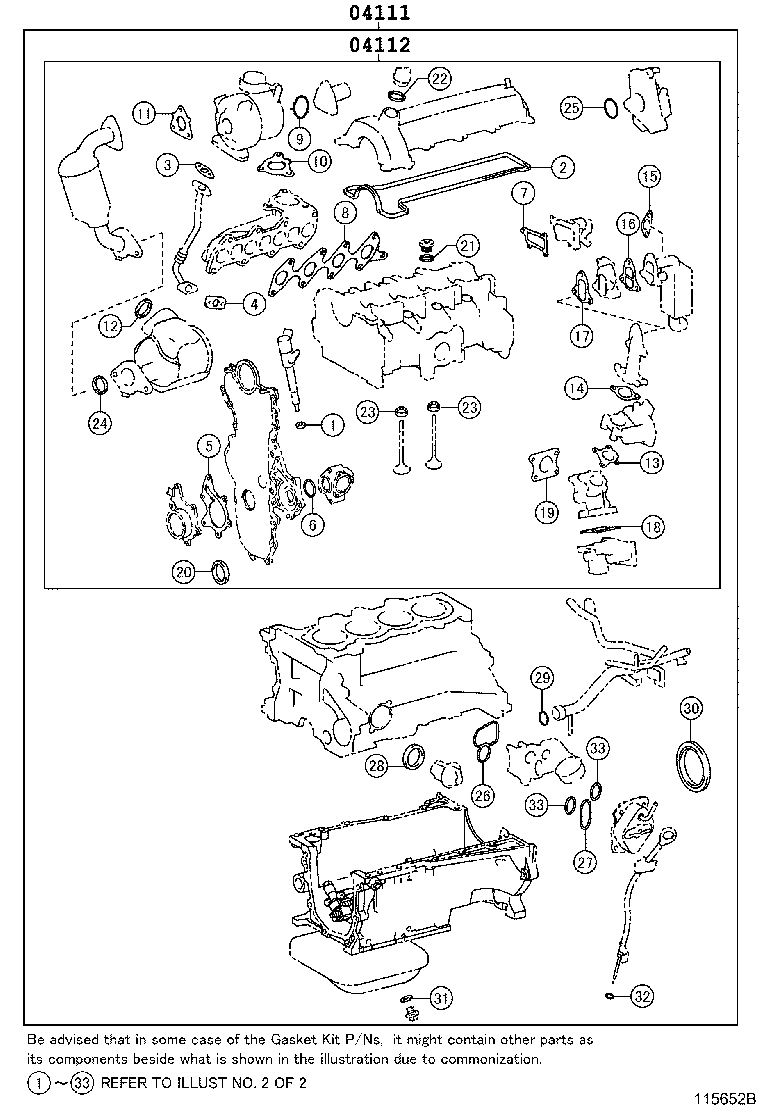

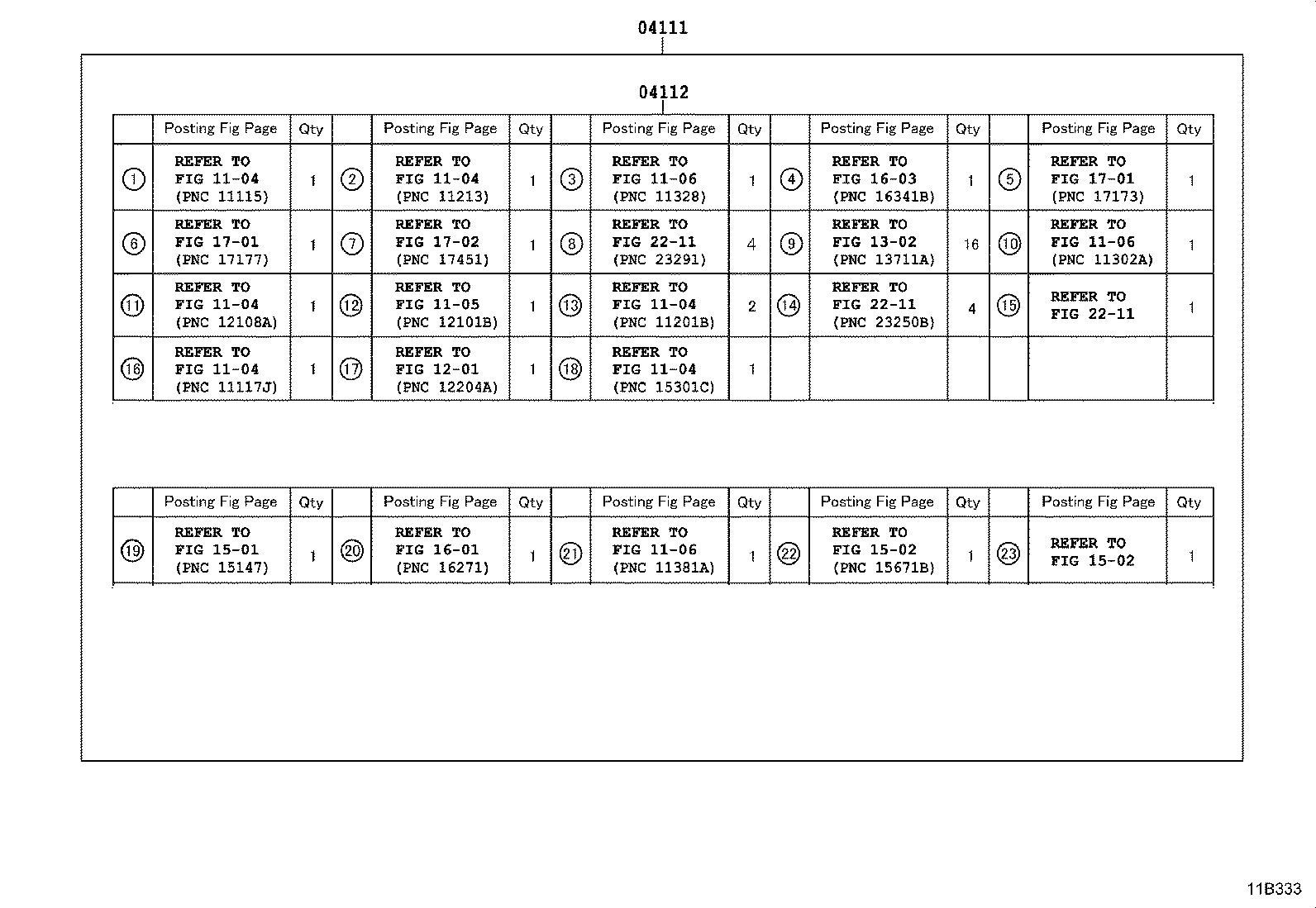

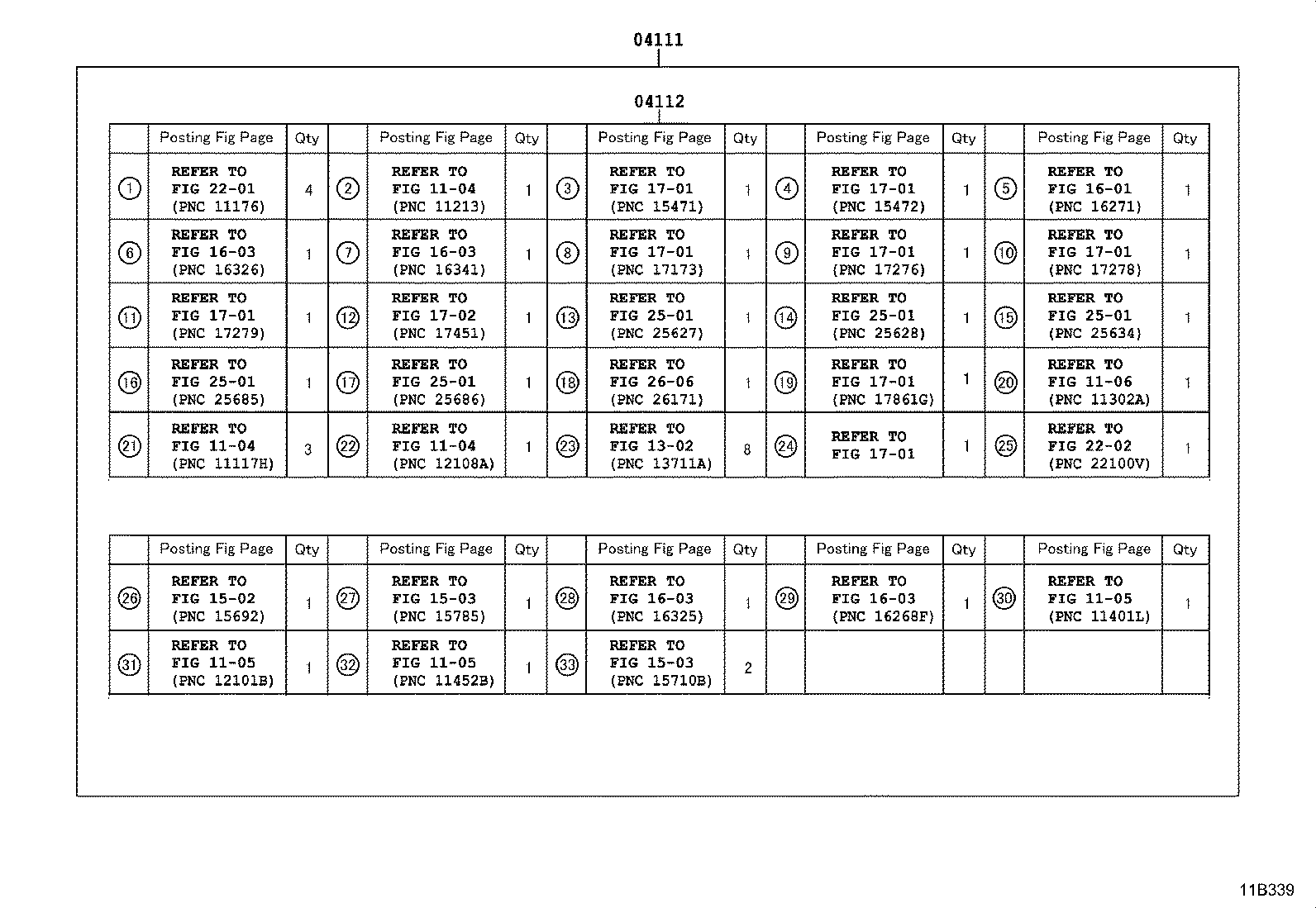

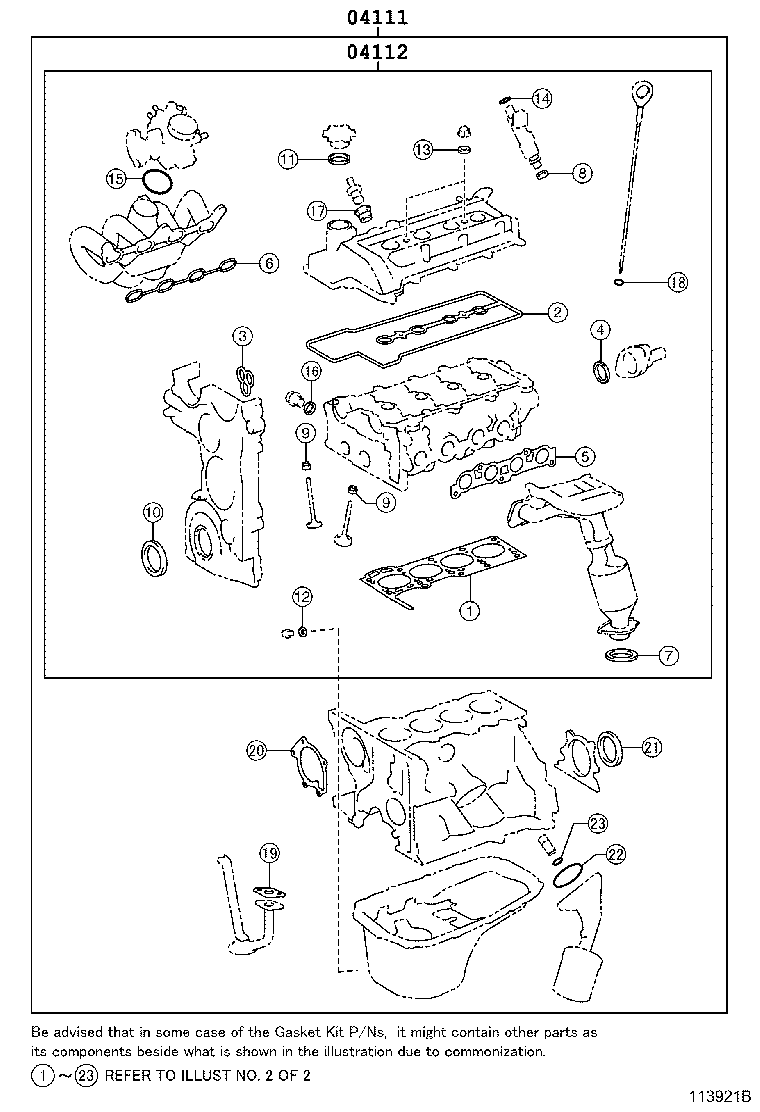

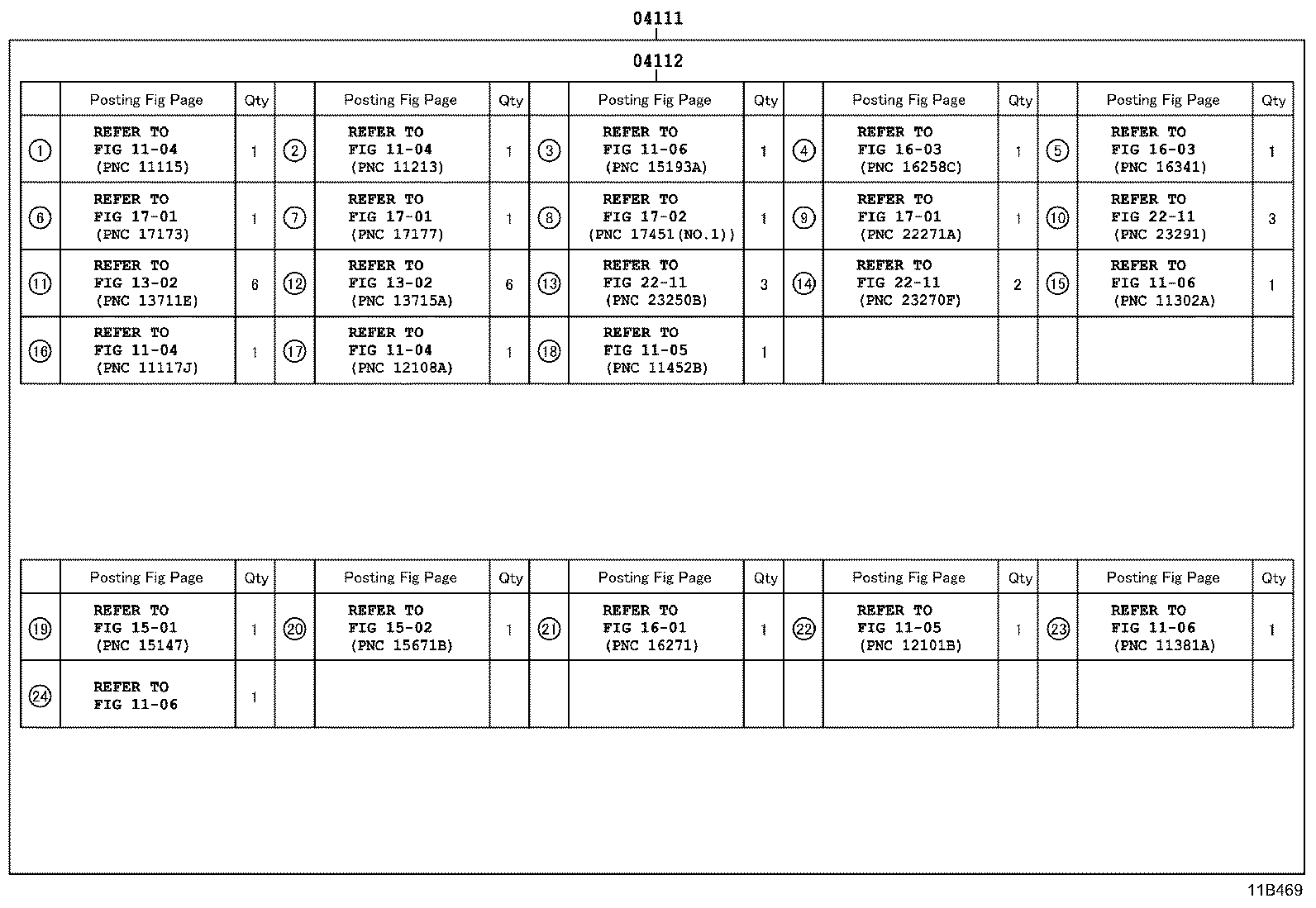

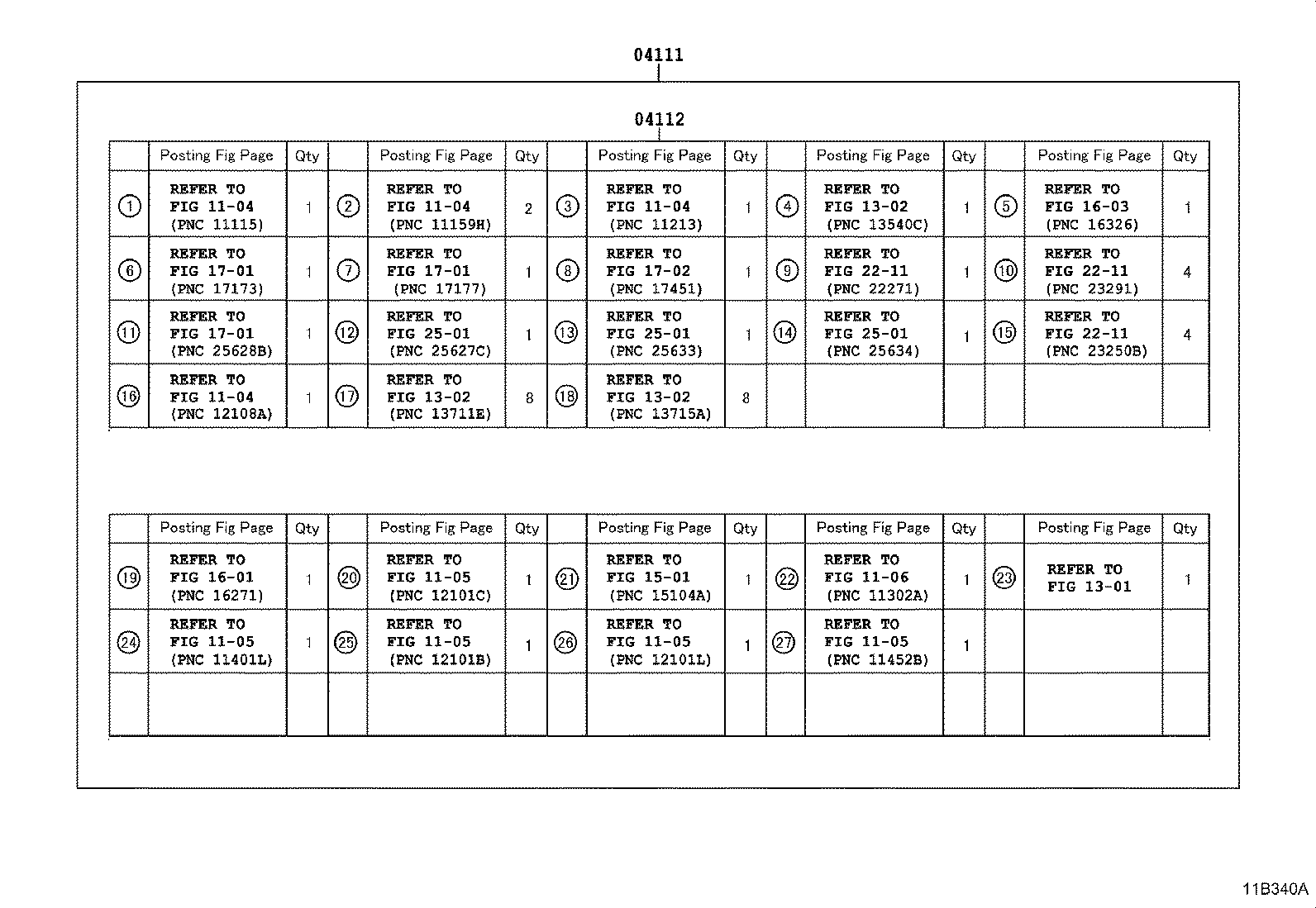

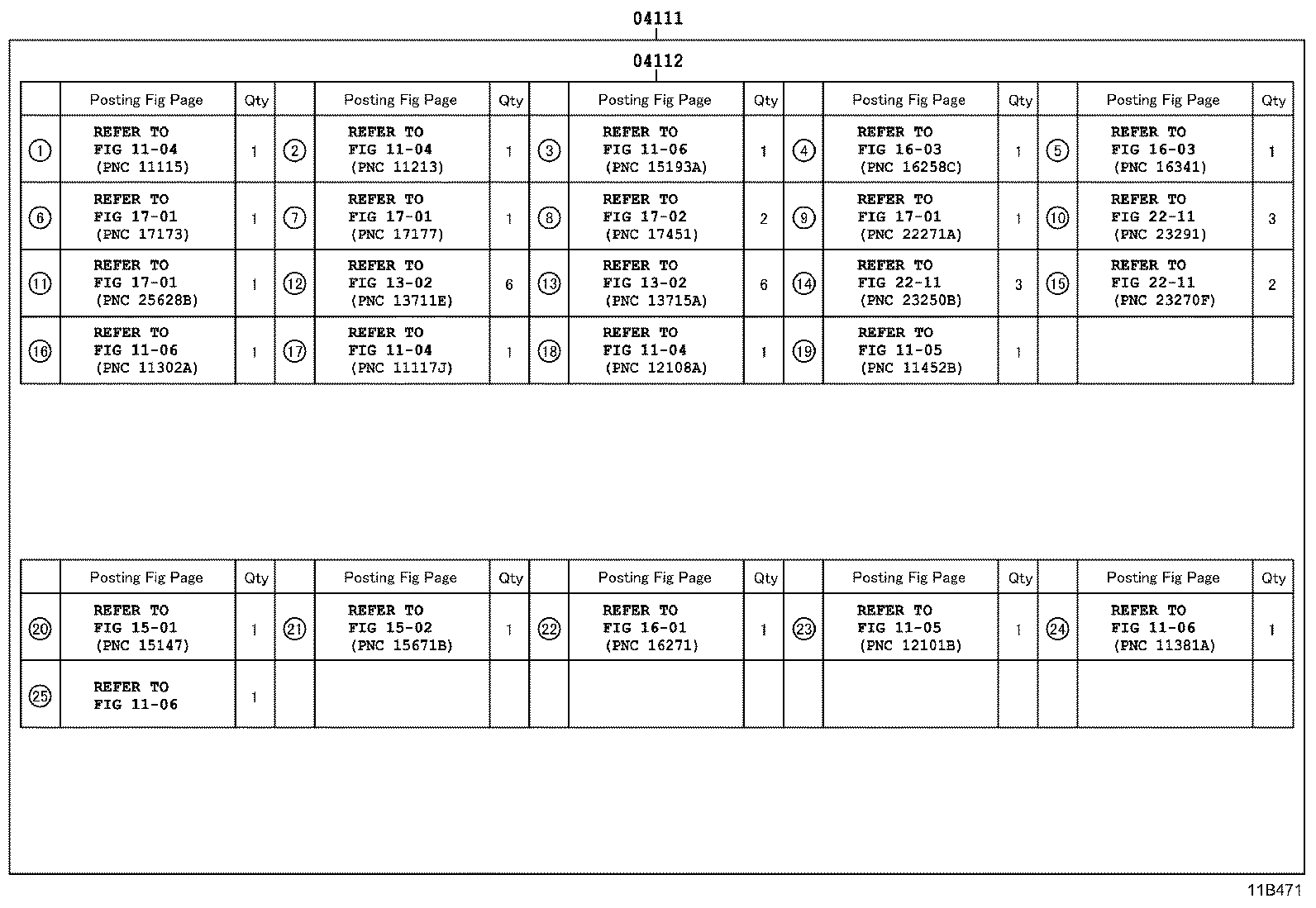

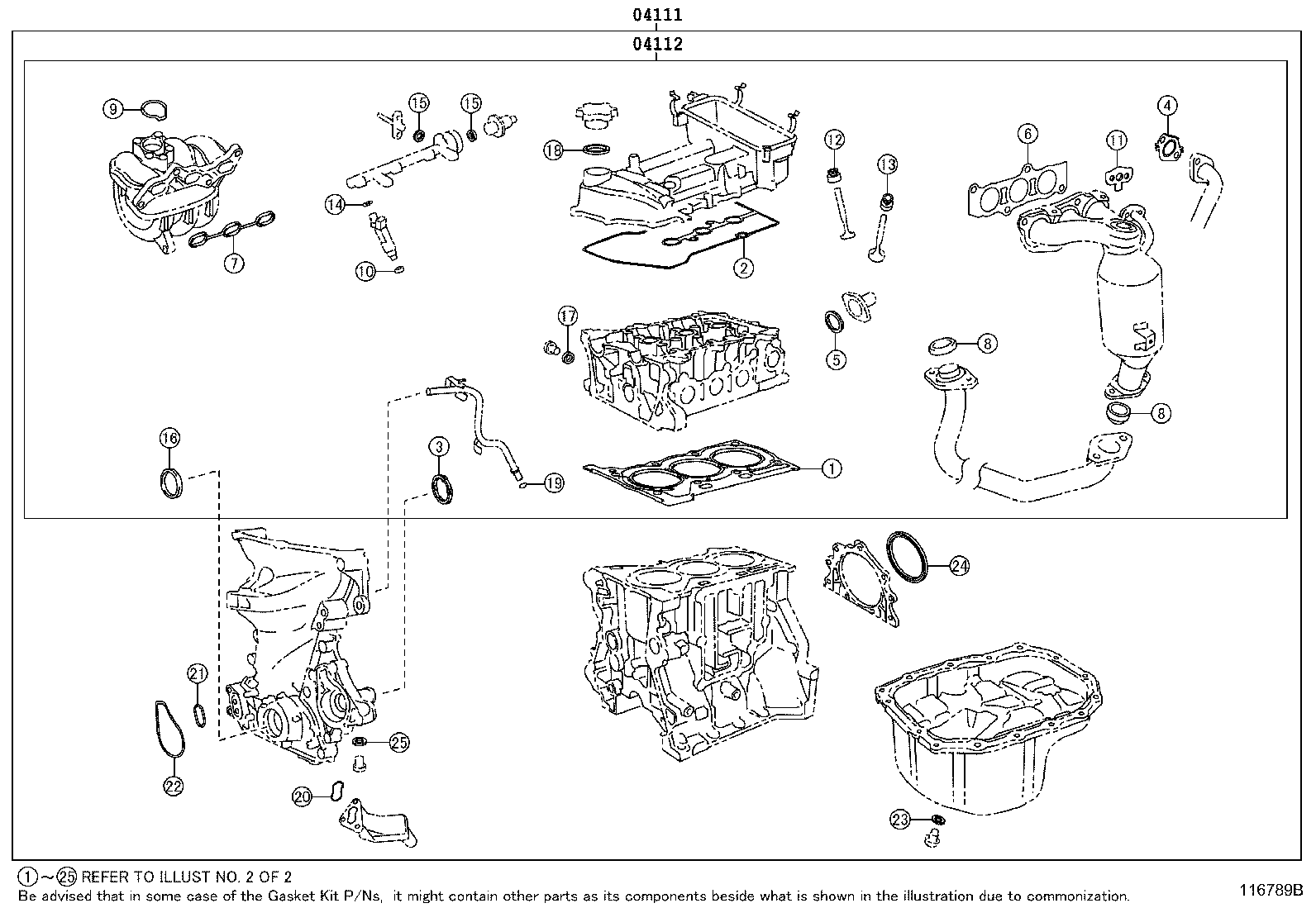

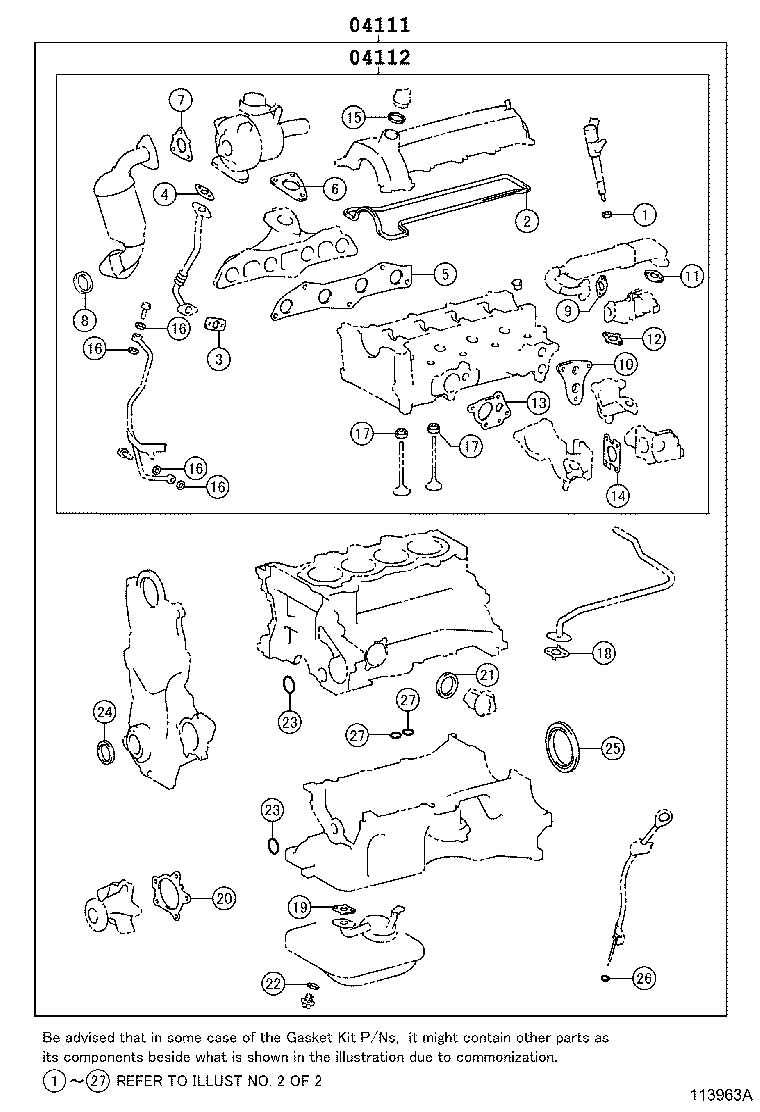

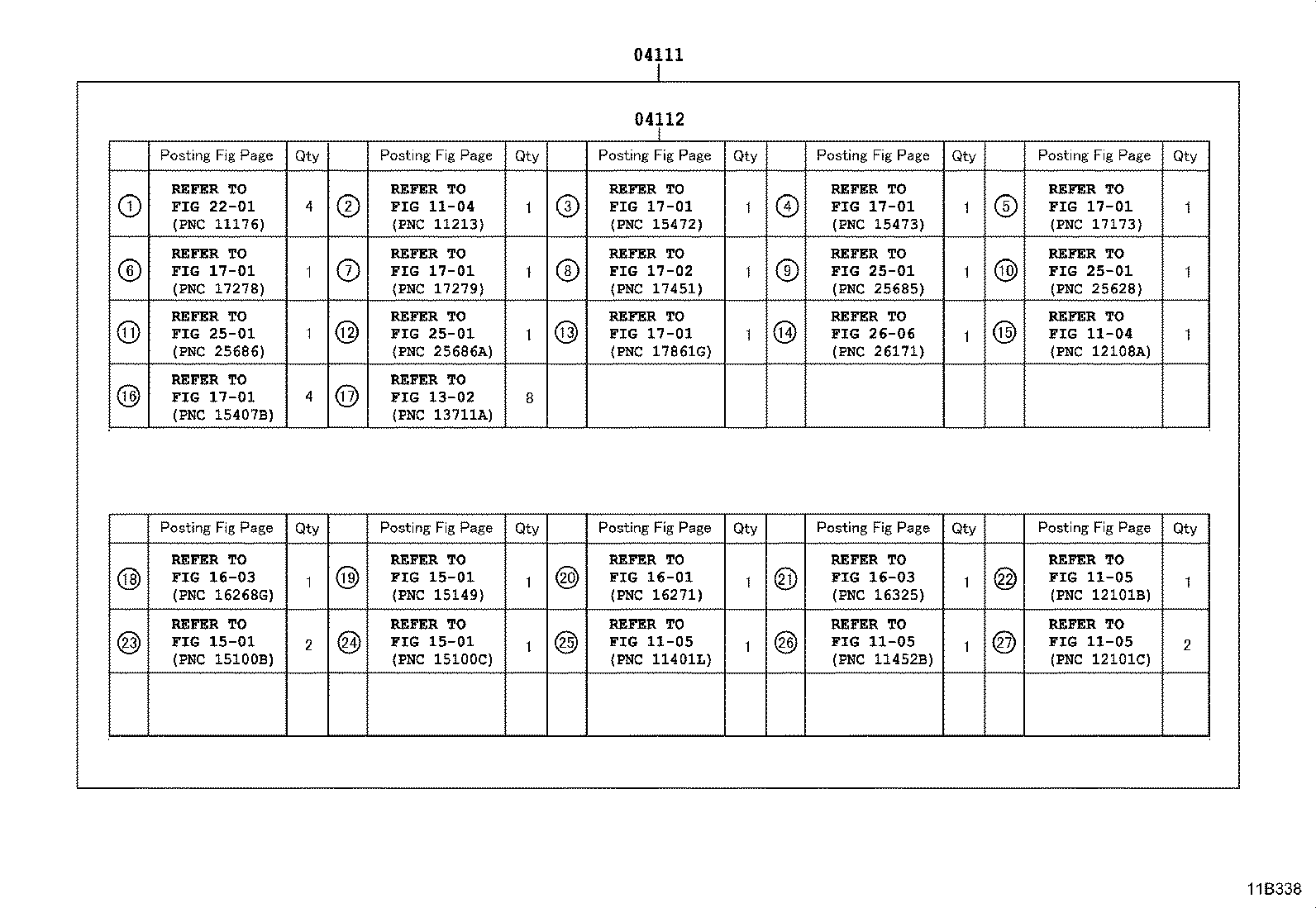

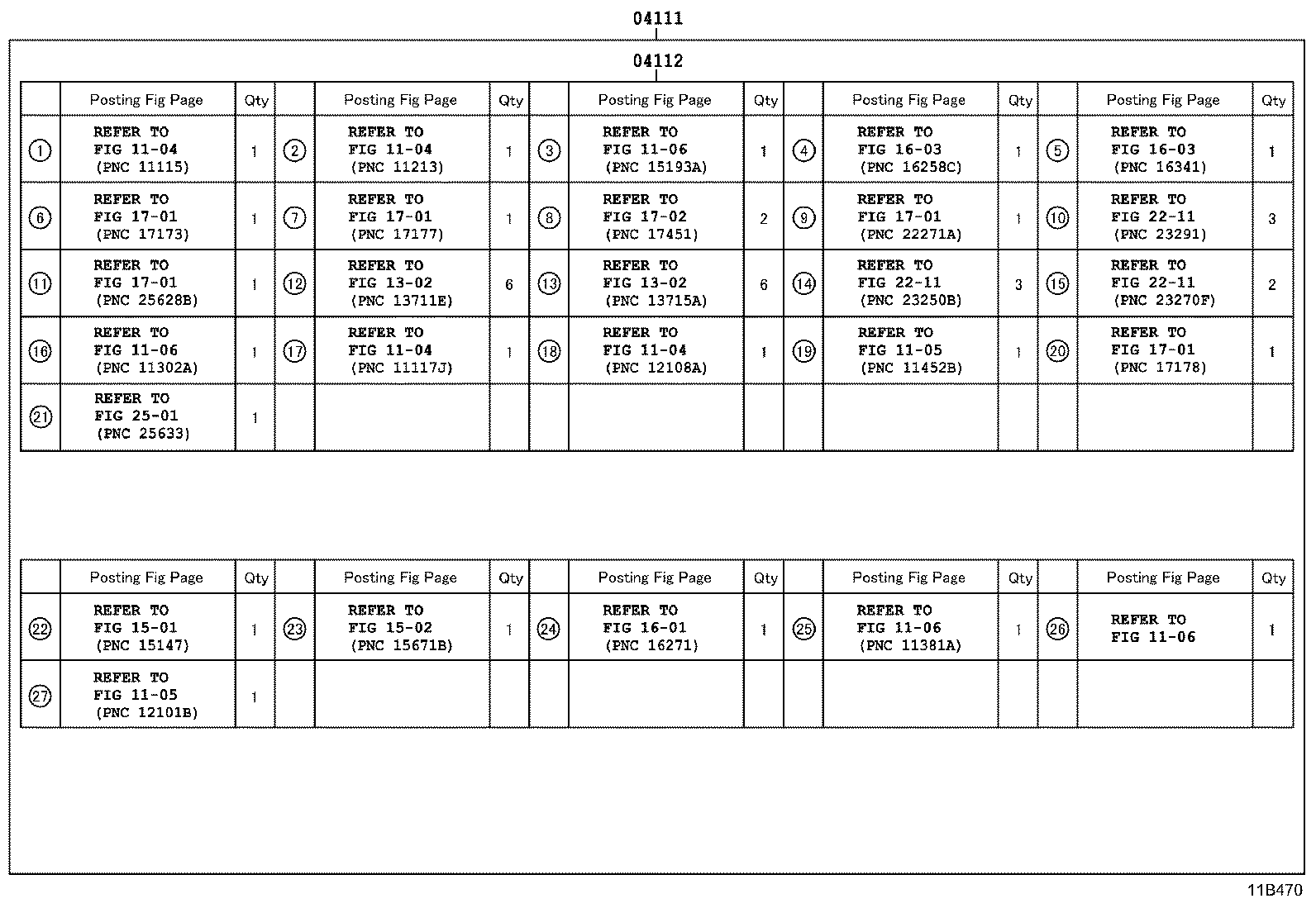

Figure 113946A 113946A 2005-11 → 2008-11 Figure 11B469 11B469 2005-11 → 2008-11 Figure 11B468 11B468 2008-11 → — Figure 11B470 11B470 2008-11 → — Figure 116789B 116789B 2008-11 → — Figure 11B471 11B471 2008-11 → — Figure 113963A 113963A 2005-11 → 2008-11 Figure 115652B 115652B 2008-11 → — Figure 115650C 115650C 2008-11 → — Figure 11B338 11B338 2005-11 → 2008-11 Figure 11B339 11B339 2008-11 → — Figure 11B340A 11B340A 2008-11 → — Figure 113921B 113921B 2005-11 → — Figure 11B333 11B333 2005-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
