Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

18 part groups · 4 illustrations

Illustrations

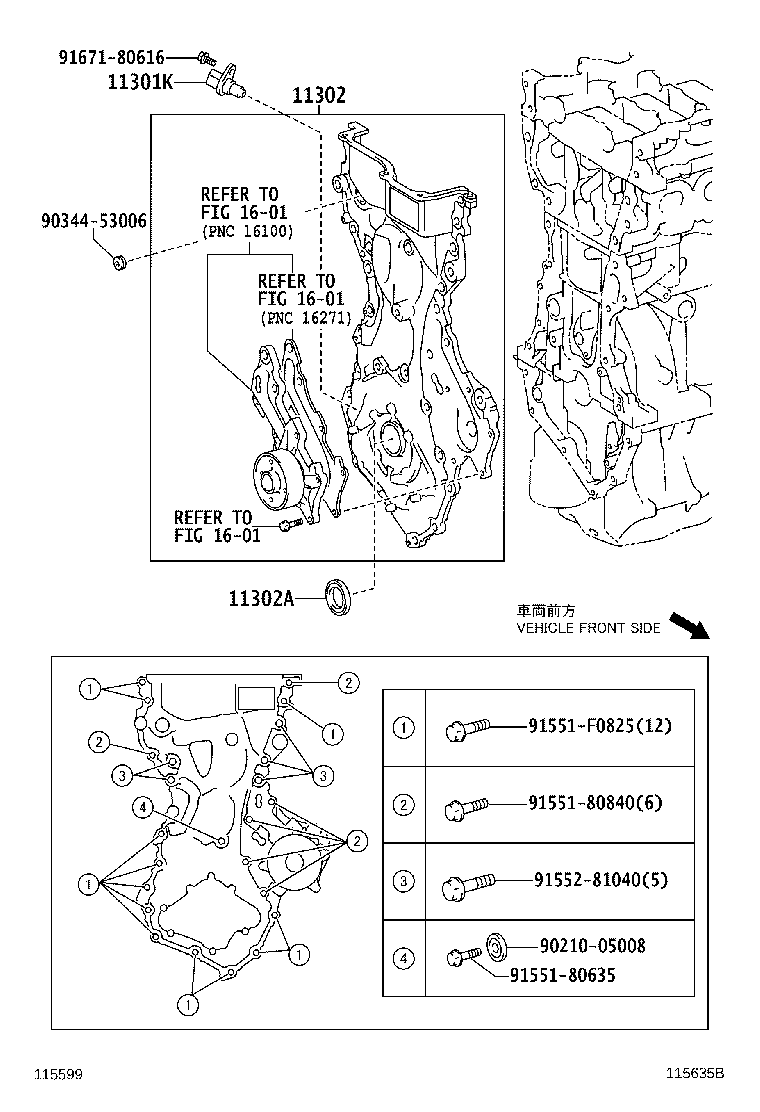

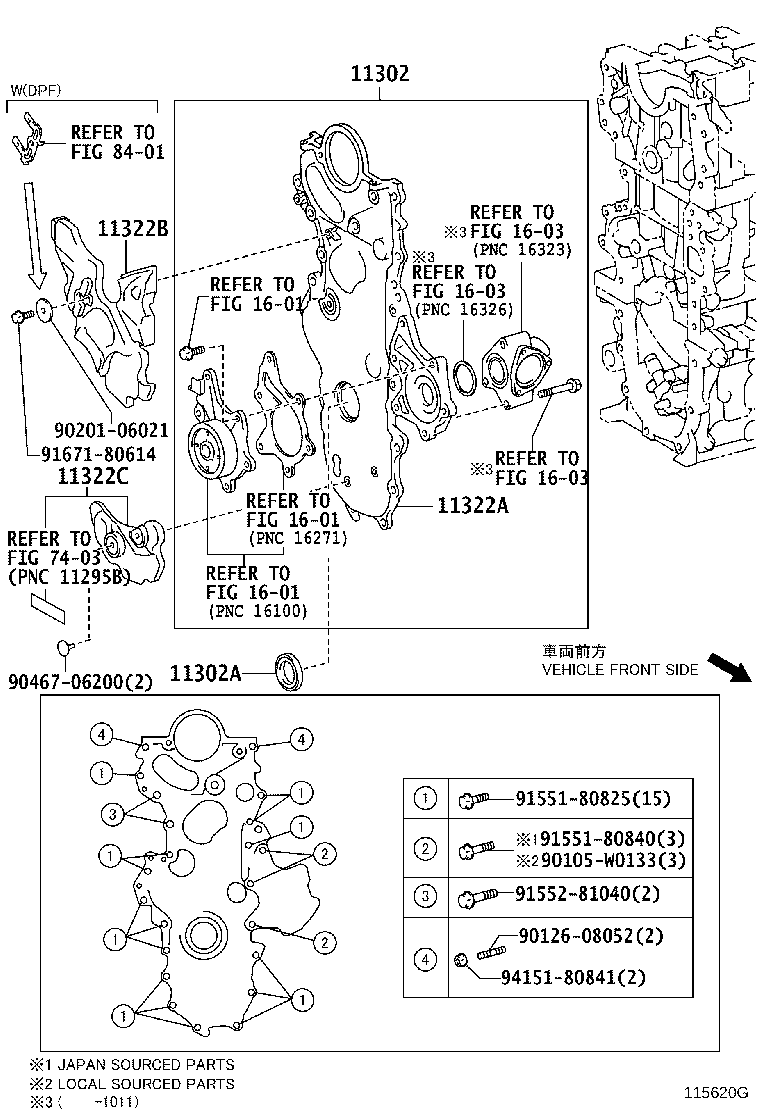

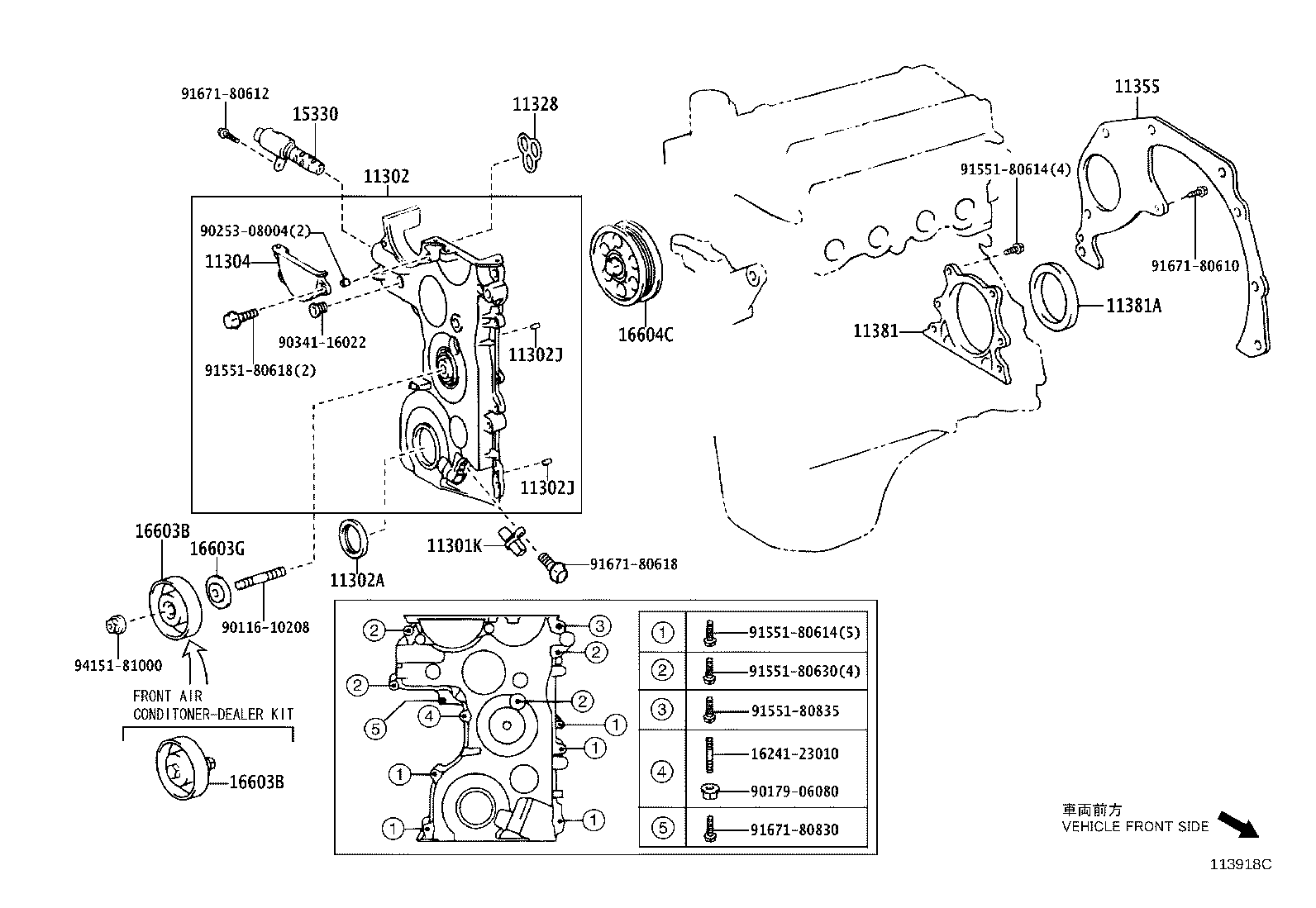

Figure 113948L 113948L 2005-11 → — Figure 115620G 115620G 2008-11 → — Figure 115635B 115635B 2008-11 → — Figure 113918C 113918C 2005-11 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15193A Gasket, Oil Pump
15330 Valve Assy, Cam Timing Oil Control
16603B Pulley Sub-assy, Idler
16603G Collar, Idler Pulley
16604C Pulley Sub-assy, Idler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
