Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 5 illustrations

Illustrations

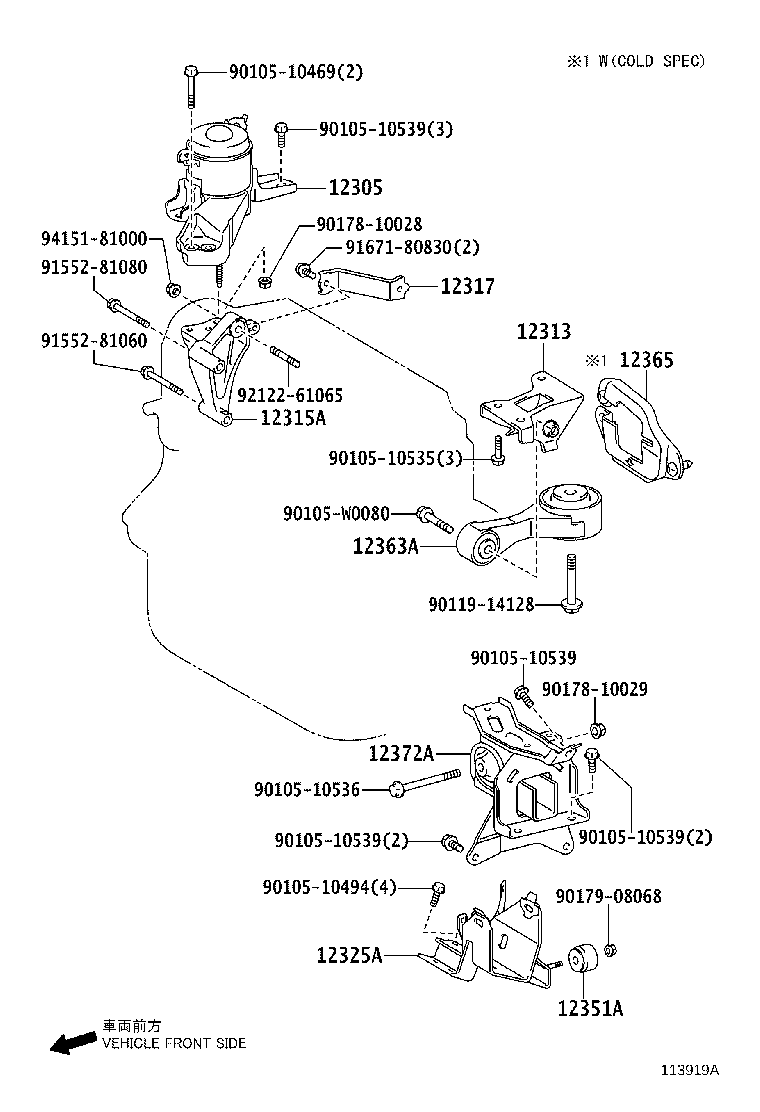

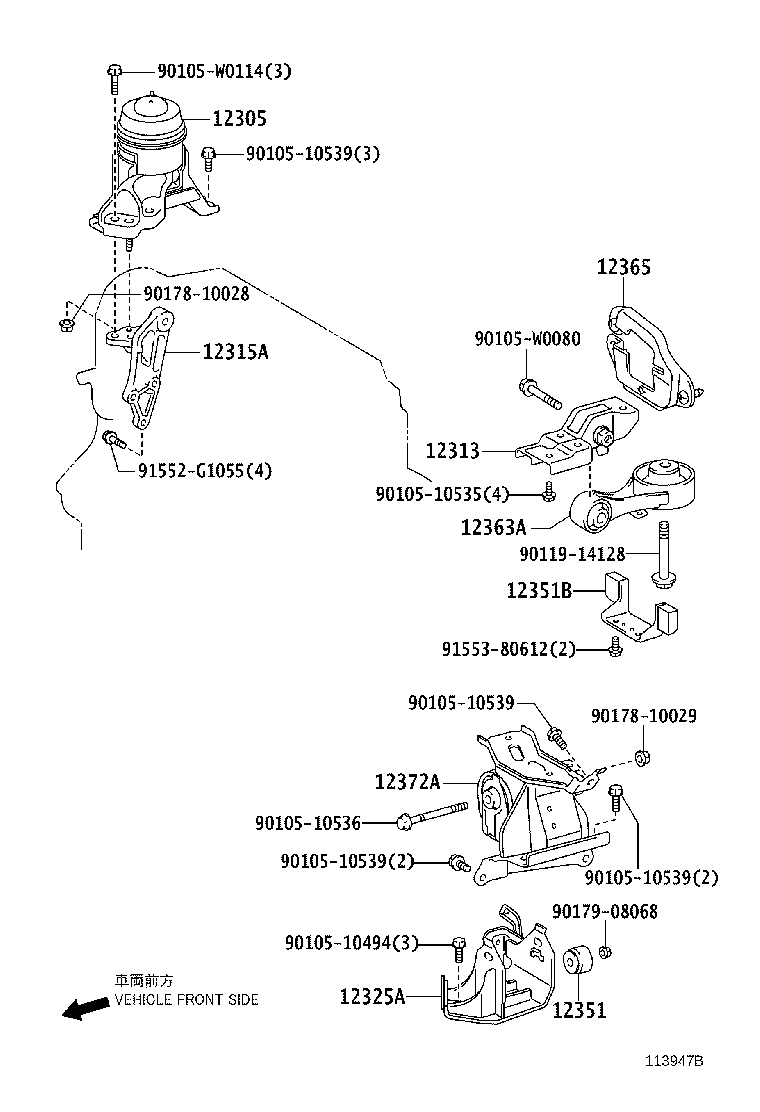

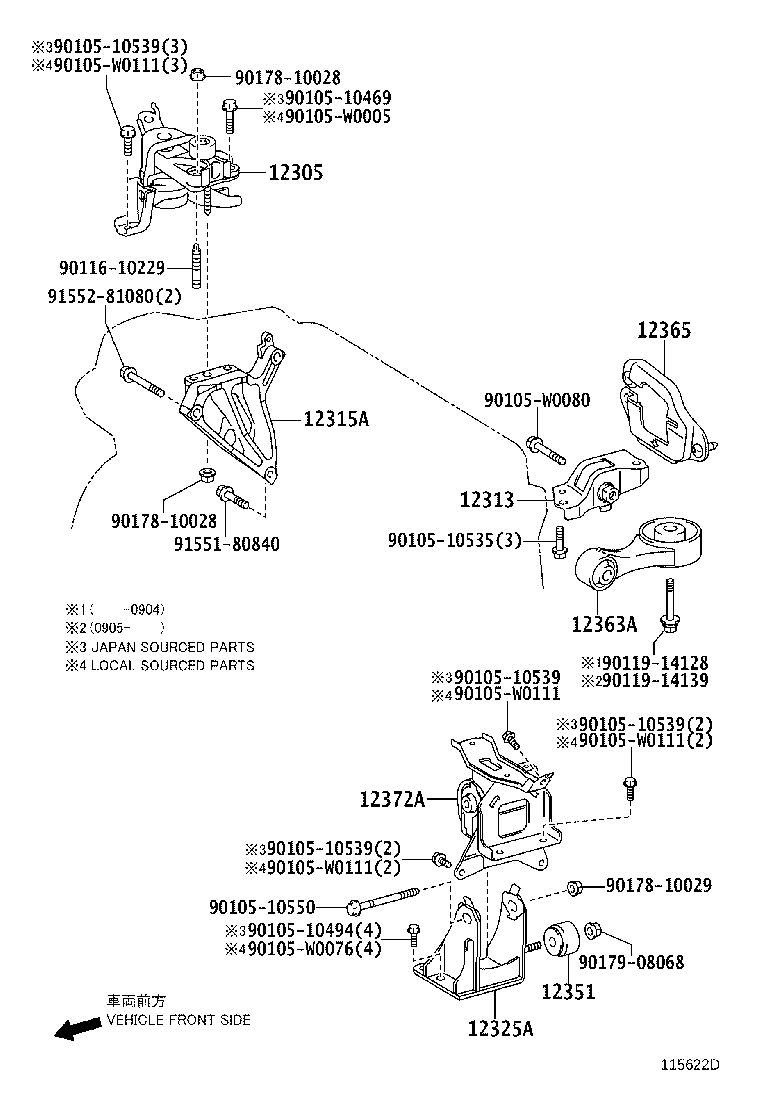

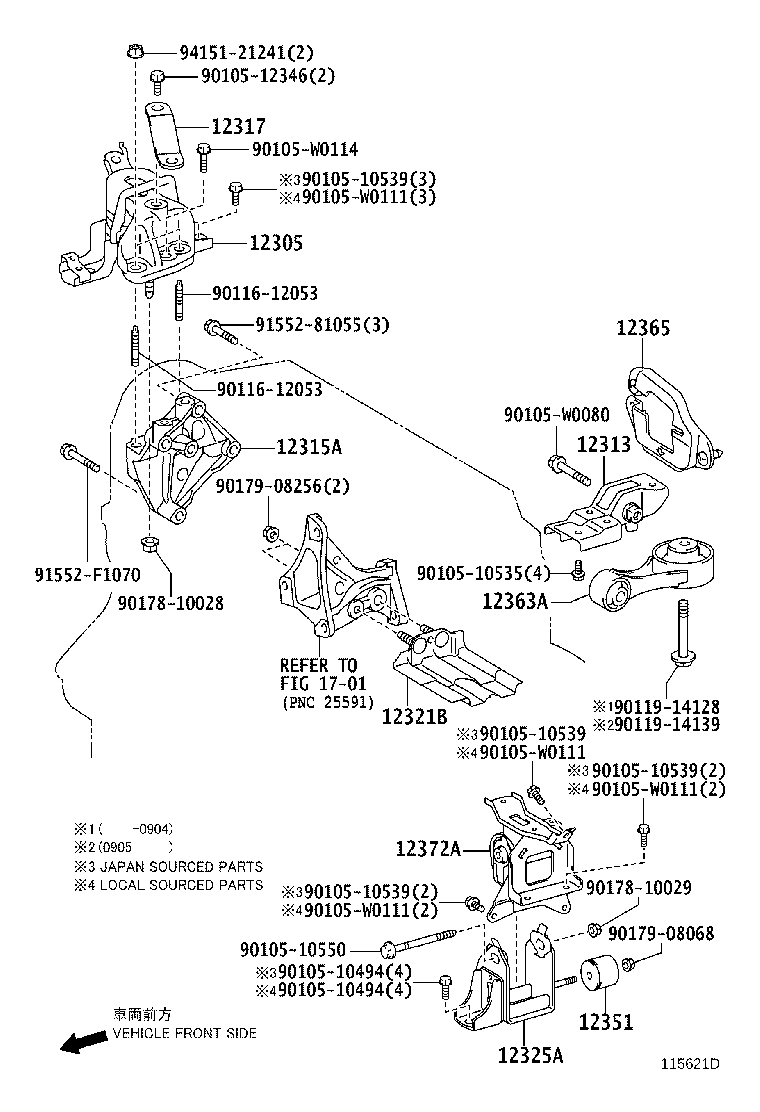

Figure 113941D 113941D 2005-11 → — Figure 113947B 113947B 2005-11 → 2008-11 Figure 115621D 115621D 2008-11 → — Figure 115622D 115622D 2008-11 → — Figure 113919A 113919A 2005-11 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12351B Damper, Engine Mounting
12363A Rod, Engine Moving Control
12365 Cover, Engine Moving Control Rod
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
