Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

18 part groups · 5 illustrations

Illustrations

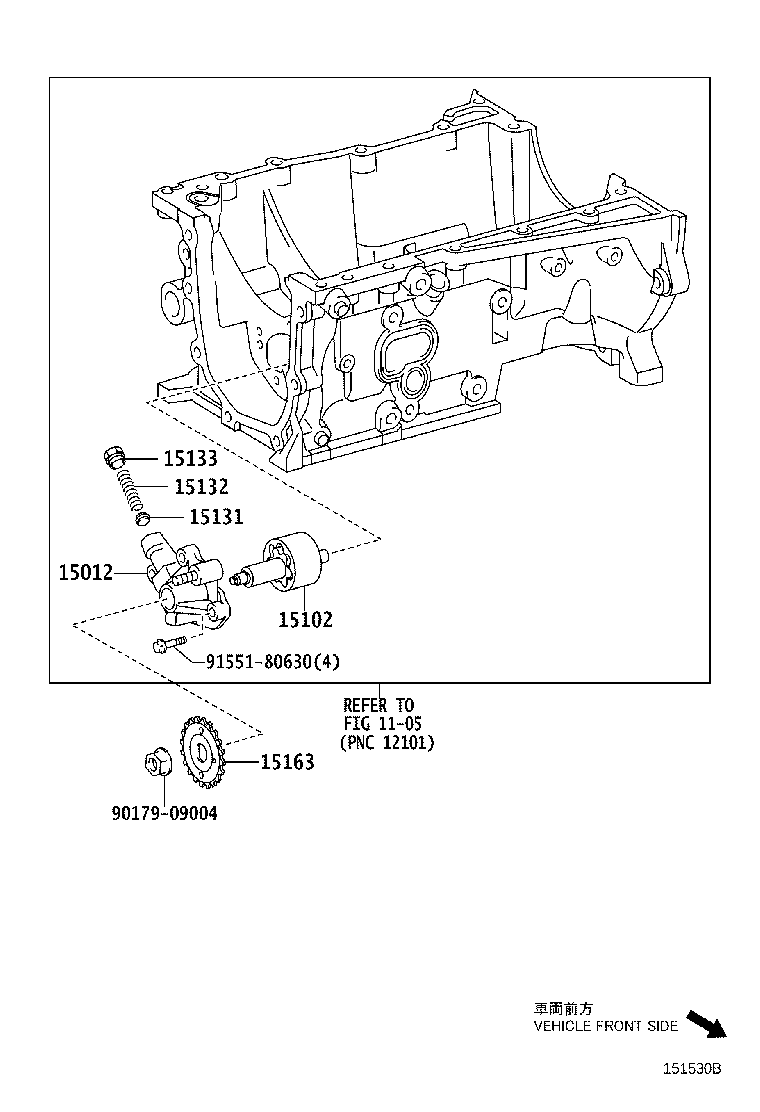

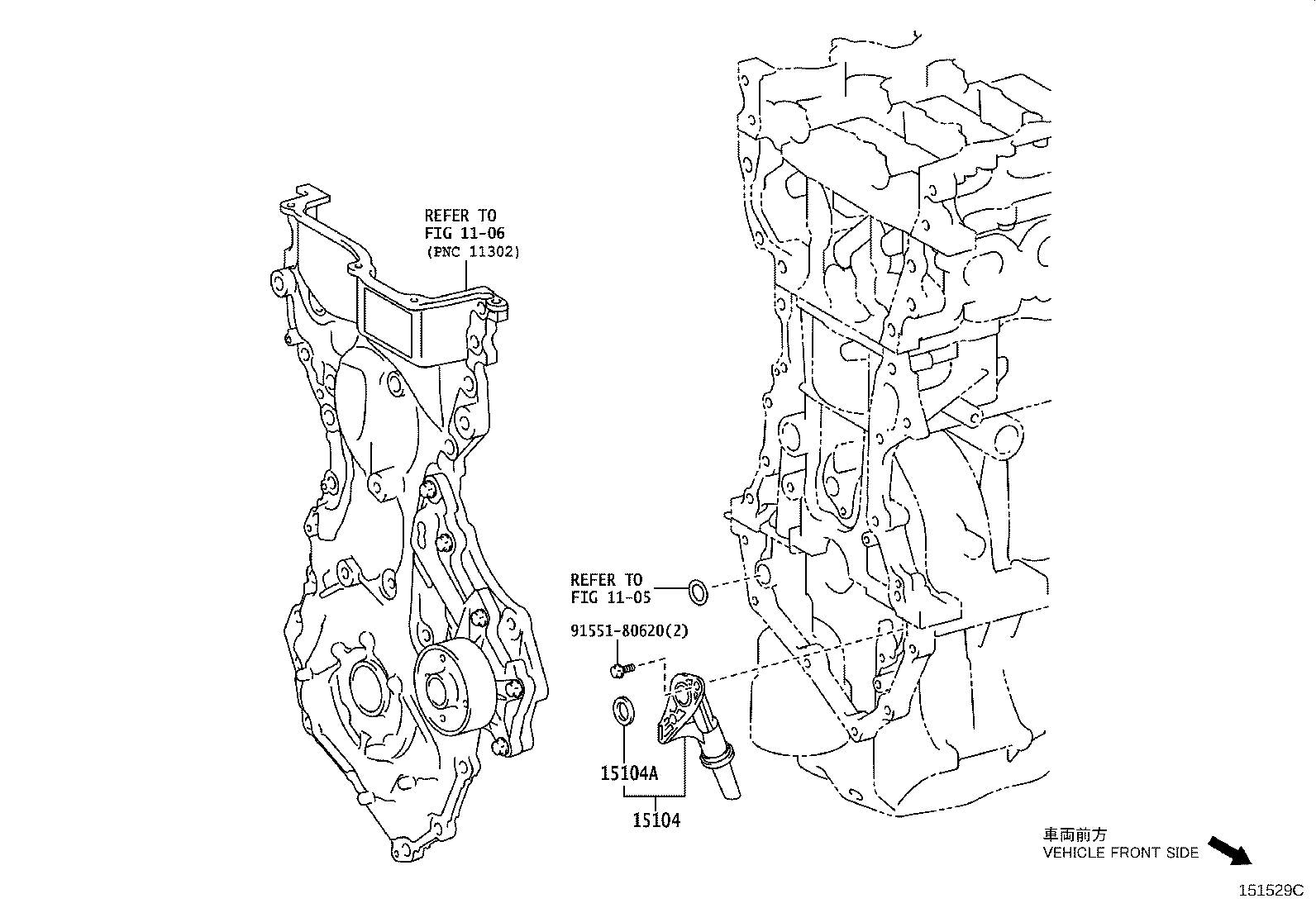

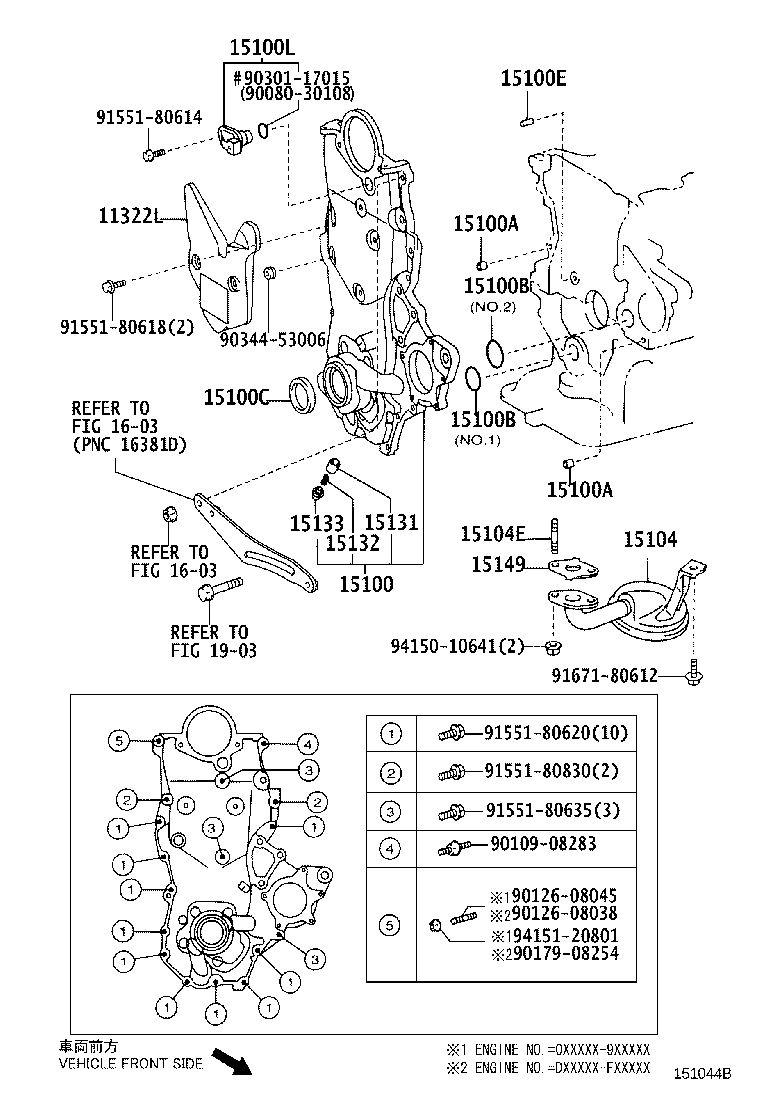

Figure 151043D 151043D 2005-11 → — Figure 151044B 151044B 2005-11 → 2008-11 Figure 151530B 151530B 2008-11 → — Figure 151529C 151529C 2008-11 → — Figure 151039A 151039A 2005-11 → —

Part groups

PNCDescription
11322L Cover, Timing Chain, NO.2
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100E Pin, Straight (FOR OIL PUMP SET)
15100L Sensor, Cam Position
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
