Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01
Oil Filter
13 part groups · 5 illustrations
Part groups

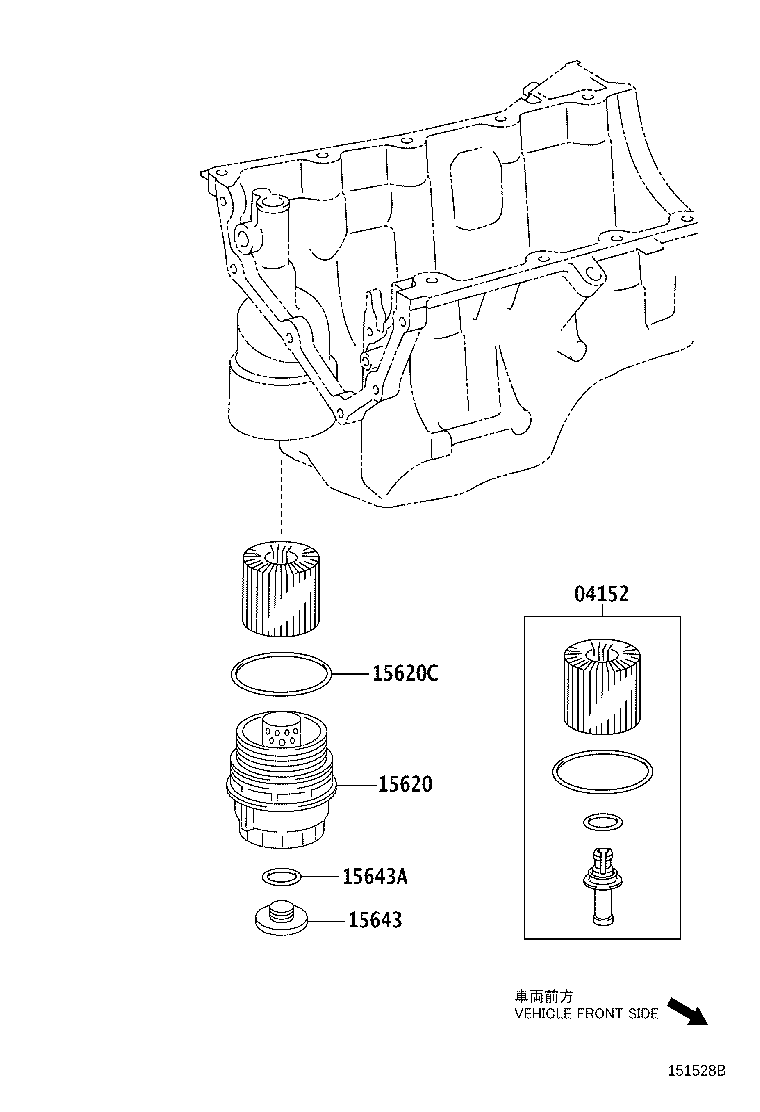

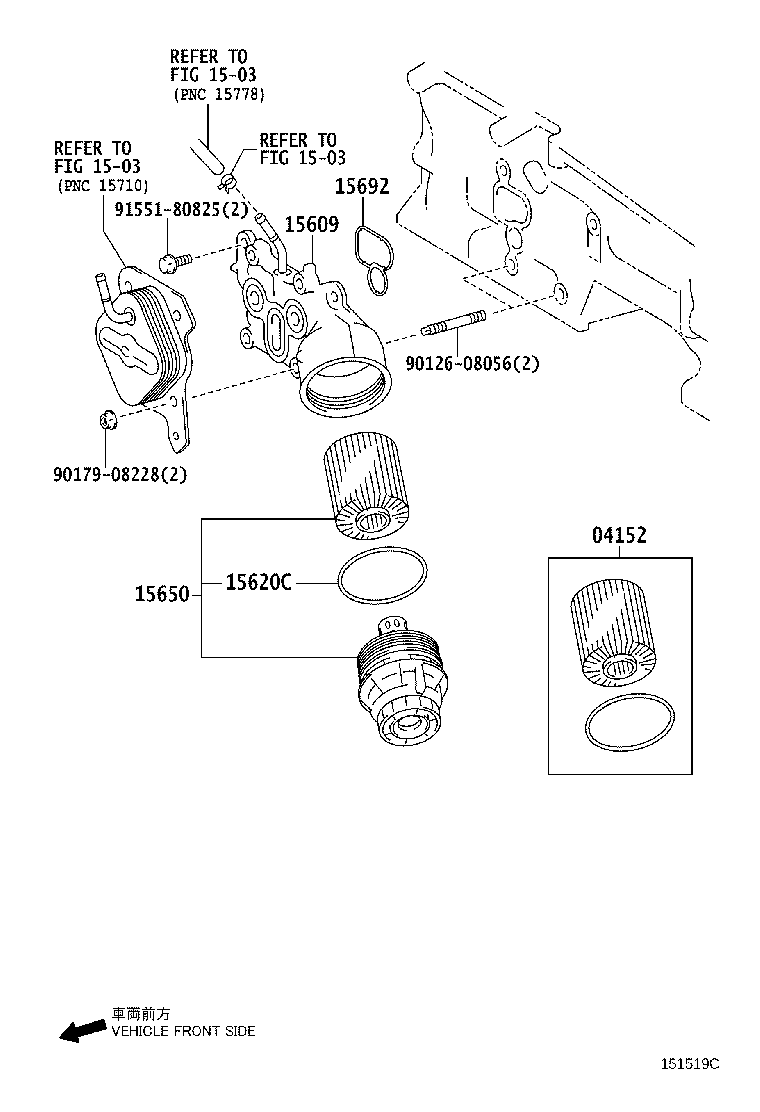

| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
| 15650 | Cap Assy, Oil Filter W/Elememt |
| 15671 | Bracket, Oil Filter |
| 15671B | Gasket, Oil Filter Bracket |
| 15692 | Gasket, Oil Filter Bracket |
| 15770B | Pipe Assy, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
