Factory parts data · General

Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

4 part groups · 5 illustrations

Illustrations

Figure 163638C

163638C 2005-11 → —

Figure 162515A

162515A 2005-11 → 2008-11

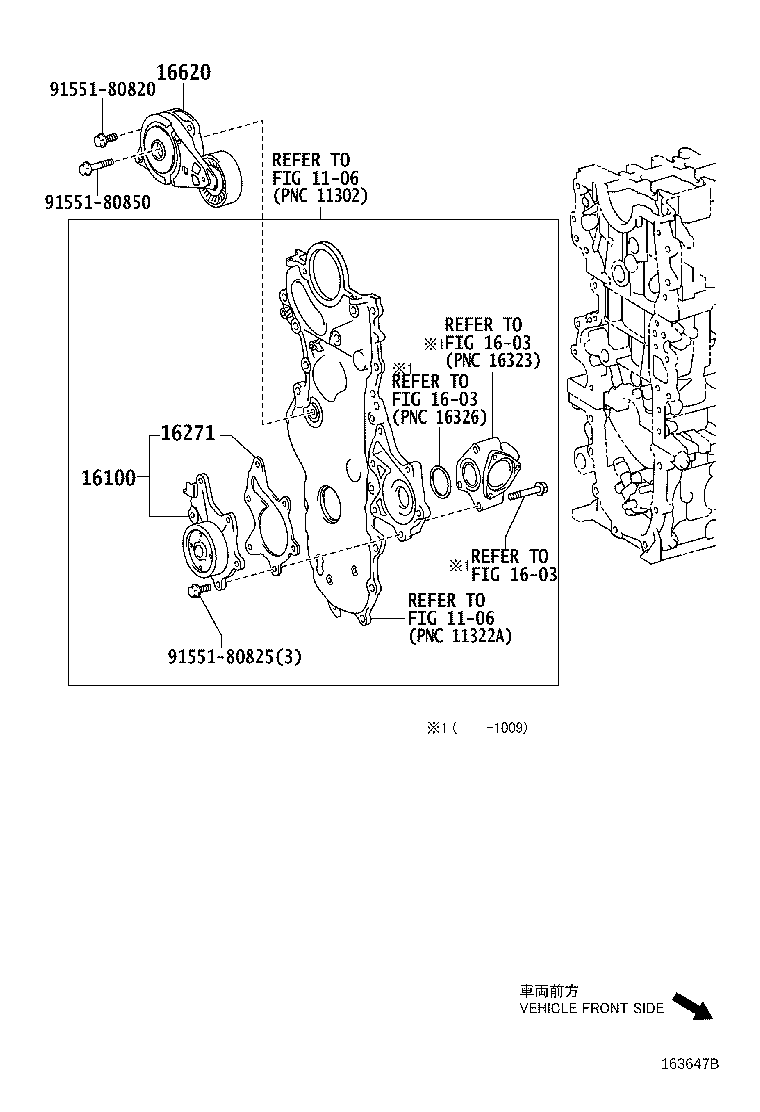

Figure 163647B

163647B 2008-11 → —

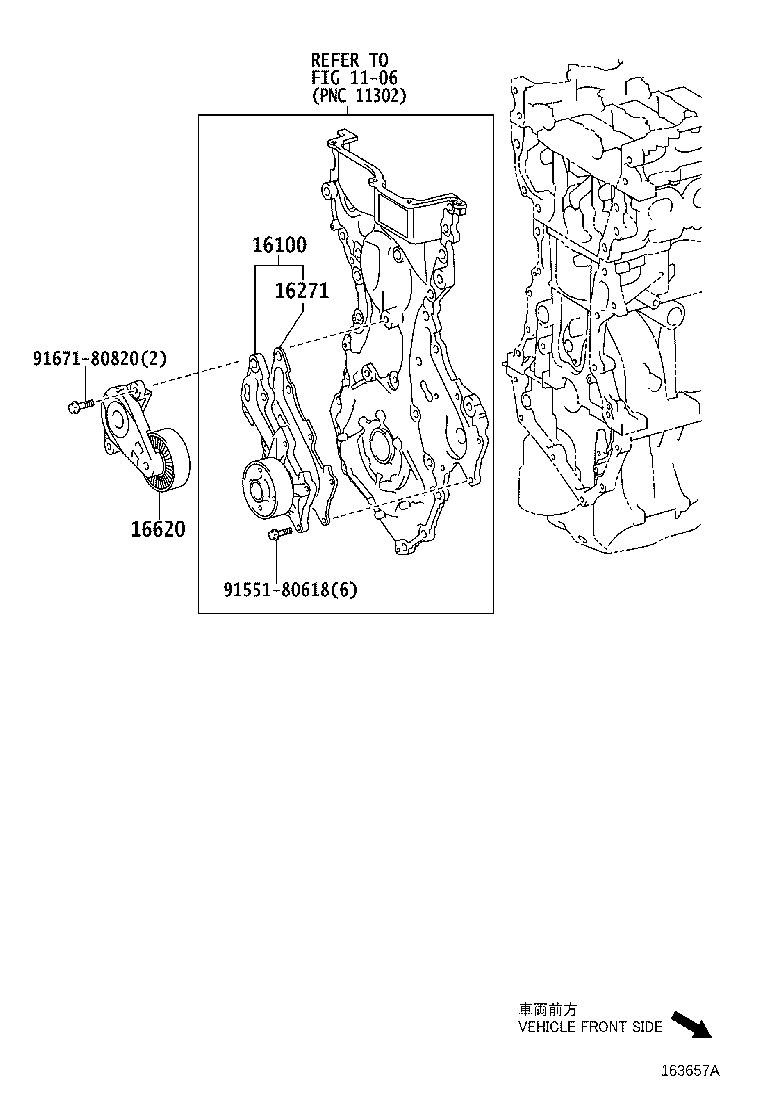

Figure 163657A

163657A 2008-11 → —

Figure 162510A

162510A 2005-11 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
