Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 7 illustrations

Illustrations

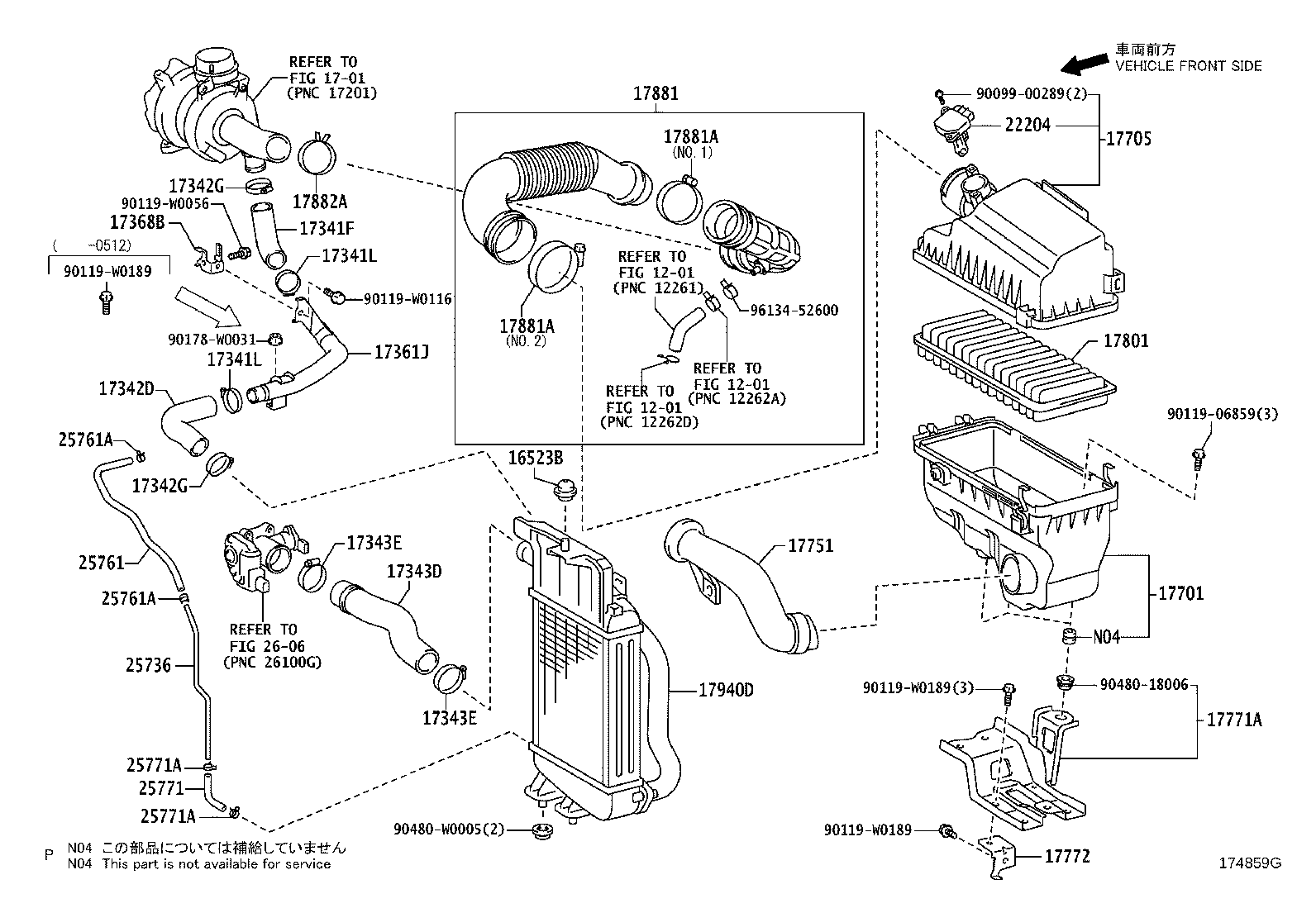

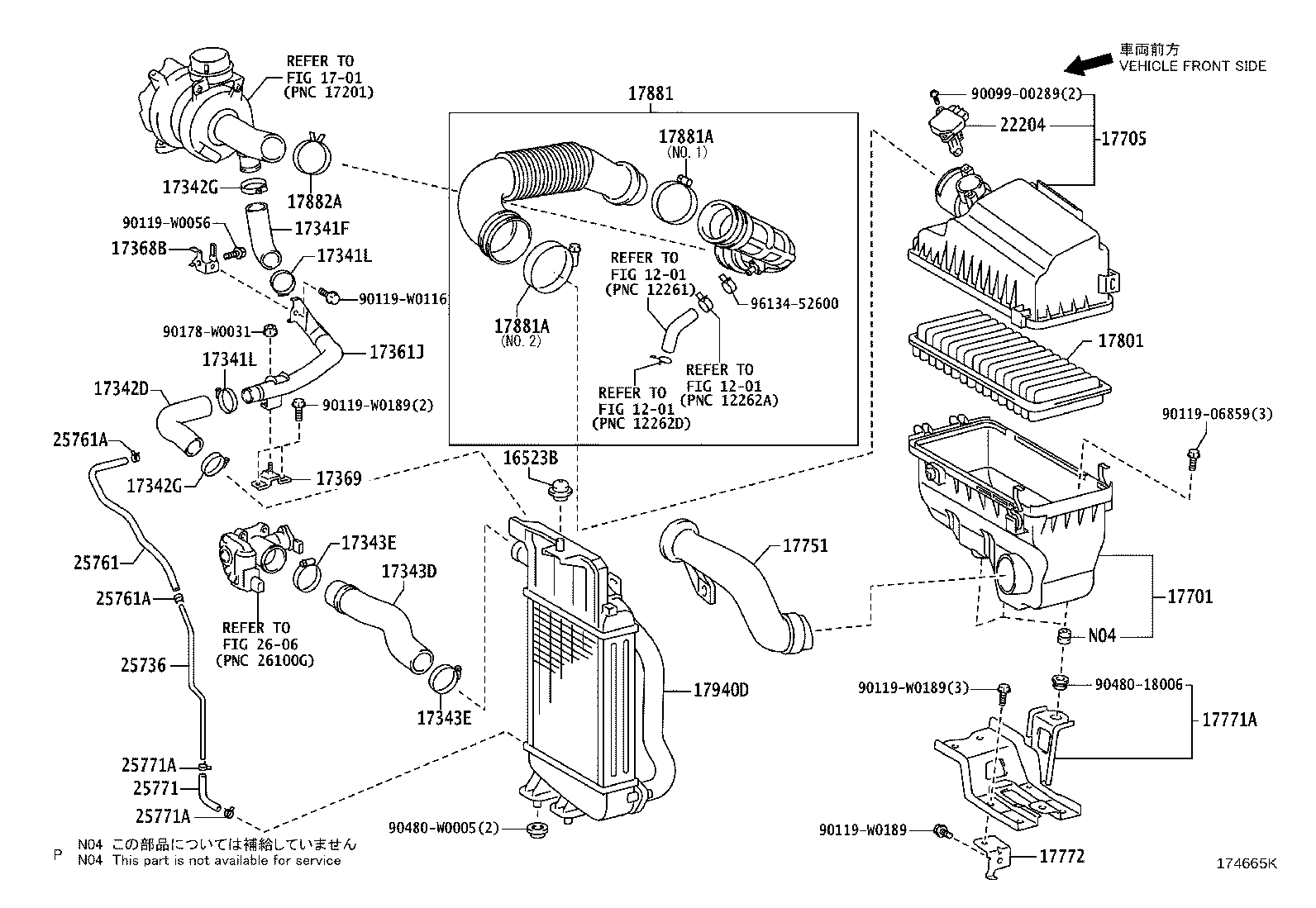

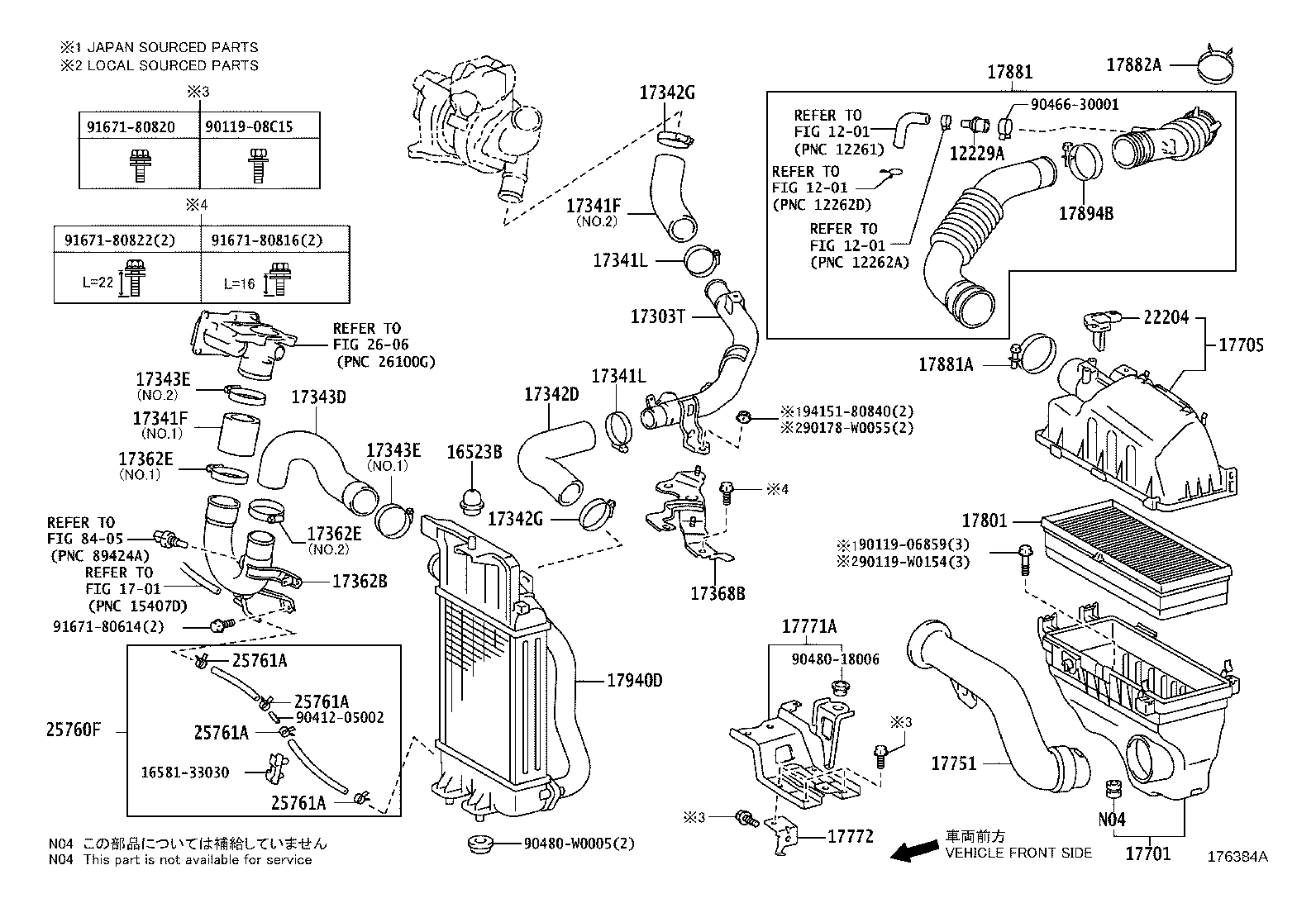

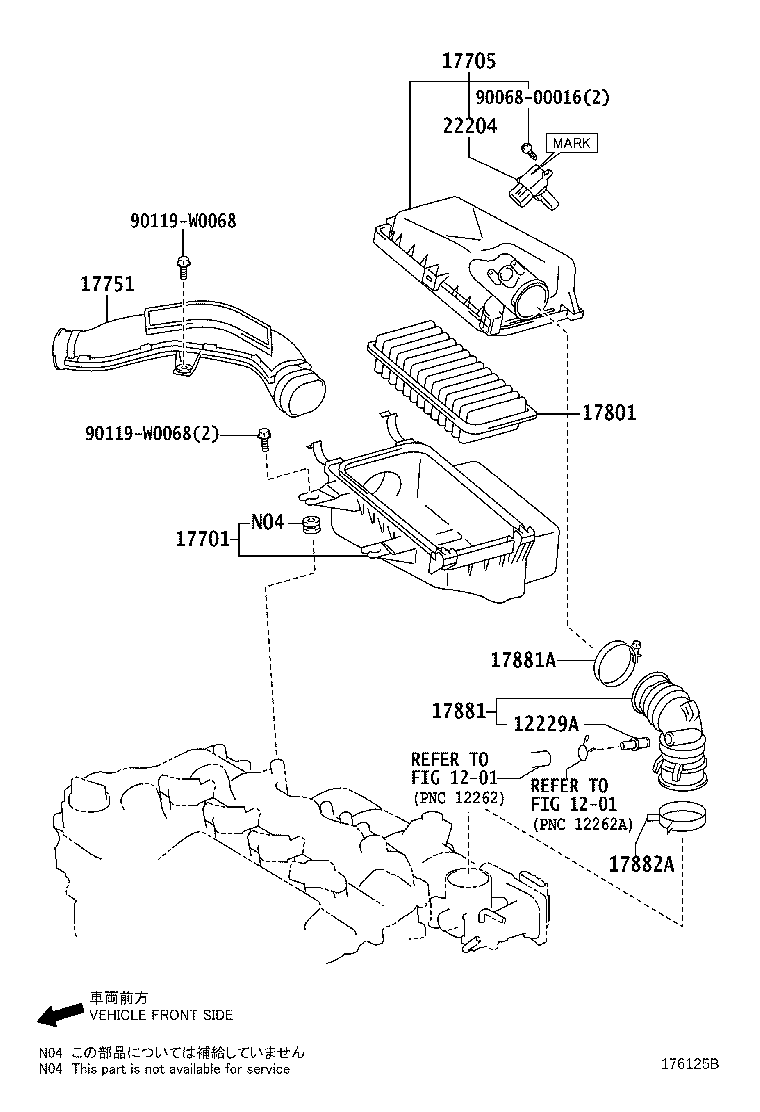

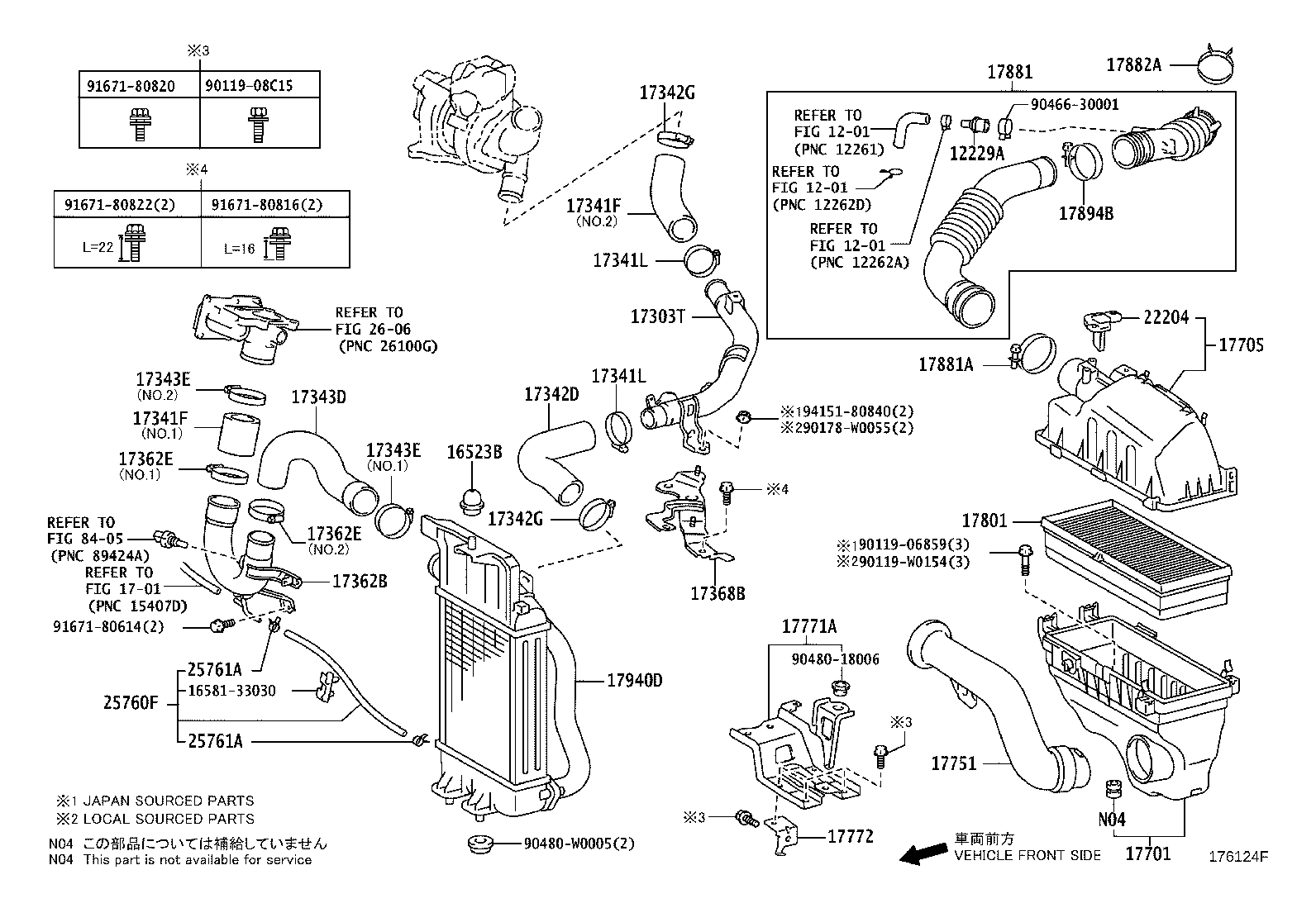

Figure 174362D 174362D 2005-11 → — Figure 174859G 174859G 2005-11 → 2008-11 Figure 174665K 174665K 2005-11 → 2008-11 Figure 176124F 176124F 2008-11 → 2008-12 Figure 176384A 176384A 2008-12 → — Figure 176125B 176125B 2008-11 → — Figure 174661A 174661A 2005-11 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
16523B Cushion, Radiator Support
17303T Pipe Sub-assy, Air
17341F Hose, Air, NO.1
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17368B Support, Air Tube
17369 Bracket, Air Tube Support
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17716 Support,Air Cleaner Cap
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17772 Bracket, Intake Air Connector, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
25736 Pipe, Vacuum Transmitting, NO.1
25760F Hose Assy, Vacuum Transmitting
25761 Hose, Vaccum Transmitting, NO.1
25761A Clip(VACCUM TRANSMITTING HOSE NO.1)
25771 Hose, Vaccum Transmitting, NO.2
25771A Clip(VACCUM TRANSMITTING HOSE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
