Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

11 part groups · 5 illustrations

Illustrations

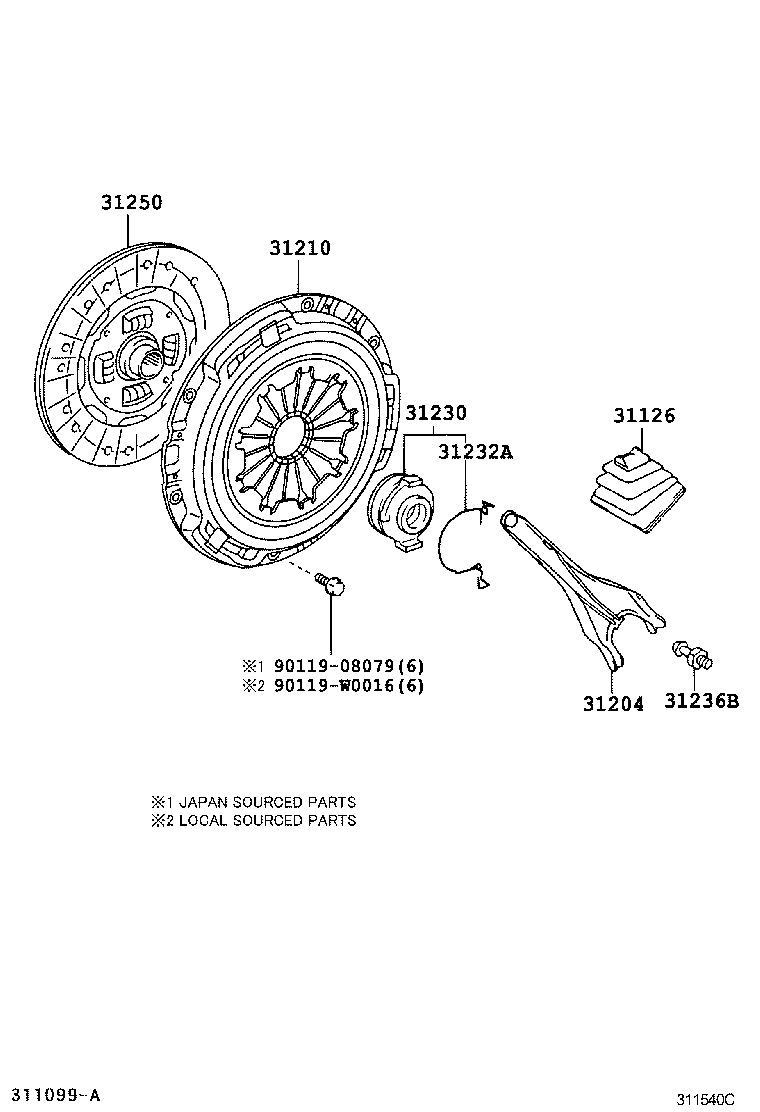

Figure 311542E 311542E 2005-11 → — Figure 311543A 311543A 2005-11 → — Figure 311540C 311540C 2005-11 → 2008-11 Figure 311541A 311541A 2005-11 → 2008-11 Figure 312110A 312110A 2008-11 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31233 Fork, Clutch Release
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31247 Lever, Clutch Release Fork
31250 Disc Assy, Clutch
31250B Disc Set, Adjustable Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
