Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01

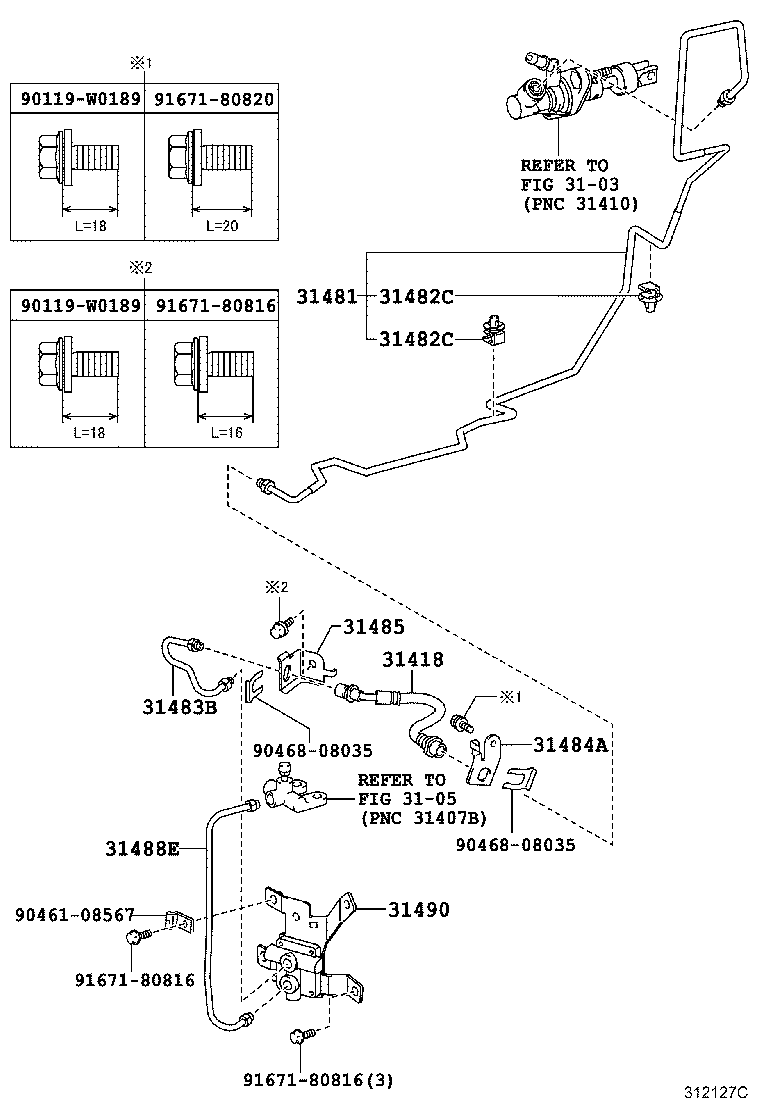

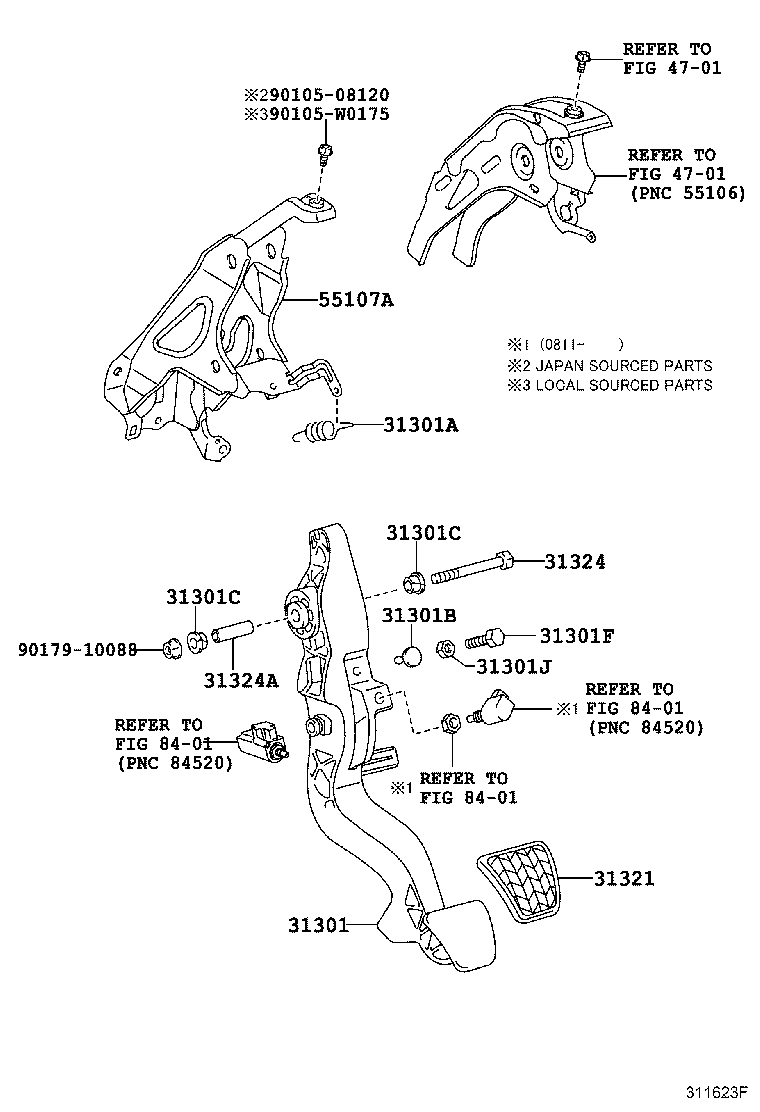

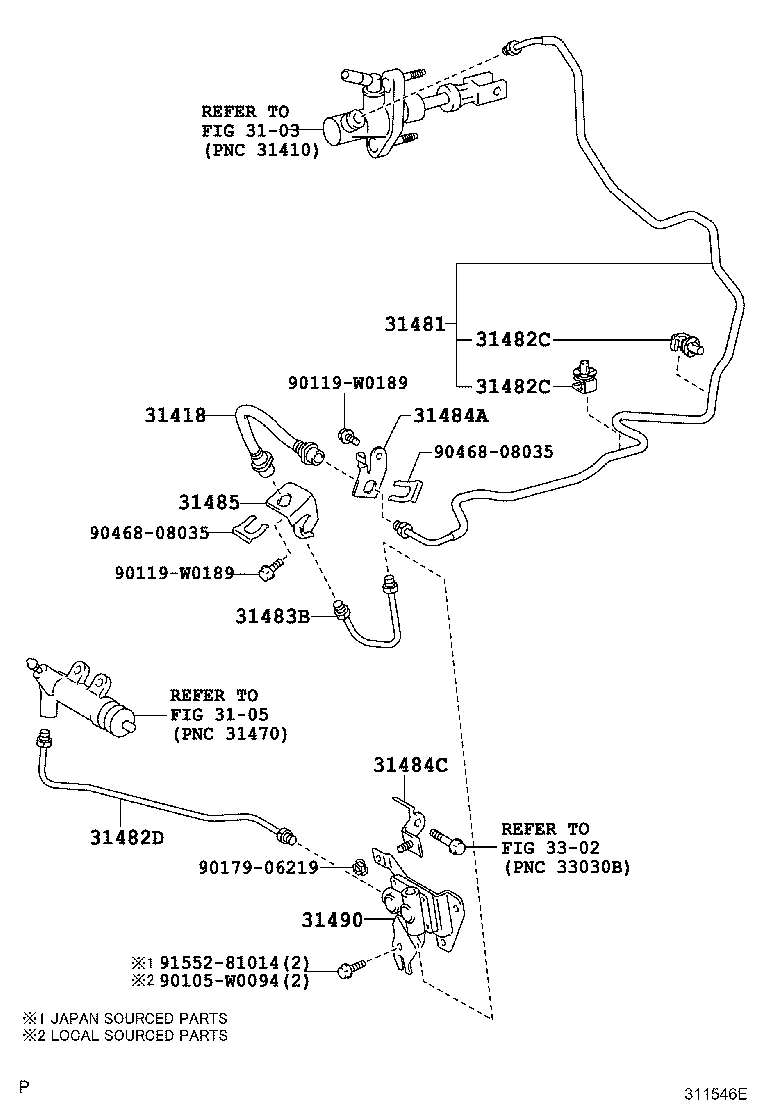

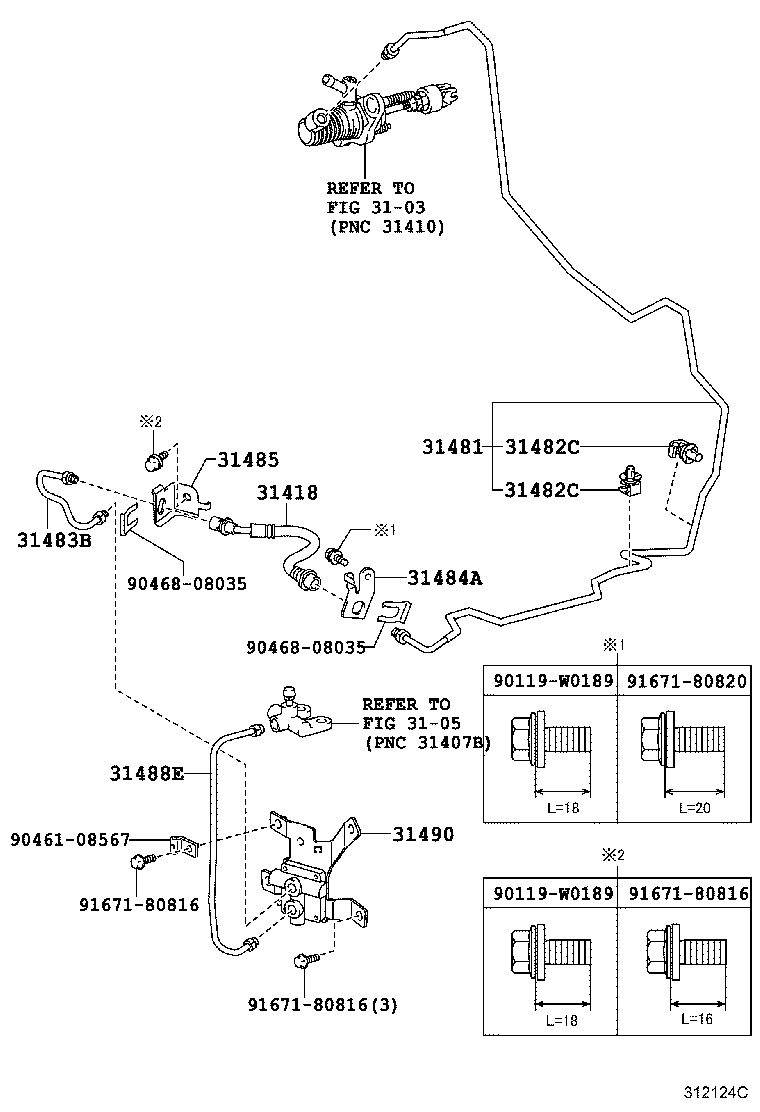

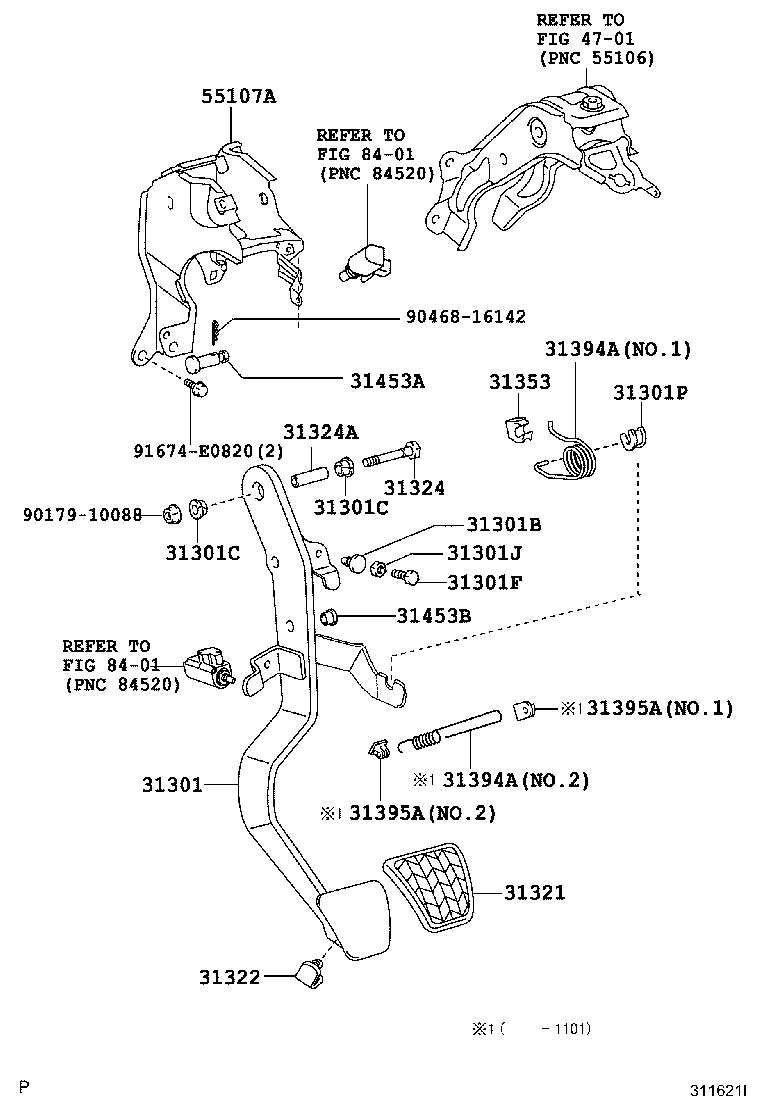

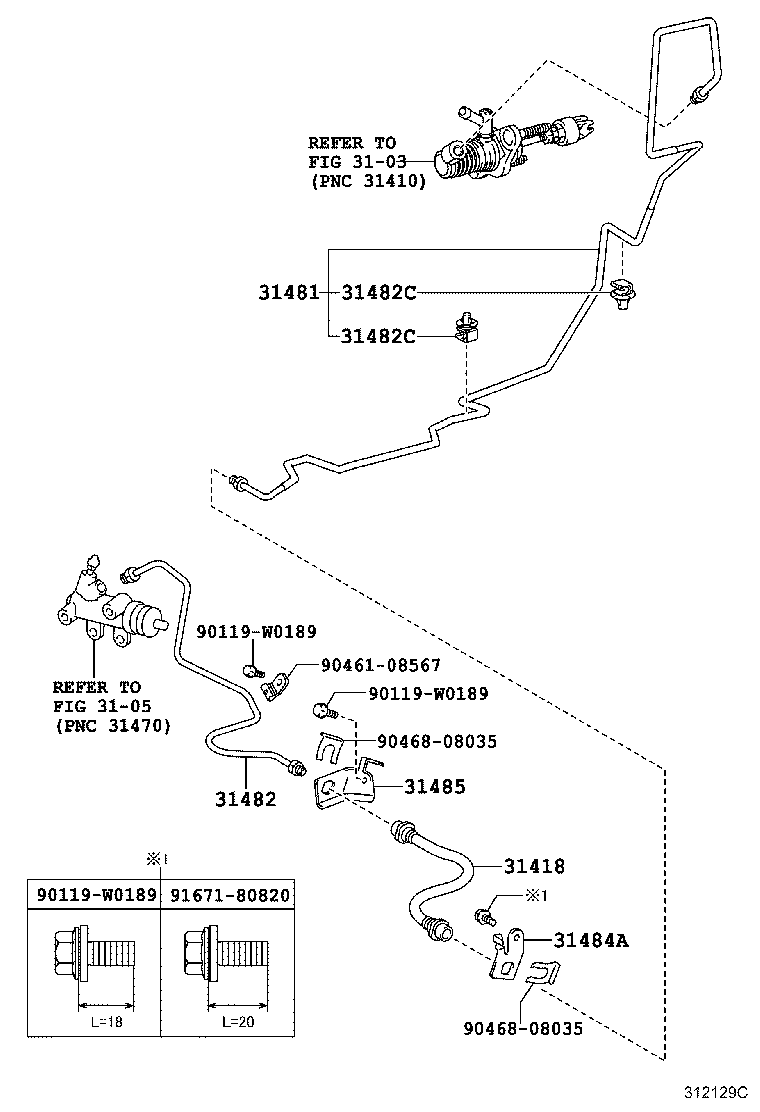

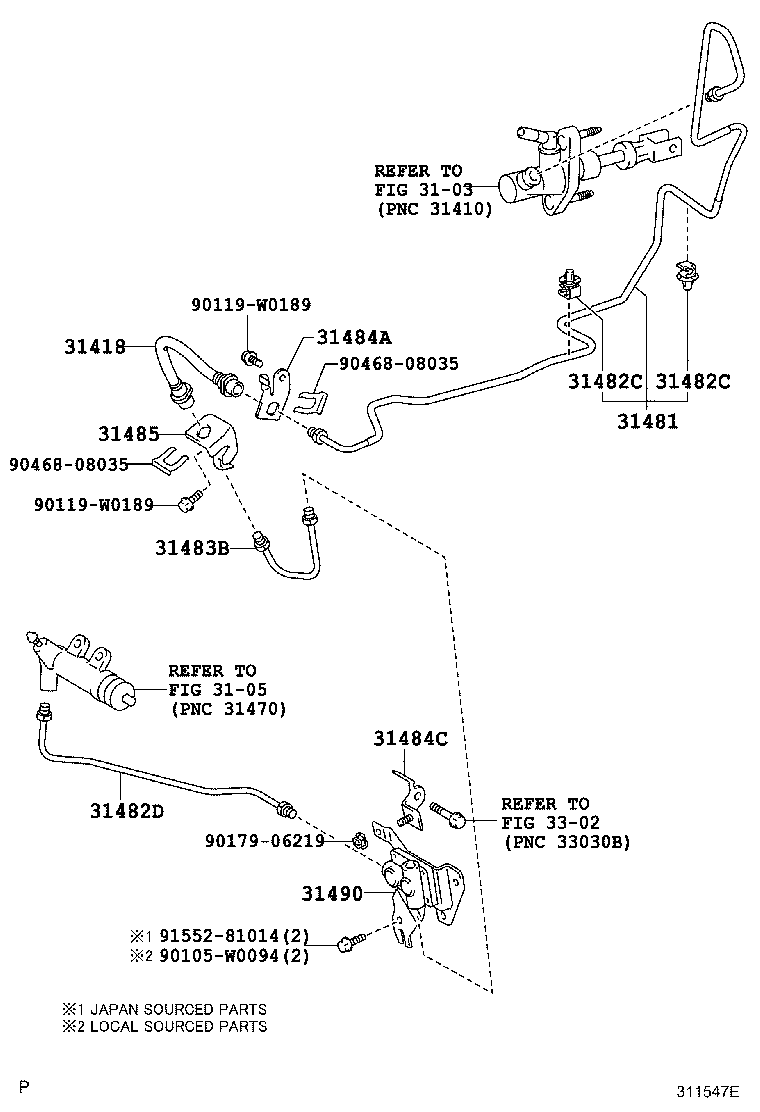

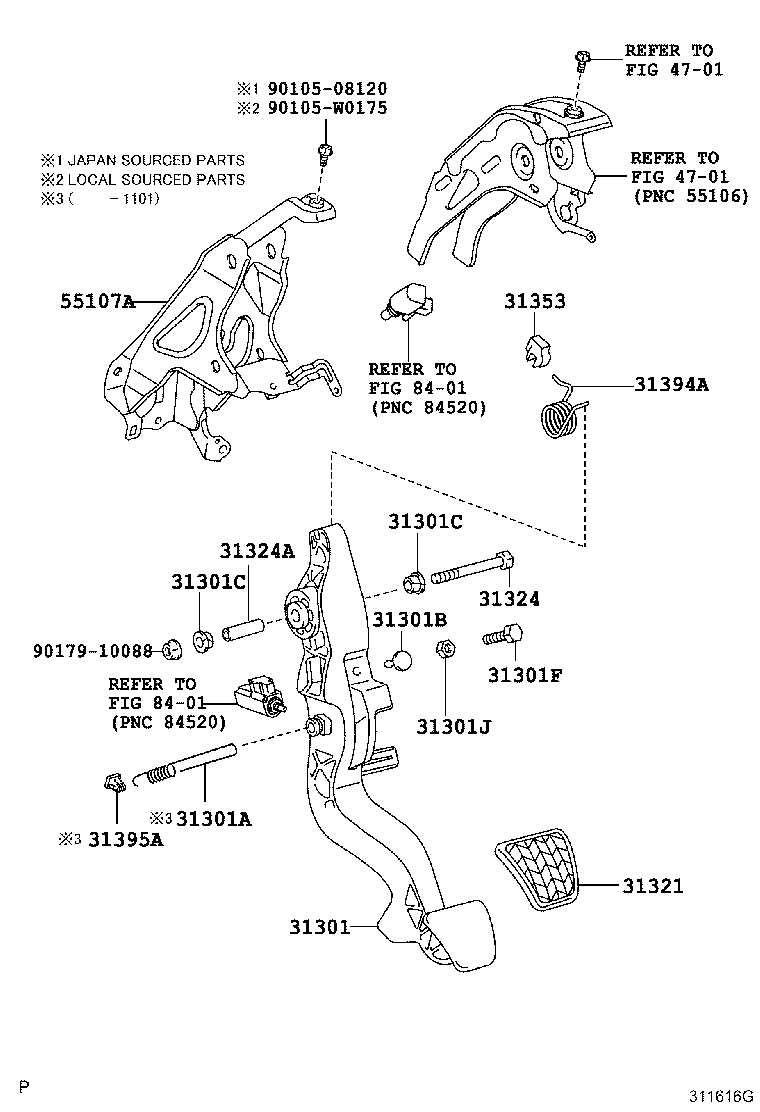

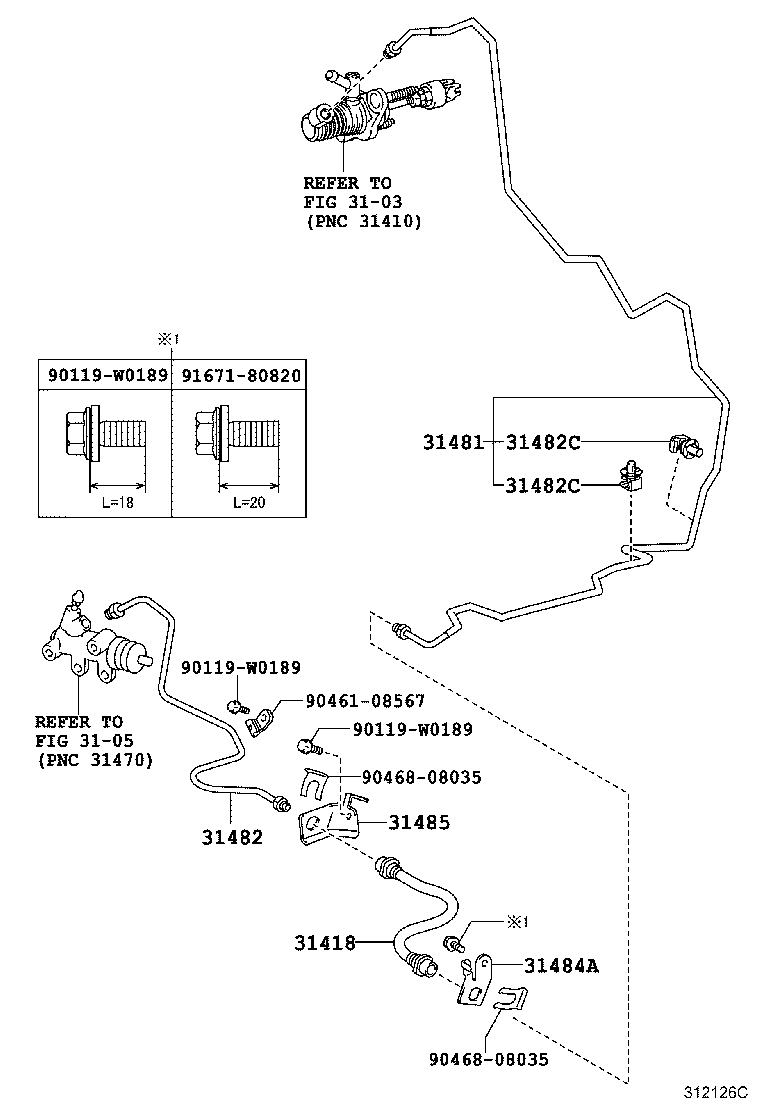

Clutch Pedal & Flexible Hose
28 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31321 | Pad, Clutch Pedal |
| 31322 | Stopper, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31394A | Spring, Pedal W/Hook |
| 31395A | Hook, Pedal Spring, NO.1 |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482C | Clamp(FOR CLUTCH TUBE) |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31488E | Tube, Bleeder TO Accumulator |
| 31490 | Accumulator Assy, Clutch |
| 55107A | Support Sub-assy, Clutch Pedal |
