Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

11 part groups · 3 illustrations

Illustrations

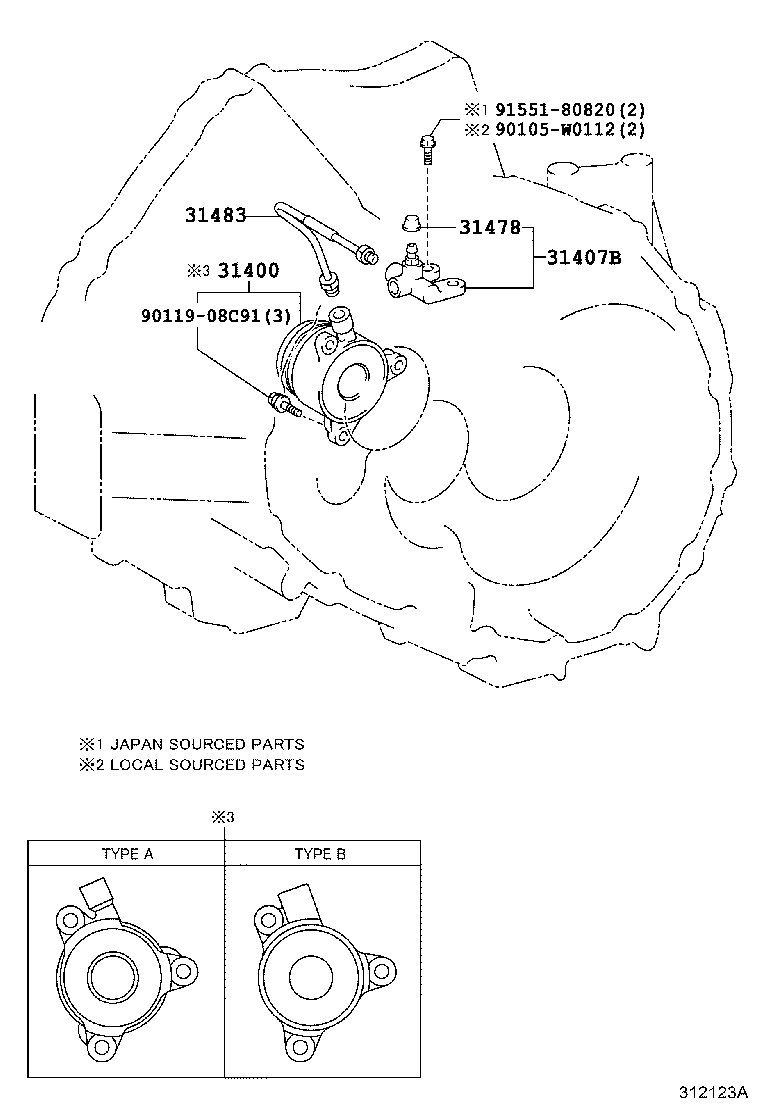

Figure 311491 311491 2005-11 → — Figure 311537 311537 2005-11 → 2008-11 Figure 312123A 312123A 2008-11 → —

Part groups

PNCDescription
04313 Cylinder Kit, Clutch Release
31400 Cylinder Assy, Clutch Release W/Bearing
31407B Bleeder Sub-assy, Clutch Release
31461 Insulator, Release Cylinder Heat
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31473 Rod, Clutch Release Cylinder Push, NO.1
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
31483 Tube, Bleeder Clutch Release
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
