Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01
Free Tronic
8 part groups · 3 illustrations

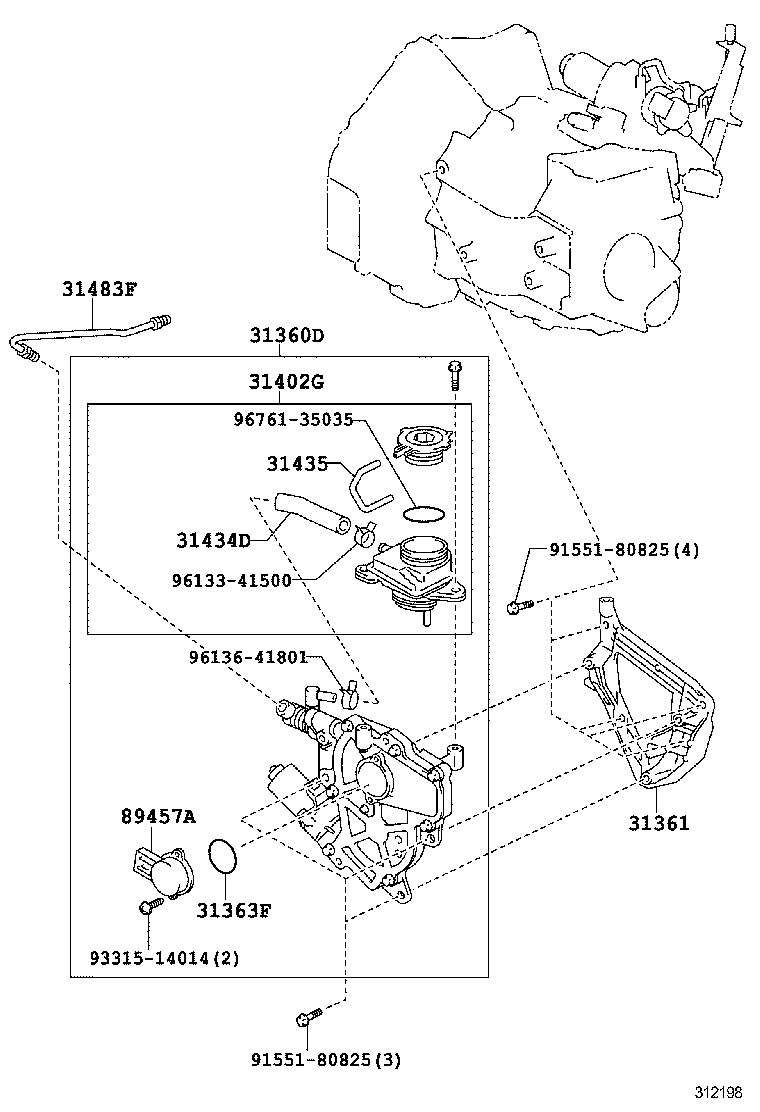

Part groups
| PNC | Description |
|---|---|
| 31360D | Actuator Assy, Clutch |
| 31361 | Bracket, Clutch Actuator, NO.1 |
| 31363F | Ring, O(FOR CLUTCH ACTUATOR ACCUMULATOR) |
| 31402G | Reservoir Set, Master Cylinder |
| 31434D | Tube, Clutch Reservoir |
| 31435 | Tube, Clutch Reservoir, NO.2 |
| 31483F | Tube, Bleeder Clutch Release |
| 89457A | Stroke Sensor, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
