Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle

5 part groups · 3 illustrations

Illustrations

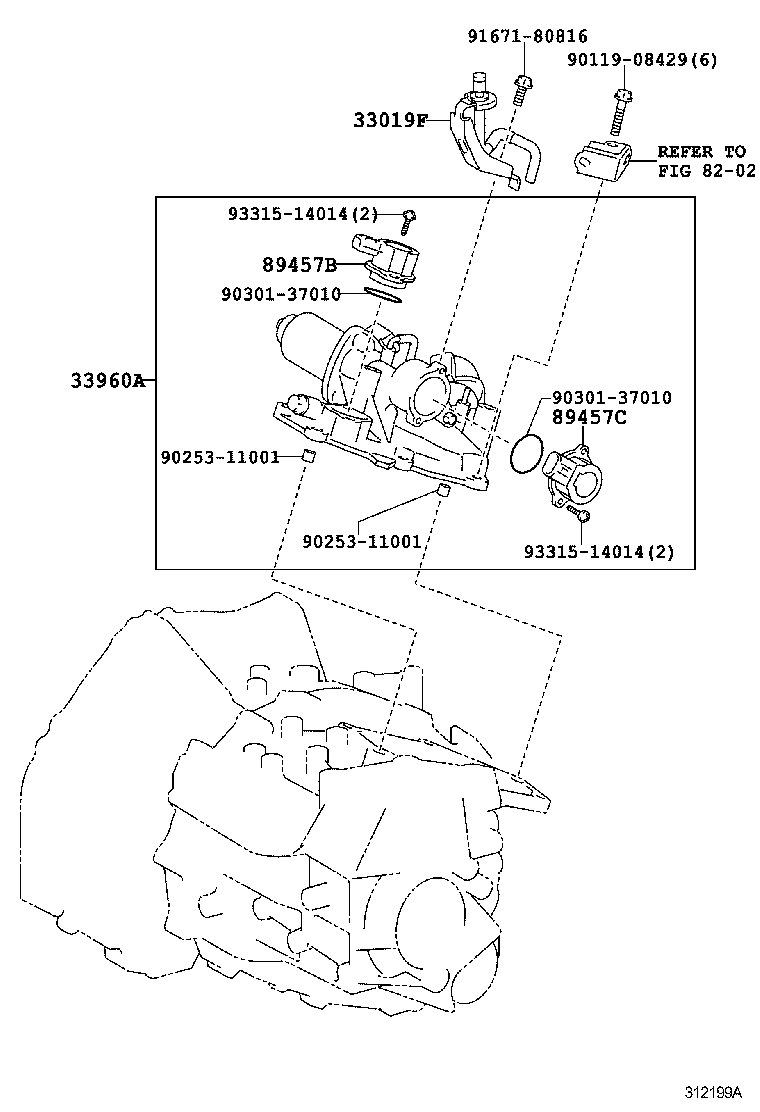

Figure 312134 312134 2005-11 → — Figure 312223A 312223A 2005-11 → 2008-11 Figure 312199A 312199A 2009-02 → —

Part groups

PNCDescription
33019F Breather Sub-assy, Transmission
33960A Actuator Assy, Shift & Select
33960B Breather Plug, Shift & Select Actuator
89457B Stroke Sensor, Shift
89457C Stroke Sensor, Select
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
